ASUS NUC 13 Pro Kit UCFF PC - Intel Core i5-1340P 90AB3ANK-MR6100

ASUS NUC 13 Pro Kit UCFF PC - Intel Core i5-1340P 90AB3ANK-MR6100

Features

• Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
• Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
• Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays

Business Driver. Space Saver.

NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.

The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.

Technical Specification

Product: ASUS NUC 13 Pro Kit RNUC13ANKi50000

Chassis type: NUC

Product type: Barebone Mini PC

Processor family: 13th Generation Intel Core i5

Processor model: i5-1340P, cTDP 20W

Processor frequency: 3.40 / 4.60 GHz (12MB Cache, 12 Cores)

Internal memory: Optional

Supported memory type: Dual-channel, DDR4, 3200 MHz, Up to 64 GB (32 GB x 2)

Total storage capacity: Optional

Supported storage media: 1x M.2 2280 PCIe Gen4x4 SSD ; 1x SATA 2.5" 6Gb/s

Onboard graphics card model: up to Intel Iris Xe Graphics

Connectivity: Wi-Fi 6E + Bluetooth 5.3

Operating system installed: Optional

Product colour: Black

Power supply: 20VDC, 6.0A, 120W Power Adapter

Weight: Starting at 502g

Slim Chassis: 117 x 112 x 37 mm

Warranty: 3-Year Carry-In

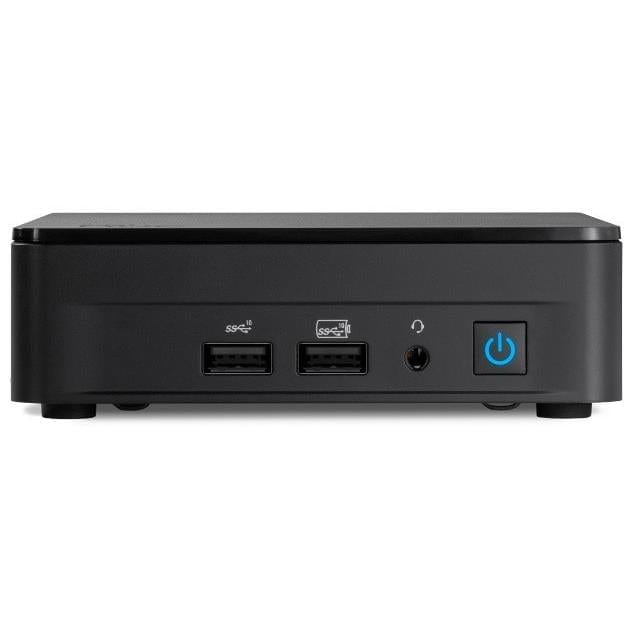

Front(Side) Ports

• 2x USB 3.2 Gen2 Type-A
• 1x 3.5mm Headset Jack
• 1x Kensington Lock

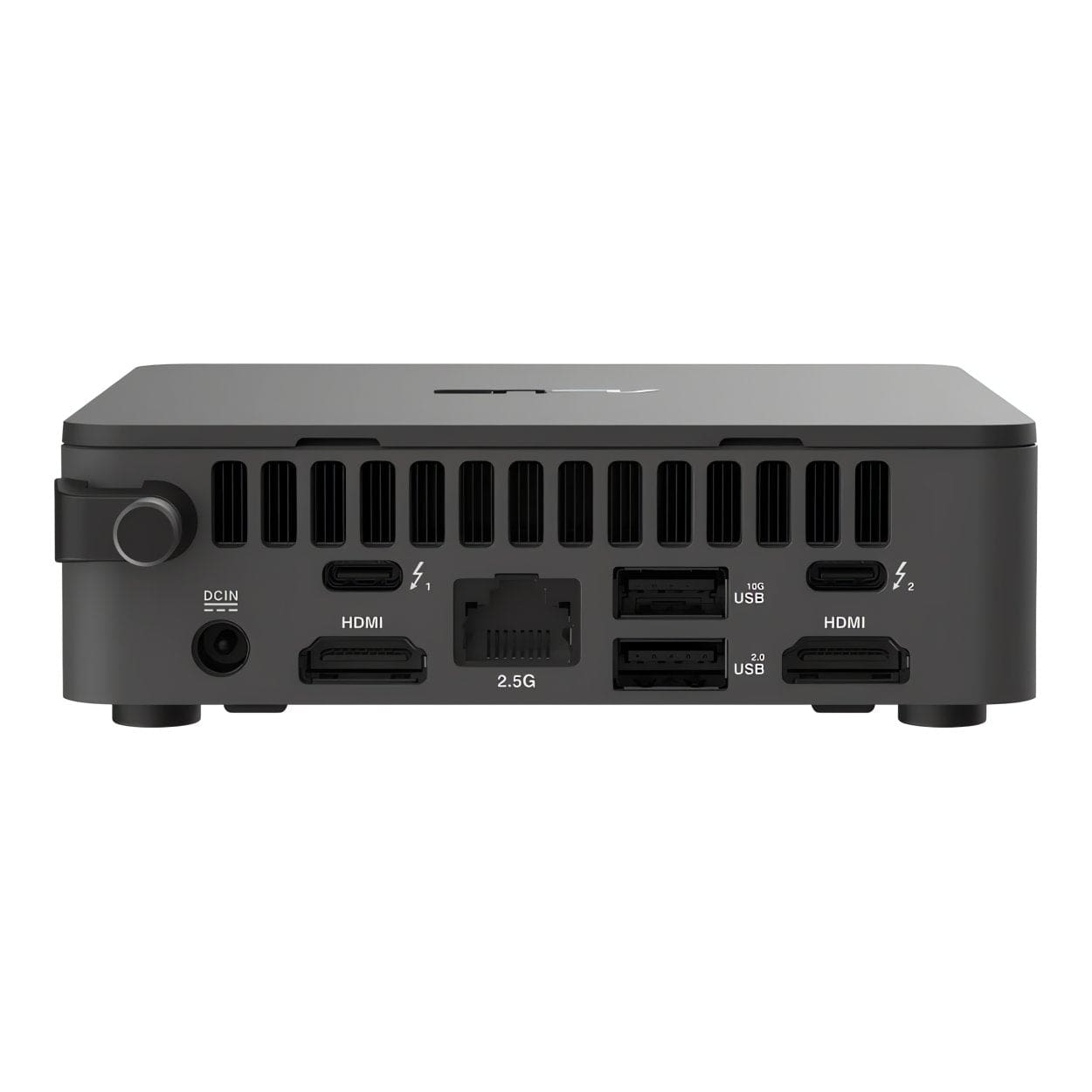

Back Ports

• 2x Thunderbolt 4 Type-C w/ DisplayPort 1.4
• 1x USB 3.2 Gen 2 Type-A
• 1x USB 2.0 Type-A
• 2x HDMI 2.1 (TMDS)
• 1x 2.5G RJ45 LAN
• 1x DC-in
