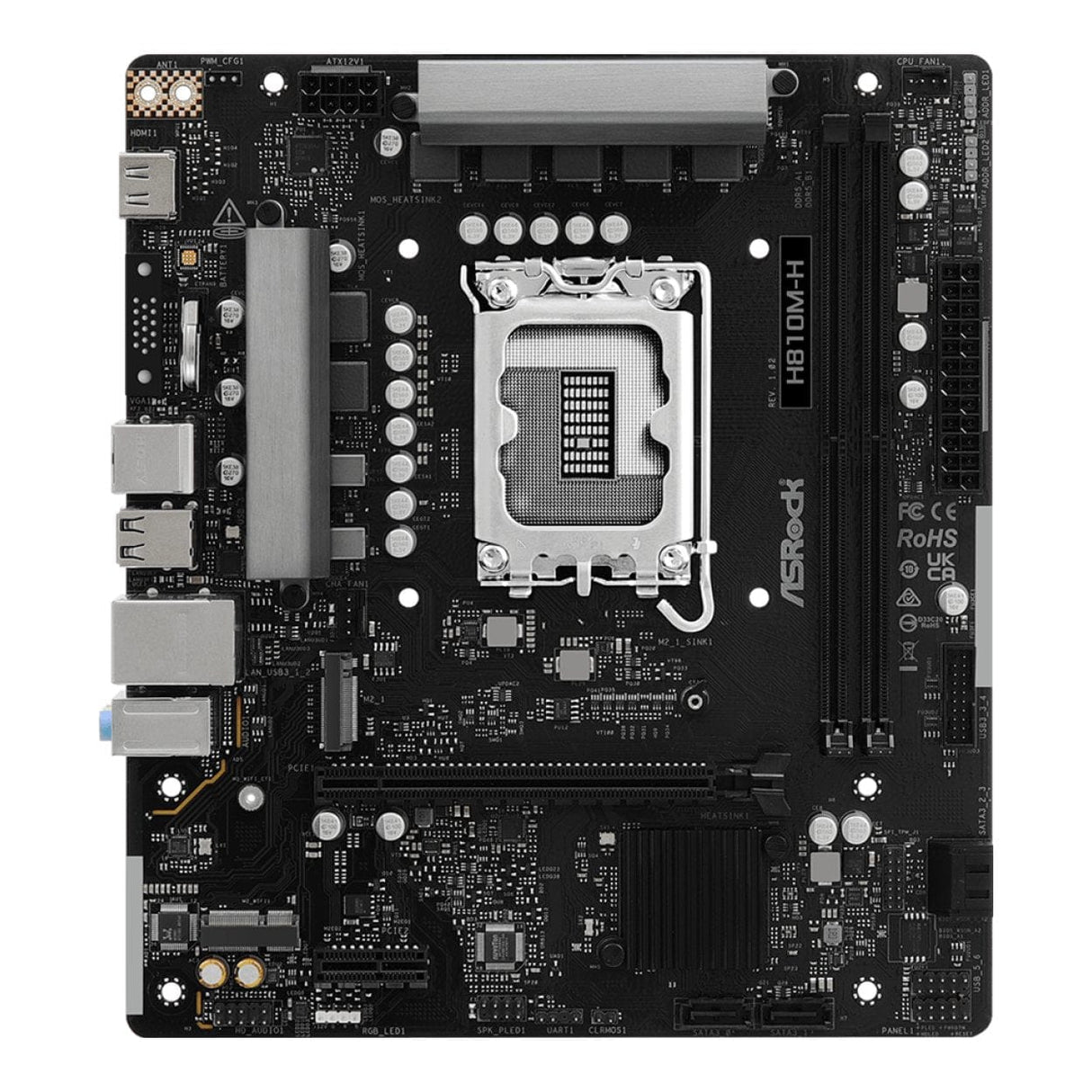

Asrock H810M-H Intel LGA 1851 Micro ATX Motherboard

Asrock H810M-H Intel LGA 1851 Micro ATX Motherboard

Harness the Power of Intel’s Latest CPUs with an ASRock Motherboard

The ASRock H810M-H micro ATX motherboard is engineered to support the newest Intel LGA1851 processors, providing a robust foundation for your next PC build. Designed for both gamers and professionals, this ASRock motherboard ensures seamless performance and reliability, allowing you to tackle demanding tasks with ease.

Features:

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 6+1+1+1+1 Power Phase
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 6400
• 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
• 1 Hyper M.2 (PCIe Gen4x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

Compact Micro ATX Form Factor

With its Micro ATX form factor, the ASRock H810M-H strikes the perfect balance between size and functionality. Ideal for smaller cases, this micro ATX motherboard doesn’t compromise on features, offering ample connectivity and expansion options for a versatile computing experience.

Immersive Visual Experience with HDMI

Featuring an HDMI output, the ASRock H810M-H delivers stunning visuals for gaming, streaming, and content creation. Enjoy high-definition clarity and vibrant colours, bringing your entertainment and work to life on compatible displays.

Unleash Multitasking with 128GB Memory Support

Supporting up to 128GB of system memory, this ASRock motherboard enables you to run multiple applications simultaneously without lag. Whether you’re editing videos, playing the latest games, or working on complex projects, the ASRock H810M-H ensures smooth and responsive performance.

High-Definition Audio for Crystal-Clear Sound

Equipped with high-definition audio jacks, including Line in, Front Speaker, and Microphone ports, the ASRock H810M-H provides an immersive audio experience. Enjoy clear and crisp sound for gaming, music, and video conferencing, enhancing your overall computing experience.

Technical Specifications:

CPU

Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology

Supports Intel® Thermal Velocity Boost (TVB)

Supports Intel® Adaptive Boost Technology (ABT)

Integrated NPU for dedicated AI acceleration

Chipset:

Intel® H810

Memory

Dual Channel DDR5 Memory Technology

2 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 6400*

Supports Clocked Unbuffered DIMM (CUDIMM)

Max. capacity of system memory: 128GB*

Supports Intel® Extreme Memory Profile (XMP) 3.0x*

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.

For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Intel® Xe LPG Graphics Architecture

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111H

Expansion Slots

CPU:

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

• 1 x PCIe 4.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module

* Supports NVMe SSD as boot disks

Storage

Chipset:

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

USB

Chipset:

• 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
• 6 x USB 2.0 (4 Rear, 2 Front)

* All USB ports support ESD Protection

Connector

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 2 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CHA_FAN1 supports the fan power up to 3A (36W).

CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

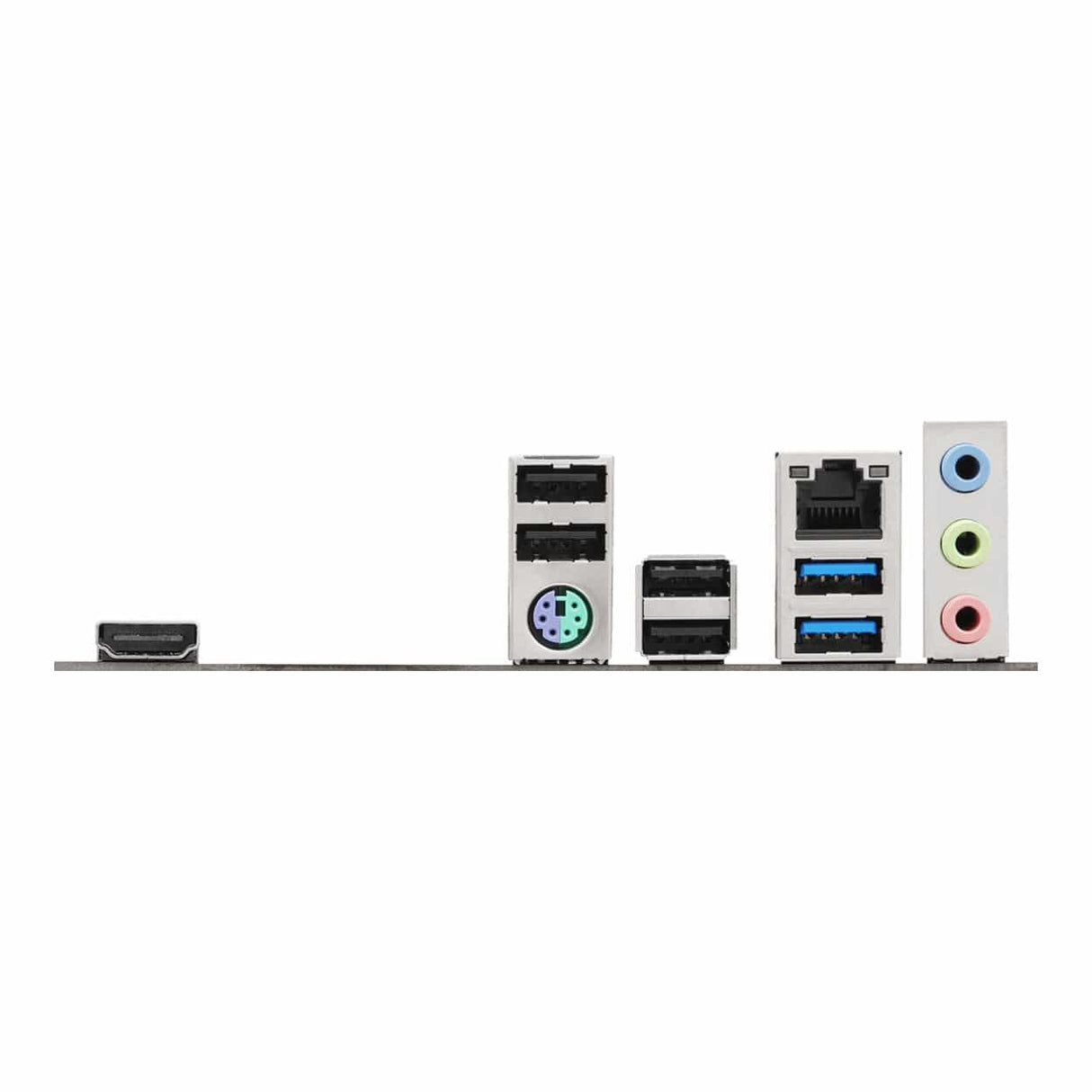

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 2 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock Motherboard Utility (A-Tuning)

ASRock Polychrome SYNC*

UEFI

ASRock EZ Mode

ASRock Full HD UEFI

ASRock My Favorites in UEFI

ASRock Auto Driver Installer

ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Form Factor

Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS

Microsoft Windows® 11 64-bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

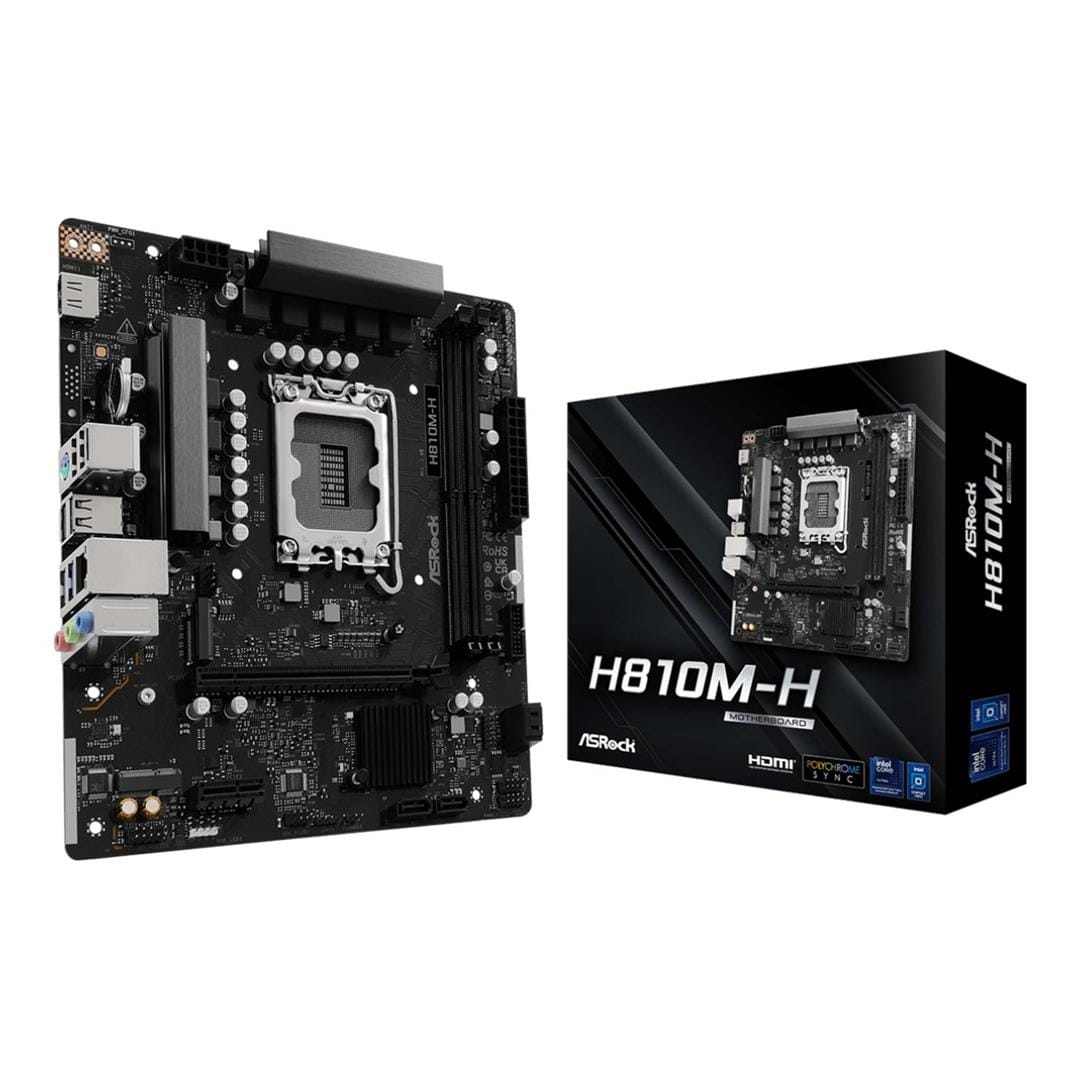

What's in the Box:

• ASRock H810M-H Intel LGA1851 Micro ATX Motherboard – Black x1
