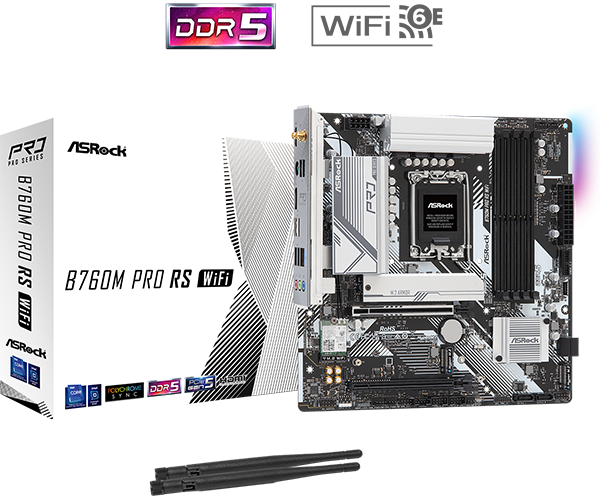

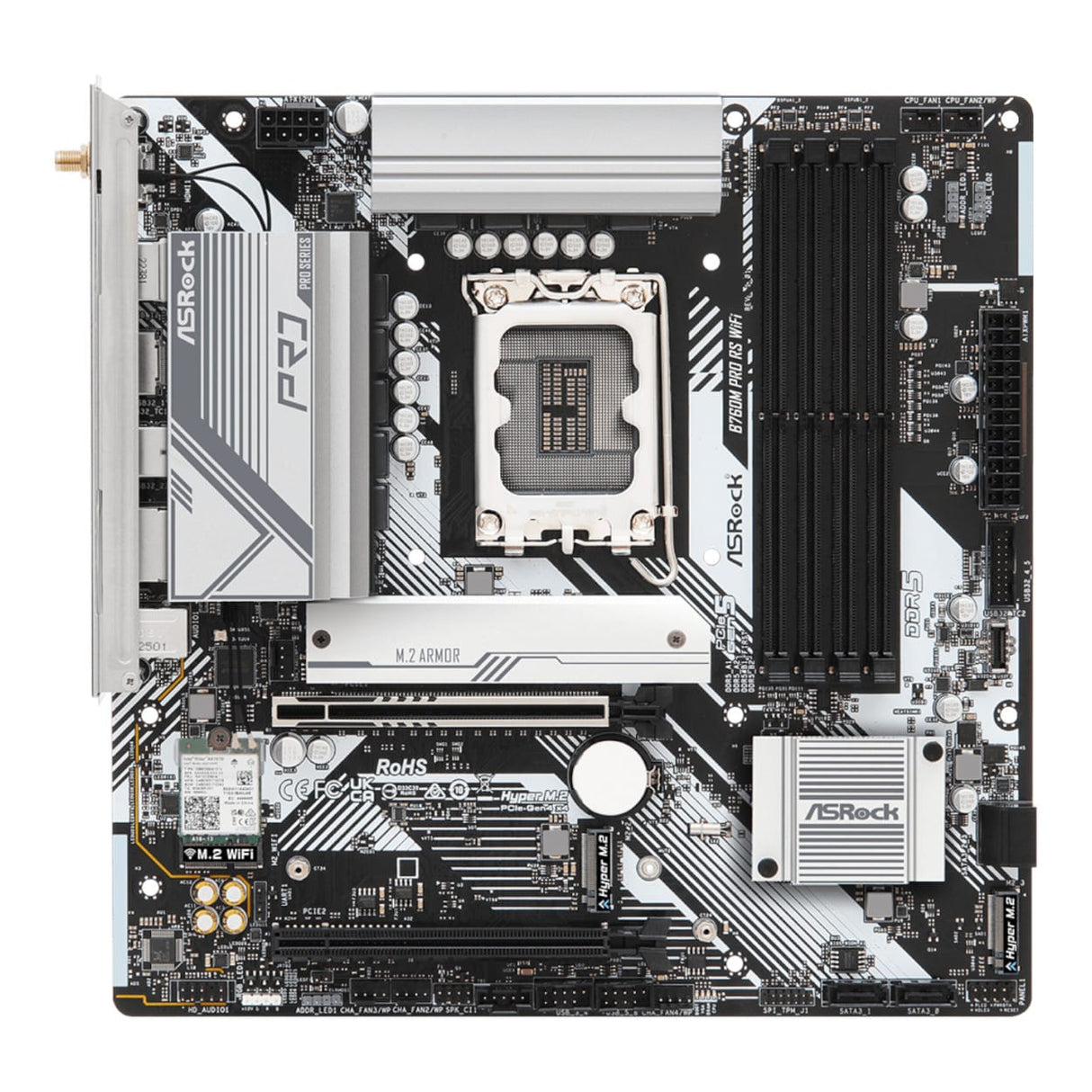

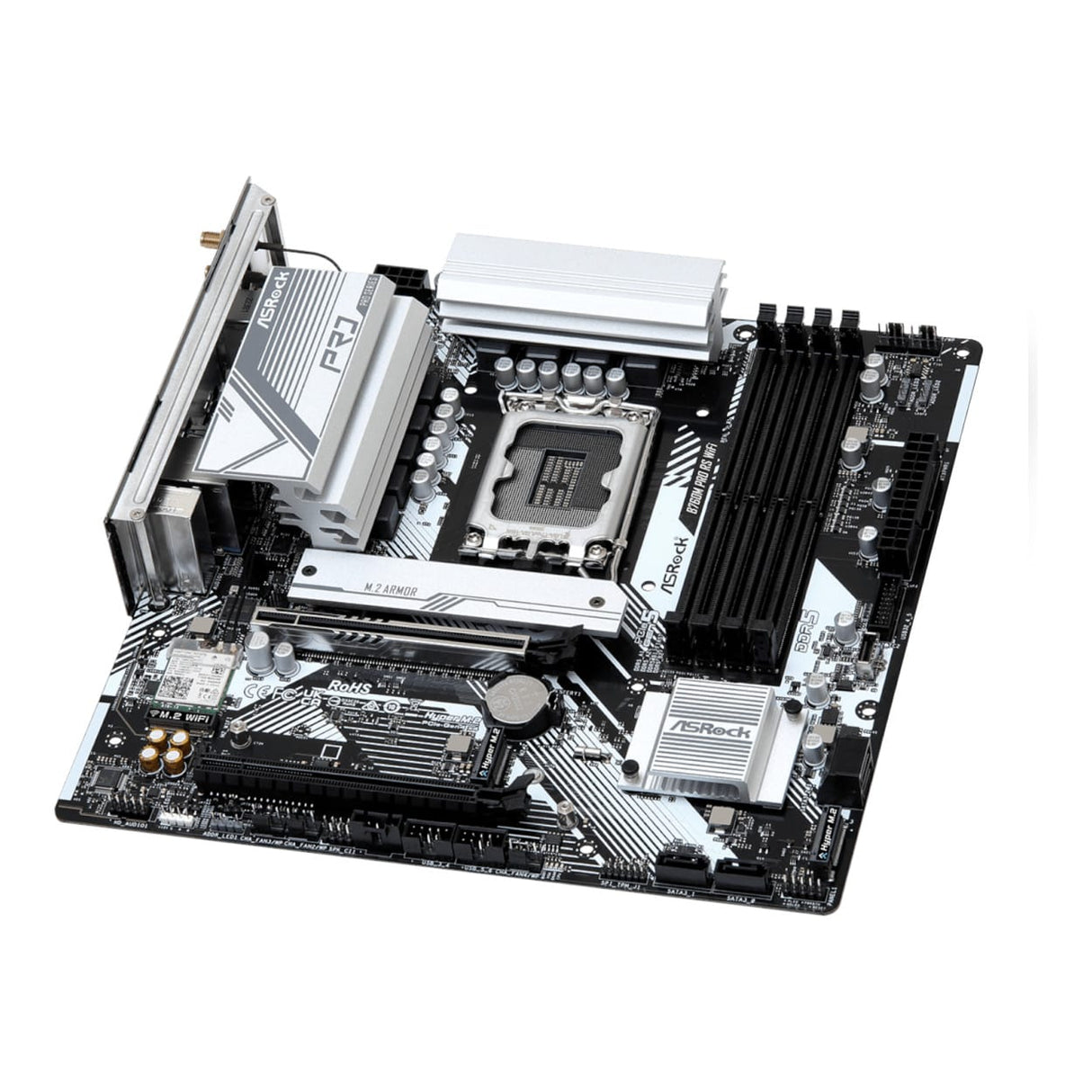

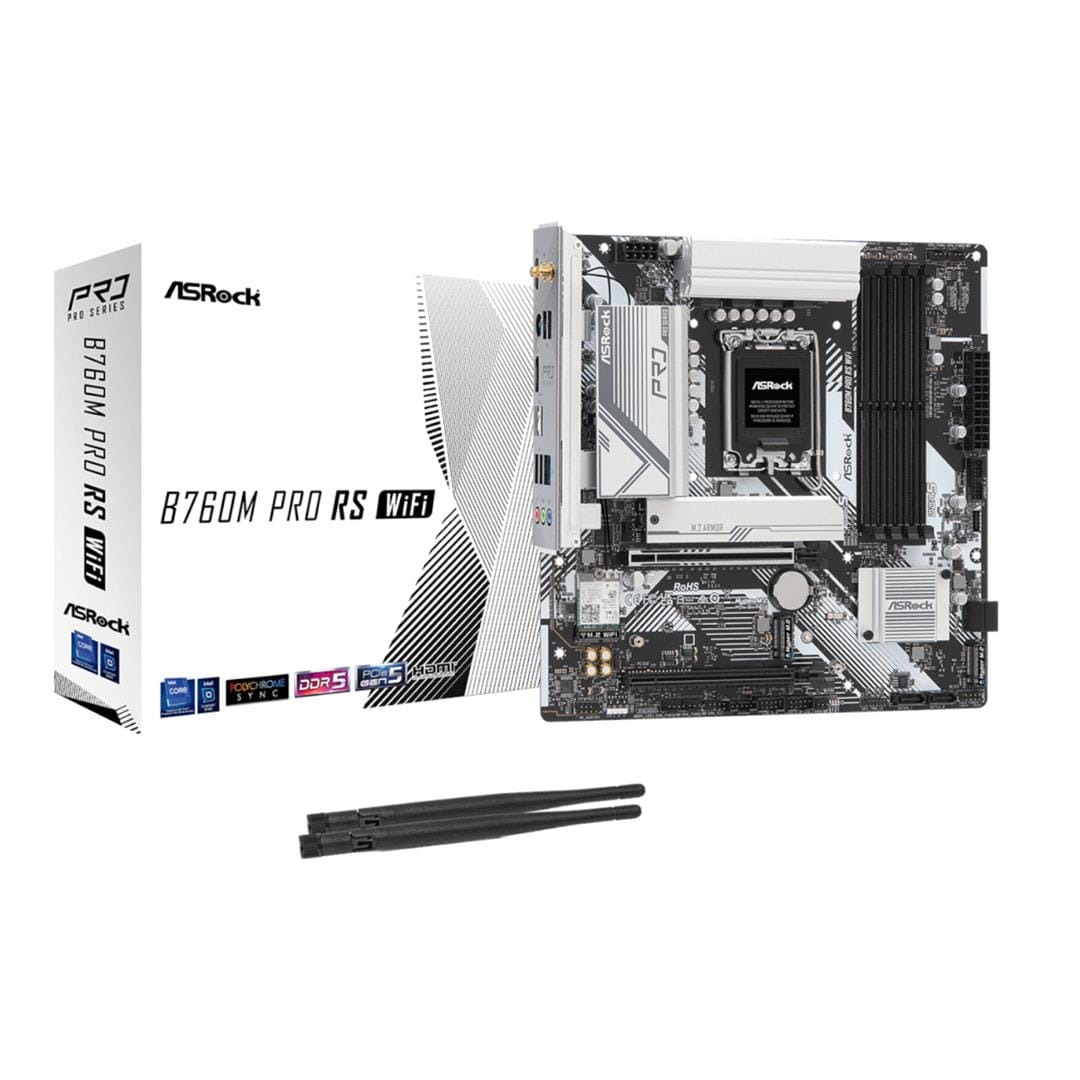

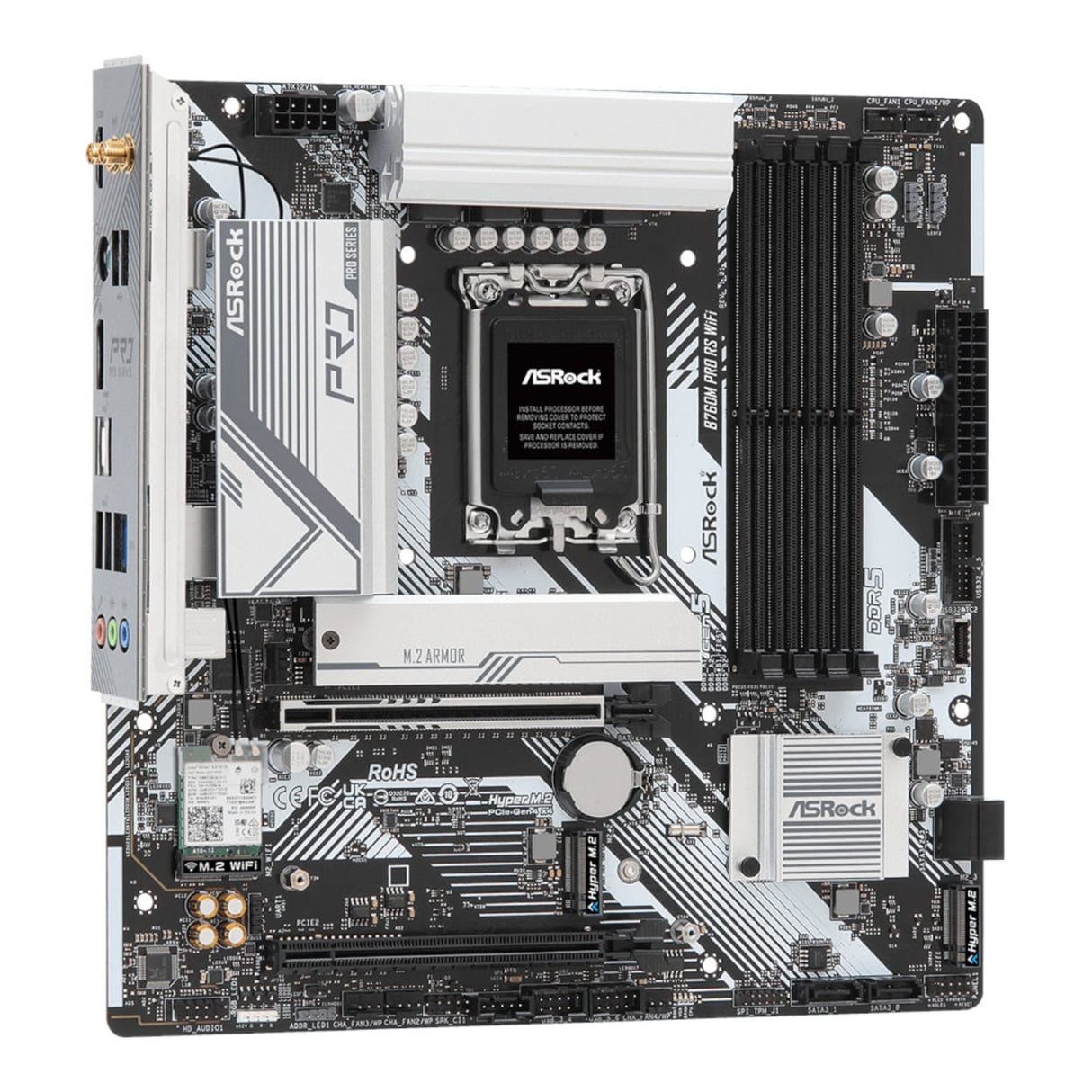

ASRock B760M Pro RS Gaming Wi-Fi Intel LGA 1700 micro-ATX Motherboard

ASRock B760M Pro RS WiFi Intel LGA 1700 Micro-ATX Motherboard

The ASRock B760M Pro RS WiFi is a versatile Intel B760 motherboard designed for mainstream gaming, productivity and everyday PC builds. It supports compatible 14th, 13th and 12th Generation Intel Core processors, combining DDR5 memory support, PCIe 5.0 graphics expansion and three PCIe 4.0 M.2 storage slots in a space-efficient Micro-ATX format.

Performance for a Modern Intel Build

A 7+1+1 power-phase design with Dr.MOS for VCore and GT supports dependable power delivery to compatible LGA 1700 processors. The six-layer PCB helps provide stable signal routing, while four DDR5 DIMM slots support dual-channel memory configurations with speeds of up to 7200+ MHz when overclocked using compatible components.

Fast Graphics and Storage Expansion

The primary PCIe 5.0 x16 slot provides a high-bandwidth connection for a compatible graphics card and uses a reinforced steel design to help support heavier cards. Three Hyper M.2 sockets support PCIe 4.0 x4 NVMe solid-state drives, while four SATA 6 Gb/s connectors accommodate additional storage devices.

Flexible Wired and Wireless Networking

Dragon 2.5 Gigabit Ethernet provides a faster wired connection for gaming, streaming, file transfers and backups on compatible networks. Integrated Intel Killer Wi-Fi 6E offers dual-band 2x2 wireless connectivity with 160 MHz channel support, complemented by Bluetooth 5.3 for compatible peripherals.

Access to the Wi-Fi 6E 6 GHz band requires Microsoft Windows 11, a compatible 6 GHz router and regional availability.

Convenient Connectivity and Personalisation

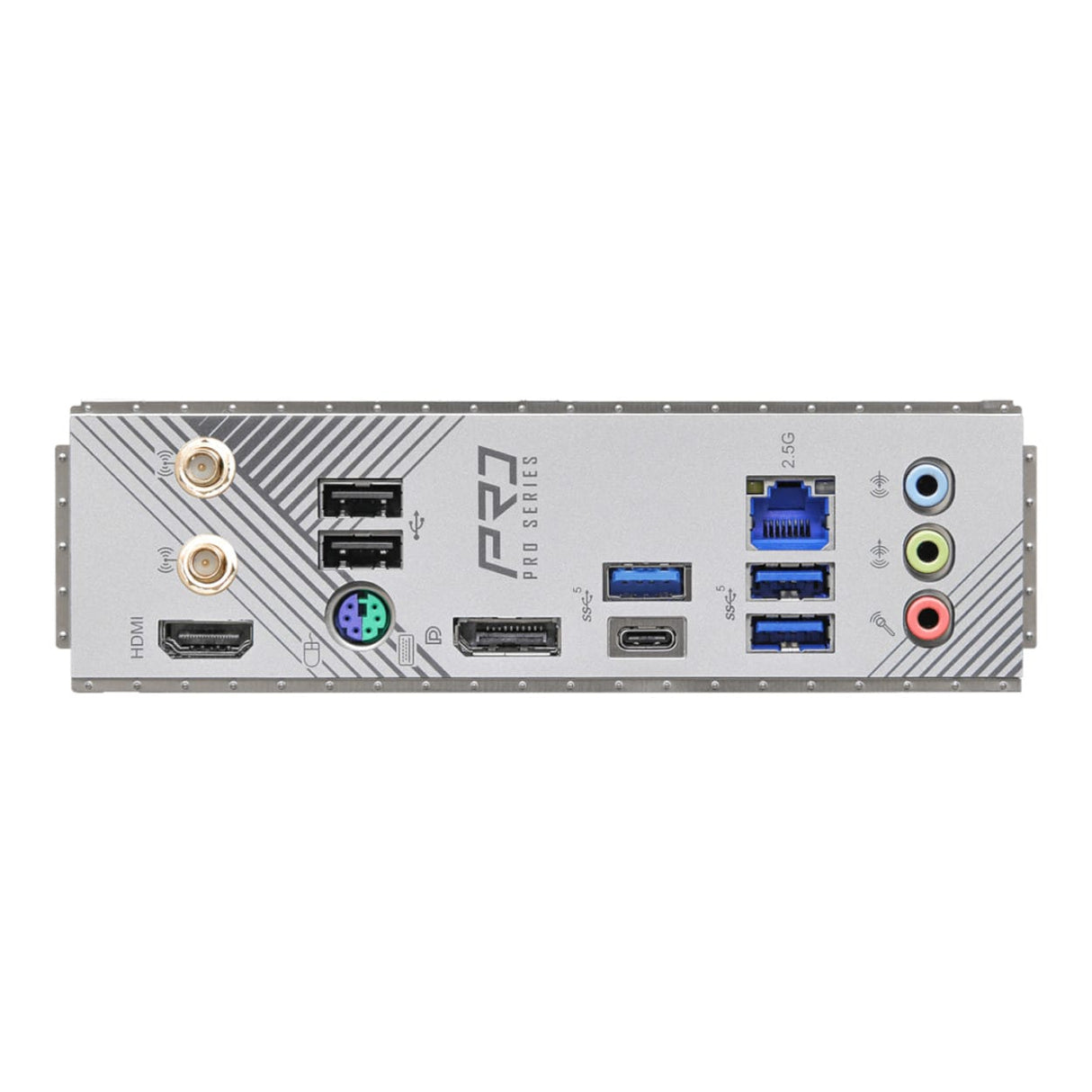

Rear connectivity includes USB Type-C, USB Type-A, HDMI, DisplayPort, 2.5 Gigabit Ethernet and three audio jacks. A front-panel USB Type-C header provides convenient access when paired with a compatible chassis, while onboard RGB and addressable RGB headers support compatible lighting devices through ASRock Polychrome Sync.

Key Features:

• Supports compatible 14th, 13th and 12th Generation Intel Core processors using the LGA 1700 socket.
• Four DDR5 DIMM slots support up to 256 GB of dual-channel memory and Intel XMP 3.0 profiles.
• PCIe 5.0 x16 graphics slot provides high-bandwidth expansion for a compatible graphics card.
• Three PCIe 4.0 x4 Hyper M.2 sockets and four SATA connectors offer flexible storage options.
• Integrated Wi-Fi 6E, Bluetooth 5.3 and Dragon 2.5 Gigabit Ethernet support flexible networking.
• Realtek ALC897 7.1-channel HD audio is enhanced by Nahimic Audio software.
• Pre-installed I/O shield and ASRock Auto Driver Installer help simplify system assembly and setup.

Technical Specifications:

Build a capable Intel-based gaming or productivity system with flexible storage, networking and expansion options, and add the ASRock B760M Pro RS WiFi to your cart today.
