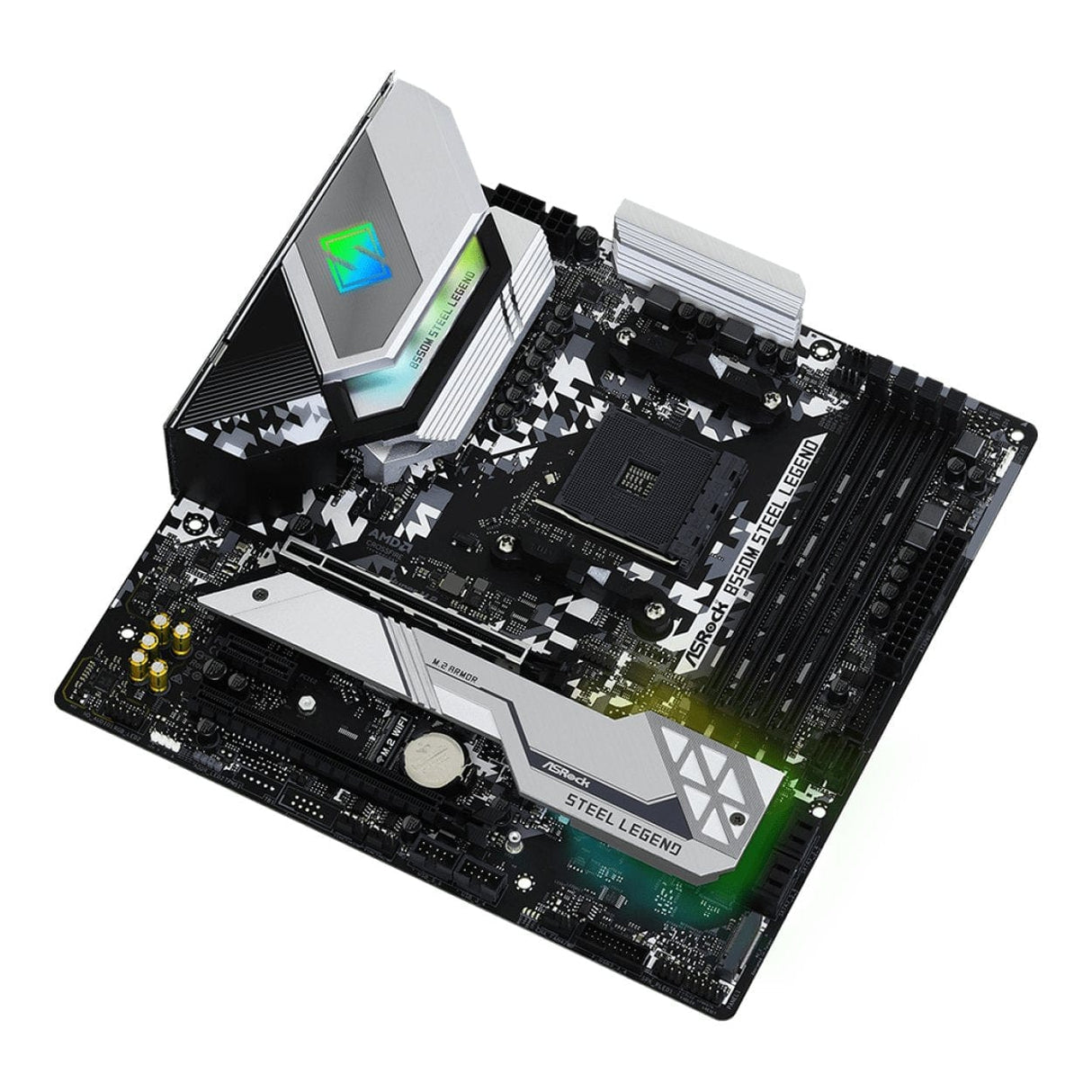

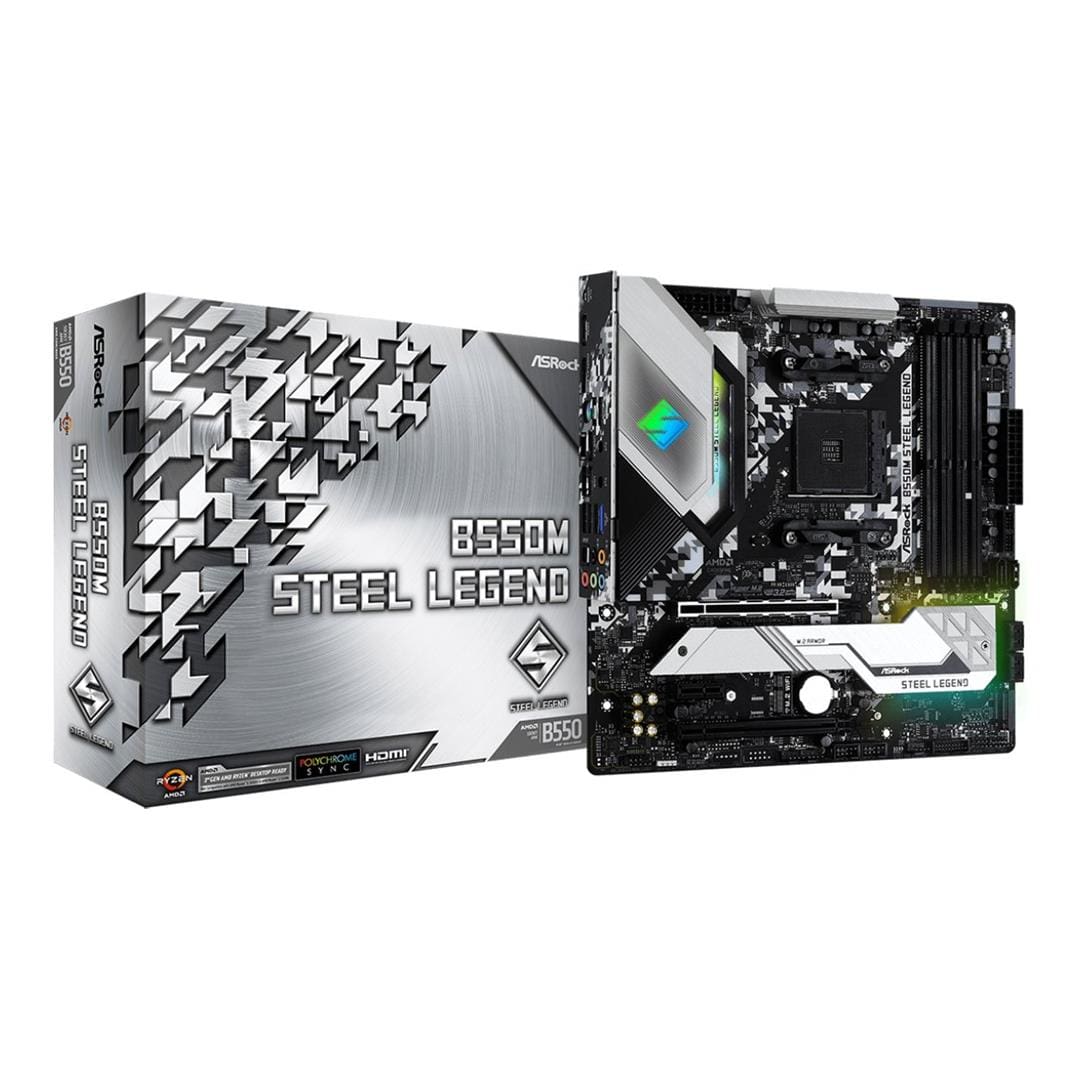

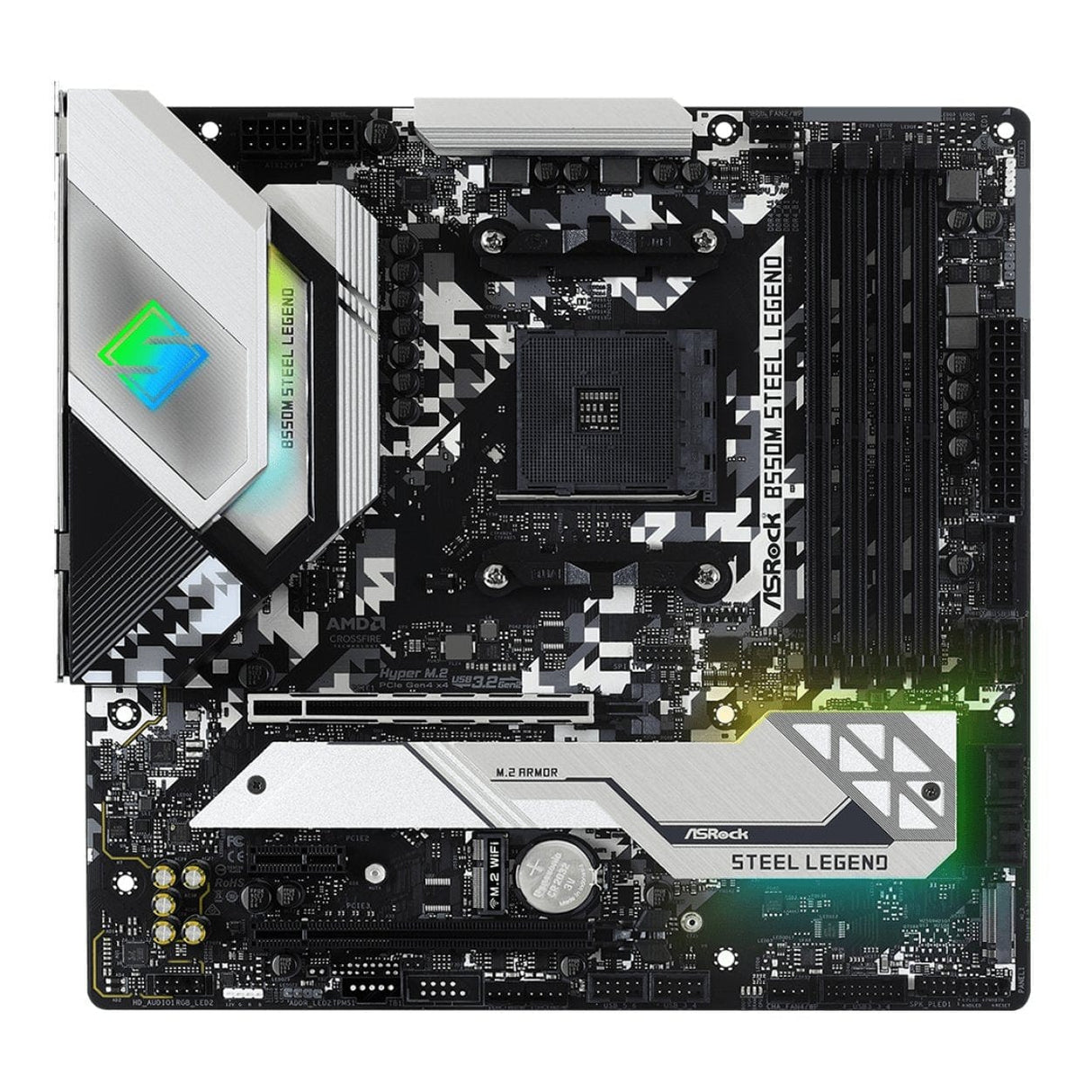

Asrock B550M Steel Legend AMD Socket AM4 micro ATX Motherboard 90-MXBCU0-A0UAYZ

Asrock B550M Steel Legend AMD Socket AM4 micro ATX Motherboard 90-MXBCU0-A0UAYZ

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Features:

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• 10 Power Phase Design, Dr. MOS
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• AMD CrossFireX™
• 7.1 CH HD Audio (Realtek ALC1220/ALC1200 Audio Codec), Nahimic Audio
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3)
• 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
• Dragon 2.5G LAN

STEEL FOREVER

Get Endless Performance Possibilities with Steel Style

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hi-Density Power Connector

Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.

8+4 12V Power Connectors

24-pin ATX Power Connector

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

A SOLID M.2-SOLUTION PERFORMER

Dual M.2 For SSD, Supports Type 22110 M.2

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

Technical Specifications:

Asrock B550M Steel Legend

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series

Supported memory types: DDR4-SDRAM

Maximum internal memory: 128 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10

Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX

Maximum resolution: 5120 x 2880 pixels

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Dragon RTL8125BG
