ASRock B550M Phantom Gaming 4 AMD Socket AM4 micro ATX Motherboard 90-MXBE90-A0UAYZ
R 2,19900
Unit price
/
Out of stock
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

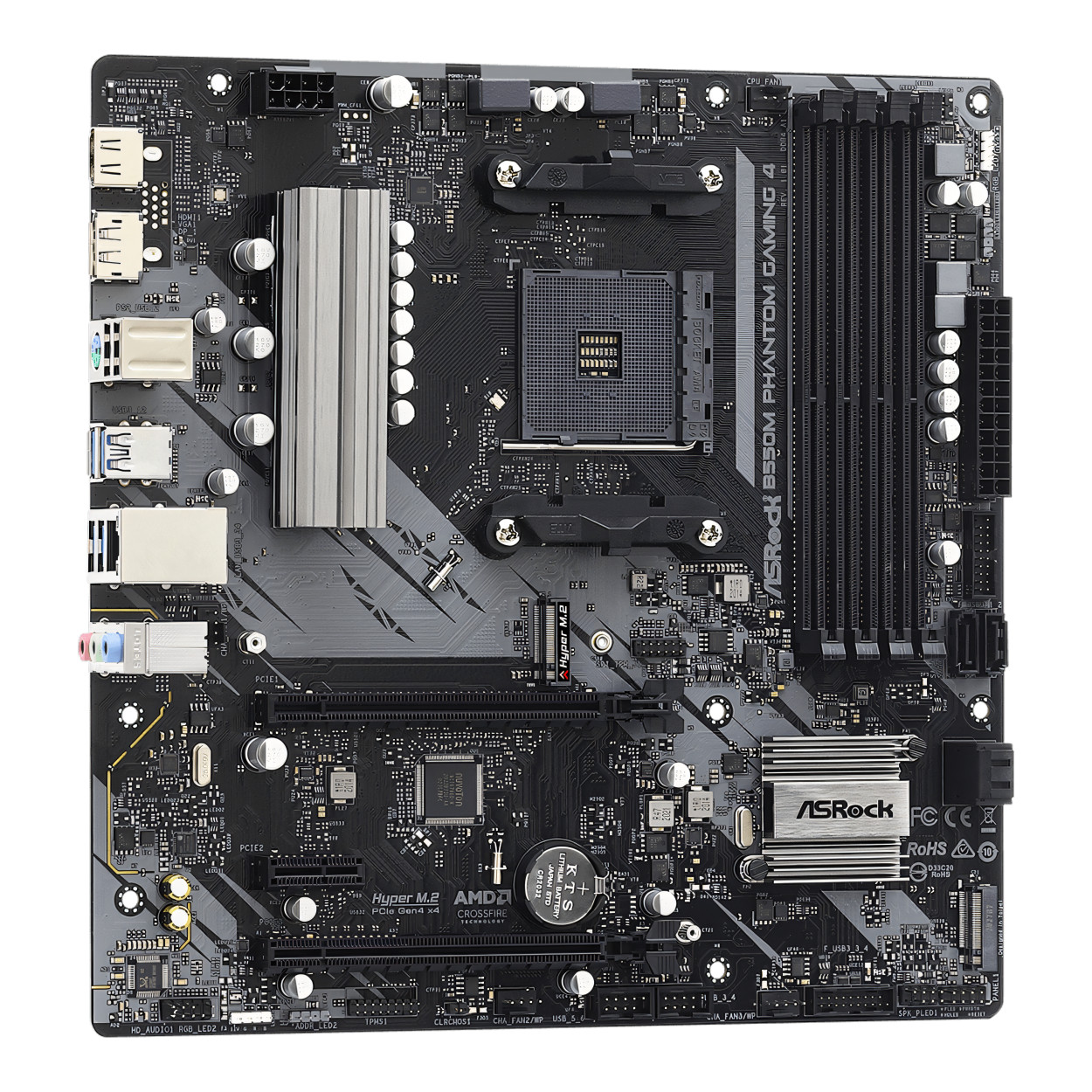

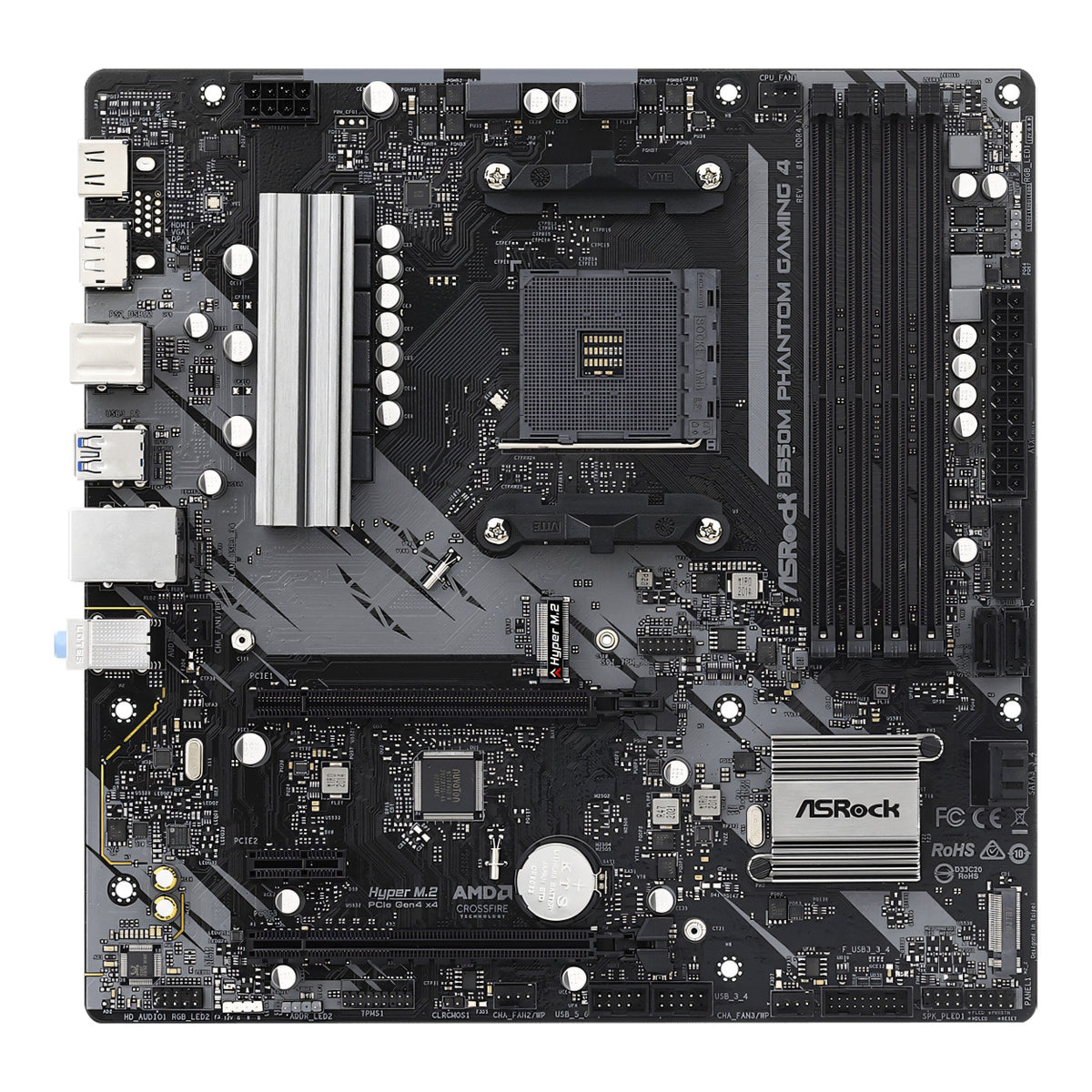

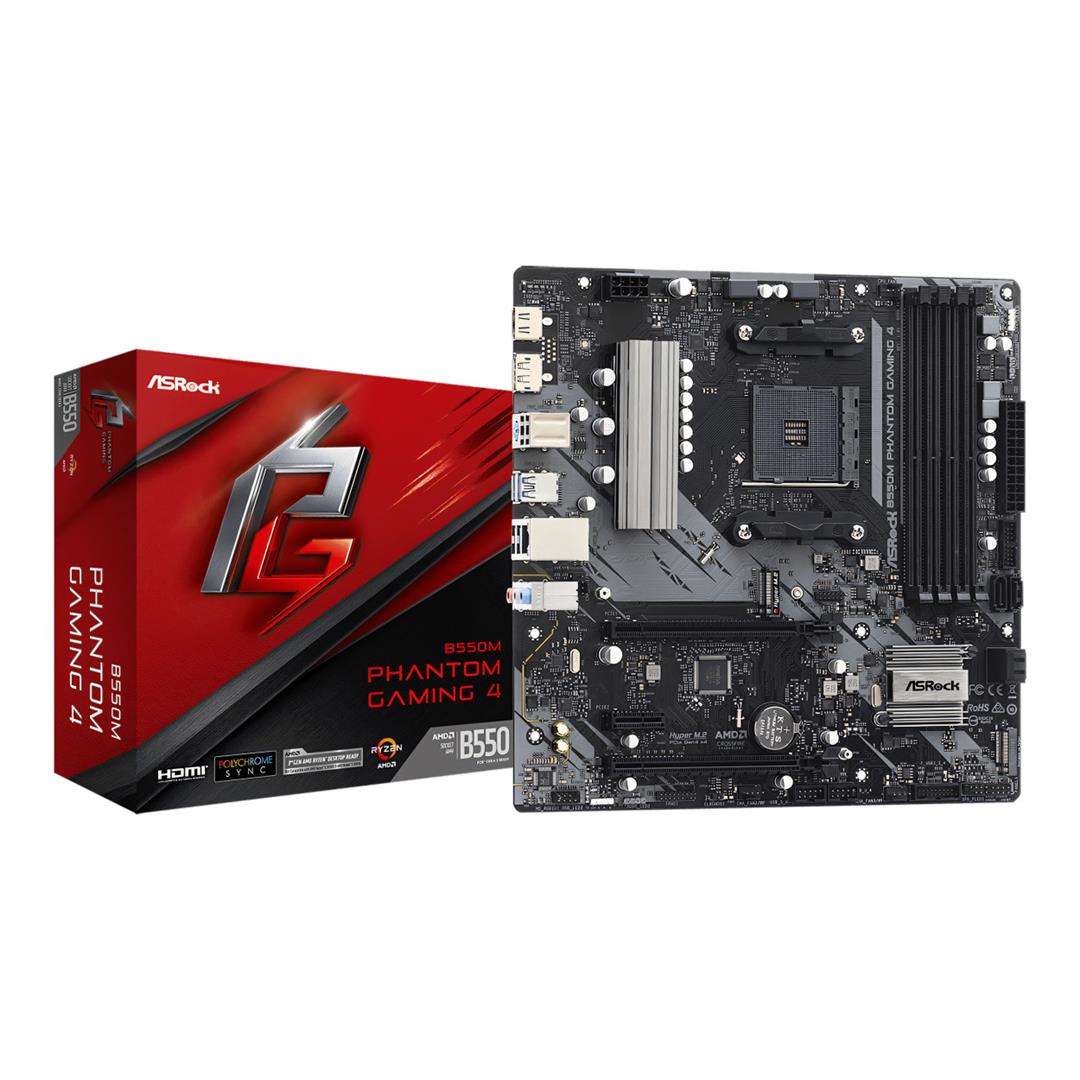

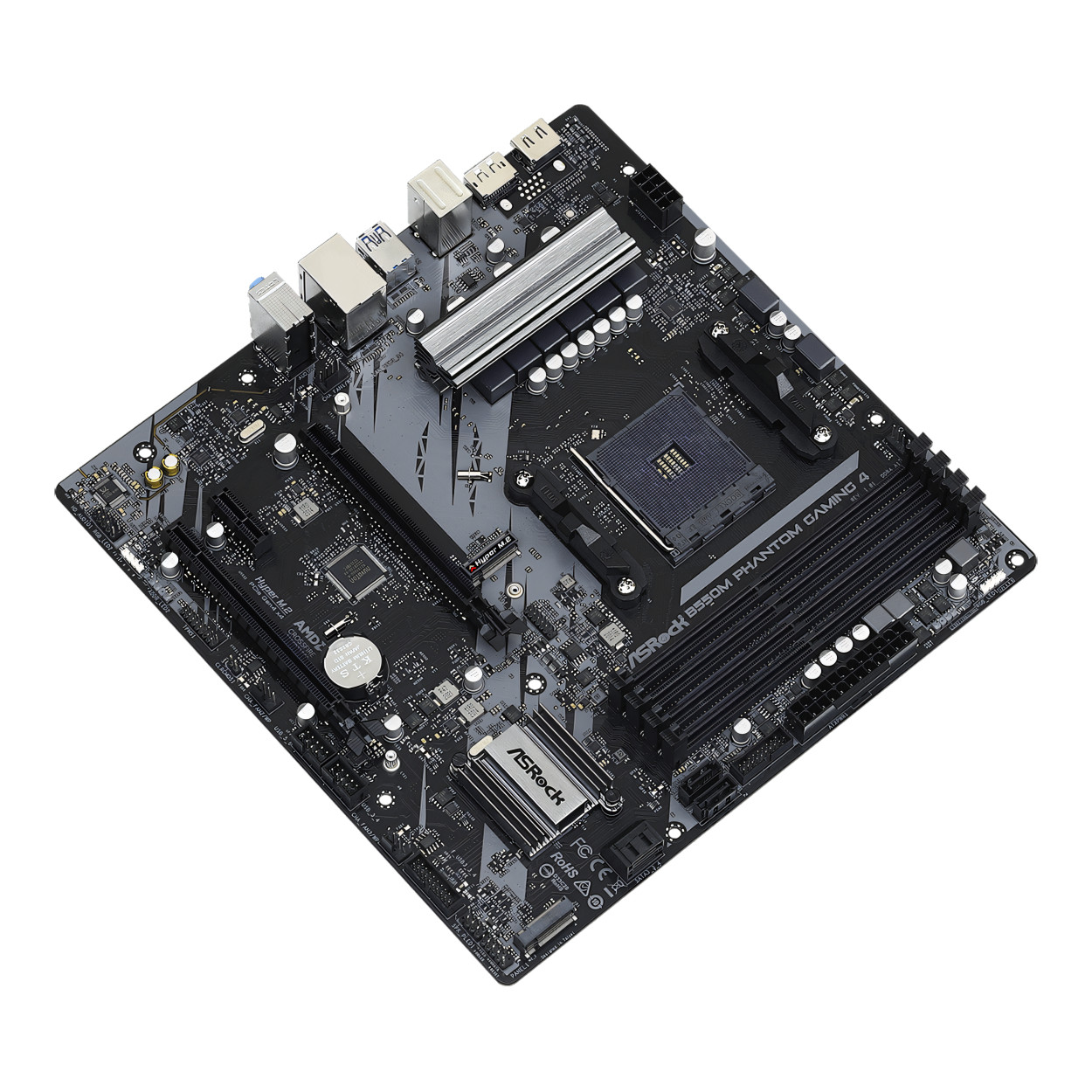

ASRock B550M Phantom Gaming 4 AMD Socket AM4 micro ATX Motherboard 90-MXBE90-A0UAYZ
The ASRock B550M Phantom Gaming 4 is a Micro-ATX motherboard for compatible AMD AM4 Ryzen processors. It combines four DDR4 memory slots, dual M.2 storage sockets and Gigabit Ethernet for gaming and everyday desktop builds. PCIe 4.0 support is available with compatible processors.
Key Features
- Four DDR4 slots support up to 128GB of dual-channel memory.
- Dual M.2 sockets and four SATA ports provide flexible storage options.
- Eight-phase Digi Power design supports CPU power delivery.
- HDMI and DisplayPort connect displays when using a compatible processor with integrated graphics.
- Gigabit Ethernet provides wired network connectivity.
- RGB and addressable RGB headers support compatible lighting accessories.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASRock |
| Model | B550M Phantom Gaming 4 |
| Manufacturer Part Number | 90-MXBE90-A0UAYZ |
| Form Factor | Micro-ATX |
| Chipset / Socket | AMD B550 / AM4 |
| Processor Support | Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series; subject to CPU support list and BIOS version |
| Memory | 4 × DDR4 DIMM slots; dual-channel; maximum 128GB; XMP support |
| Memory Speed | Up to DDR4-4733+ (OC), dependent on processor and memory configuration |
| Expansion Slots | 2 × PCIe x16 physical slots and 1 × PCIe 3.0 x1; primary slot up to PCIe 4.0 x16, secondary slot PCIe 3.0 x4 |
| Primary M.2 Socket | 2280 NVMe; up to PCIe 4.0 x4 with compatible CPU |
| Secondary M.2 Socket | 2280; PCIe 3.0 x2 or SATA 6Gb/s |
| SATA Connections | 4 × SATA 6Gb/s |
| LAN | Realtek RTL8111H Gigabit Ethernet |
| Audio | 7.1-channel HD audio; Realtek ALC887/897 codec |
| Rear USB | 4 × USB 3.2 Gen 1; 2 × USB 2.0 |

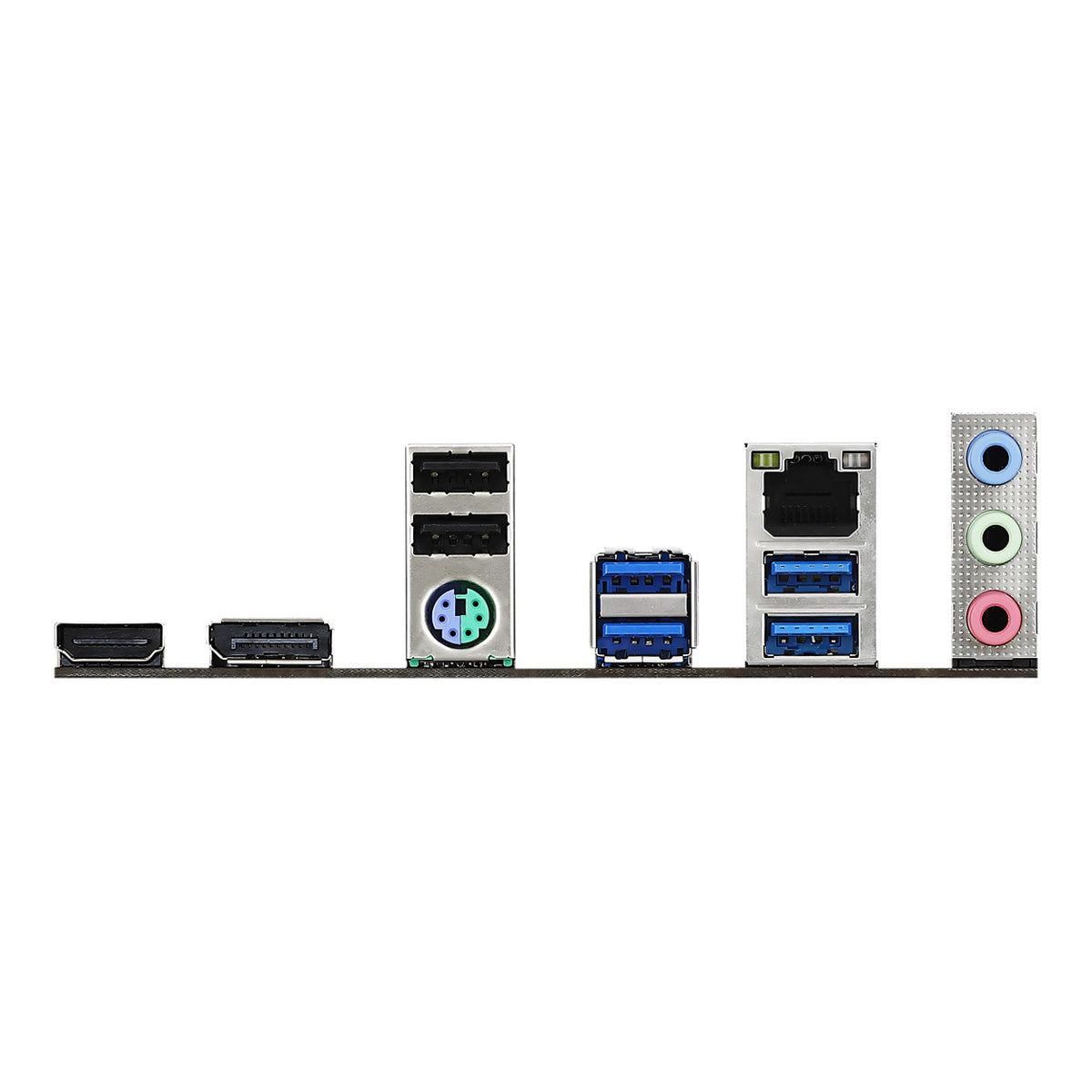

| Other Rear Connections | HDMI, DisplayPort 1.4, RJ-45, PS/2 keyboard/mouse combo and 3 audio jacks |
| Internal USB Headers | 2 × USB 3.2 Gen 1 headers for 4 ports; 2 × USB 2.0 headers for 4 ports |
| Fan Headers | 1 × CPU fan; 3 × chassis/water-pump |
| Lighting Headers | 2 × RGB; 2 × addressable RGB |
| Power Connections | 24-pin ATX and 8-pin CPU power |
| Dimensions | 244 × 244mm |
Add the ASRock B550M Phantom Gaming 4 to your cart to build or upgrade your compatible AMD Ryzen desktop.
