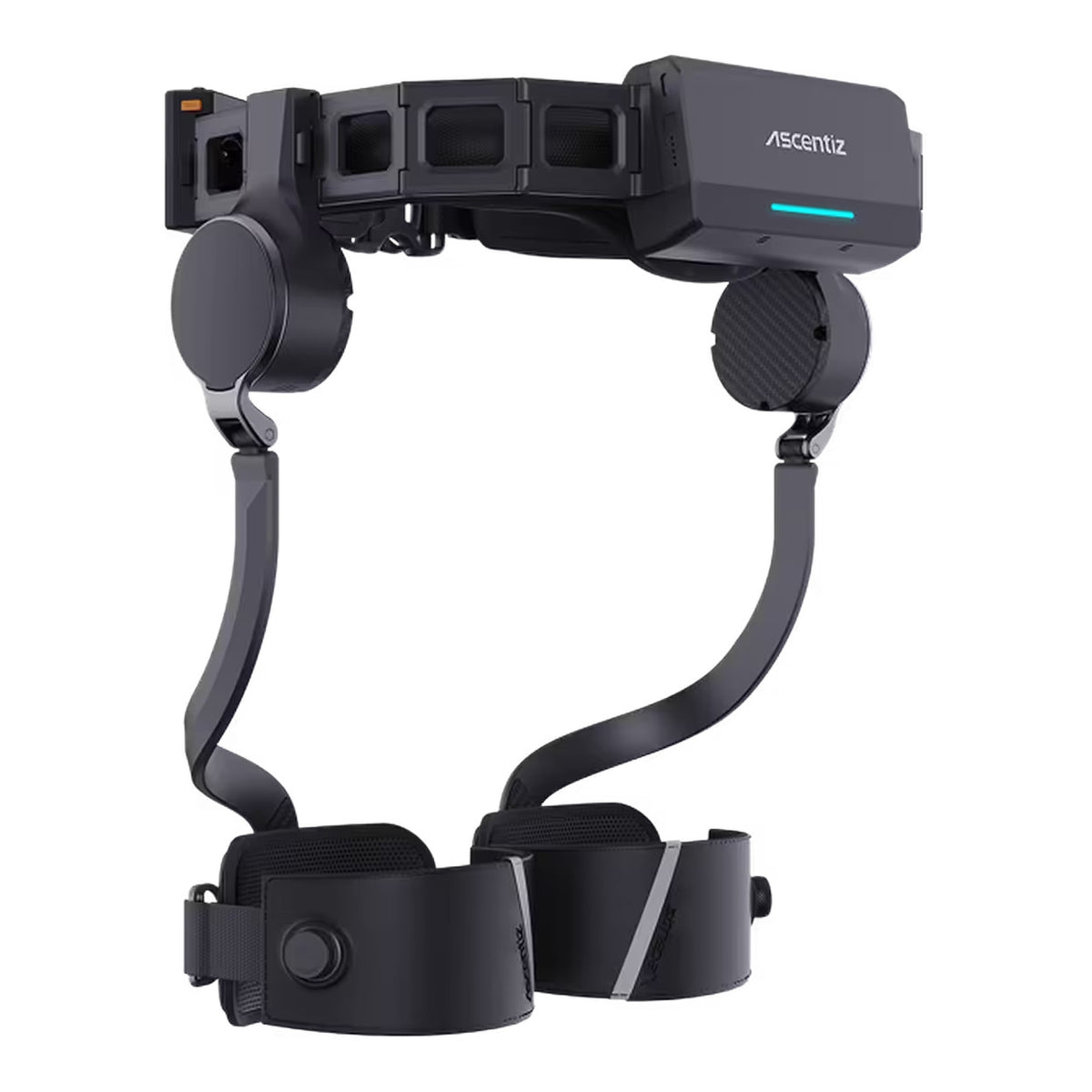

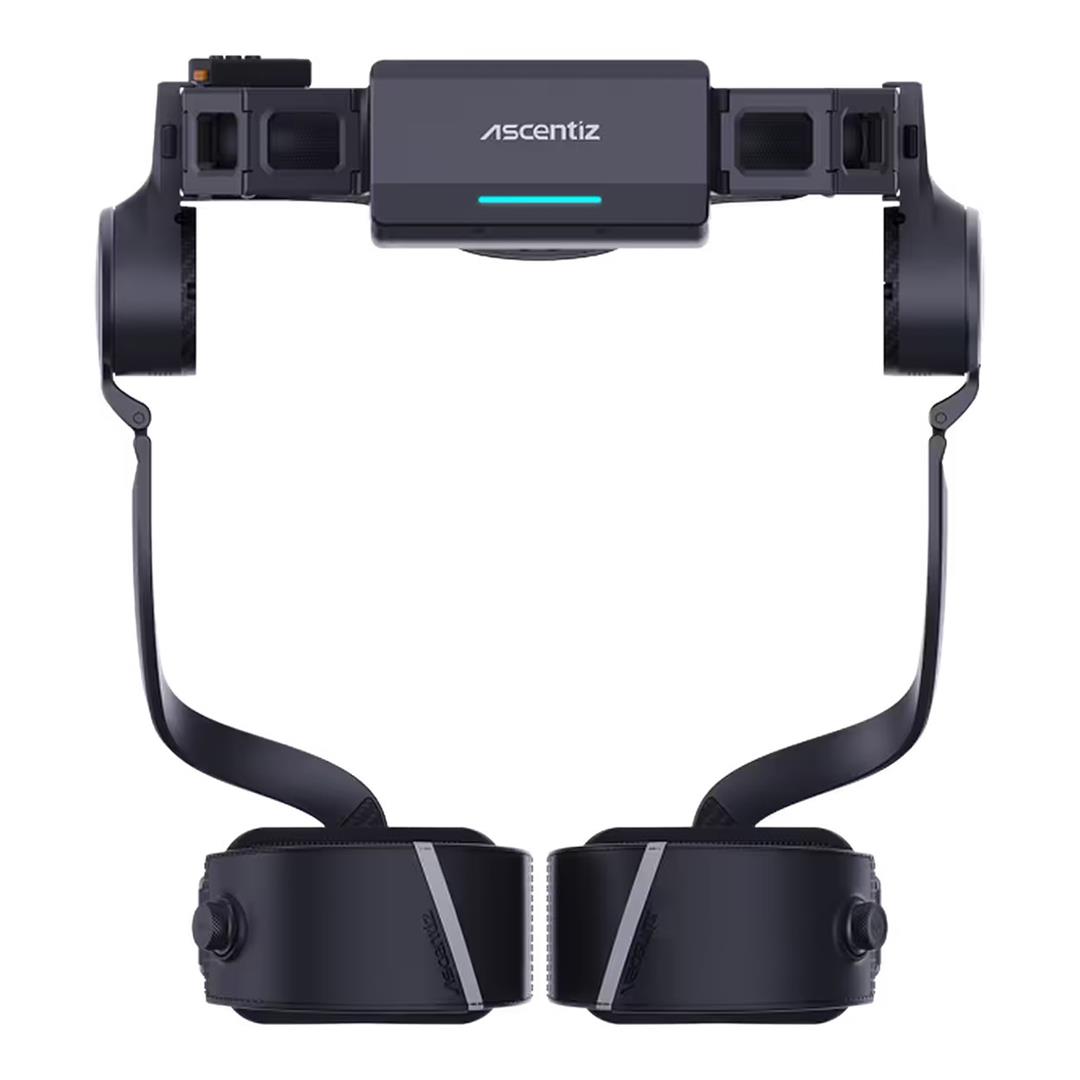

Ascentiz H Pro Hip Exoskeleton AZ-H-Pro-Black

Ascentiz H Pro Hip Exoskeleton AZ-H-Pro-Black

The Ascentiz H Pro is a lightweight powered hip exoskeleton designed to assist walking, hiking, running, cycling and other active movement. Its dual powered hip modules deliver up to 1000W peak output and 44Nm combined peak torque, while AI OmniTerrain technology automatically adapts assistance to different movement patterns and terrain.

Key Features:

• 1000W maximum peak assist output
• 44Nm combined peak torque - 22Nm per hip module
• Up to 25km assisted range from one battery
• AI OmniTerrain technology recognises 12 motion scenarios
• EASE, ACC and TRAIN operating modes
• Up to 40% manufacturer-rated reduction in leg effort
• Up to 30kg / 66lb manufacturer-rated leg load offset
• Maximum assisted speed up to 25km/h
• Lightweight 2.5kg total design
• Quiet operation rated at 35dB or lower

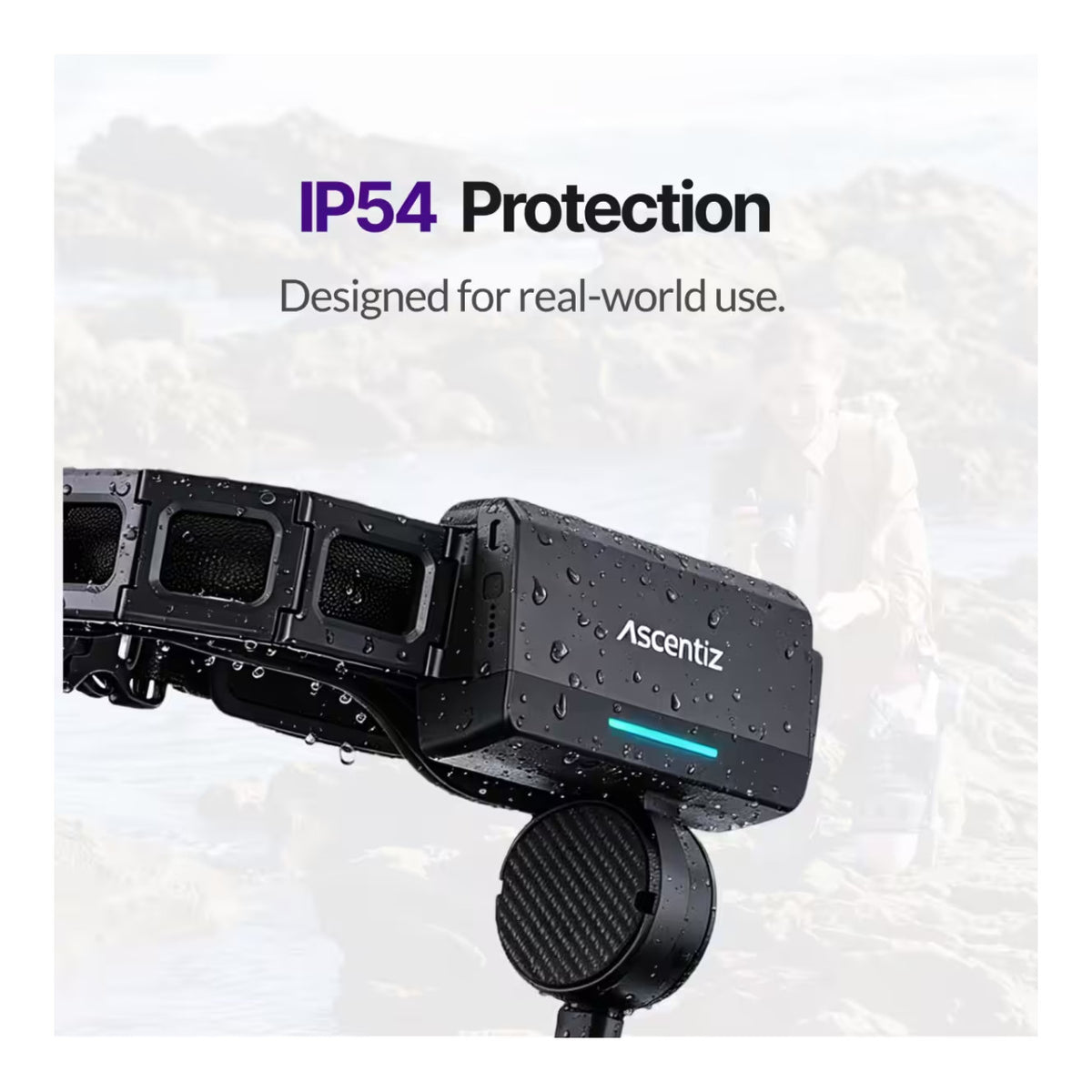

• IP54 protection for outdoor use
• Hot-swappable 75.6Wh lithium battery

Features

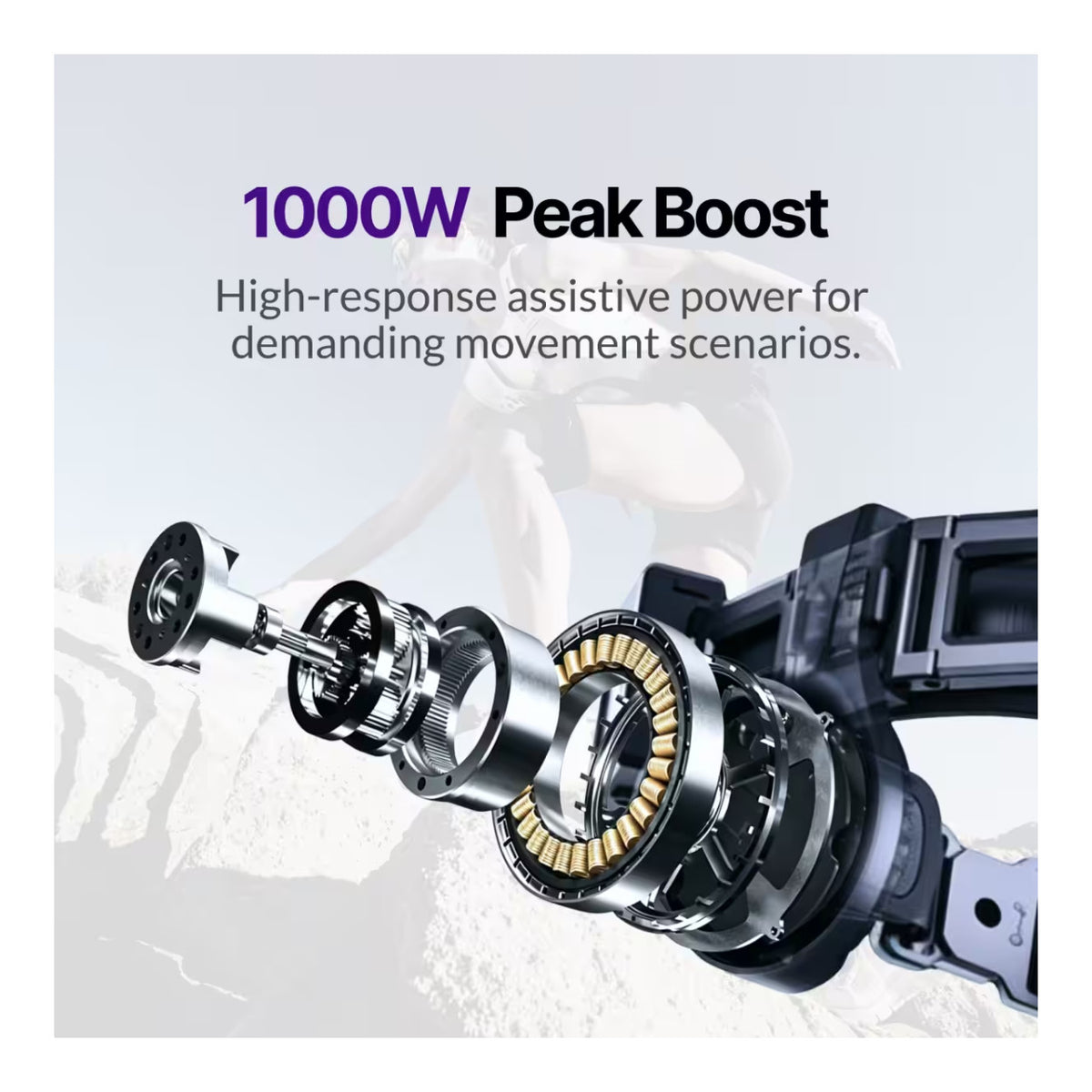

Powerful Dual-Hip Assistance

The H Pro uses quasi-direct-drive powered joints to provide assistance at both hips. With up to 1000W peak power and 22Nm torque from each module, the system is designed to support demanding movement such as uphill walking, hiking and longer outdoor activities.

AI OmniTerrain Technology

AI OmniTerrain automatically recognises movement changes and adjusts assistance accordingly. Twelve supported scenarios include standing, slow walking, walking, race walking, sprinting, long-distance running, uphill and downhill hiking, stair climbing, stair descent, cycling and training walking.

Three Operating Modes

EASE mode provides intelligent assistance to reduce leg effort, ACC mode delivers stronger active movement support, while TRAIN mode adds dynamic resistance for exercise and strength-focused training.

25km Assisted Range

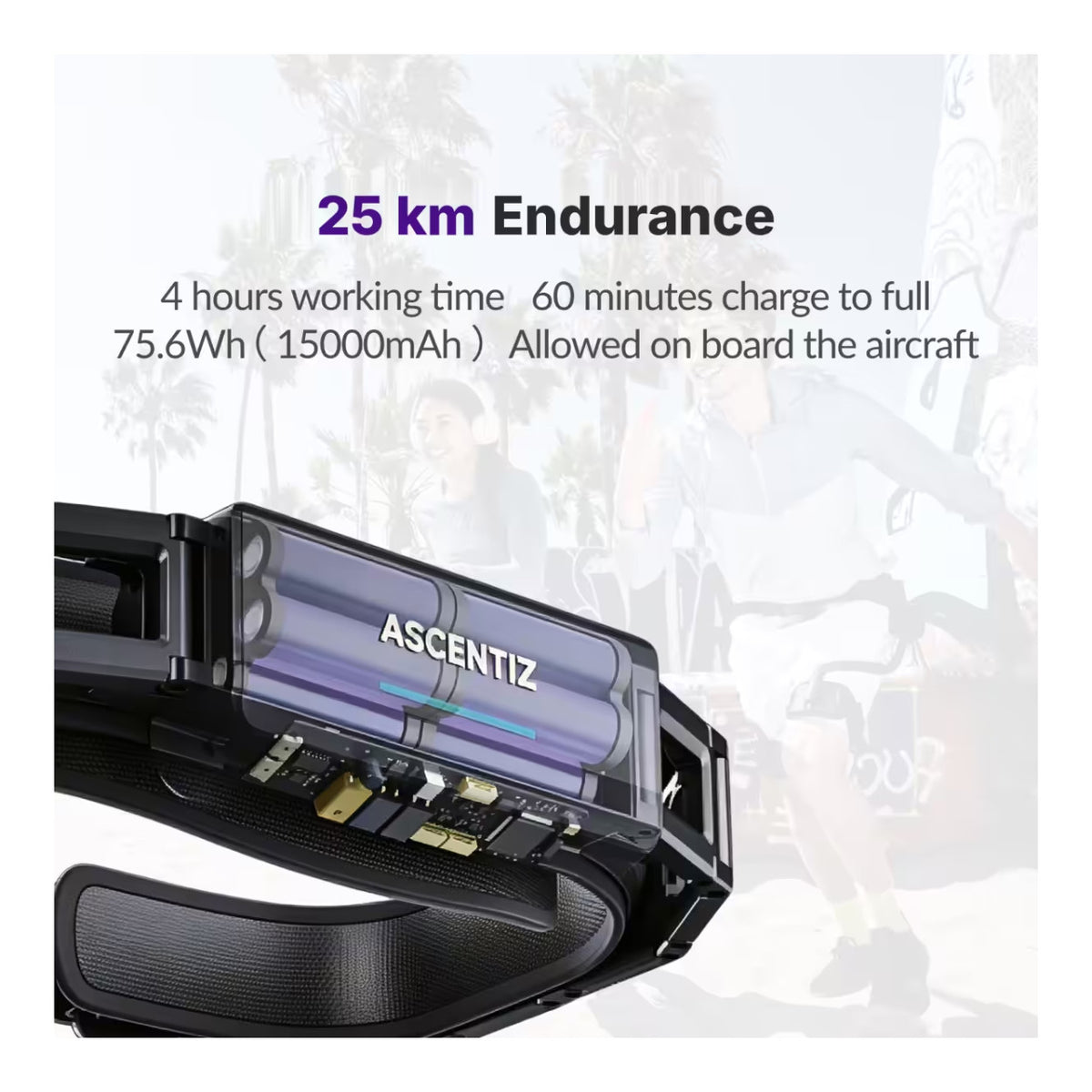

The included automotive-grade 75.6Wh lithium battery provides an assisted range of up to 25km under supported conditions. The removable battery can be exchanged when required, while charging takes approximately 65 minutes with a compatible 100W PD3.0 charger.

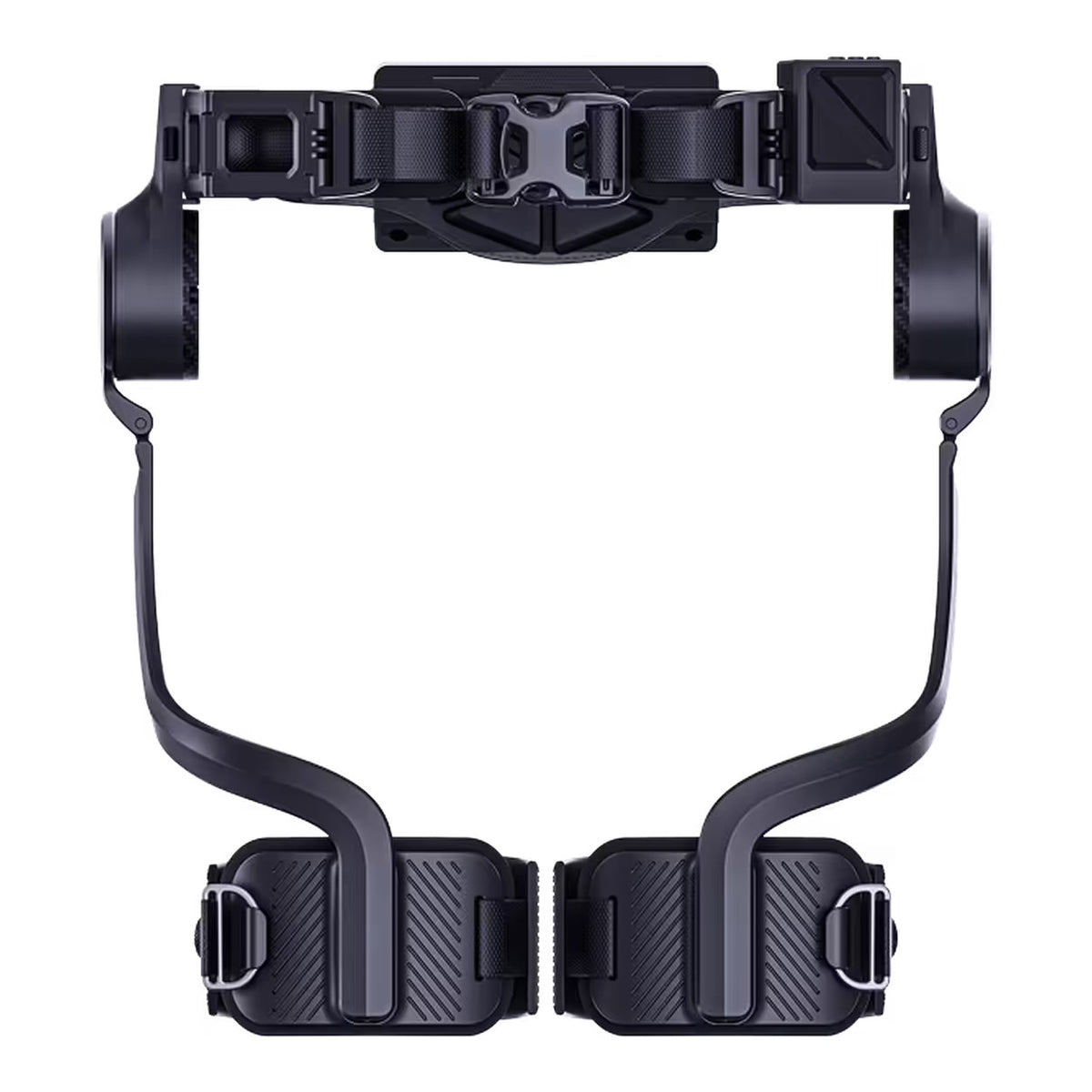

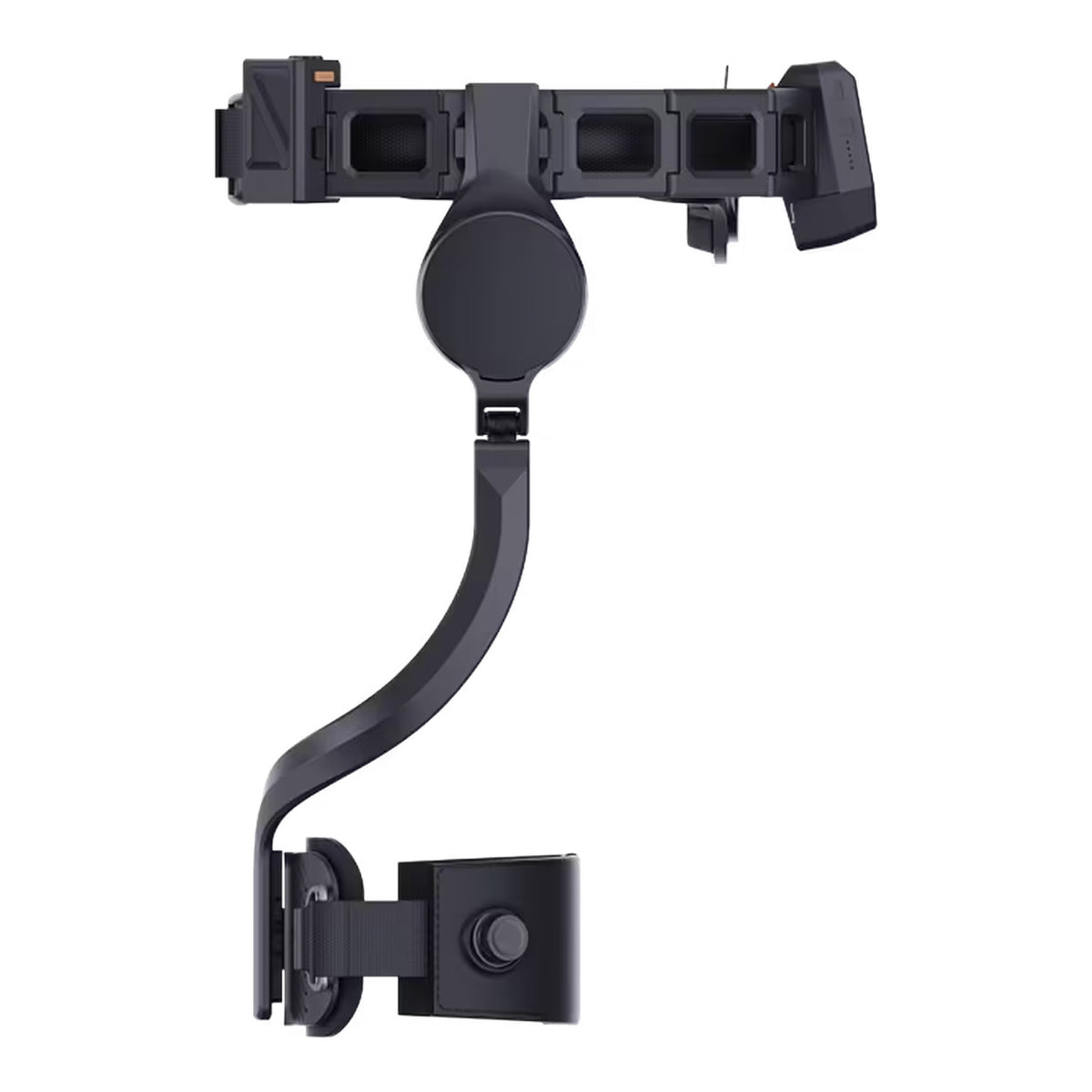

Lightweight & Adjustable Design

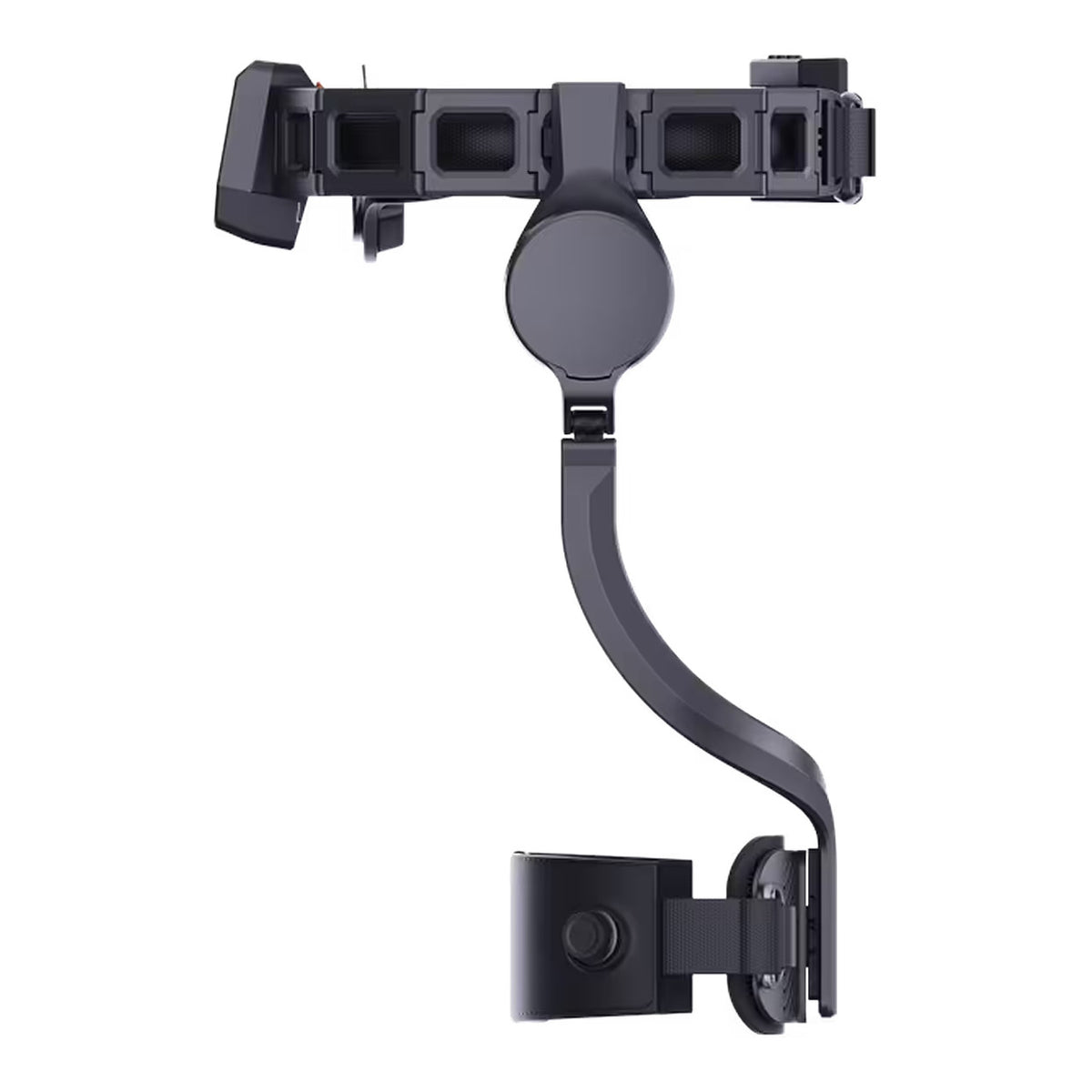

At approximately 2.5kg, the H Pro combines carbon-fibre-reinforced polymer and aluminium components with adjustable waist and leg fittings. The supported fit range covers approximately 155-200cm height, 65-145cm waist circumference and 40-80cm thigh circumference.

Portable Modular System

The modular construction allows the H modules, belt and battery to be separated for transport and future compatible upgrades. When packed, the system is designed to occupy approximately an A4-sized footprint for easier carrying.

• Performance figures are manufacturer-rated and vary according to user weight, terrain, assistance mode and battery conditions.
• A compatible 100W PD3.0 charger is required for the quoted charging time and is not included.
• The Ascentiz H Pro is a consumer mobility and activity-assistance product and is not a medical device.

Technical Specifications:

Choose the Ascentiz H Pro AZ-H-Pro-Black for intelligent powered hip assistance, adaptable all-terrain movement support, lightweight portability and up to 25km of assisted mobility from a modular wearable system.
