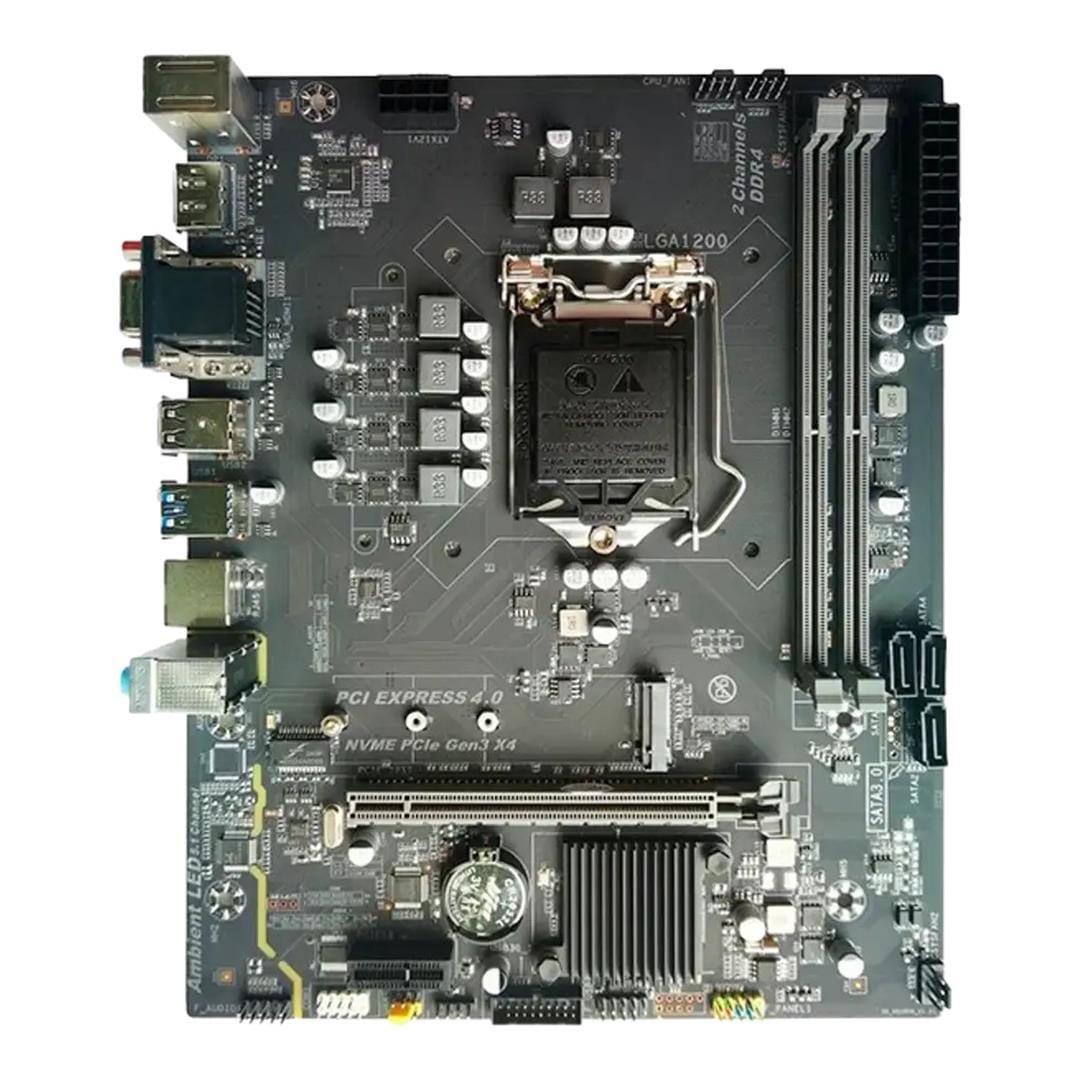

Arktek Intel H510 Intel LGA 1200 Micro-ATX Motherboard AK-H510M

Arktek Intel H510 Intel LGA 1200 Micro-ATX Motherboard AK-H510M

The Arktek AK-H510M is a compact Micro-ATX motherboard designed for desktop systems based on compatible 10th- and 11th-generation Intel LGA1200 processors. It combines dual-channel DDR4 memory support with M.2 NVMe storage, Gigabit Ethernet and essential PCI Express expansion. Its 22 × 17 cm layout makes it suitable for compact office, home and general-purpose desktop builds.

Intel H510 and LGA1200 Platform

The Intel H510 chipset provides a practical foundation for compatible Intel Core i9, Core i7, Core i5, Core i3, Pentium and Celeron processors using the LGA1200 socket. Customers should confirm that the intended processor appears on the motherboard's CPU support list and that the installed BIOS version supports it before assembly.

Dual-Channel DDR4 Memory

Two DDR4 DIMM slots support a dual-channel memory configuration at manufacturer-listed speeds of 2133, 2400 and 2800 MHz. XMP memory profiles are supported, allowing compatible memory settings to be selected where the processor, memory modules and BIOS configuration permit.

Memory modules are not included. For reliable dual-channel operation, a matched pair of compatible DDR4 desktop memory modules is recommended.

M.2 NVMe and SATA Storage

An M.2 connection supports a PCI Express 3.0 ×4 NVMe solid-state drive, providing a compact high-speed storage option without requiring a separate data cable. Three SATA 6 Gb/s connections can be used for compatible 2.5-inch or 3.5-inch SATA drives.

PCI Express Expansion

The motherboard provides one PCI Express ×16 slot for a compatible graphics card or other full-length expansion device. A separate PCI Express ×1 slot can accommodate a suitable network, sound, USB or other compact expansion card.

Integrated Display Connectivity

DisplayPort and a digital display output are provided for use with the graphics engine built into a compatible Intel processor. The motherboard does not contain a separate graphics processor. A discrete graphics card is required when using an Intel processor without integrated graphics, including many models with an “F” suffix.

Gigabit Network and 5.1-Channel Audio

Realtek 10/100/1000 Mbps Ethernet provides wired Gigabit network connectivity for internet access and local network use. Integrated 5.1-channel audio and three rear 3.5 mm audio connections support common speaker, headphone and microphone configurations.

Compact Micro-ATX Design

The 22 × 17 cm Micro-ATX board can be installed in compatible Micro-ATX and larger computer cases. Six mounting holes provide secure installation, while internal USB connections support additional front-panel USB ports when paired with a compatible case.

Key Features:

• Intel H510 chipset and LGA1200 socket for compatible 10th- and 11th-generation Intel processors.
• Two DDR4 DIMM slots support dual-channel memory configurations.
• M.2 PCI Express 3.0 ×4 connection supports compatible NVMe solid-state drives.
• Three SATA 6 Gb/s ports provide connections for additional SATA storage devices.
• PCI Express ×16 and ×1 slots support graphics and other expansion cards.
• Realtek Gigabit Ethernet provides wired network speeds of up to 1,000 Mbps.
• Compact Micro-ATX form factor suits smaller desktop systems and standard PC cases.

Technical Specifications:

Build a compact LGA1200 desktop with DDR4 memory, NVMe storage support and essential expansion options, and add the Arktek AK-H510M motherboard to your cart today.
