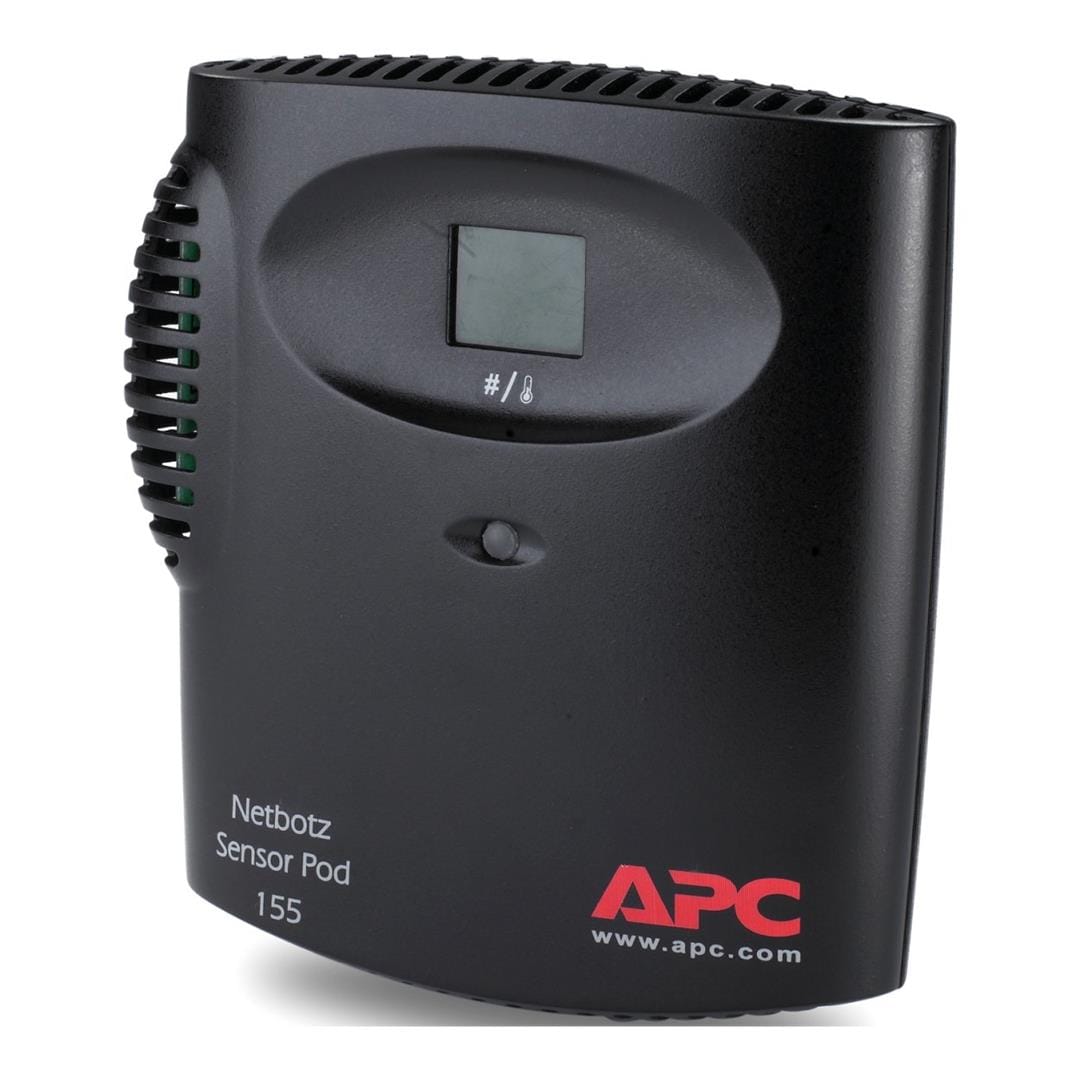

APC Wall Mount Room Sensor Pod 155 NBPD0155

APC Wall Mount Room Sensor Pod 155 NBPD0155

Sensor pod optimized for wall mounting that supports 4 Universal Sensors.

The APC Room Sensor Pod is a environmental room monitoring solution that supports up to 4 Universal Sensors compatible with APC 400 and 500 series appliances (discontinued) Designed for wall mount applications outside of server rack environments. Connect multiple Pods using proprietary APC A-Link connection Powered either by PoE Type 2 ethernet connection or by accessory 12V DC Power Supply

Features

• A-Link communication port
• Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible APC appliance.
• Wall mountable
• Ideal for Network Closets and Server Rooms.
• Low profile sensors
• Small sensors allow for placement flexibility.
• Optional sensors
• Add sensors to compatible APC Appliances for monitoring temperature, humidity, fluid, vibration, dust particles, etc.
• Unique identifiers
• Customize each sensor with a differentiating name and location.

Technical Specifications:

Overview
Presentation: Sensor Pod Optimized for Wall Mounting that Supports 4 Universal Sensors

Main
Product or Component Type: Room Sensor
Range of Product: NetBotz

Provided Equipment
Provided Equipment:

• Cable Ties
• Documentation CD
• Installation Guide
• Wall Mounting Brackets

General
Number of Universal Sensor Ports: 4

Physical
Height: 14.6 cm
Width: 13.5 cm
Depth: 3.85 cm
Product Weight: 0.2 kg
Mounting Support: Wall
Mounting Preference: No Preference
Mounting Mode: Not Rack-Mountable

Conformance
Standards:

• FCC Part 15 Class A
• ICES-003

Product Certifications:

• AS/NZS 3548 (C-Tick) Class A
• cUL Listed
• CE
• Low Voltage Directive 2006/95/EC
• PSE
• UL Listed
• VCCI Class A
• VDE

Environmental
Ambient Air Temperature for Operation: 0 °C to 45 °C
Operating Altitude: 0 to 10000 ft
Relative Humidity: 0% to 95%
Ambient Air Temperature for Storage: -15 °C to 65 °C
Storage Altitude: 0 to 15240 m
Storage Relative Humidity: 0% to 95%

Packaging
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 26 cm
Package 1 Width: 28.6 cm
Package 1 Length: 16.5 cm
Package 1 Weight: 1.397 kg

Warranty
Warranty (In Months): 24 Months

What's in the Box:

• Cable Ties
• Documentation CD
• Installation Guide
• Wall Mounting Brackets
