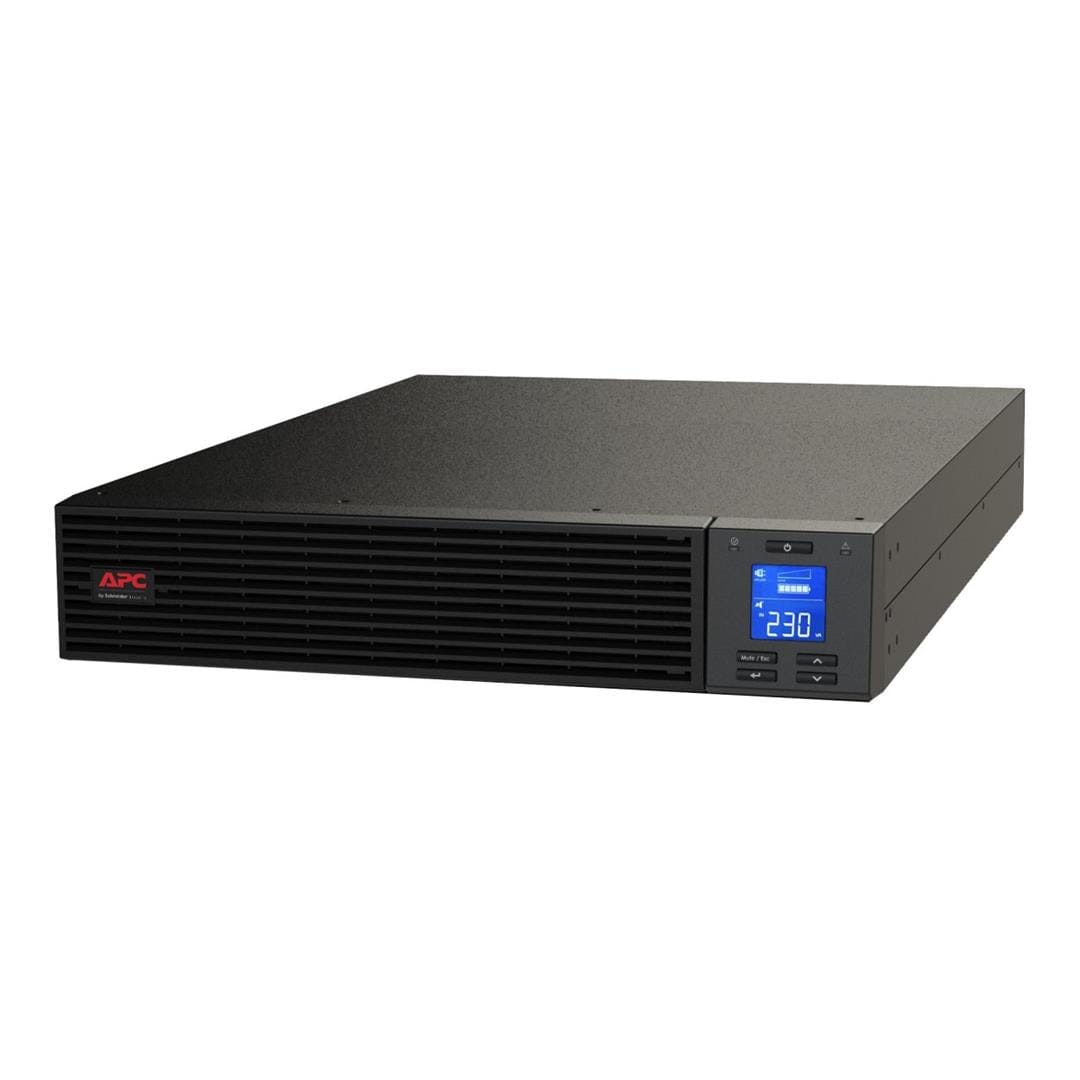

APC SRV3KRIRK 3kVA 2400W Double-conversion Online UPS

APC SRV3KRIRK 3kVA 2400W Double-conversion Online UPS

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Features:

• High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

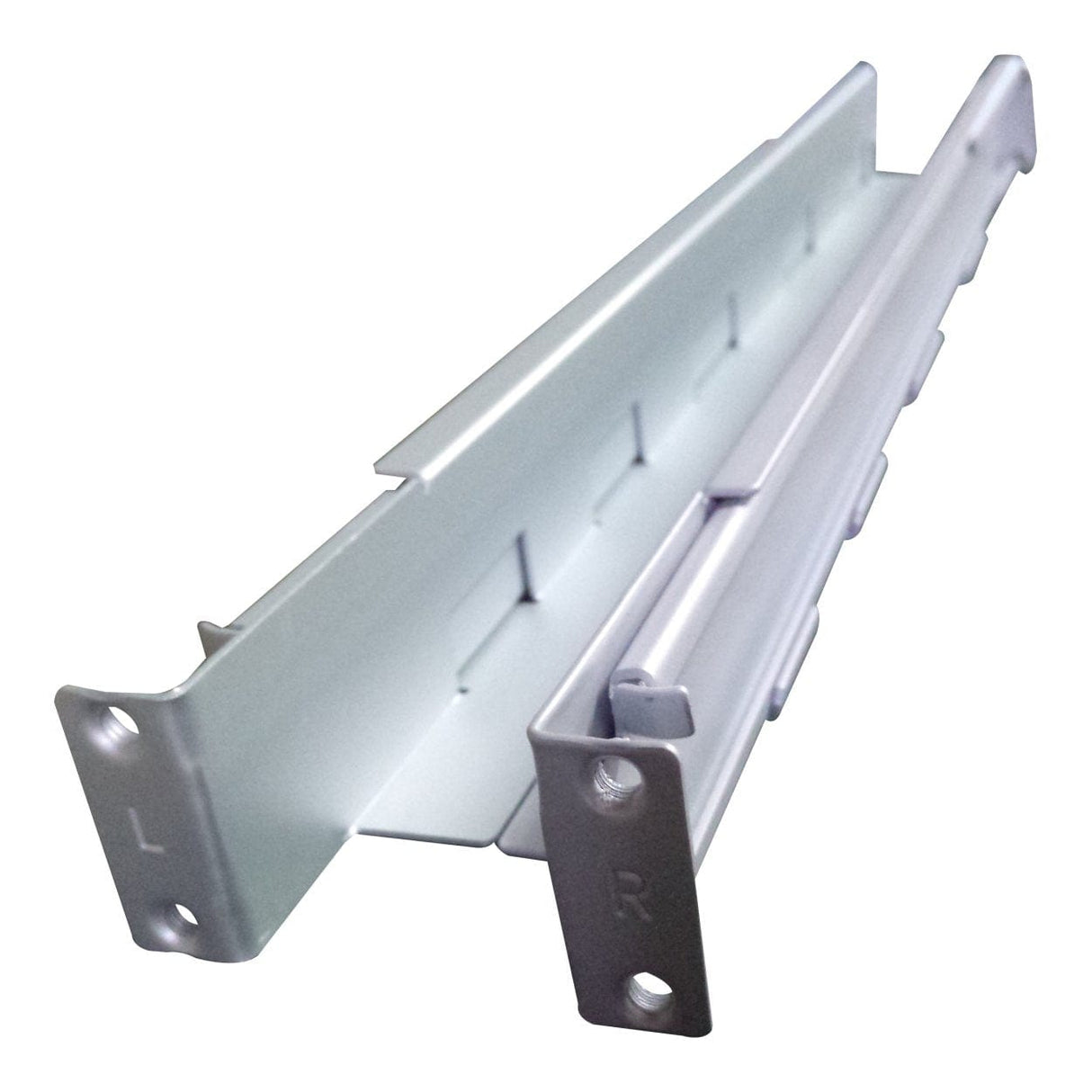

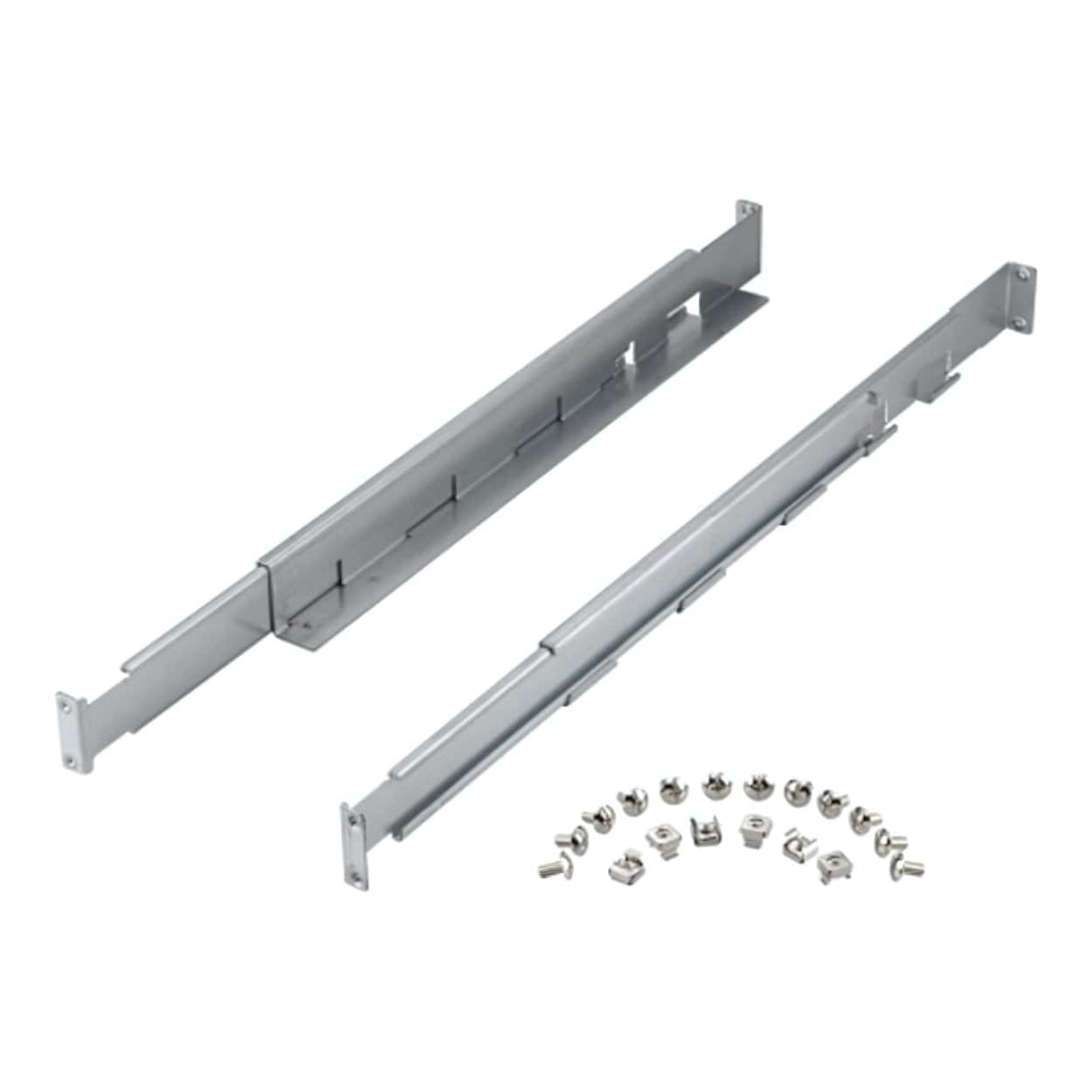

• Includes: CD with software, Rack Mounting support rails, User Manual

Technical Specifications:

Overview
Presentation: High quality, double-conversion on-line UPS designed for essential power protection needs even in the most unstable power conditions
Lead Time: Usually in Stock
Product Type: Uninterruptible Power Supply (UPS)
Product Range: Easy UPS On-Line

Power & Performance
UPS Type: Double conversion online
Wave Type: Sine wave
Rated Power: 2400 W / 3000 VA
Maximum Configurable Power: 2400 W / 3000 VA
Efficiency: 88% (full load)
Crest Factor: 3:1
Harmonic Distortion: 3%
Max Capacity Used: 100%

Input
Main Input Voltage: 230 V AC, 1-phase
Input Voltage Range:

• 110–285 V (half load)
• 160–280 V (full load)

Input Voltage Options: 220 V, 240 V
Input Connection Type: IEC 60320 C20
Network Frequency: 40–70 Hz (auto sensing)

Output
Output Voltage: 230 V AC, 1-phase
Output Voltage Options: 220 V, 240 V
Output Frequency: 50/60 Hz ±3 Hz (sync to mains)

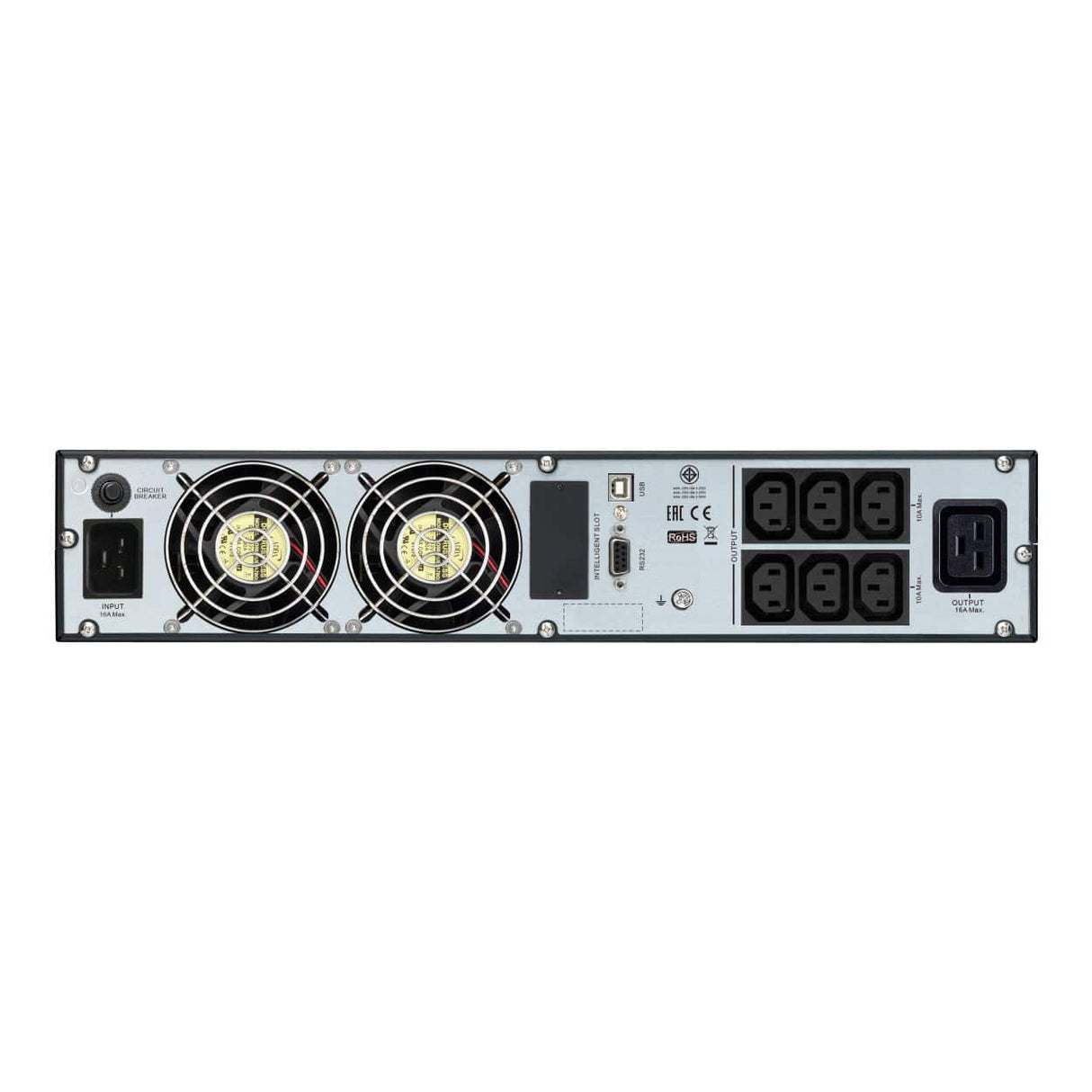

Output Connections:

• 6 × IEC 60320 C13
• 1 × IEC 60320 C19

Bypass Type: Internal bypass (automatic and manual)

Battery & Runtime
Battery Type: Lead-acid (internal, included)
Battery Voltage: 72 V
Battery Recharge Time: 4 h
Battery Life: 3–5 years
Replacement Battery: APCRBCV202
Battery Charger Power: 60 W (rated)

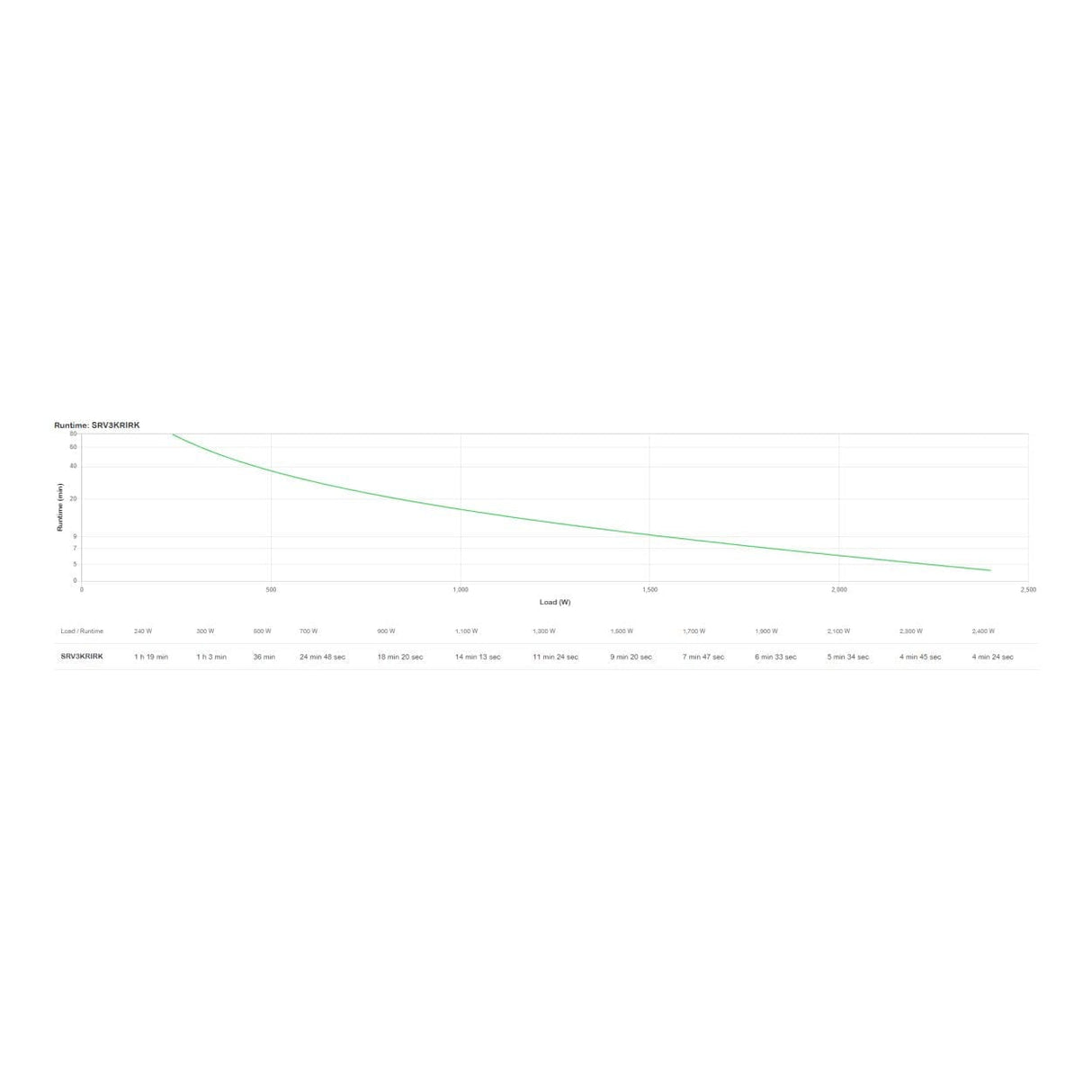

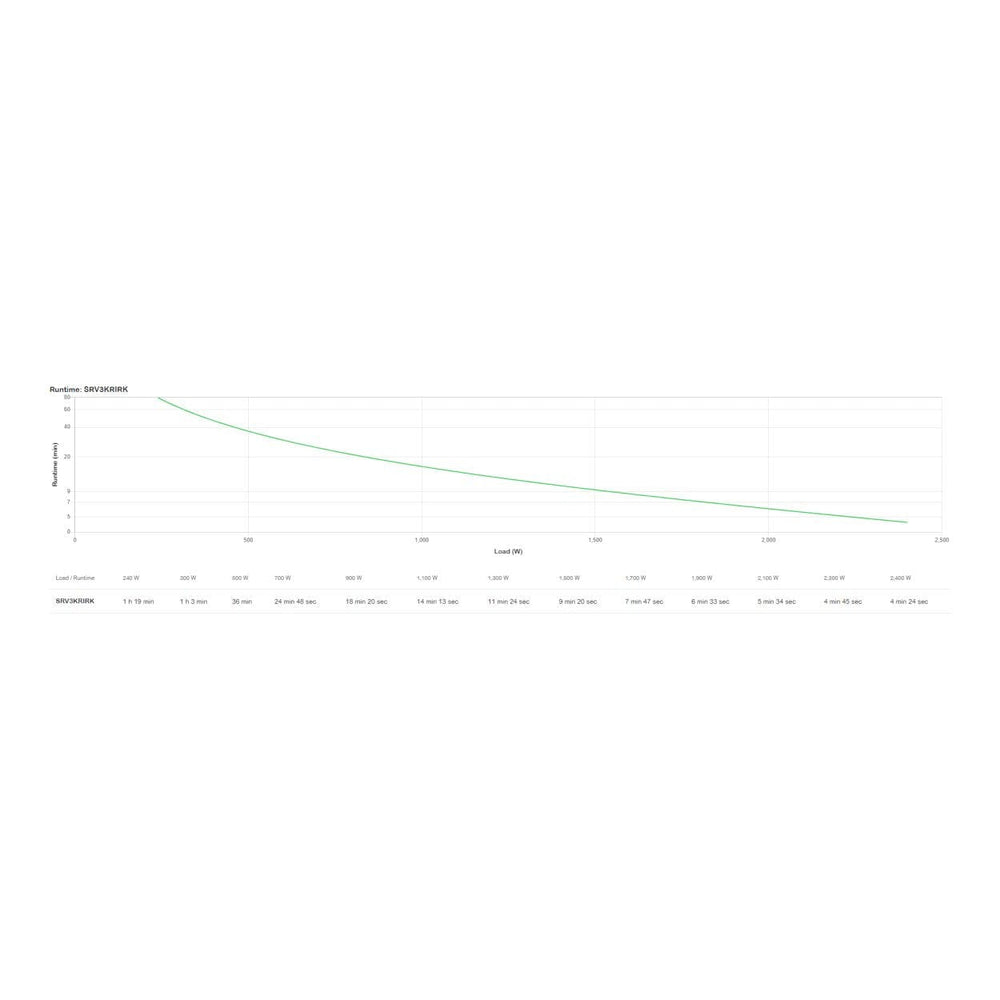

Run Time at Full Load: 4 min 24 s
Extended Runtime: No

Connectivity & Control

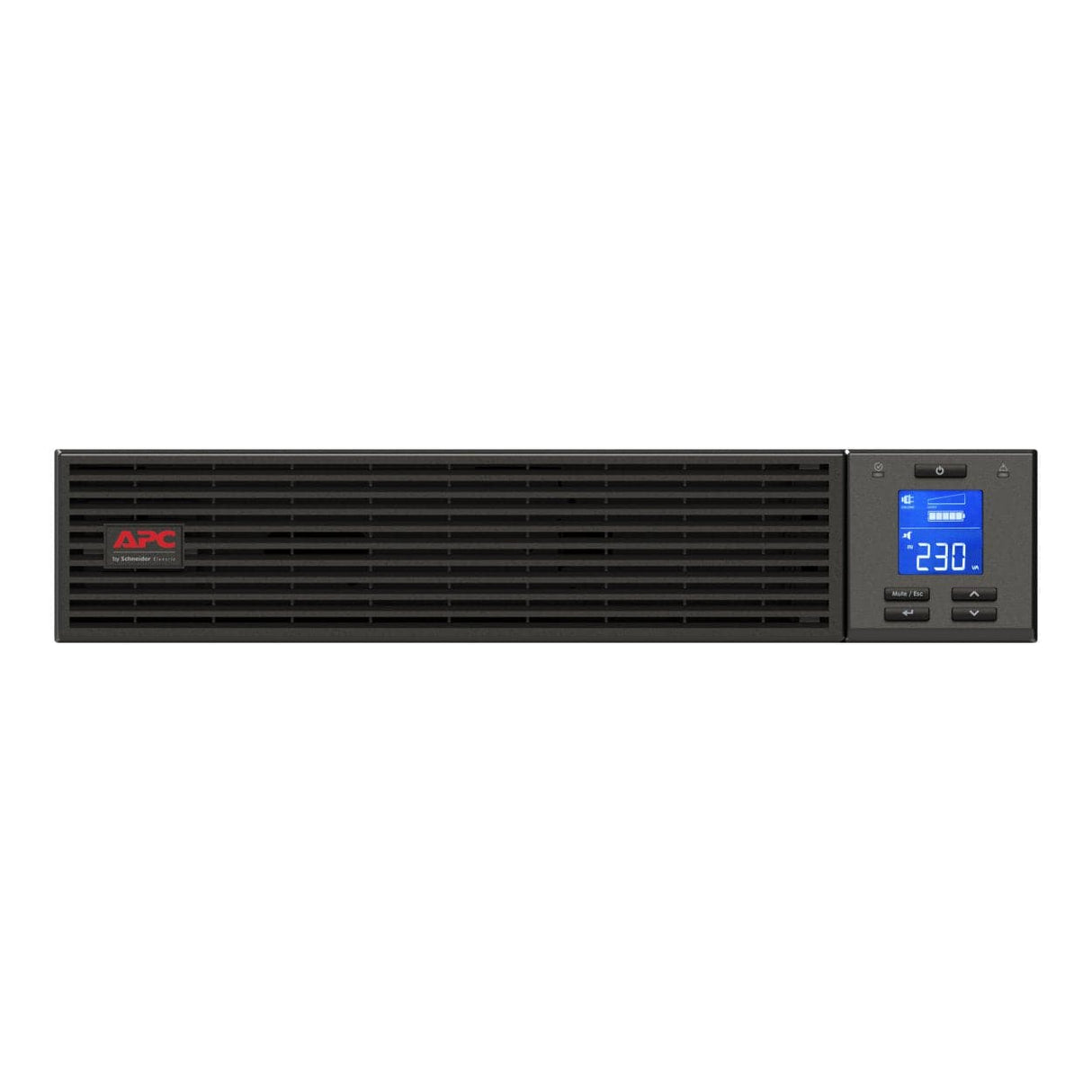

Control Panel: Multifunction LCD status and control console
Alarm:

• On battery
• Low battery
• Overload (continuous tone)

UPS Connectivity:

• Serial port
• USB port

USB Compatible: Yes
Available Expansion Slot: 1
Free Slots: 1

Mechanical & Mounting
Rack Units: 2U
Mounting Mode: Rack-mounted (kit included)
Mounting Position: Horizontal
Mounting Location: Front
Mounting Preference: Lower
Colour: Black (RAL 7010)
Cable Length: 1.48 m
Number of Cables: 1

Dimensions & Weight
Height: 86 mm
Width: 437 mm
Depth: 632 mm
Net Weight: 27.6 kg

Environmental
Operating Temperature: 0–40 °C
Storage Temperature: -20–50 °C
Operating Altitude: 0–3000 m
Storage Altitude: 0–15000 m
Relative Humidity: 0–95% non-condensing
IP Rating: IP20
Acoustic Level: 50 dBA
Heat Dissipation: 910 Btu/h

Standards & Certifications
Certifications: CE, UKCA, EAC, TISI
Standards:

• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Warranty
Warranty Period: 24 months
