APC SRV3KRILRK Easy UPS 3kVA 2400W 7 AC Outlet Double-conversion Online UPS

APC SRV3KRILRK Easy UPS 3kVA 2400W 7 AC Outlet Double-conversion Online UPS

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Features:

• 3kVA/2400W double-conversion on-line pure sine wave 4U rackmount UPS
• High operating efficiency in energy-saving ECO mode
• Add up to 4 external battery packs (SRV72RLBP-9A) for extended runtime
• Easy-to-read LCD interface for detailed and accurate information on UPS status

Technical Specifications:

Main

Run time for load: 2400 W
Min-max: 240–2400 W
12 min 44 s
Max. Capacity Used: 100 %
Main Input Voltage: 230 V AC 1 phase
Input voltage: 220 V, 240 V
Input Connection Type: IEC 60320 C20
Input voltage limits: 110–285 V half load, 160–280 V full load
Network frequency: 40–70 Hz auto sensing
Output voltage: 230 V AC 1 phase
Output voltage: 220 V, 240 V
Rated power in W: 2400 W
Rated power in VA: 3000 VA

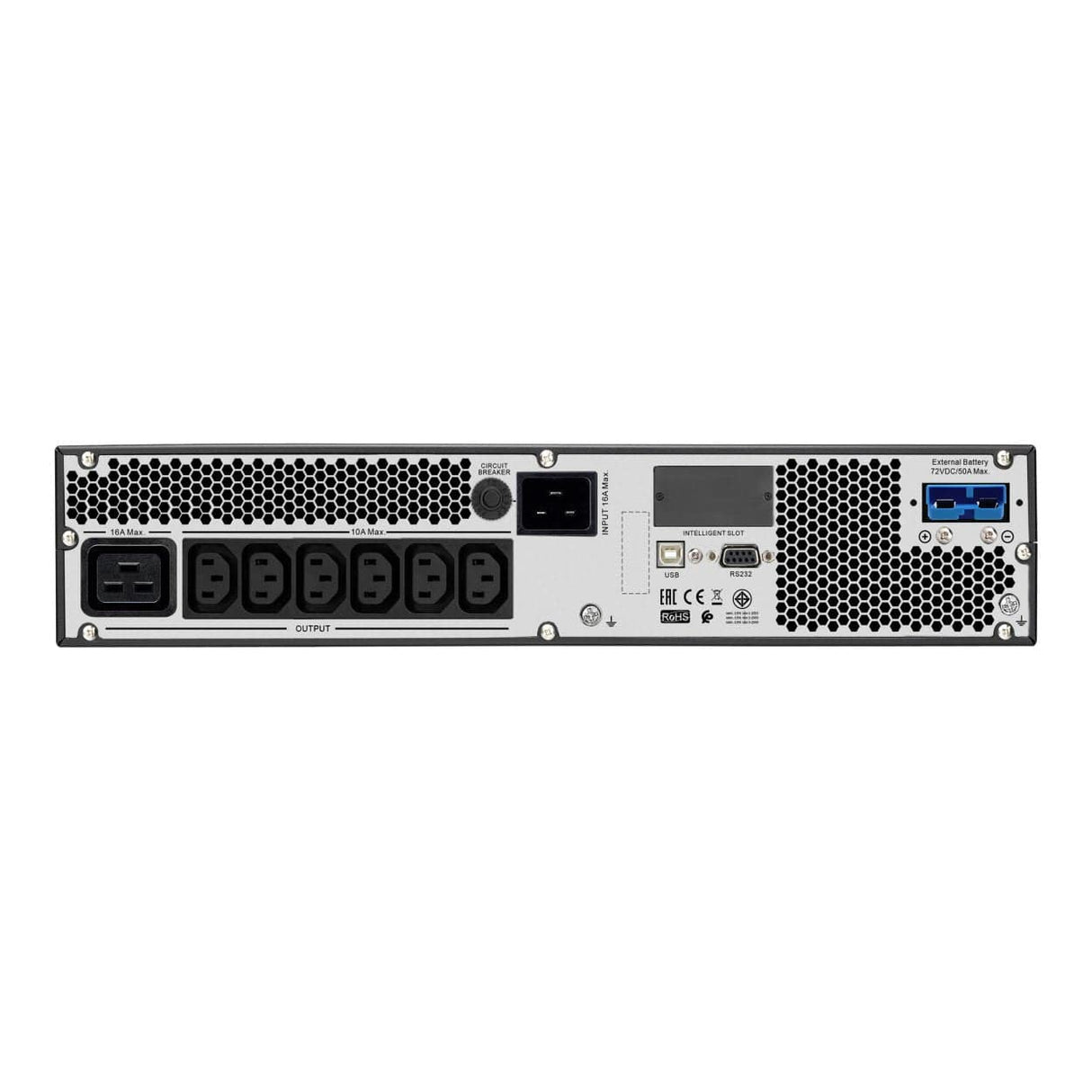

Output connection type: 6 IEC 60320 C13, 1 IEC 60320 C19
Bypass type: Internal bypass (automatic and manual)
Crest factor: 3:1
Harmonic distortion: 3 %
Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2400 W
UPS type: On-Line
Wave type: Sine wave
Efficiency: 88 % (full load)
Output frequency: 50/60 Hz ±3 Hz sync to mains

Complementary

Additional information: Configurable for 220, 230 or 240 nominal output voltage
Battery type: Lead-acid external included
Control panel: Multifunction LCD status and control console
Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
UPS connectivity: Serial port, USB port
Available expansion slot: —
Surge energy rate: 600 J
Number of rack unit: 4U
Number of cables: 1
Colour: Black (RAL 7010)
Height: 172 mm
Width: 437 mm
Depth: 632 mm
Net weight: 52 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted
USB compatible: Yes
Mounting position: Horizontal

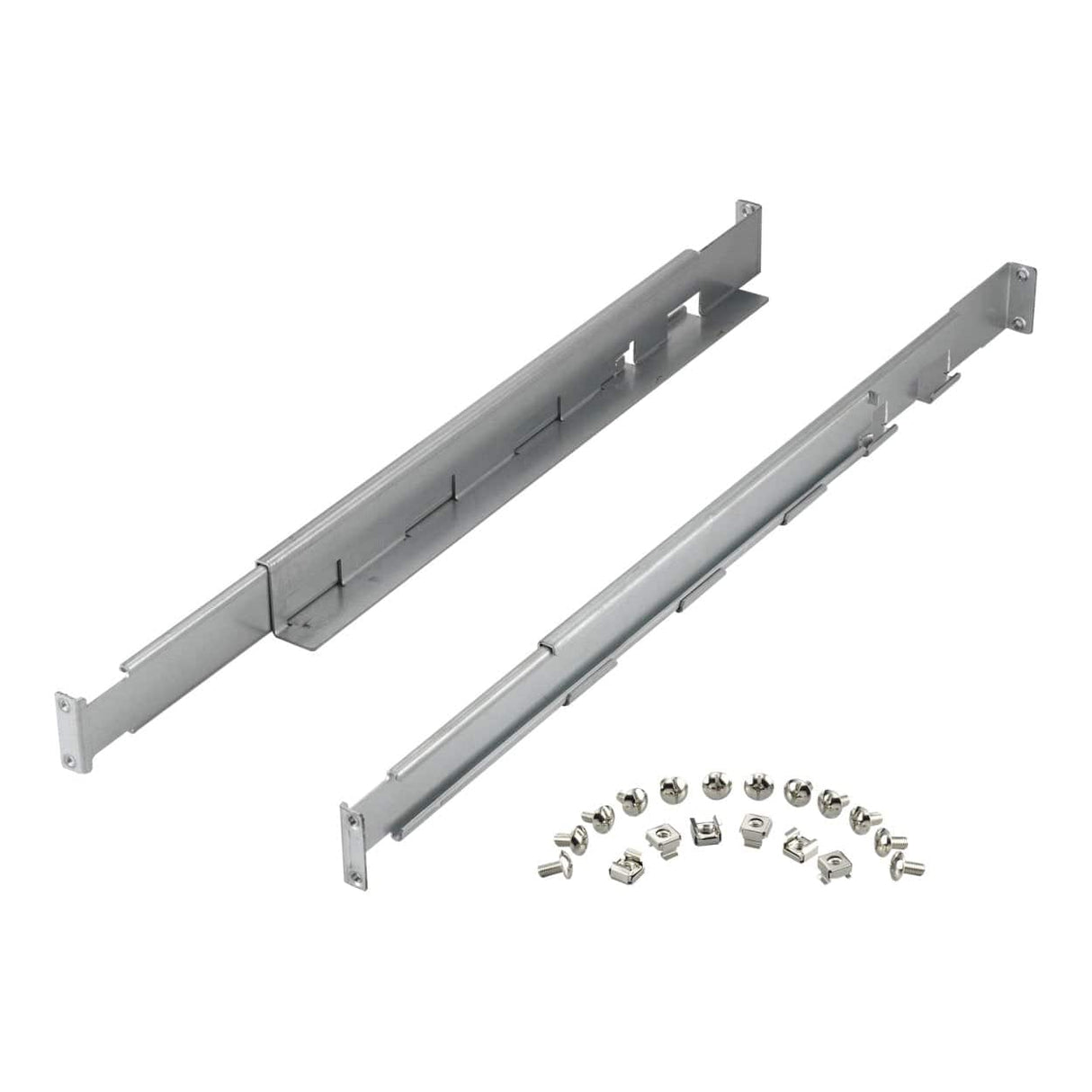

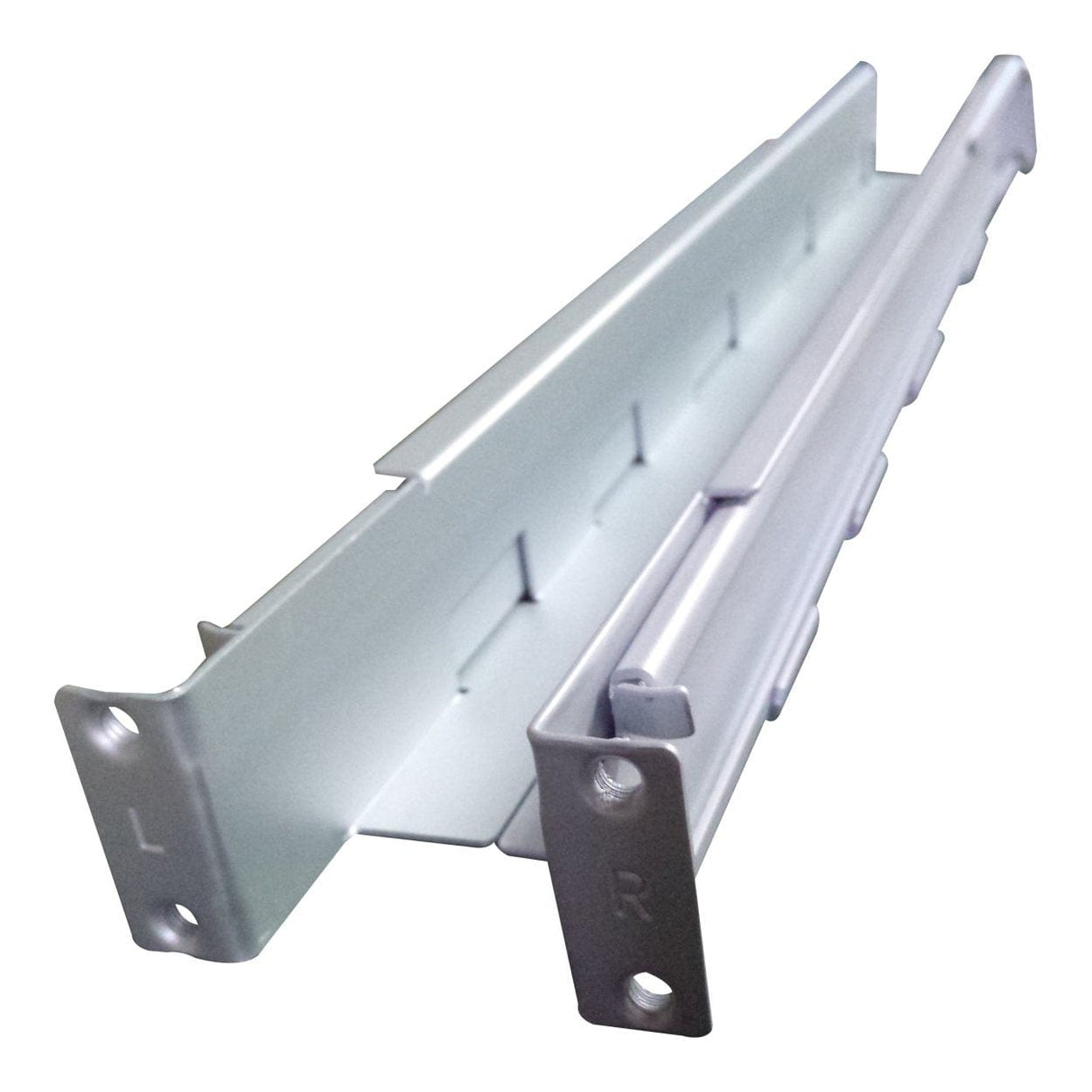

Mounting mode: Rack-mounted with included kit
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
Range of product: Easy UPS On-Line
Product or component type: Uninterruptible power supply (UPS)

Environment

Product certifications: CE, UKCA, EAC, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation: 0–40 °C
Ambient air temperature for storage: -20–50 °C
Storage altitude: 0–15,000 m
IP degree of protection: IP20
Relative humidity: 0–95 % non-condensing
Storage Relative Humidity: 0–95 % non-condensing
Acoustic level: 50 dBA
Heat dissipation: 910 Btu/h
Operating altitude: 0–3000 m

Batteries & Runtime

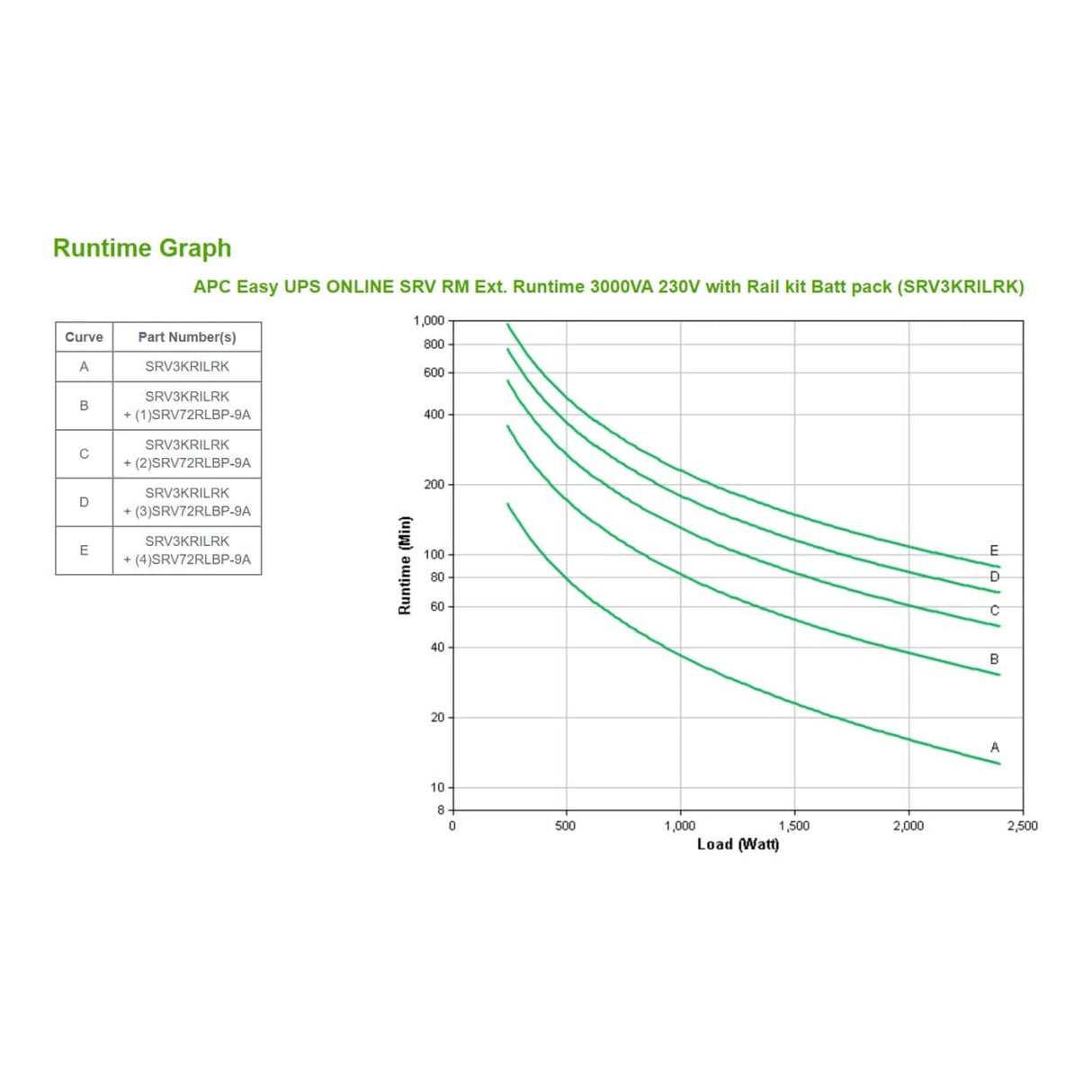

Run Time: View Runtime Graph
Efficiency: View Efficiency Graph
Battery type: Lead-acid battery
Battery voltage: 72 V
Extended runtime: 1
Number of battery filled slots: 1
Number of battery free slots: 0
Battery recharge time: 5.5 h
Battery life: 3–5 years
Battery charger power: 350 W rated

Packing Units

Unit Type of Package 1: PCE
Number of Units in Package 1: 3
Package 1 Height: 48 cm
Package 1 Width: 60 cm
Package 1 Length: 70 cm
Package 1 Weight: 66.8 kg

Contractual Warranty

Warranty (in months): 24
