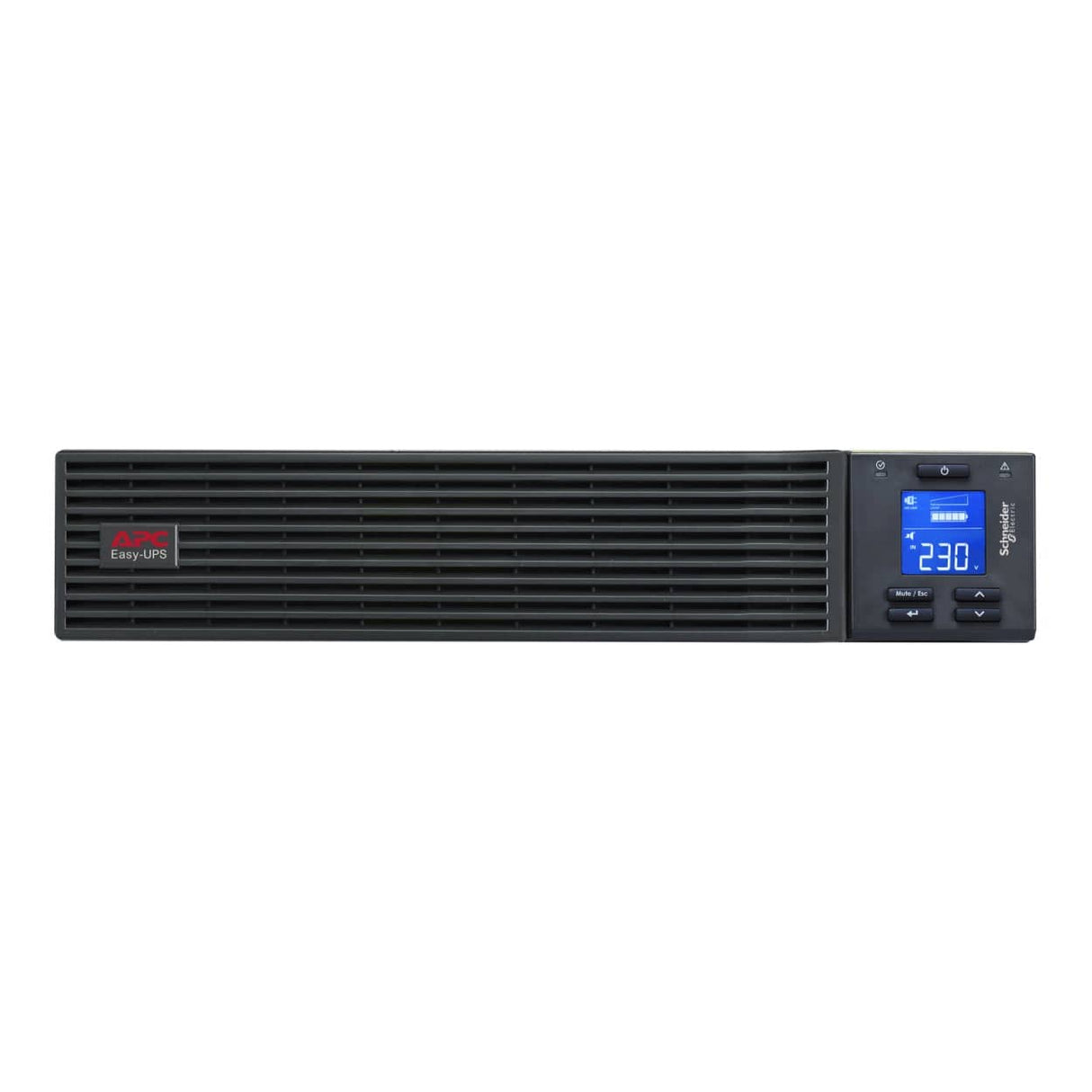

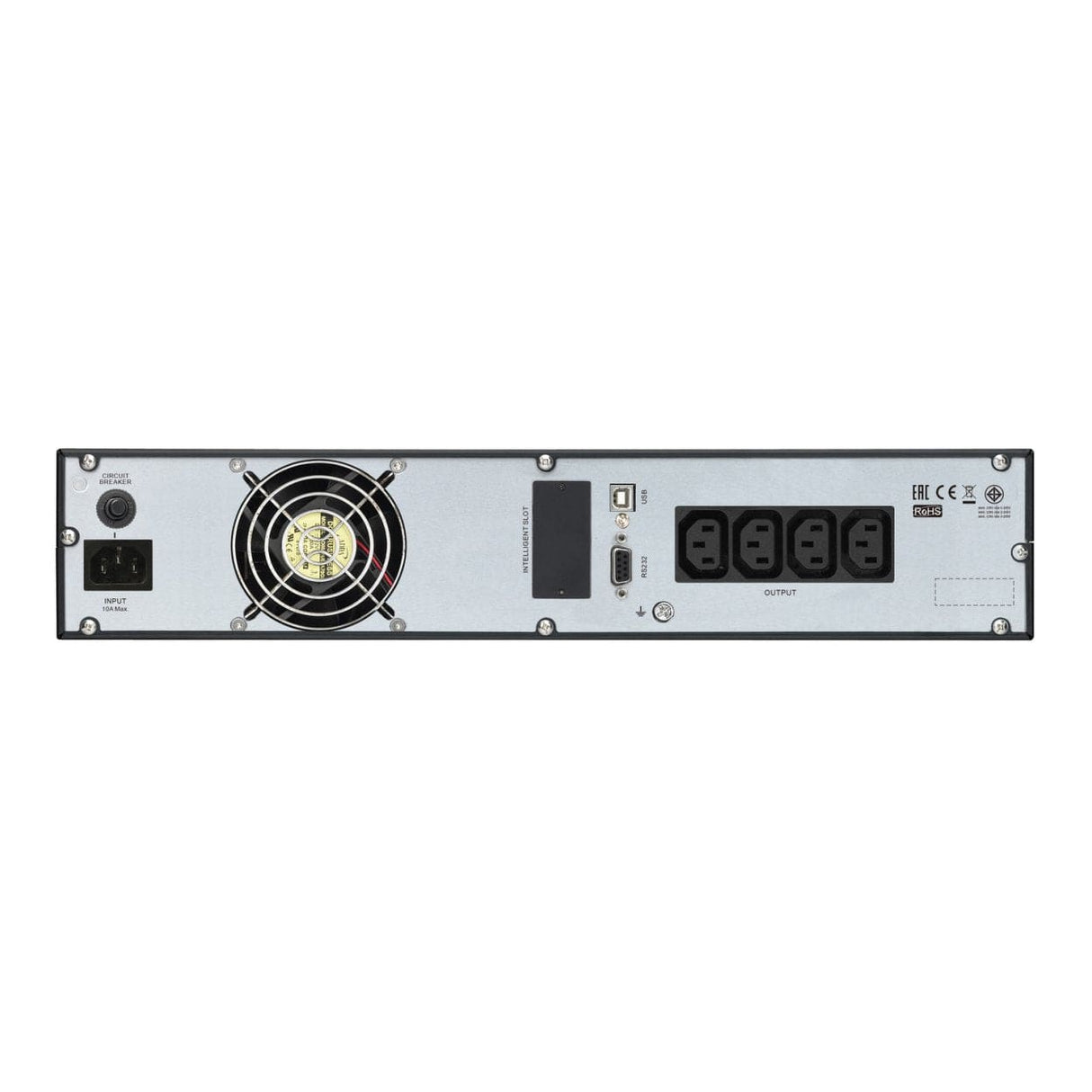

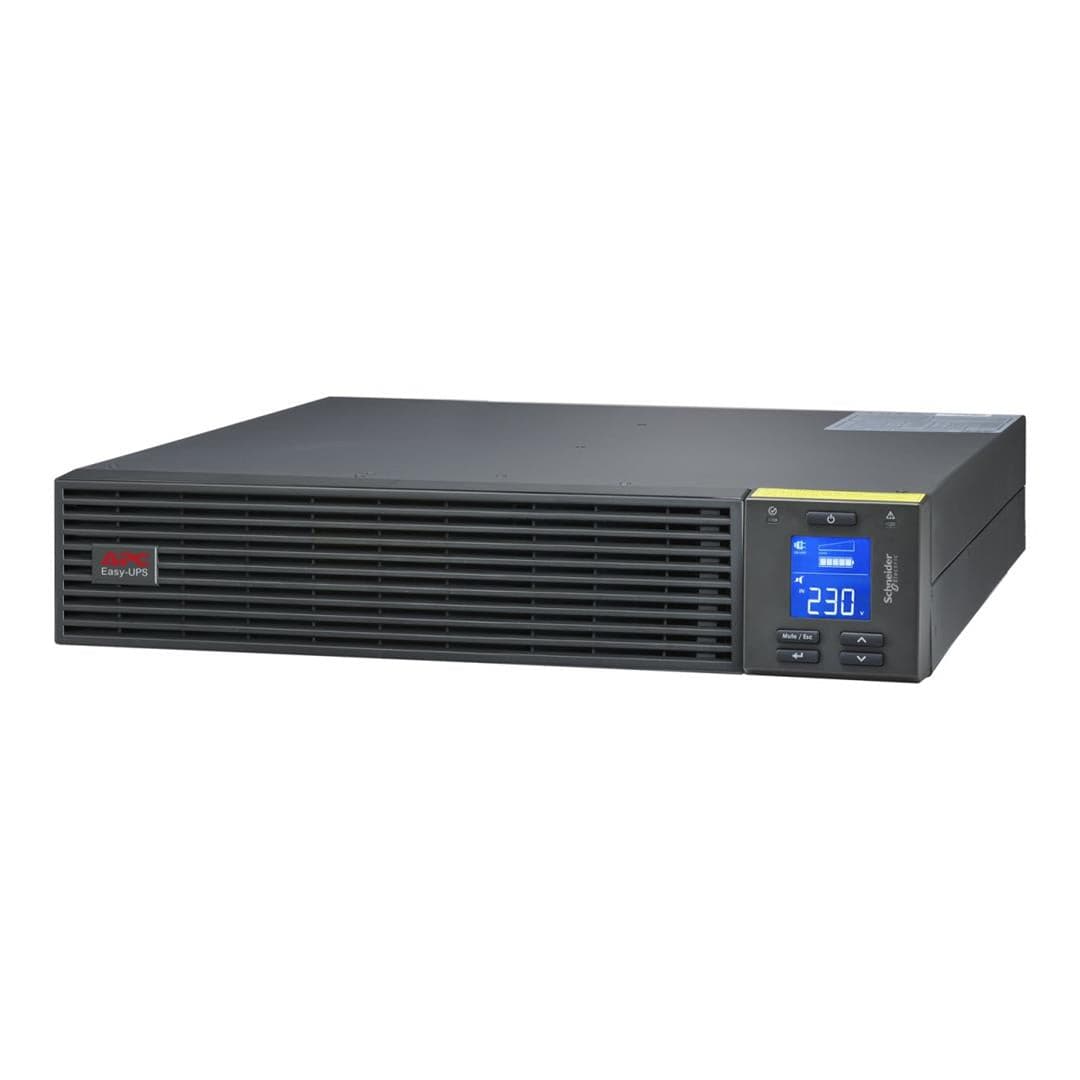

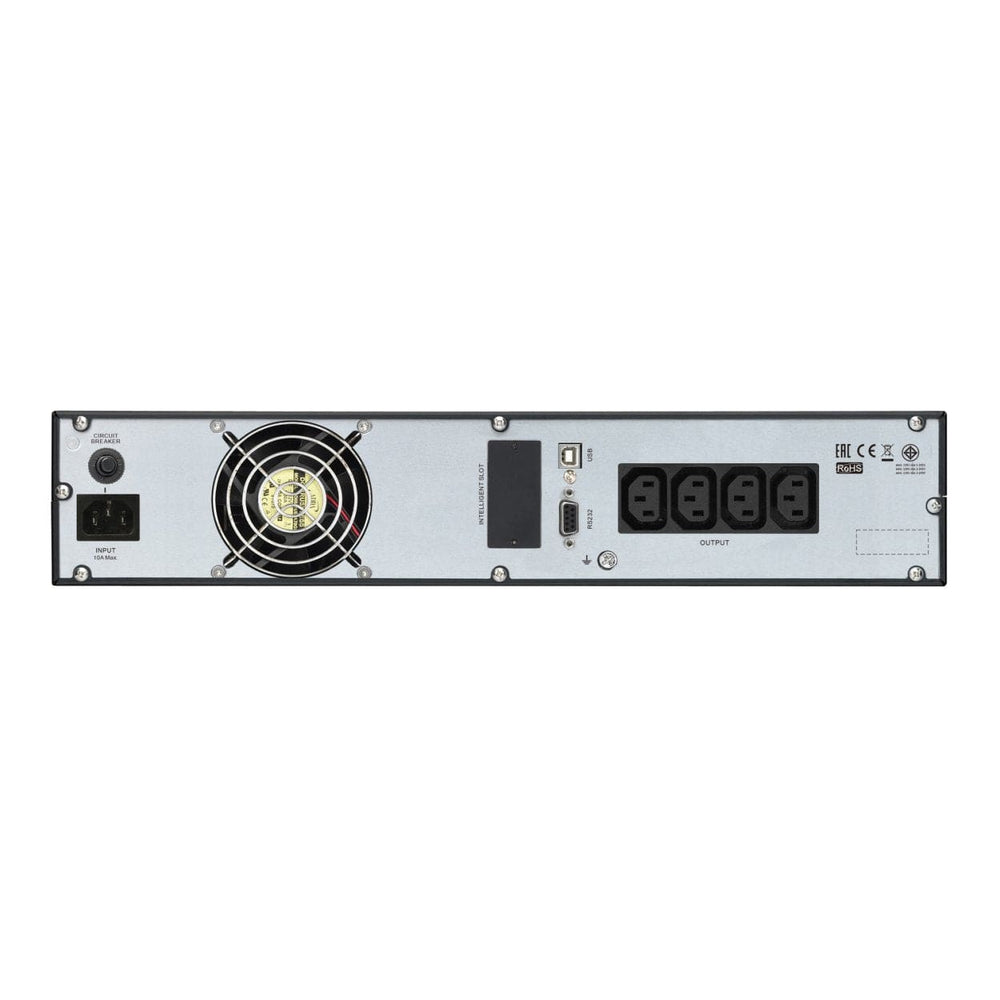

APC SRV2KRIRK Easy On-Line SRV 2000VA RM 230V UPS with Rail Kit

APC SRV2KRIRK Easy On-Line SRV 2000VA RM 230V UPS with Rail Kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.

Technical Specifications:

Main
Power Capacity: 1600 W / 2000 VA
Input Voltage: 230 V AC (220–240 V supported)
Output Voltage: 230 V AC (220–240 V configurable)
Input Connection: IEC 60320 C14
Output Connections: 4 × IEC 60320 C13
Runtime (at full load): 4 min
Efficiency: 88% (full load)
UPS Type: Double-conversion online
Wave Type: Pure sine wave
Bypass: Internal automatic and manual
Crest Factor: 3:1
Network Frequency: 40–70 Hz auto sensing
Input Voltage Range: 110–285 V (half load), 160–280 V (full load)

Battery
Type: Lead-acid internal (included)
Voltage: 48 V
Recharge Time: 4 h
Lifespan: 3–5 years
Charger Power: 70 W
Replacement Battery: APCRBCV201

Physical
Color: Black (RAL 7010)
Dimensions (H×W×D): 86 × 437 × 462 mm
Weight: 18.2 kg
Form Factor: 2U rack-mounted
Mounting: Front, horizontal
Cable Length: 1.5 m

Connectivity
Ports: USB, RS-232 serial
Included Accessories:
– C13 to Schuko cable
– C13 to C14 cable
– USB cable
– RS-232 configuration cable

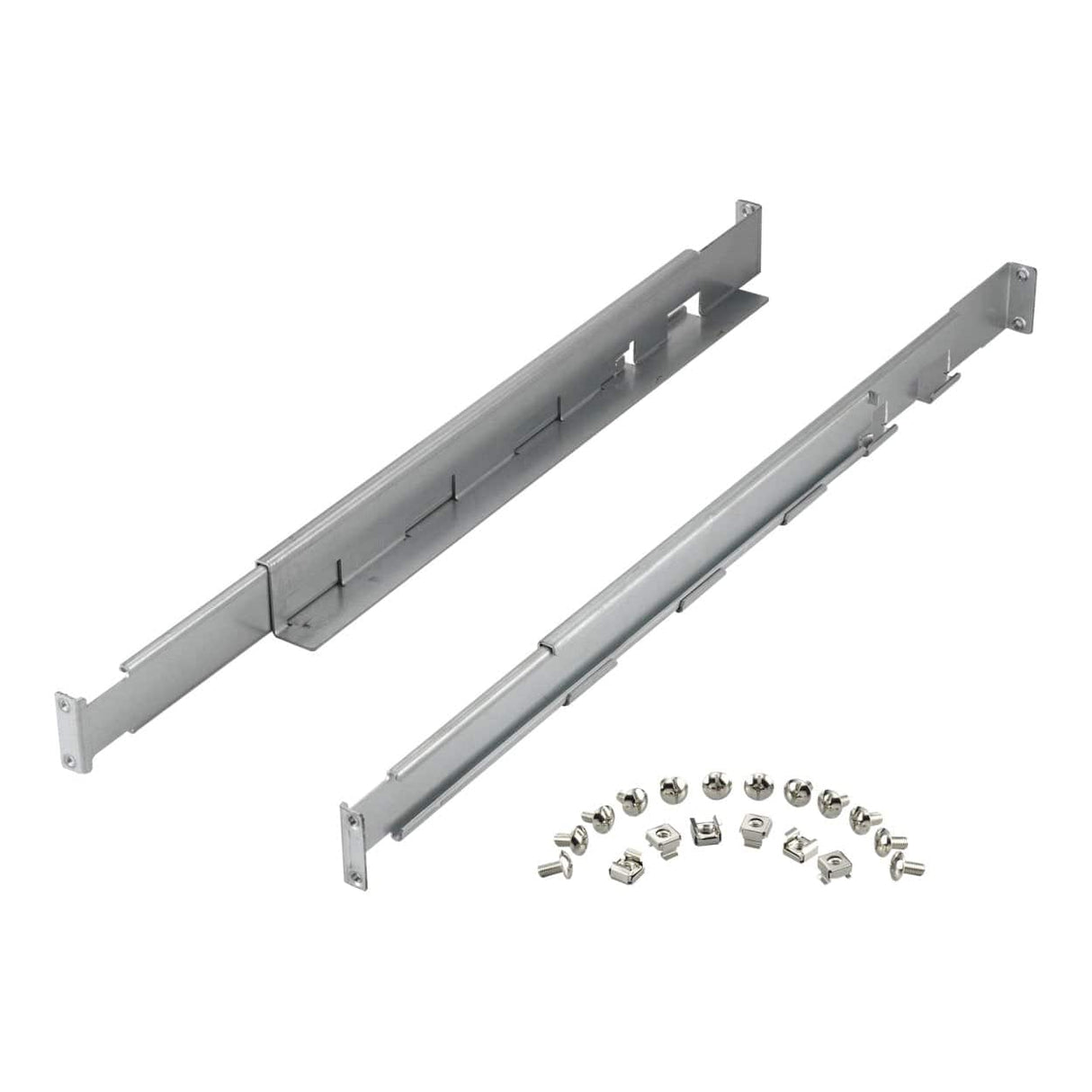

– Rack mounting kit (brackets and rails)
– User manual

Environmental
Operating Temperature: 0–40 °C
Storage Temperature: -20–50 °C
Humidity: 0–95% non-condensing
Operating Altitude: 0–3000 m
Storage Altitude: 0–15000 m
Acoustic Level: 50 dBA
Heat Dissipation: 745 BTU/h
IP Rating: IP20

Conformance
Certifications: CE, EAC, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Management
Display: Multifunction LCD control panel
Alarms: Battery mode, low battery, overload continuous tone
Free Expansion Slot: 1

Surge Protection
Energy Rating: 600 J

Packaging
Package Dimensions (H×W×L): 21.8 × 70 × 55 cm
Package Weight: 20.7 kg
Units per Package: 1
