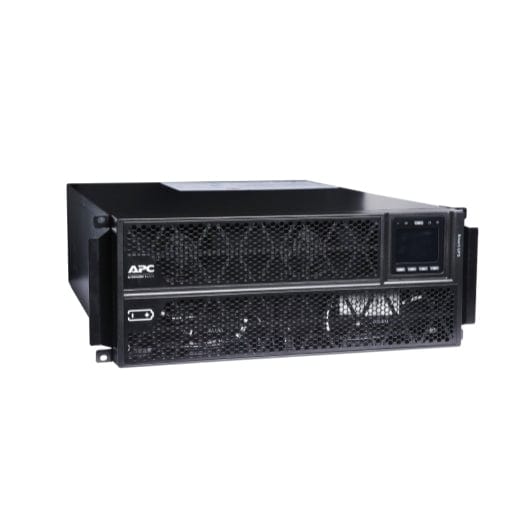

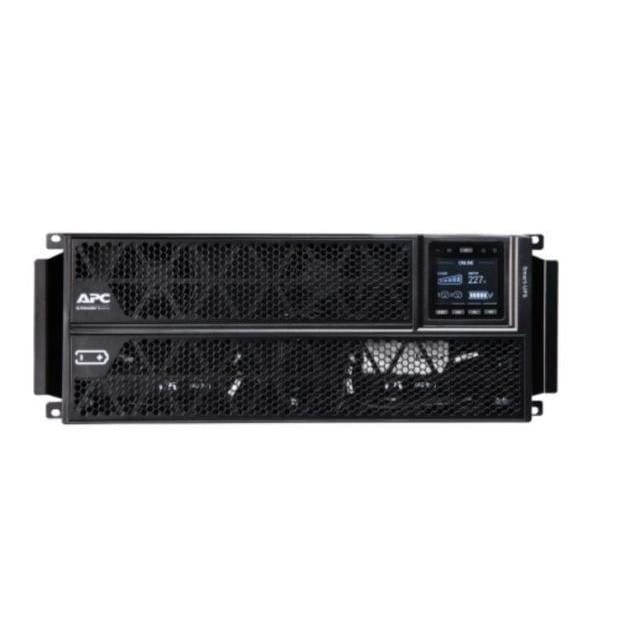

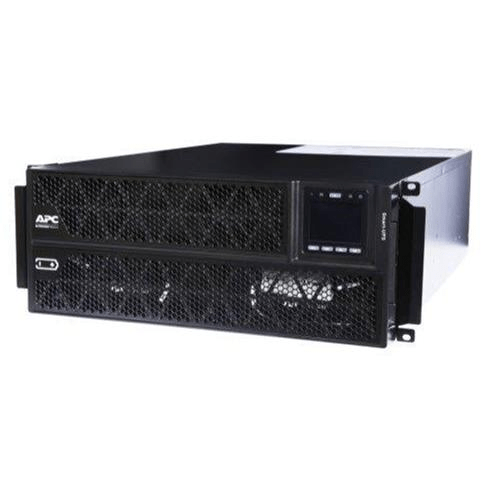

APC SRTG6KXLI Smart-UPS 6000W 6kVA UPS

APC SRTG6KXLI Smart-UPS 6000W 6kVA UPS

Features

• High Output Power Factor
• High Efficiency “Green Mode”
• Multi-color LCD Display
• Switchable Outlet Groups
• Pre-installed Network Card
• APC Smart-Slot
• Emergency Power Off (EPO)
• Communication Ports

Technical Specification

Main

Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 6000 W
Rated power in VA: 6000 VA
Output connection type

• 2x IEC 60320 C13
• 1x IEC 60320 C19

Output connector type: Hard wire 3-wire (H N + E) 1
Number of rack unit: 4U

Batteries & Runtime

Battery type: Lead-acid battery
Number of battery filled slots: 2
Battery recharge time: 4 h
Number of battery replacement quantity: 1
Battery voltage: +/- 96 V
Battery charger power: 239 W rated
Replacement battery: APCRBC170

General

UPS type: Double conversion online
Redundant: No

Physical

Product colour: Black (RAL 9005)
Dimensions (H x W x D): 17.5 x 44 x 62 cm
Net weight: 55.9 kg
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Horizontal

Input

Network frequency: 40...70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Input voltage limits: 160...285 V full load
Maximum input current: 30 A
Switching current capacity: 40 A

Output

Maximum configurable power in VA: 6000 VA
Maximum configurable power in W: 6000 W
Output frequency: 50/60 Hz +/- 4 Hz sync to mains
Wave type: Sine wave
Efficiency: 93.5 %
Crest factor: 3 : 1
Bypass type: Internal bypass (automatic and manual)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage

Communications & Management

Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes

Surge Protection and Filtering

Surge energy rate: 600 J

Package contents

• 1 x USB cable
• 1 x rack mounting brackets
• 1 x stabilization/wall mounting feet
• 1 x installation manual
• 1 x C13-C14 power cord
