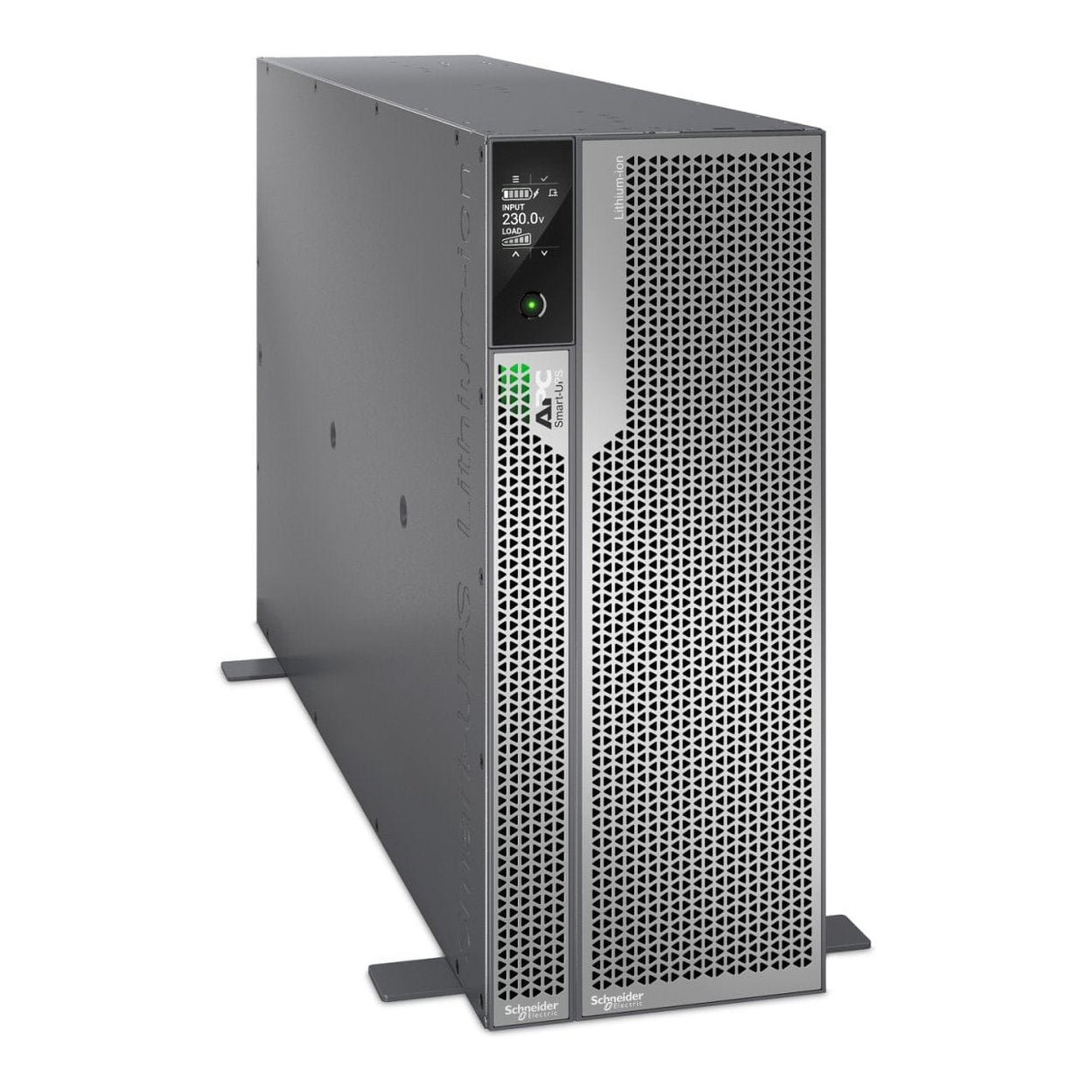

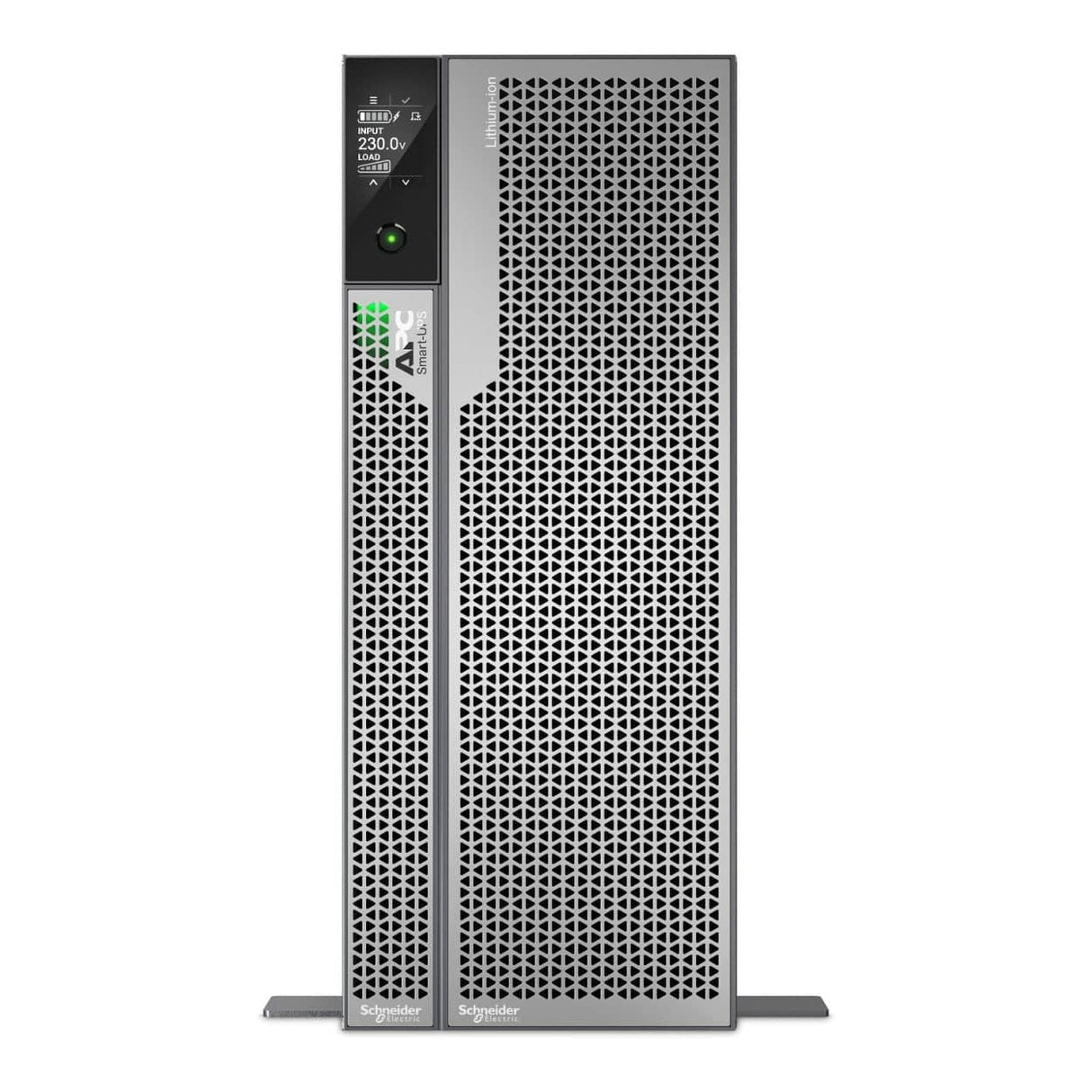

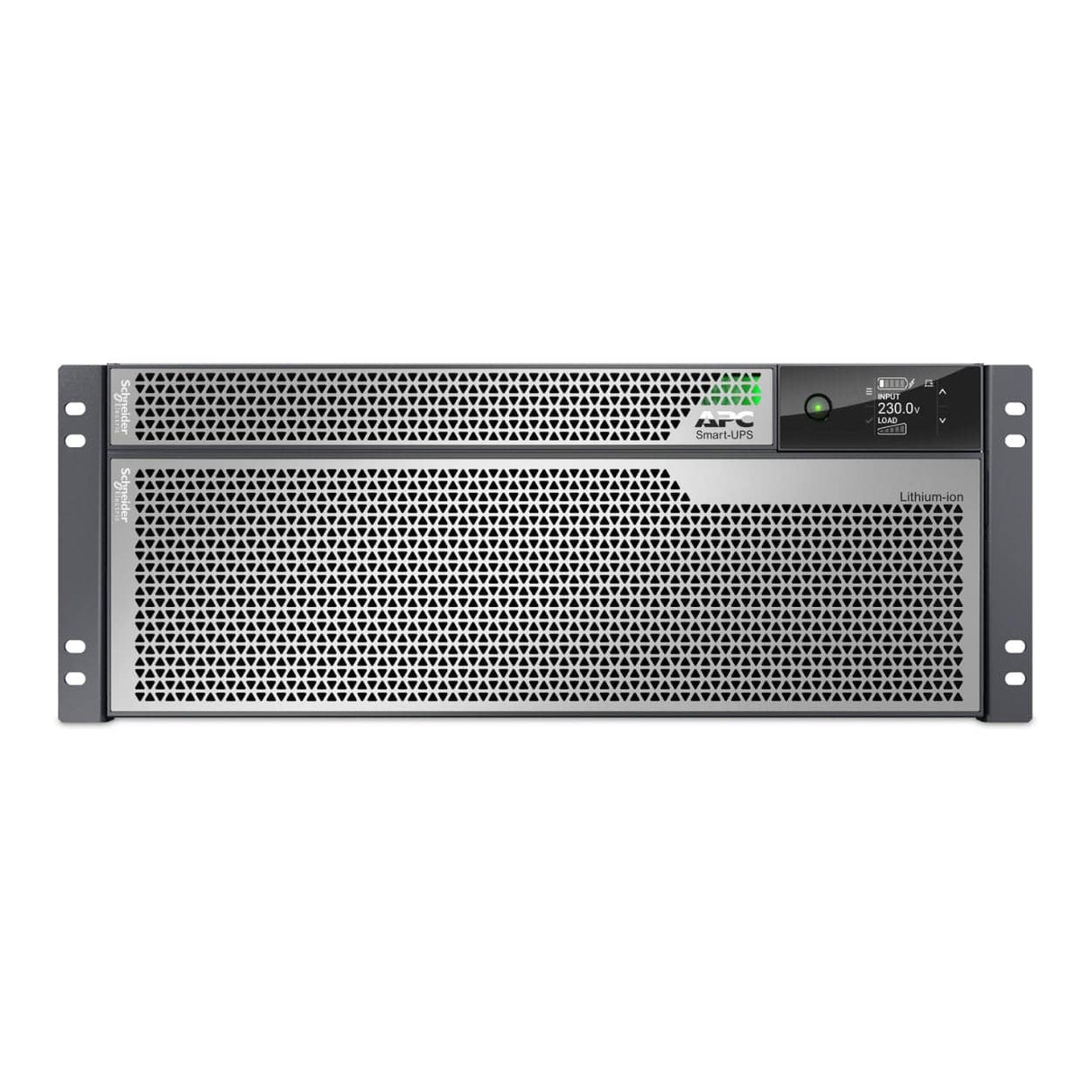

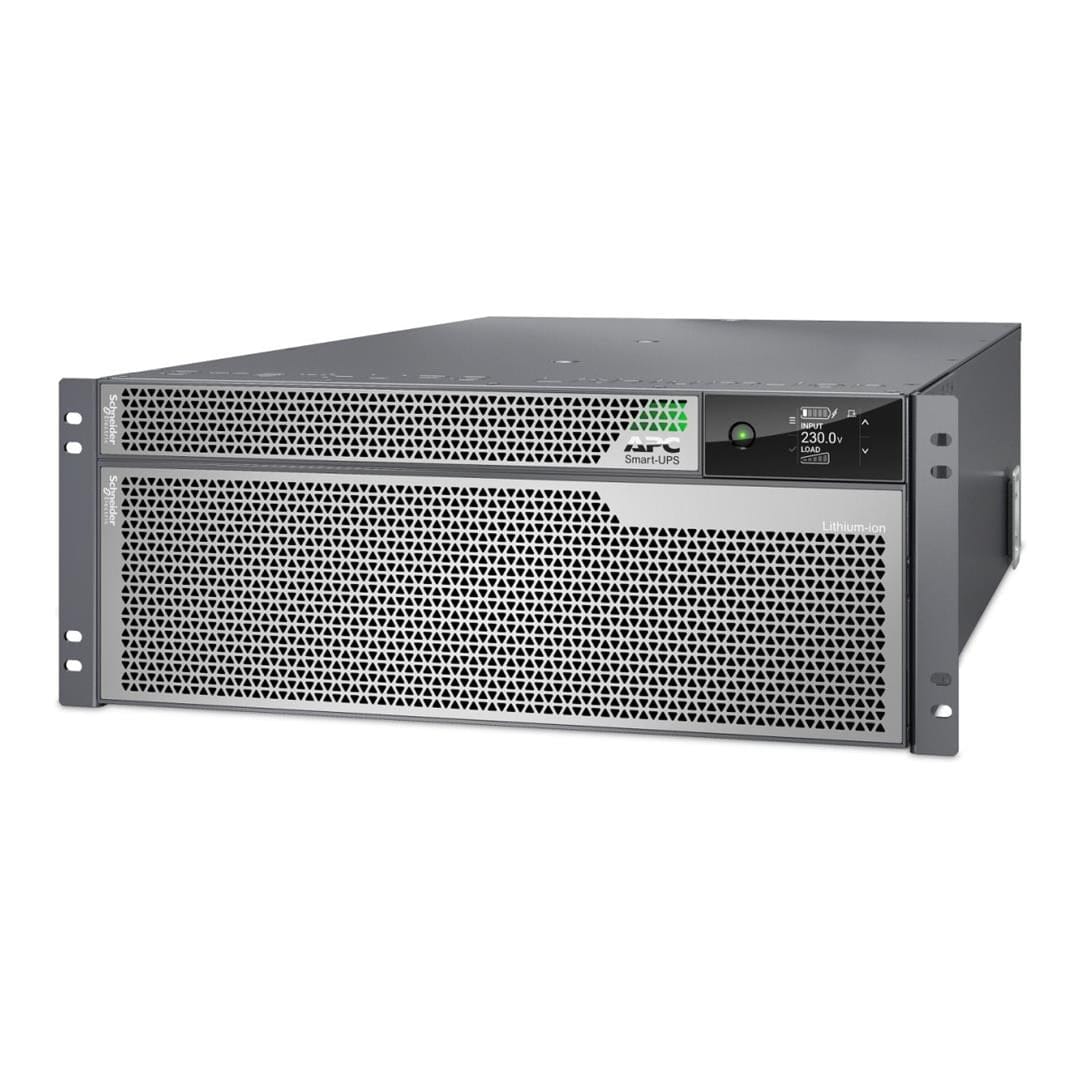

APC Smart-UPS Ultra On-Line 10kVA 10000W 12 AC outlet Double-conversion (Online) UPS SRTL10KRM4UI

APC Smart-UPS Ultra On-Line 10kVA 10000W 12 AC outlet Double-conversion (Online) UPS SRTL10KRM4UI

With Smart-UPS™ Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime.

Technical Specifications:

Main Input Voltage
220 V AC single-phase
230 V AC single-phase
240 V AC single-phase

Other Input Voltage
220–240 V

Product or Component Type
Uninterruptible Power Supply (UPS)

Main Output Voltage
220 V AC single-phase
230 V AC single-phase
240 V AC single-phase

Other Output Voltage
220/230/240 V

Rated Power (W)
10000 W

Rated Power (VA)
10000 VA

Input Connection Type
Hard-wire 3-wire, 55 A

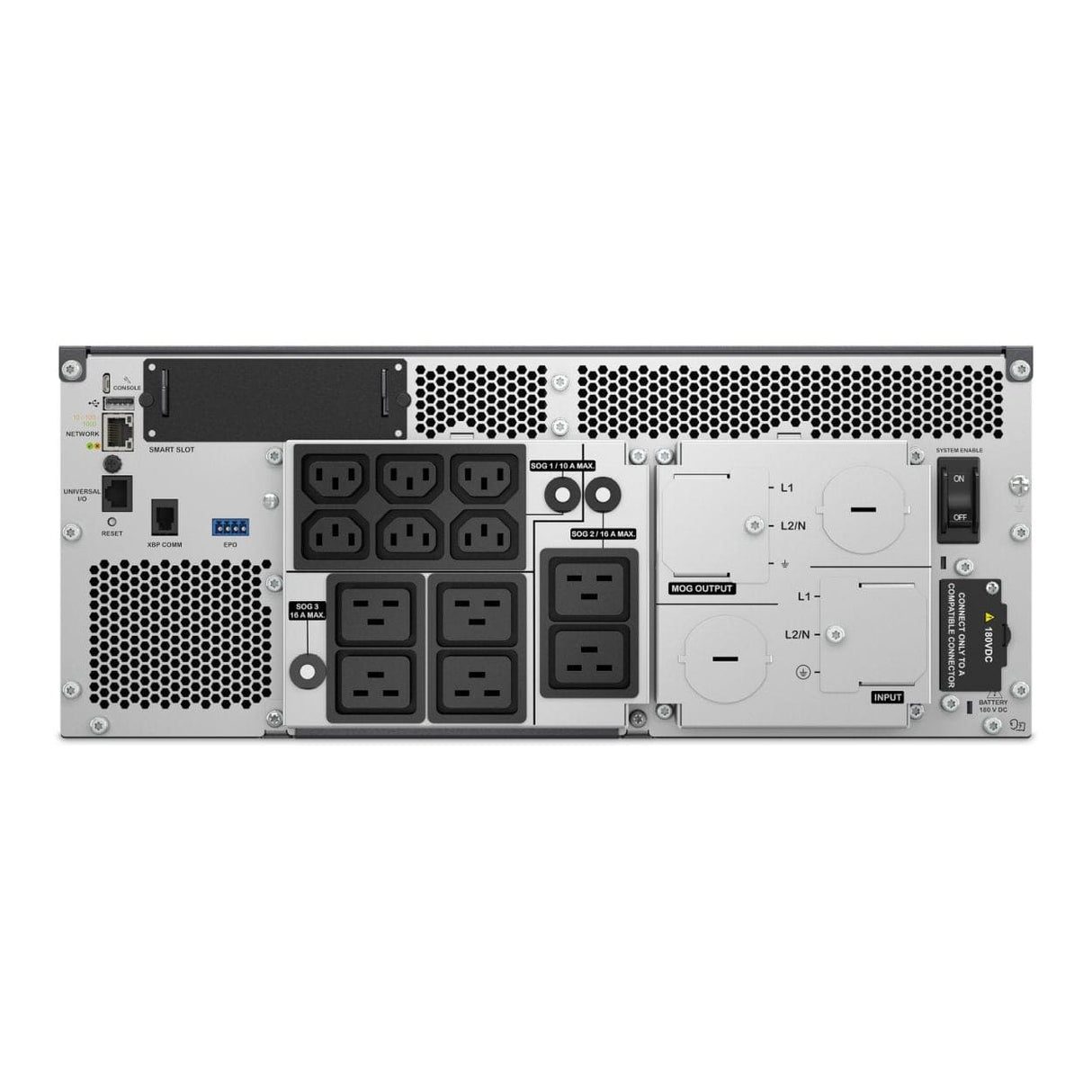

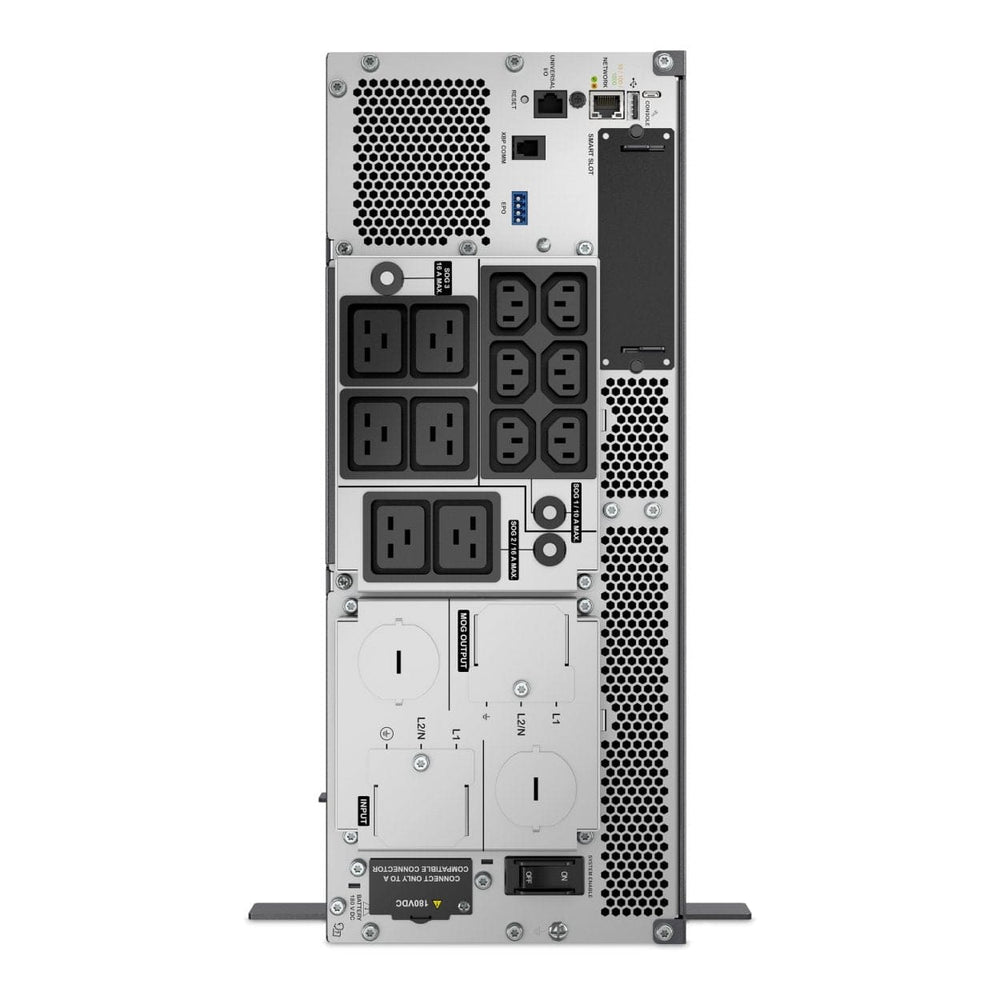

Output Connection Type
6 × IEC 60320 C13
6 × IEC 60320 C19

Output Connector Type
Hard-wire 3-wire (1P + N + E), 1 zone

Number of Rack Units
4U

Number of Cables
1

Battery Type
Lithium-Ion (Li-Ion)

Provided Equipment
Temperature probe
USB cable
Stabilization feet
Strain relief
Rack mounting hardware

Range of Product
Smart-UPS Ultra

Complementary

Battery Type
Internal Lithium-Ion (included)

UPS Connectivity
Serial port
USB port

Available Expansion Slot
Embedded Network Management Card 3

Mounting Mode
Rack/tower convertible (kit included)

Batteries & Runtime
Run time: View runtime graph
Efficiency: View efficiency graph
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 1.5 h
Number of battery replacement quantity: 2
Battery voltage: 180 V
Battery charger power: 1200 W rated
Battery life: 5–10 years
Extended runtime: Yes

General
Product web sub-family: High density
Number of power module free slots: 0
Redundant: No

Physical
Colour: Silver grey
Height: 175 mm
Width: 432 mm
Depth: 832 mm
Net weight: 55 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted with kit; Tower-mounted with kit
USB compatible: Yes
Mounting position: Horizontal or vertical

Input
Network frequency: 40–70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (1P + N + E)

Output
Maximum configurable power in W: 10000 W
Maximum configurable power in VA: 10000 VA
Harmonic distortion: < 5%
Output frequency: 50/60 Hz ± 3 Hz sync to mains
Crest factor: 3:1
UPS type: Double conversion online
Wave type: Sine wave
Bypass type: Internal bypass (automatic and manual)
Full load runtime: 00:05:00 (10000 W)
Half load runtime: 00:11:00 (5000 W)

Conformance
Product certifications: VDE
Marking: CE; UKCA
Standards: EN/IEC 62040-1; EN/IEC 62040-2; IEC 62040-2

Environmental
Ambient air temperature for operation: 0–40 °C
Relative humidity: 0–95% non-condensing
Operating altitude: 0–10000 ft
Ambient air temperature for storage: -15–45 °C
Storage relative humidity: 0–95% non-condensing
Storage altitude: 0–15240 m
Acoustic level: 55 dB
Heat dissipation: 1900 BTU/h
IP degree of protection: IP20

Communications & Management
Free slots: 1
Preinstalled device: Network management card with environmental monitoring
Control panel: Multifunction LCD status and control console
Alarm: Audible and visible alarms prioritized by severity
Emergency power off: Yes

Surge Protection and Filtering
Surge energy rate: 1410 J

Packing Units
Unit type of package 1: PCE
Number of units in package 1: 1
Package height: 63 cm
Package width: 65 cm
Package length: 100 cm
Package weight: 88.5 kg
SCC14: 10731304578502
