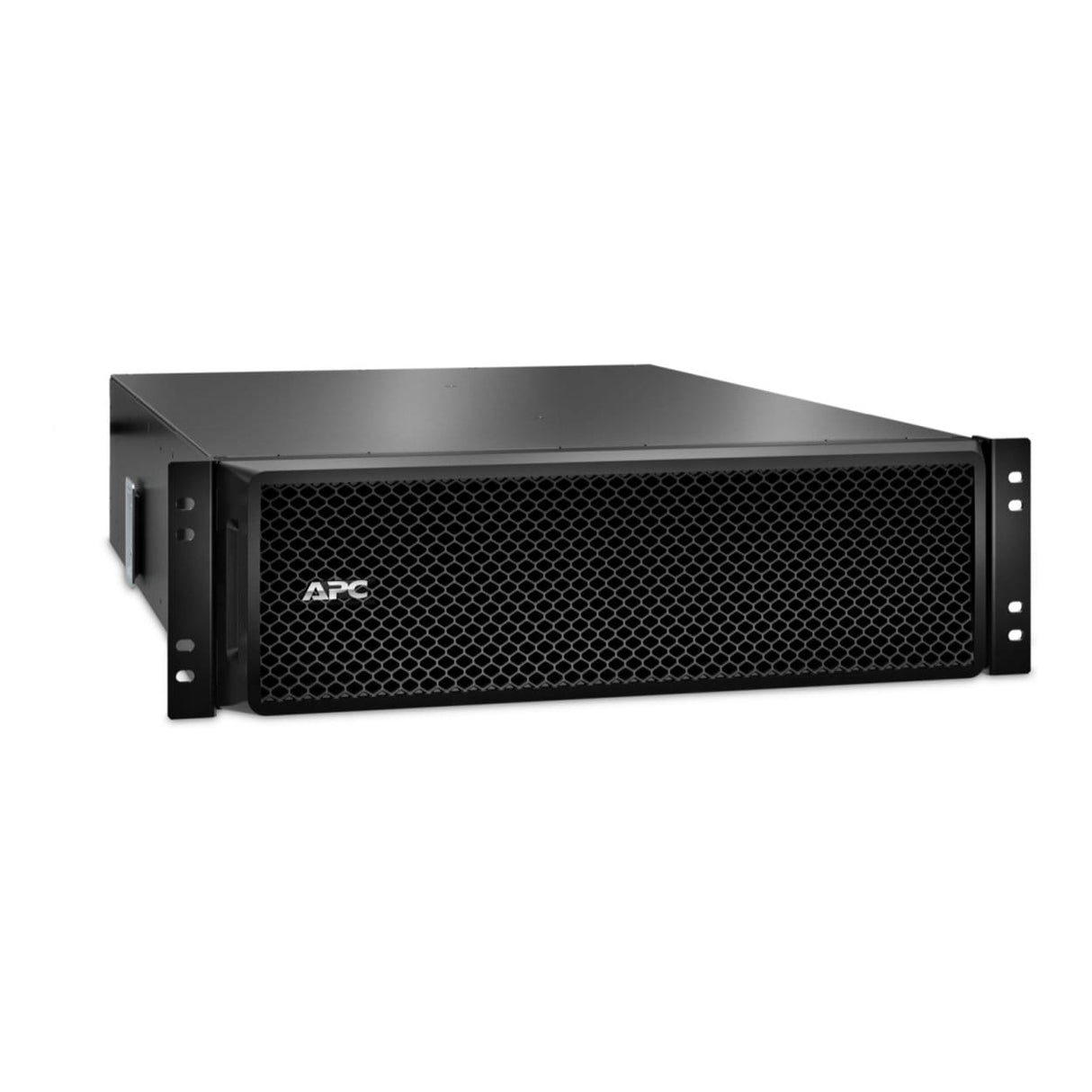

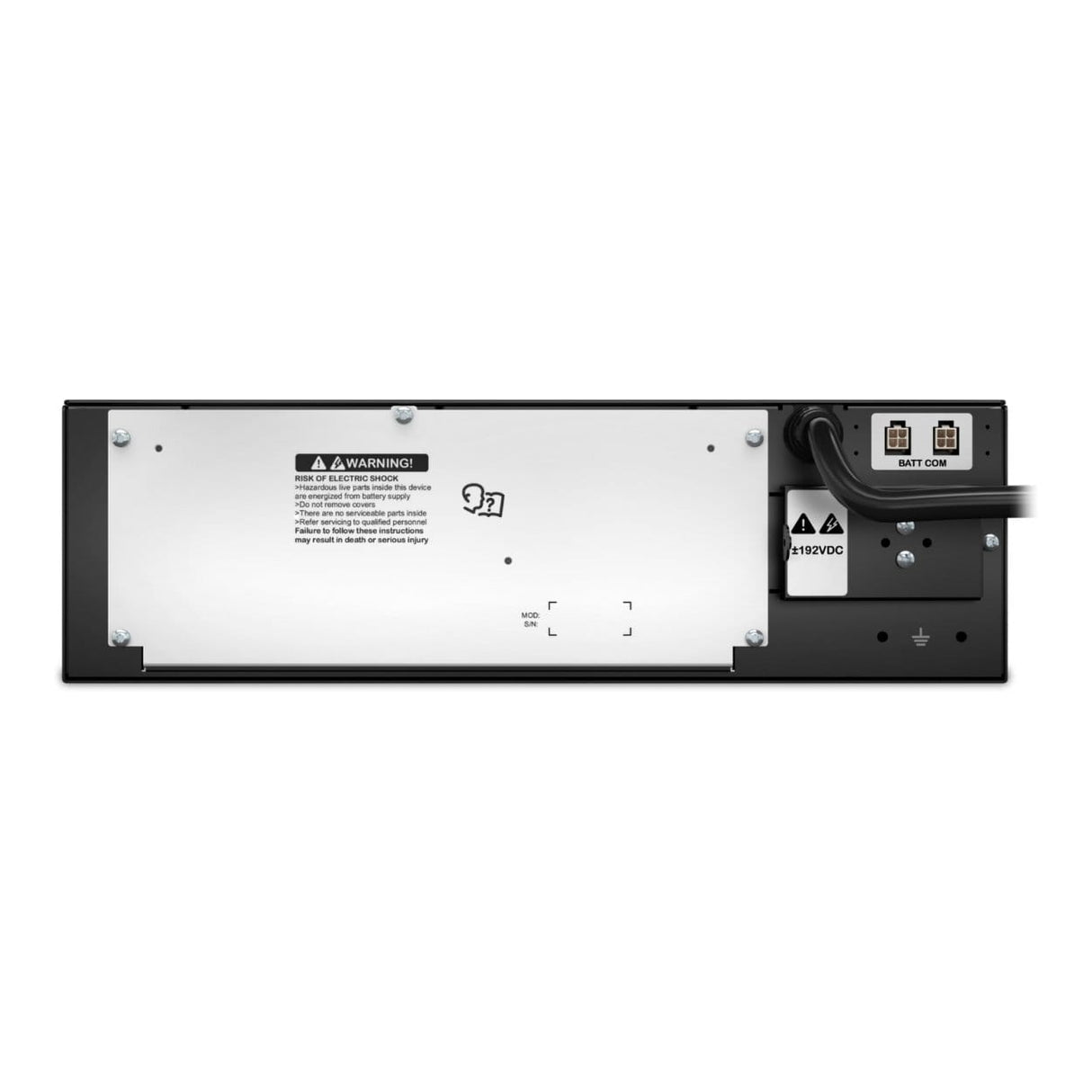

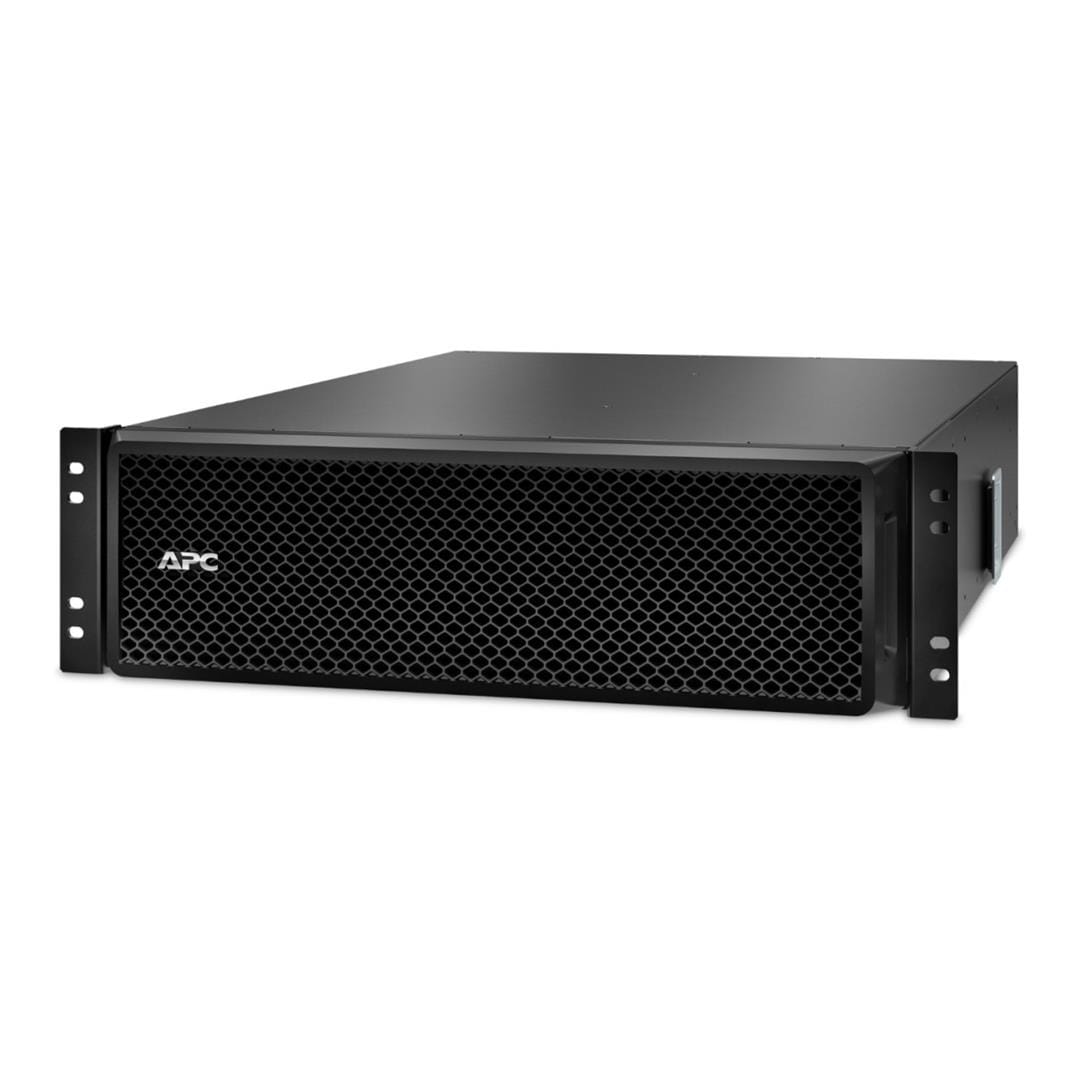

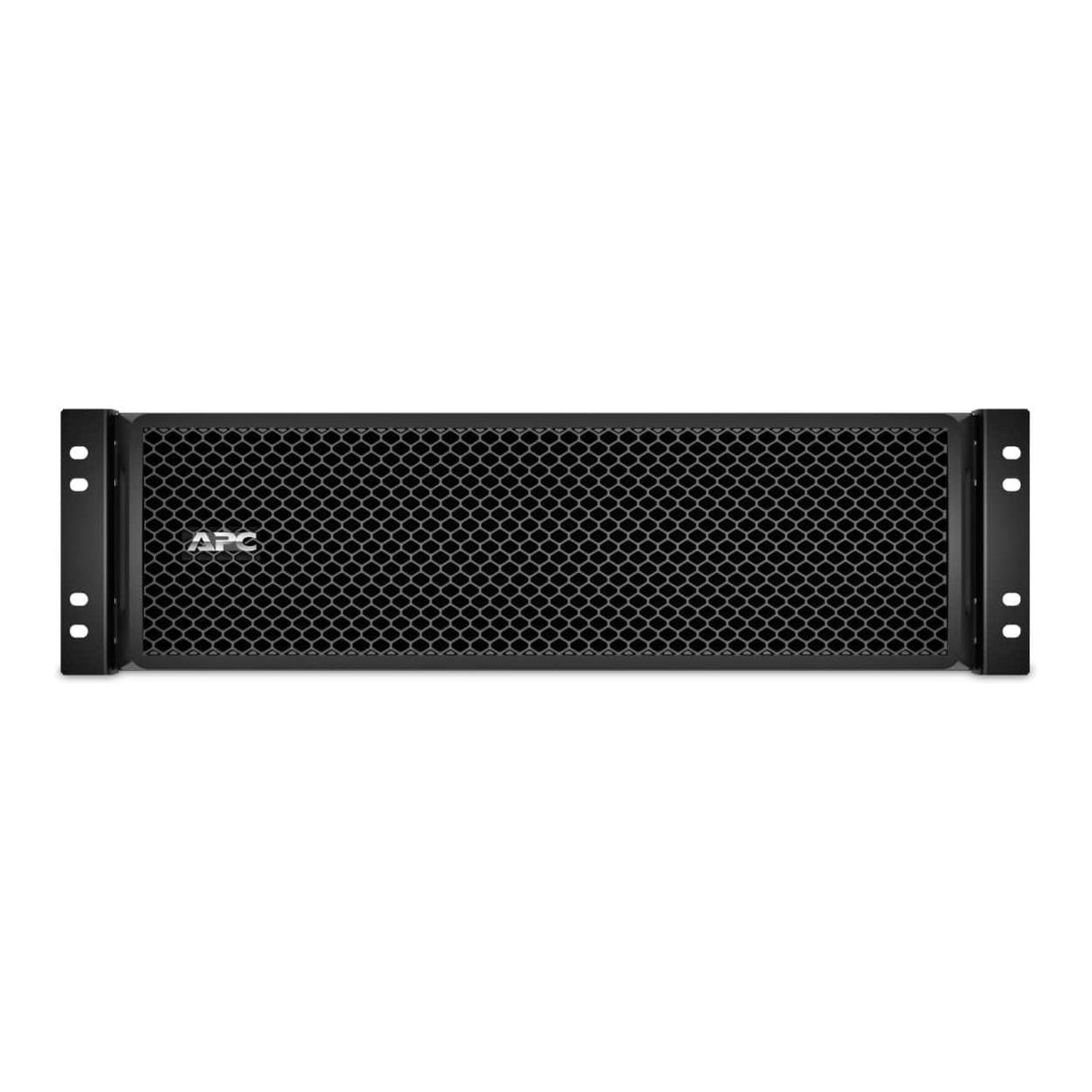

APC Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack SRT192RMBP2

APC Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack SRT192RMBP2

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.

Features:

• Battery pack for Smart-UPS On-line SRT series
• Ideal for critical Smart-UPS applications
• Predictable and consistent runtime performance
• Automatic Voltage Regulation (AVR) corrects utility voltage
• Peace of mind with 2-year battery warranty

Advanced battery management included

Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance and stable cell health.

Multiple battery pack configuration

Connect up to 10 battery packs for extended runtime applications.

Technical Specifications:

Main

Product Type
External Battery Pack

Number Of Rack Units
3U

Battery Type
Lead-Acid Battery

Range Of Product
Smart-UPS Battery Systems

Replacement Battery
APCRBC140

Device Mounting
Stand-Alone Battery Stack

Number Of Battery Free Slots
0

Number Of Battery Filled Slots
0

Battery Voltage
±192 V

Number Of Replacement Batteries
2

Output

Battery Capacity
10 Ah

Physical

Colour
Black

Height
130 mm

Width
432 mm

Depth
682.7 mm

Product Weight
91 kg

Mounting Mode
Rack-Mounted

Two-Post Mountable
Yes

Environmental

Operating Temperature
0°C to 40°C

Operating Altitude
0 to 10,000 ft

Operating Humidity
0% to 95% Non-Condensing

Storage Temperature
-15°C to 45°C

Storage Altitude
0 to 15,240 m

Storage Humidity
0% to 95% Non-Condensing

Compliance

Standards
OSHPD

Packaging Information

Package Type
PCE

Units Per Package
1

Package Dimensions (H × W × L)
42 × 60 × 100 cm

Package Weight
105.5 kg

Warranty

Warranty Period
24 Months

What's In The Box:

• Installation Guide
• Warranty Card
• Rack Mounting Brackets
