Description
Description

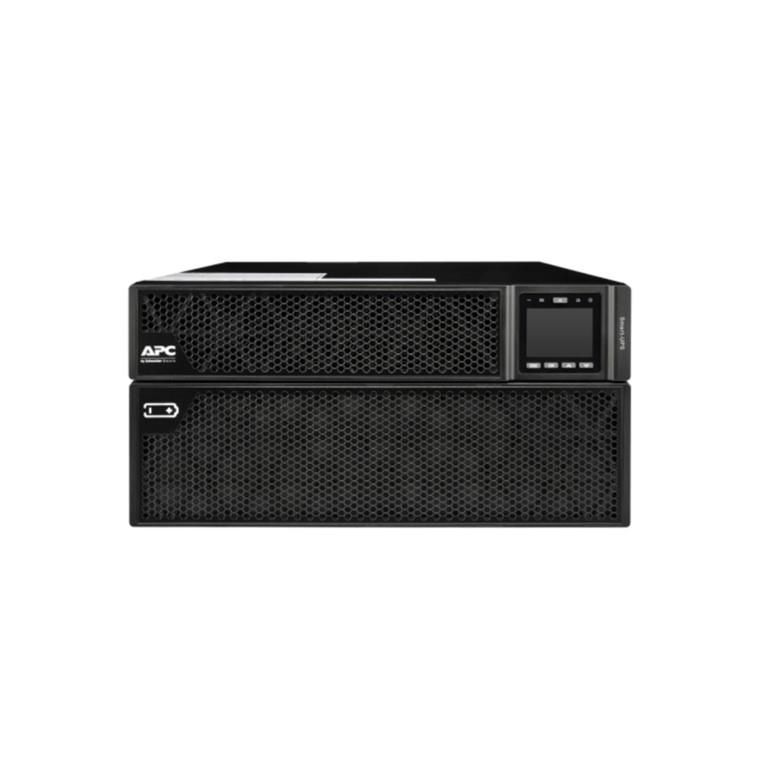

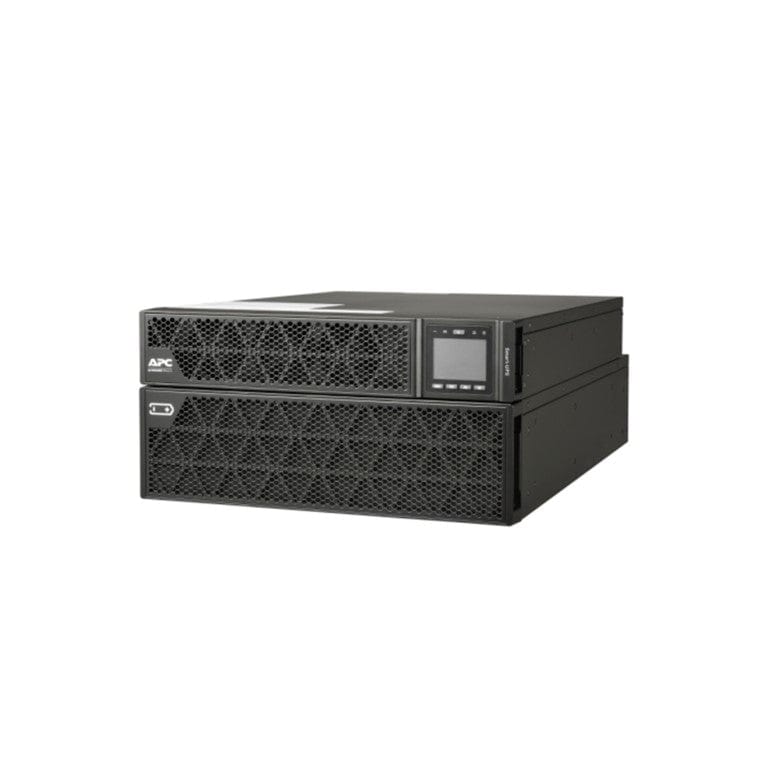

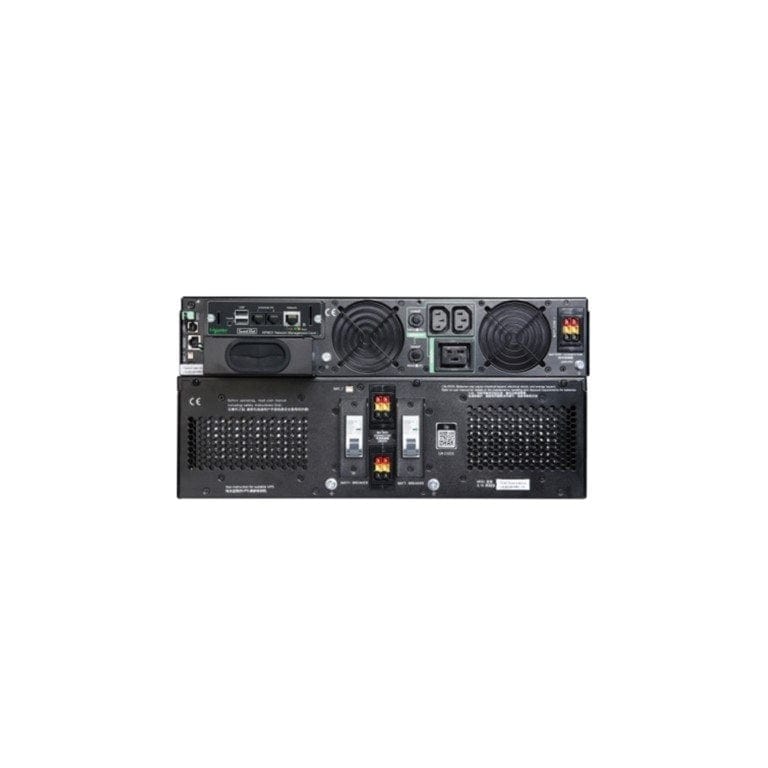

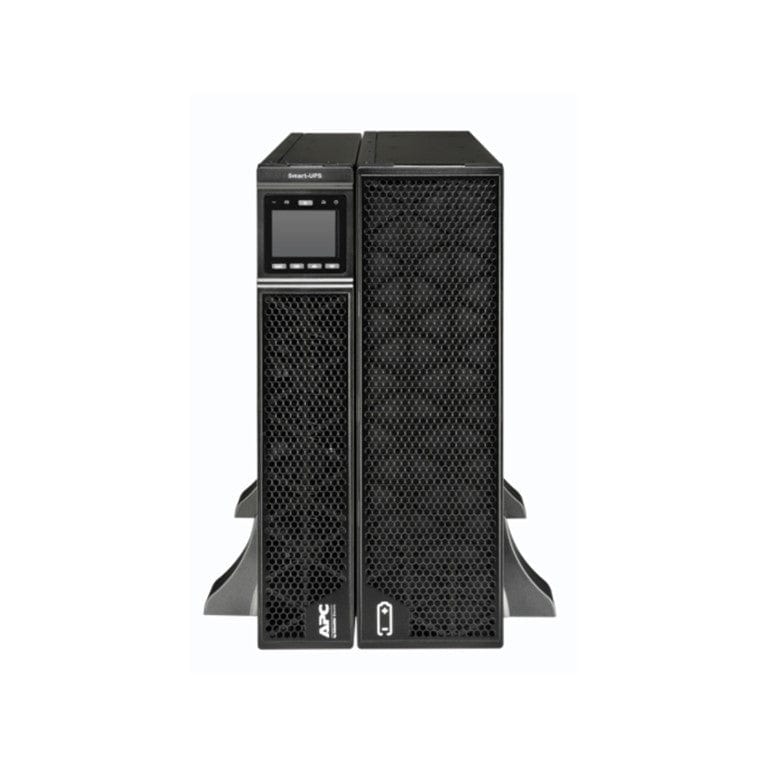

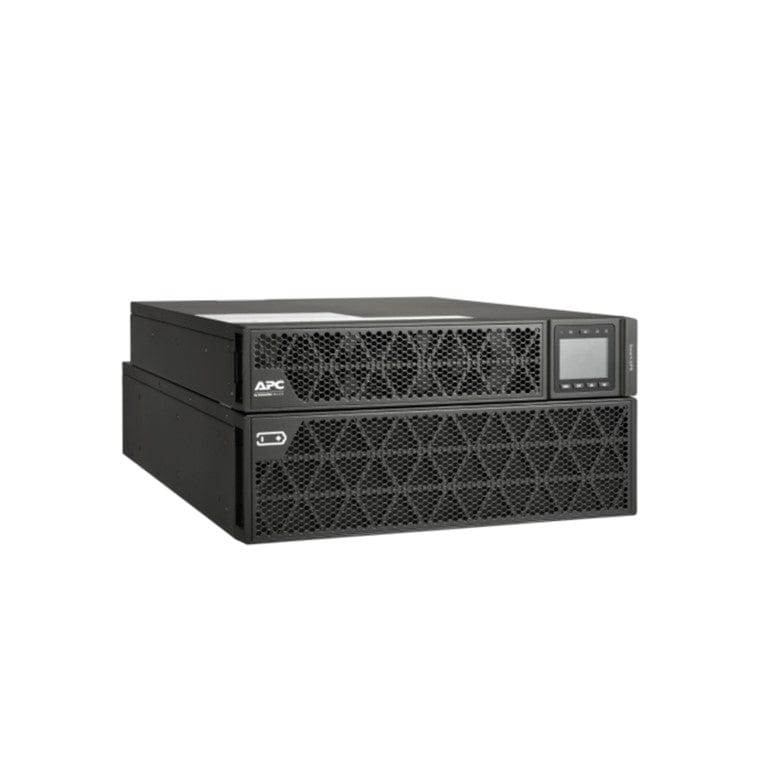

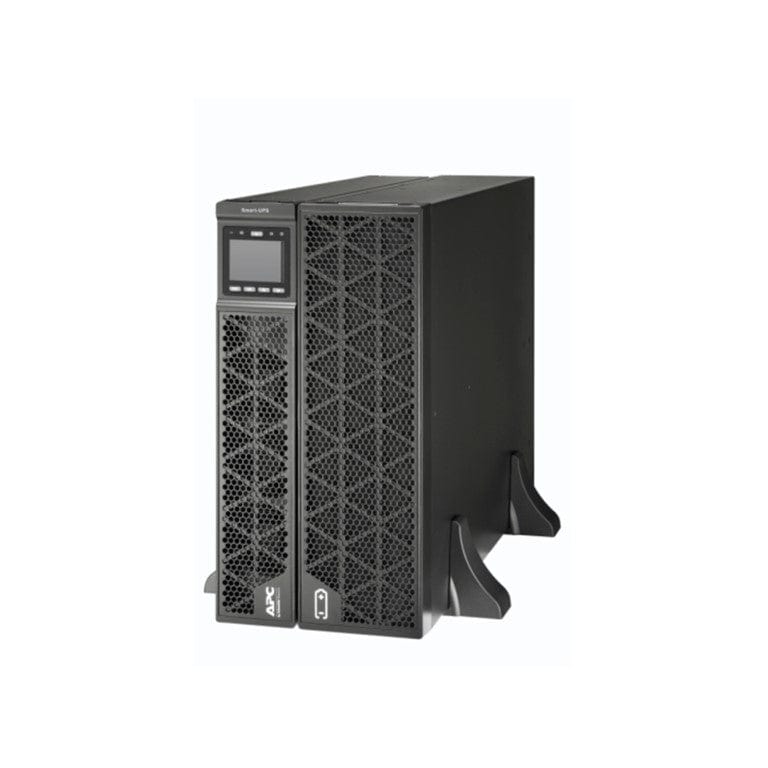

APC Smart-UPS On-Line 10kVA 10kW Rack/Tower UPS SRTG10KXLI
Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality.
Features
- High Output Power Factor
- High Efficiency “Green Mode”
- Multi-color LCD Display
- Switchable Outlet Groups
- Pre-installed Network Card
- APC Smart-Slot
- Emergency Power Off (EPO)
- Communication Ports
Technical Specification
Main
Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 10000 W
Rated power in VA: 10000 VA
Output connection type
Rated power in VA: 10000 VA
Output connection type
-
2x IEC 60320 C13
-
1x IEC 60320 C19
Output connector type: Hard wire 3-wire (H N + E) 1
Number of rack unit: 5U
Number of rack unit: 5U
Input
Network frequency: 40...70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Input voltage limits: 160...285 V full load
Maximum input current: 30 A
Max short time withstand current: 40 kA
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Input voltage limits: 160...285 V full load
Maximum input current: 30 A
Max short time withstand current: 40 kA
Output
Maximum configurable power in VA: 10000 VA
Maximum configurable power in W: 10000 W
Output frequency: 50/60 Hz +/- 4 Hz sync to mains
Wave type: Sine wave
Efficiency: 93.5 %
Crest factor: 3 : 1
bypass type: Internal bypass (automatic and manual)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Maximum configurable power in W: 10000 W
Output frequency: 50/60 Hz +/- 4 Hz sync to mains
Wave type: Sine wave
Efficiency: 93.5 %
Crest factor: 3 : 1
bypass type: Internal bypass (automatic and manual)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Batteries & Runtime
Battery type: Lead-acid battery
Battery recharge time: 4 h
Number of battery replacement quantity: 2
Battery voltage: +/- 96 V
Battery charger power: 431 W rated
Replacement battery: APCRBC174
Extended runtime: 1
Battery recharge time: 4 h
Number of battery replacement quantity: 2
Battery voltage: +/- 96 V
Battery charger power: 431 W rated
Replacement battery: APCRBC174
Extended runtime: 1
General
UPS type: Double conversion online
Redundant: No
Redundant: No
Physical
Product colour: Black (RAL 9005)
Dimensions (H x W x D): 21.7 x 44 x 68 cm
Net weight: 101.5 kg
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Horizontal
Dimensions (H x W x D): 21.7 x 44 x 68 cm
Net weight: 101.5 kg
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Horizontal
Communications & Management
Preinstalled device: Network management card 3 with environmental monitoring
Emergency power off: Yes
Emergency power off: Yes
Surge Protection and Filtering
Surge energy rate: 600 J
Package Contents
-
1 x USB cable
-
1 x rack mounting brackets
-
1 x stabilization/wall mounting feet
-
1 x installation manual
-
1 x C13-C14 power cord
