APC EPDU1132M 24 AC outlet 0U Power Distribution Unit

APC EPDU1132M 24 AC outlet 0U Power Distribution Unit

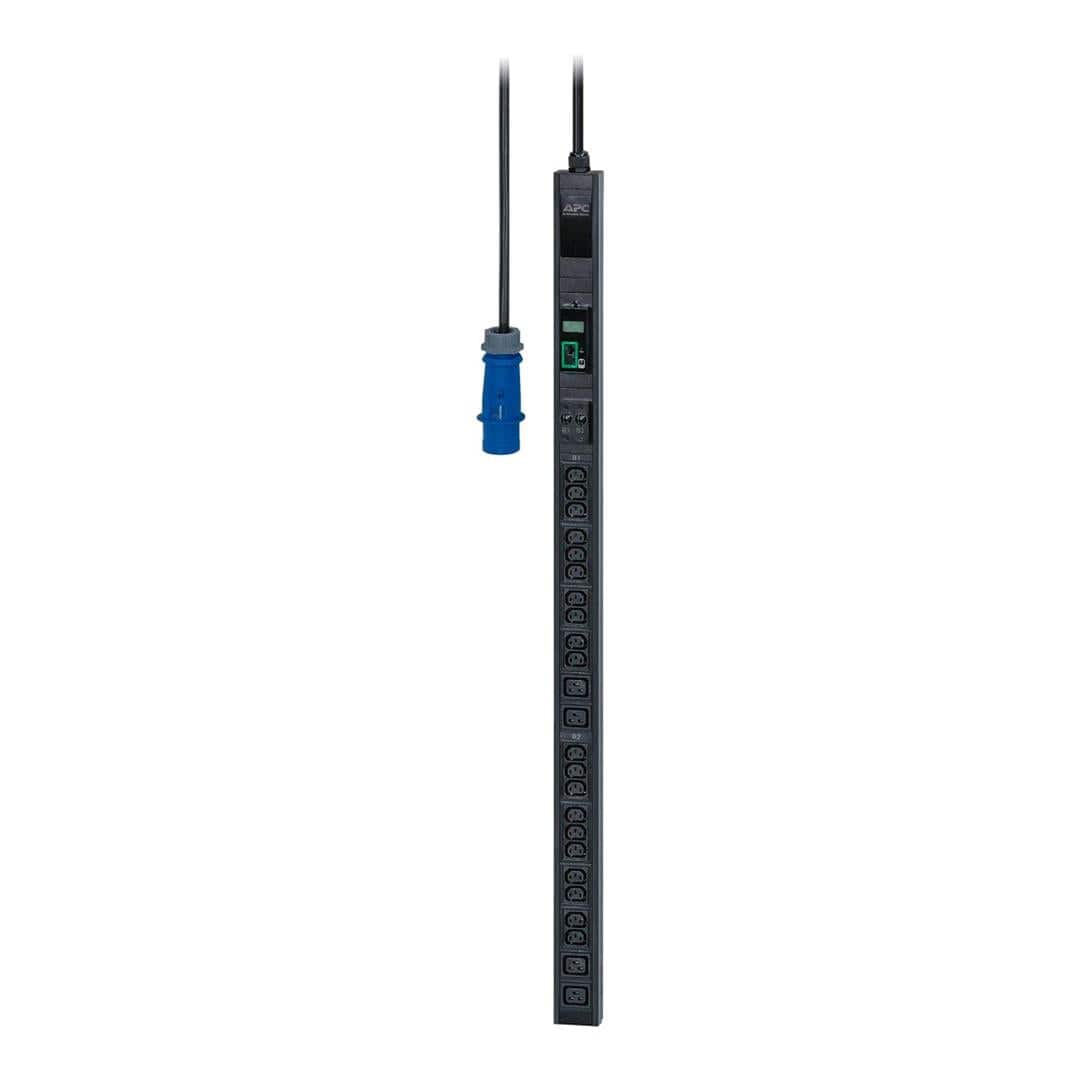

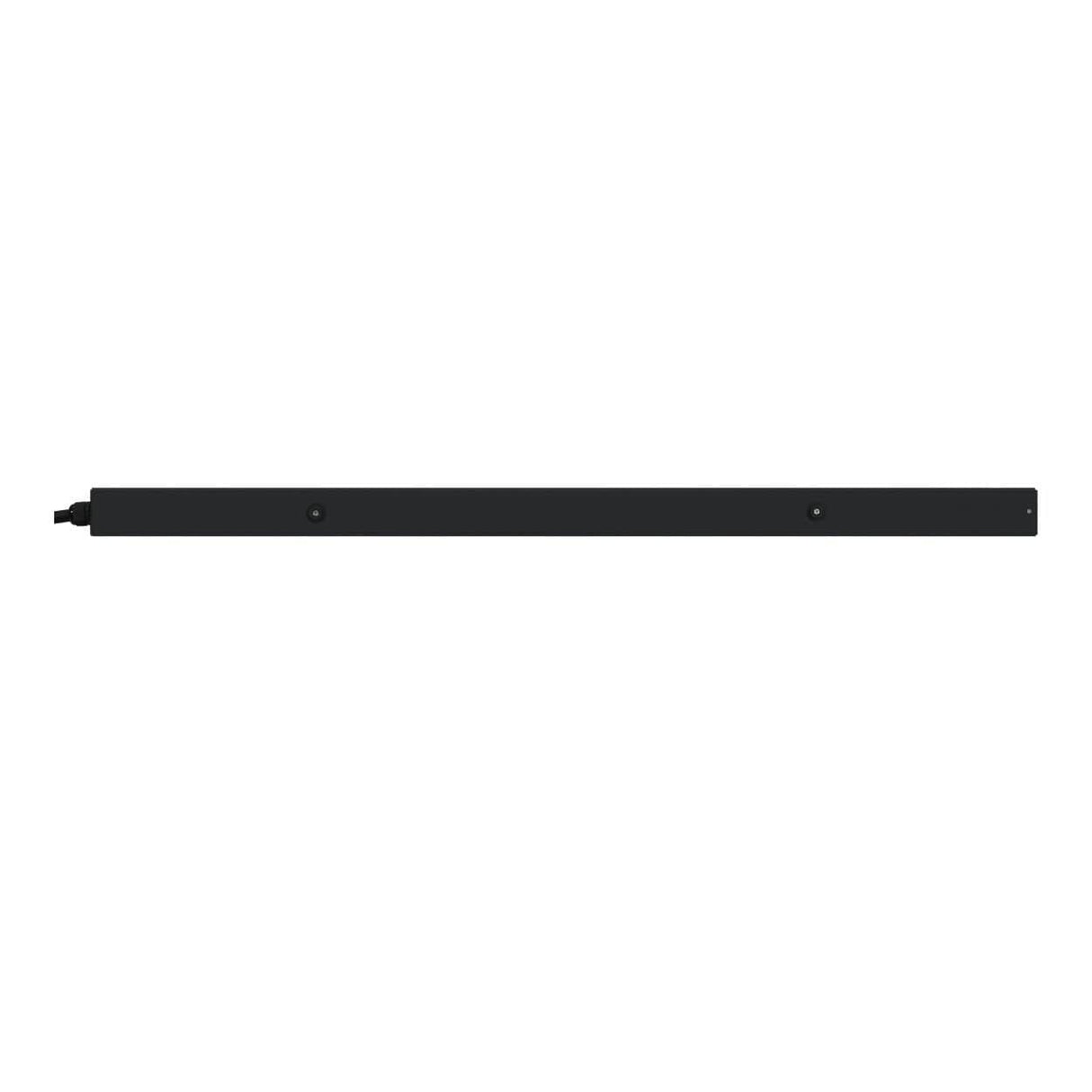

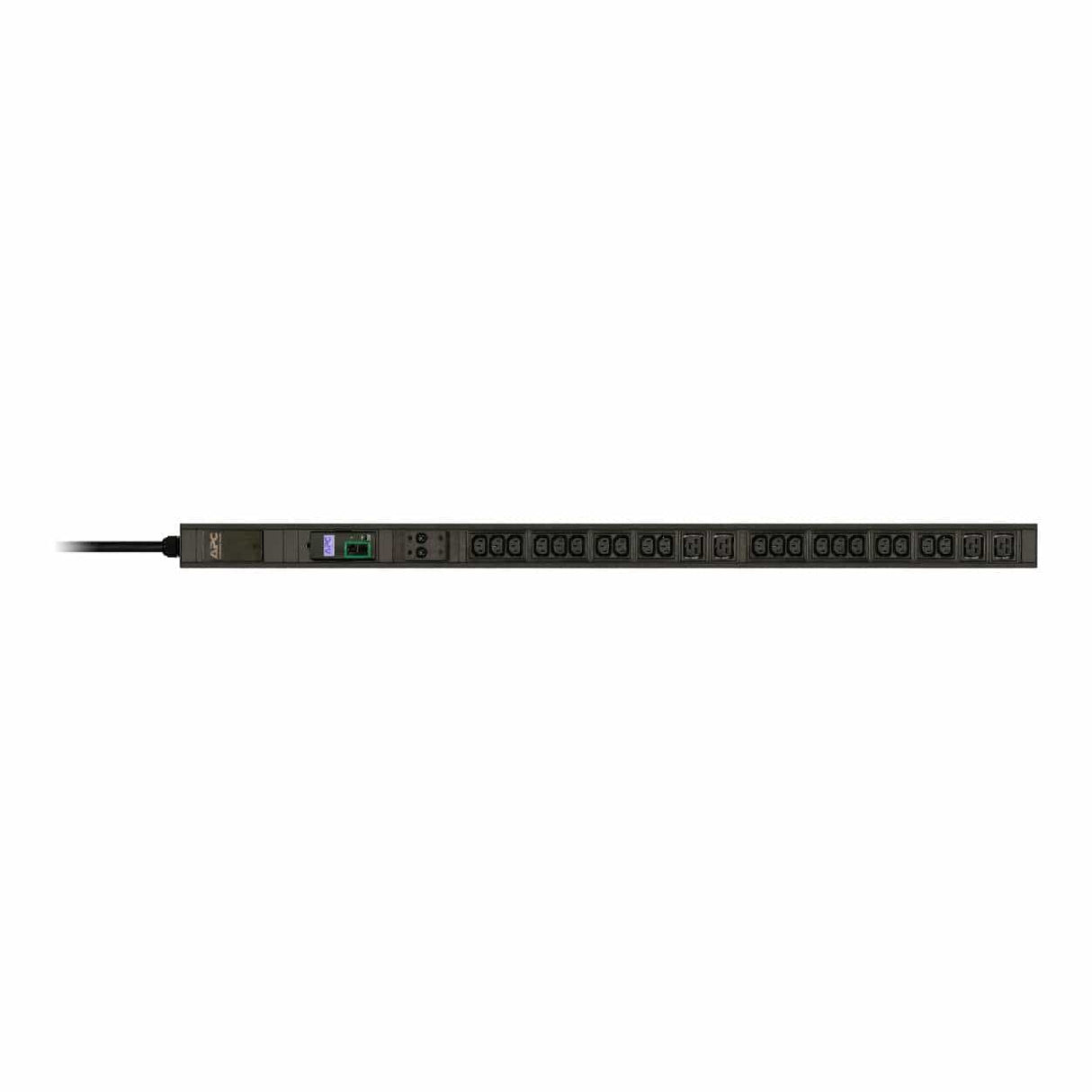

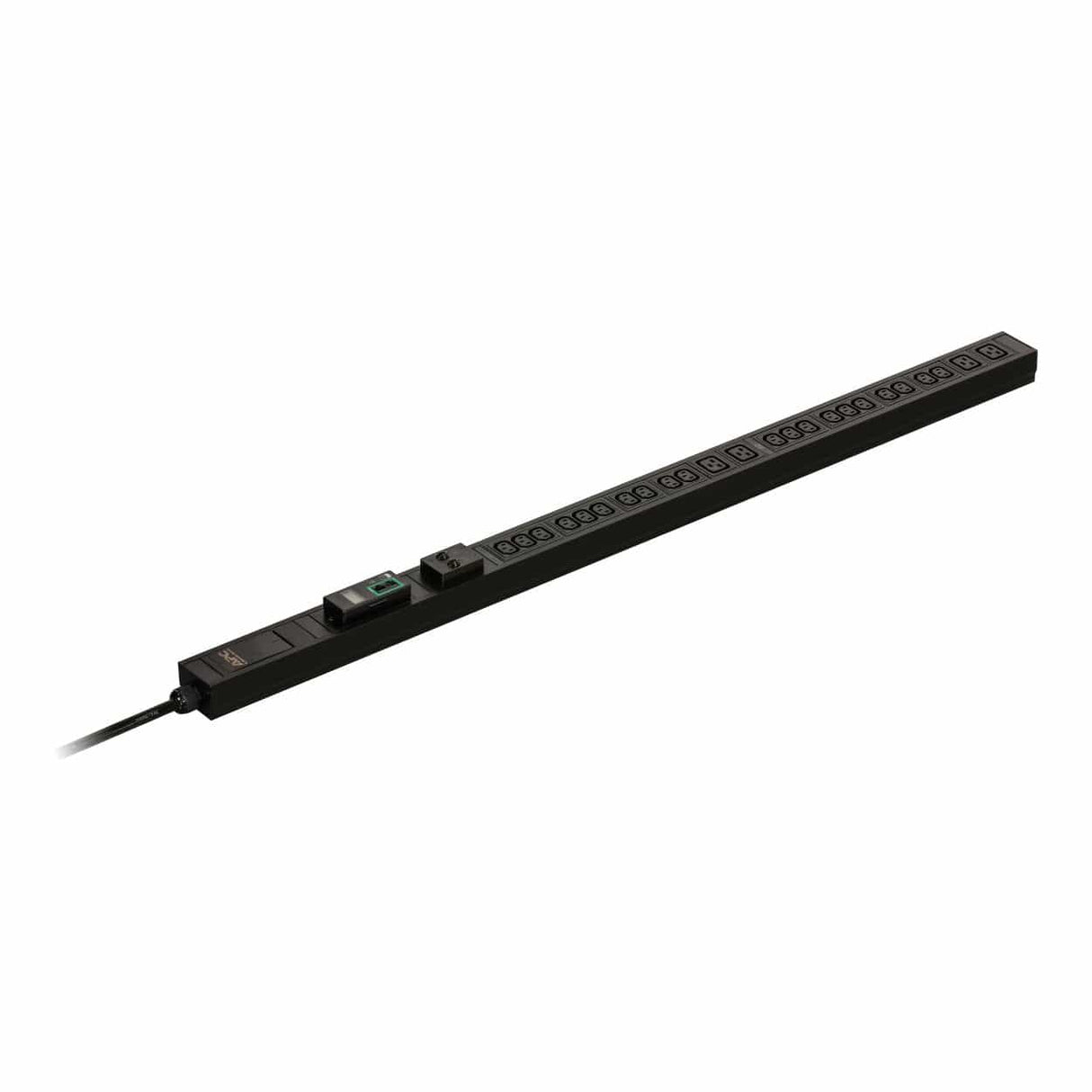

APC Easy Metered Rack PDU EPDU1132M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1132M has IEC 60309 16A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.

Specifications:

PDU types: Metered

Rack capacity: 0U

Type: Single-phase

AC outlets quantity: 24 AC outlet(s)

AC outlet types: C13 coupler, C19 coupler

Power plug: IEC 60309

Nominal input voltage: 200/208/230 V

Maximum current: 32 A

AC input frequency: 50 - 60 Hz

Certification: CE, TUV

Width: 62 mm, Depth: 44 mm, Height: 1175 mm
