Description
Description

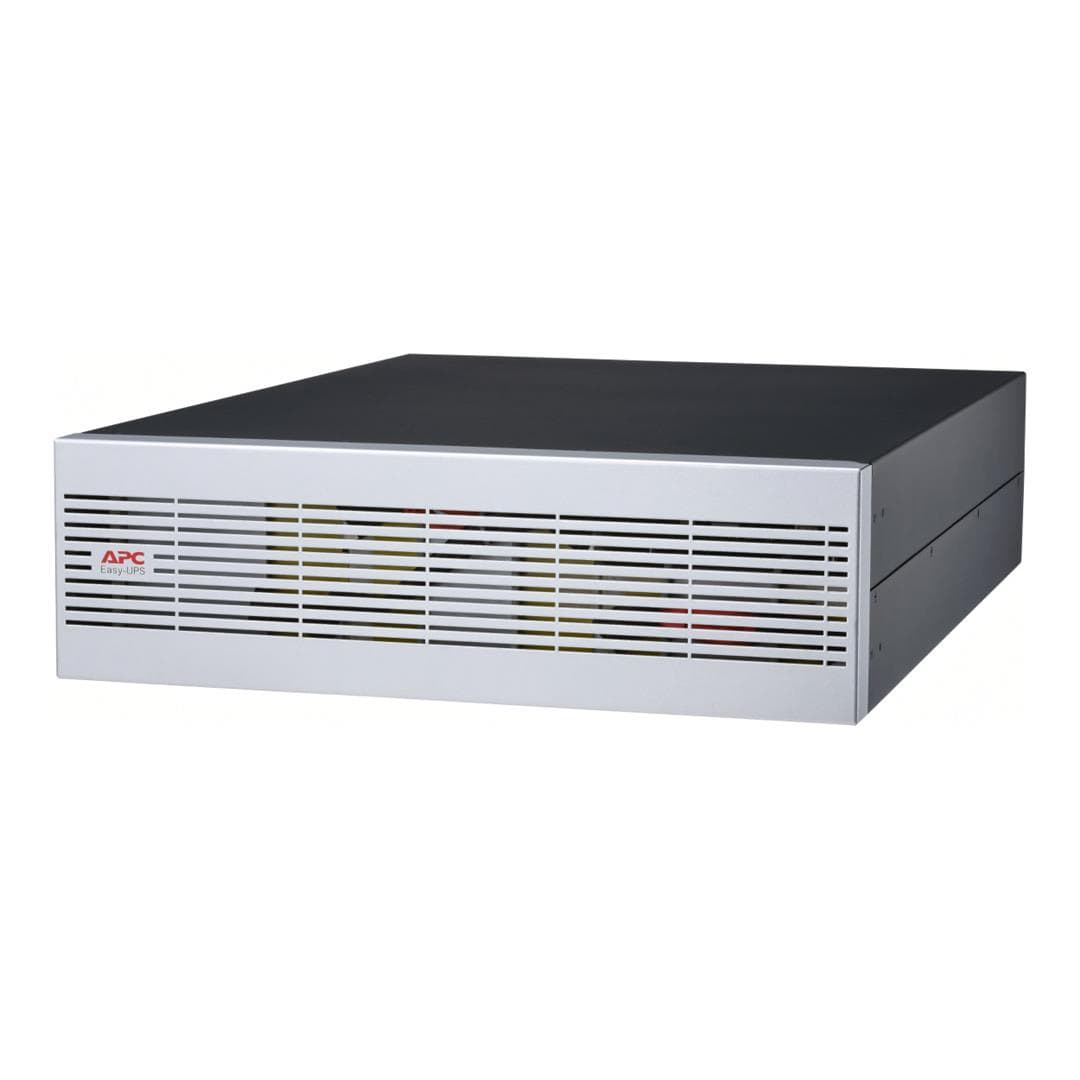

APC Easy UPS Lithium-ion 48V 4800Wh 3U Rackmount External Battery Pack SRVL48RMBP3U
The APC Easy UPS SRVL48RMBP3U is a 48V 4800Wh lithium-ion external battery pack designed to extend the runtime of compatible 6kVA APC Easy UPS SRVL systems. Its 3U rackmount design provides substantial additional energy storage while helping conserve valuable rack space compared with larger conventional battery solutions. Lithium-ion battery technology provides extended battery life and runtime for applications requiring dependable backup power in server rooms, network environments and other critical infrastructure installations.
Key Features
- External lithium-ion battery pack for compatible APC Easy UPS systems.
- Designed for 6kVA Easy UPS SRVL extended-runtime models.
- 48V nominal battery voltage.
- 4800Wh energy capacity.
- 3U rackmount form factor.
- Lithium-ion technology for longer battery lifetime and runtime.
- Compact, space-saving rack design.
- IP20-rated for indoor installations.
- Operating temperature range from 0°C to 50°C.
- Includes rack-mounting brackets and connection cables.
- CE, UKCA, UN 38.3 and IEC 62619 certified.
Extended Runtime for 6kVA Easy UPS SRVL
The SRVL48RMBP3U is specifically designed to provide additional runtime for compatible 6kVA APC Easy UPS SRVL extended-runtime systems. Adding external battery capacity allows supported UPS installations to maintain connected equipment for longer periods during mains power interruptions.
4800Wh Lithium-Ion Battery Capacity
The battery pack combines a nominal 48V battery system with 4800Wh of stored energy. Lithium-ion technology provides a high-capacity energy-storage solution while APC highlights longer battery lifetime and runtime as key advantages of the SRVL battery platform.

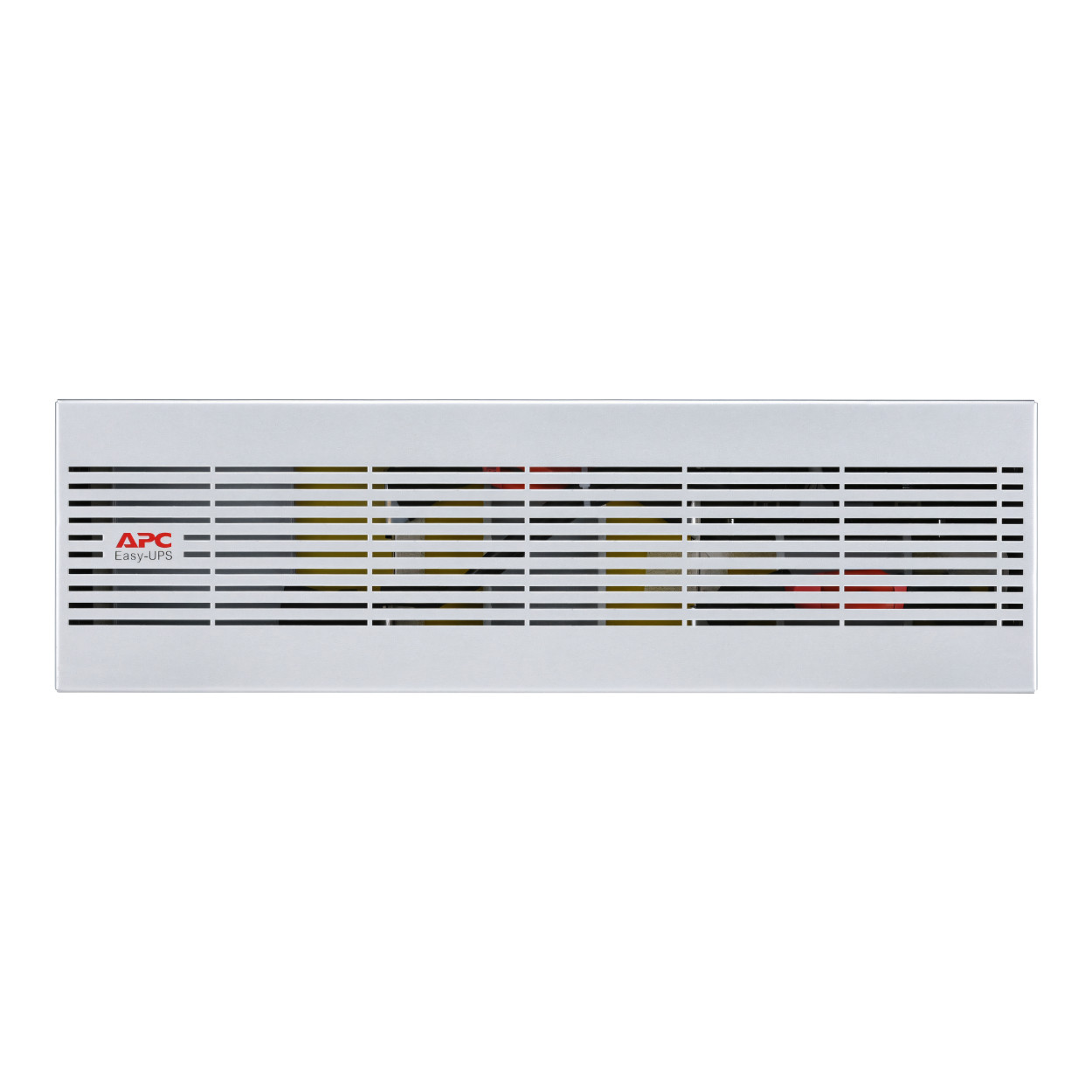

Space-Saving 3U Rackmount Design
A 3U rackmount chassis allows the external battery pack to be installed alongside compatible UPS and IT equipment in a standard rack environment. The unit measures 438mm wide, 616mm deep and 131mm high, with a net weight of 49.5kg.
Designed for Critical Power Environments
The battery pack is suitable for indoor critical-power installations such as server rooms, network infrastructure and business IT environments. It supports operation from 0°C to 50°C and at elevations of up to 3,000m, with relative humidity from 0% to 95% non-condensing.
Certified Lithium-Ion Battery System
The SRVL48RMBP3U carries CE and UKCA certifications together with UN 38.3 and IEC 62619 compliance. These certifications address applicable product and lithium-ion battery safety and transport requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Manufacturer Part Number | SRVL48RMBP3U |
| Product Name | Easy UPS Lithium-ion External Battery Pack for 6kVA SRVL Extended Runtime Model |
| Product Type | External UPS Battery Pack |
| Product Range | APC Easy UPS On-Line |
| UPS Compatibility | Compatible 6kVA Easy UPS SRVL Extended Runtime Models |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Battery Voltage | 48V |
| Battery Energy Capacity | 4800Wh |
| Nominal Battery Capacity | 100,000mAh |
| Number of Battery Packs | 1 |
| Rack Height | 3U |
| Mounting Mode | Rack-Mounted |
| Colour | Black with Silver Front Bezel |
| Width | 438mm |
| Depth | 616mm |
| Height | 131mm |
| Net Weight | 49.5kg |
| Ingress Protection | IP20 |
| Installation Environment | Indoor |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Relative Humidity | 0% to 95%, Non-Condensing |
| Storage Relative Humidity | 0% to 95%, Non-Condensing |
| Maximum Operating Altitude | 3,000m |
| Maximum Storage Altitude | 15,000m |
| Certifications | CE / UKCA / UN 38.3 / IEC 62619 |
| EAN / GTIN | 0731304436737 |
| Package Width | 600mm |
| Package Depth | 800mm |
| Package Height | 412mm |
| Package Weight | 64.3kg |
| Primary Applications | UPS Runtime Expansion, Server Rooms, Network Infrastructure, IT Systems and Critical Power Protection |
What’s in the Box:
- 1 × APC Easy UPS SRVL48RMBP3U Lithium-Ion External Battery Pack
- 1 × RJ11 Cable
- 1 × Power Cable
- Rack-Mounting Brackets
- User Manual
- Safety Guide
The APC Easy UPS SRVL48RMBP3U provides 4800Wh of lithium-ion battery capacity for compatible 6kVA Easy UPS SRVL extended-runtime systems. Its 48V architecture, compact 3U rackmount format, wide operating range and lithium-ion technology make it a purpose-built runtime expansion solution for business-critical UPS installations.
