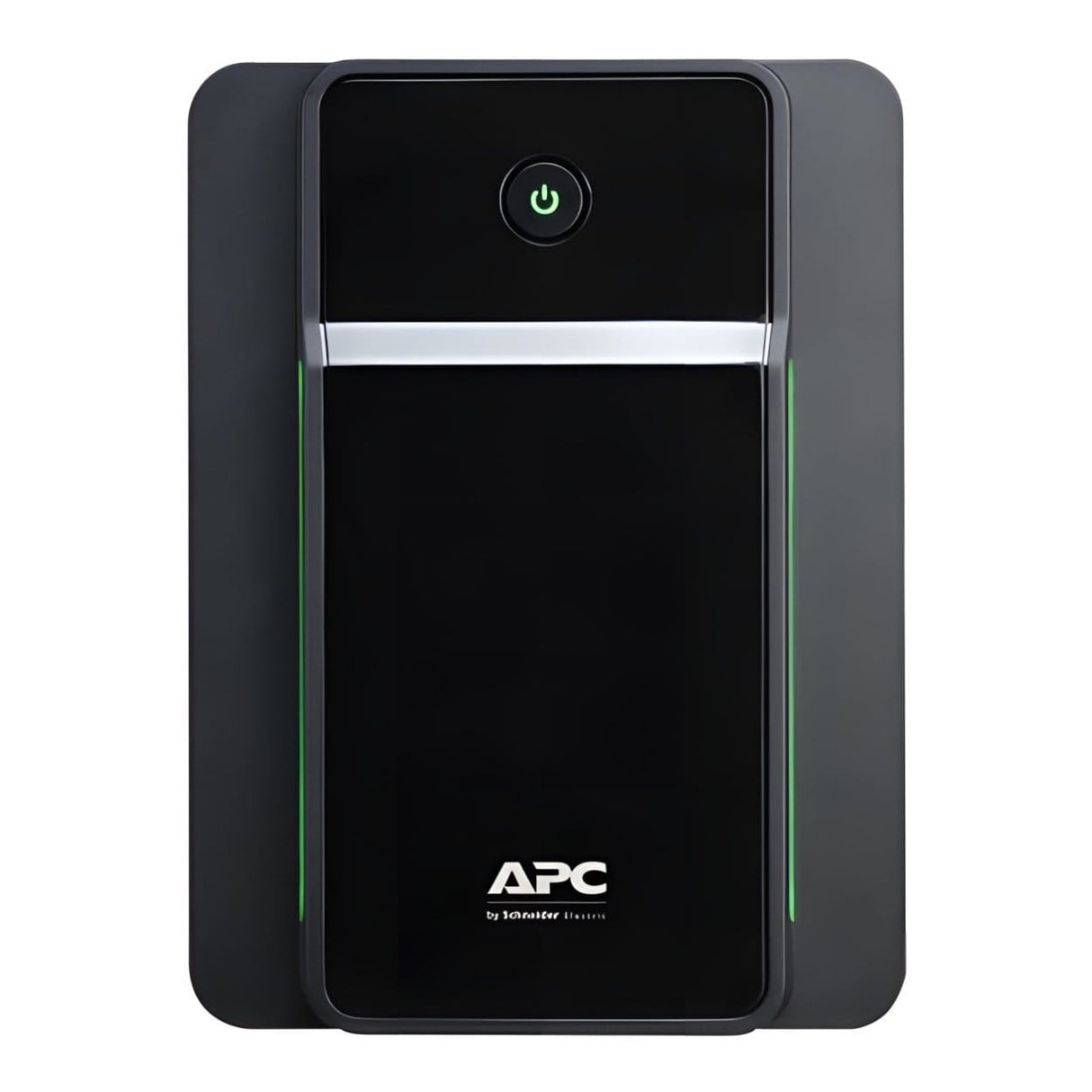

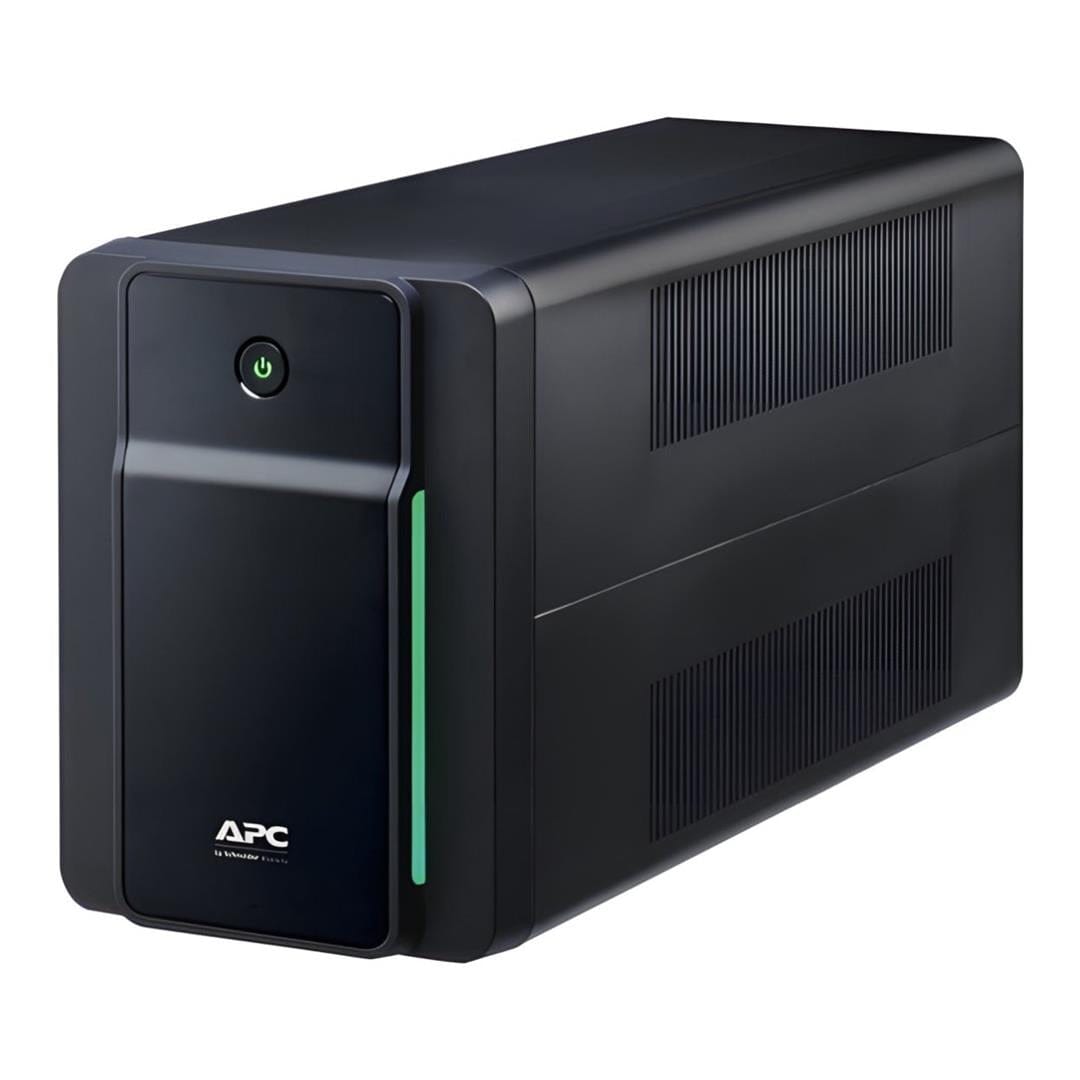

APC BX2200MI-MS 2.2kVA 1200W Line-Interactive UPS

APC BX2200MI-MS 2.2kVA 1200W Line-Interactive UPS

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Features:

• Compact size accommodates installation in various environments
• AVR corrects voltage variations to provide reliable power
• LED display for easy-to-read status of unit and utility power conditions
• Easy-to-use auto-shutdown software with power and energy management features
• Data line protection helps protect equipment from surges

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Audible alarms

Provides notification of changing utility power and UPS power conditions

LED status display

Quickly understand unit and power status with visual indicators.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Technical Specifications:

Main

Product or Component Type: Uninterruptible Power Supply (UPS)
Range of Product: Back-UPS
UPS Type: Line Interactive
Wave Type: Stepped Approximation to a Sinewave
Rated Power: 1200 W
Rated Power: 2200 VA
Maximum Configurable Power: 1200 W
Maximum Configurable Power: 2200 VA
Main Input Voltage: 230 V AC Single Phase
Output Voltage: 230 V AC Single Phase
Input Voltage Limits: 140–300 V
Network Frequency: 50/60 Hz ±5 Hz Auto-Sensing
Output Frequency: 50/60 Hz ±1 Hz Sync to Mains
Transfer Time: 6 ms Typical, 10 ms Maximum
Power Factor (Cos Phi): 0.54
Maximum Capacity Used: 100 %

Runtime

Full Load Runtime: 1 Minute at 1200 W
Half Load Runtime: 8 Minutes 30 Seconds at 600 W
Runtime Range: 120–1200 W (Minimum–Maximum Load)

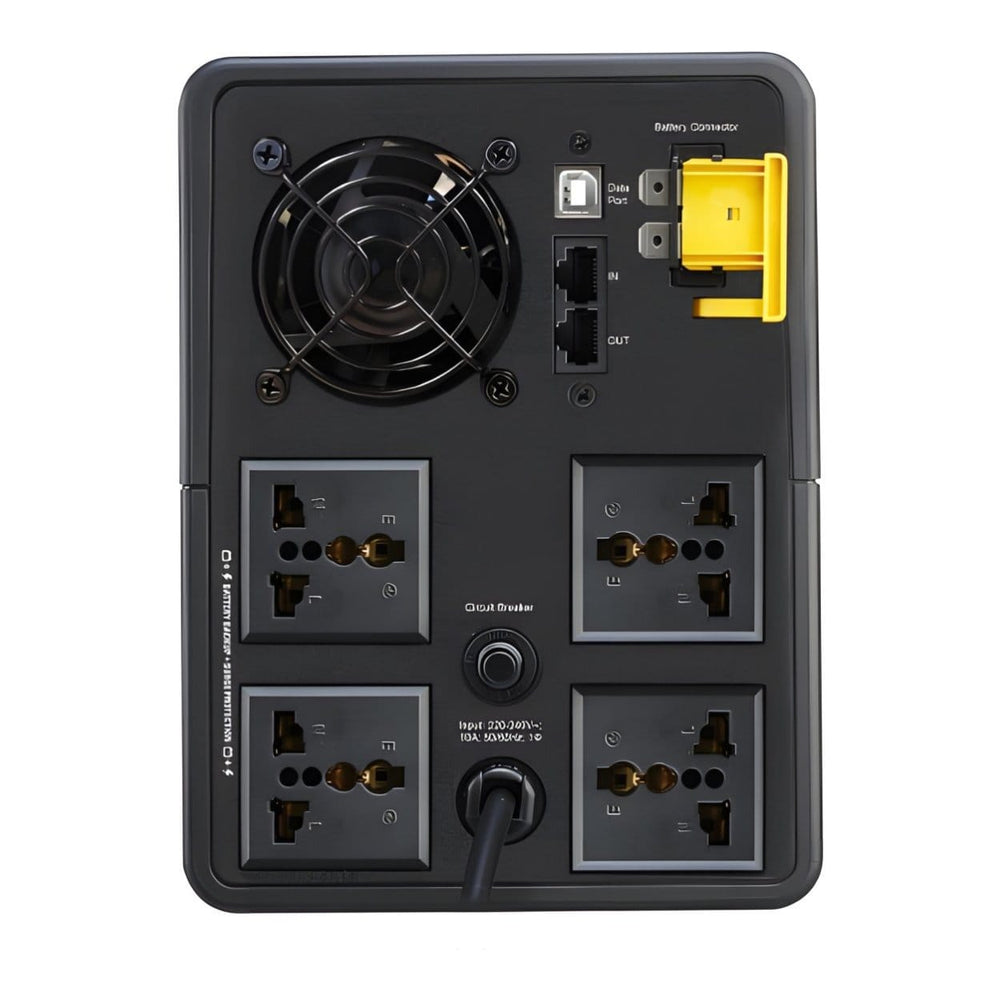

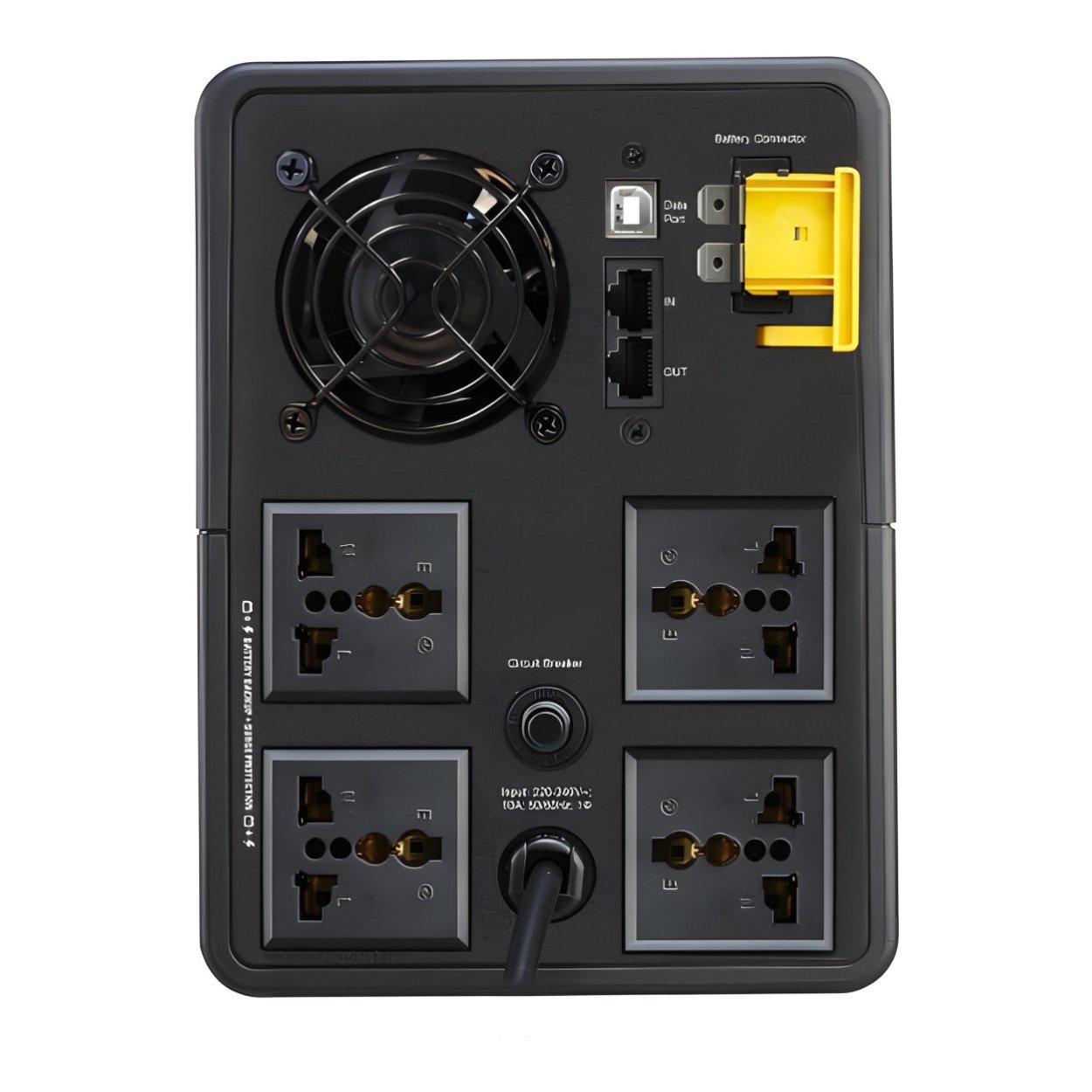

Output Connections

Output Connection Type

• 4 × Universal Outlets

USB Charging Port: None

Battery and Runtime

Battery Type: Lead-Acid Battery
Battery Voltage: 24 V
Battery Recharge Time: 8 Hours
Typical Battery Life: 3–5 Years
Extended Runtime: No
Number of Battery Filled Slots: 0
Number of Battery Free Slots: 0

Control and Communication

Control Panel: LED Status Display (On Line / On Battery)
UPS Connectivity: None
USB Compatible: Yes

Physical

Colour: Black
Cable Length: 1.2 m
Number of Cables: 1
Height: 190 mm
Width: 140 mm
Depth: 390 mm
Product Weight: 12.3 kg
Mounting Mode: Tower
Mounting Preference: No Preference
Rack Mountable: Not Rack-Mountable
Two Post Mountable: No

Performance

Surge Energy Rating: 273 J
Redundant: No
Number of Power Module Filled Slots: 0
Number of Power Module Free Slots: 0

Environmental

Product Certifications

• CE

Standards

• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Operating Temperature: 0–40 °C
Storage Temperature: −15–40 °C
Operating Altitude: 0–3000 m
Storage Altitude: 0–3000 m
Relative Humidity: 0–95 % Non-Condensing
Storage Relative Humidity: 0–95 % Non-Condensing
IP Rating: IP20
Acoustic Level: 40 dBA

Packaging

Package Type: PCE
Units per Package: 1
Package Height: 29.7 cm
Package Width: 49.5 cm
Package Length: 23.5 cm
Package Weight: 13.3 kg
SCC14: 10731304410734

Warranty

Warranty Period: 24 Months
