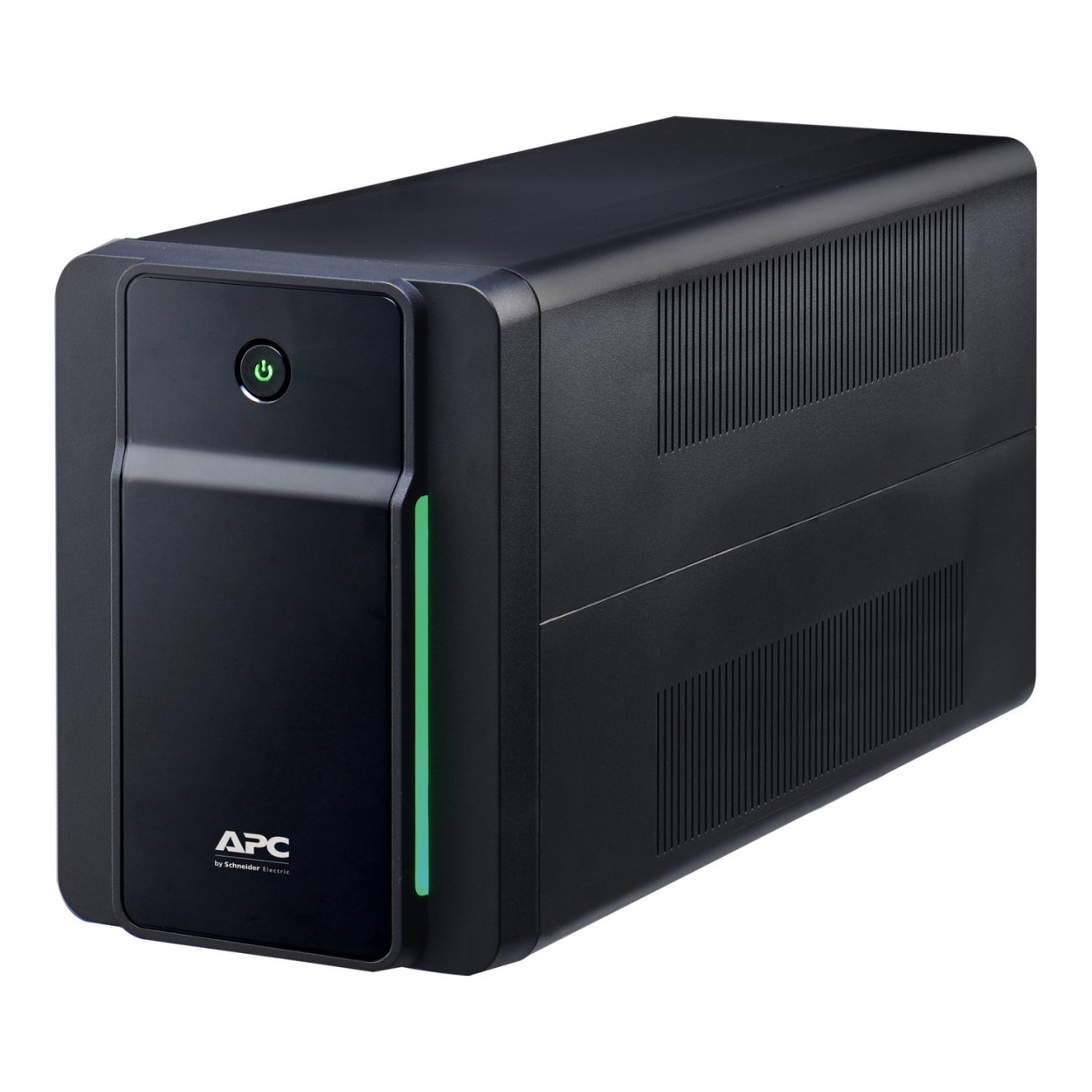

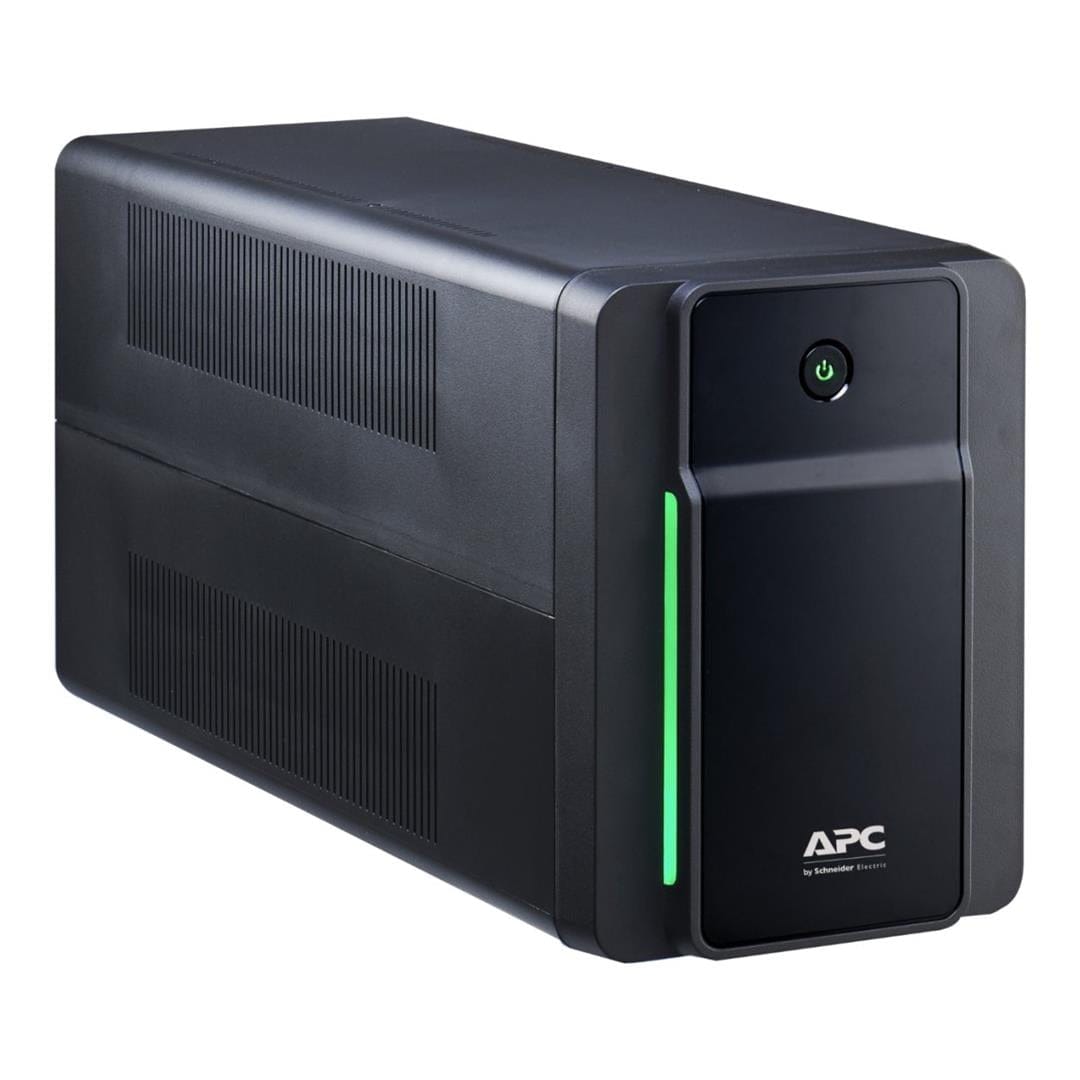

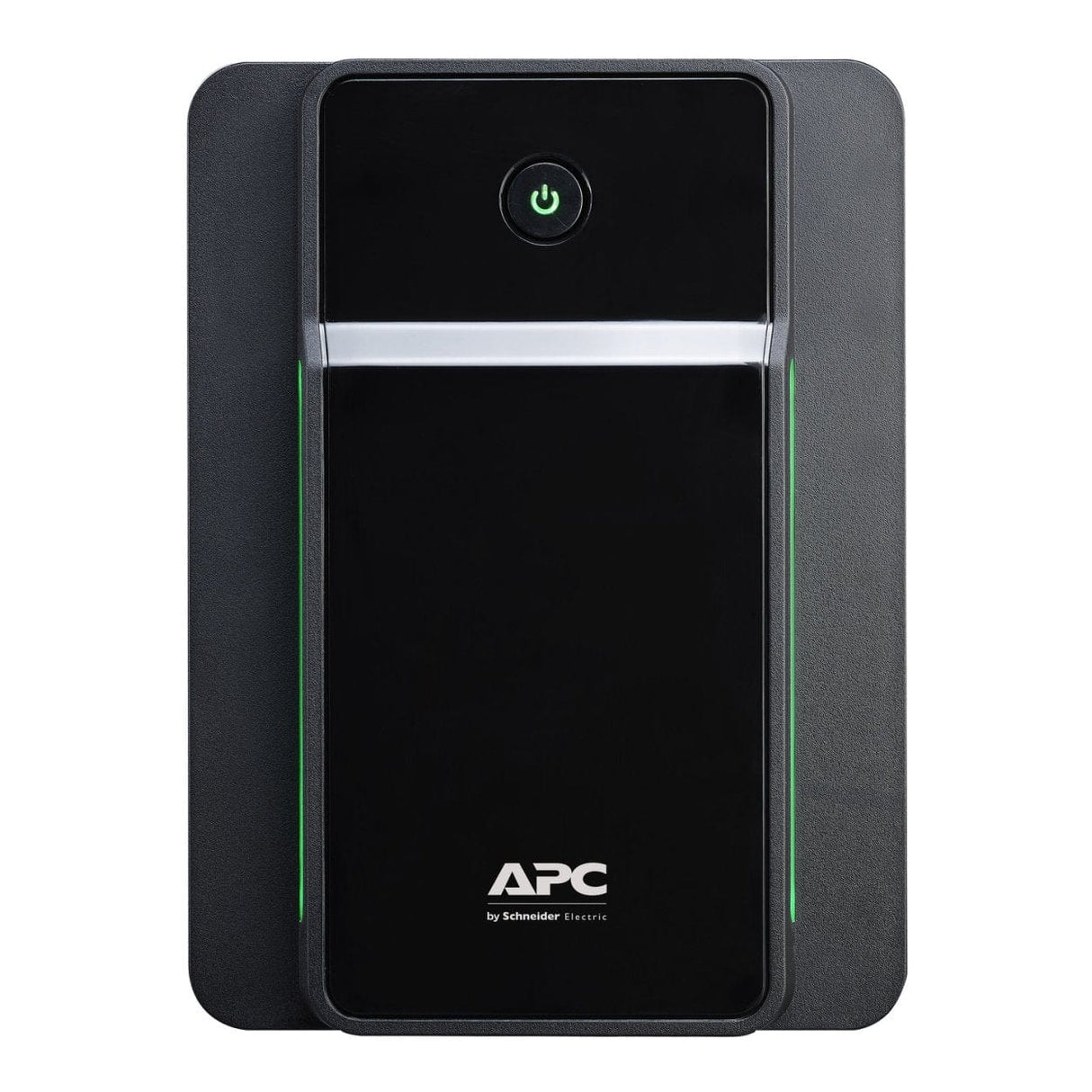

APC BX1200MI-MS 1.2kVA 650W Line-Interactive Uninterruptible Power Supply

APC BX1200MI-MS 1.2kVA 650W Line-Interactive Uninterruptible Power Supply

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1200VA tower UPS has 5 total outlets, all of which provide battery backup and surge protection. The UPS has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

Features:

• Compact size accommodates installation in various environments
• AVR corrects voltage variations to provide reliable power
• LED display for easy-to-read status of unit and utility power conditions
• Easy-to-use auto-shutdown software with power and energy management features
• Data line protection helps protect equipment from surges

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Audible alarms

Provides notification of changing utility power and UPS power conditions.

LED status display

Quickly understand unit and power status with visual indicators.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Technical Specifications:

Main
Run time for load: 650 W
Min-max: 65–650 W
Run time: 1 min 1 s
Max. Capacity Used: 100 %

Main Input Voltage: 230 V AC 1 phase
Cos Phi: 0.54
Input Voltage Limits: 140–300 V
Network Frequency: 50/60 Hz ±5 Hz auto-sensing

Output Voltage: 230 V AC 1 phase
Rated Power: 650 W
Rated Power (VA): 1,200 VA

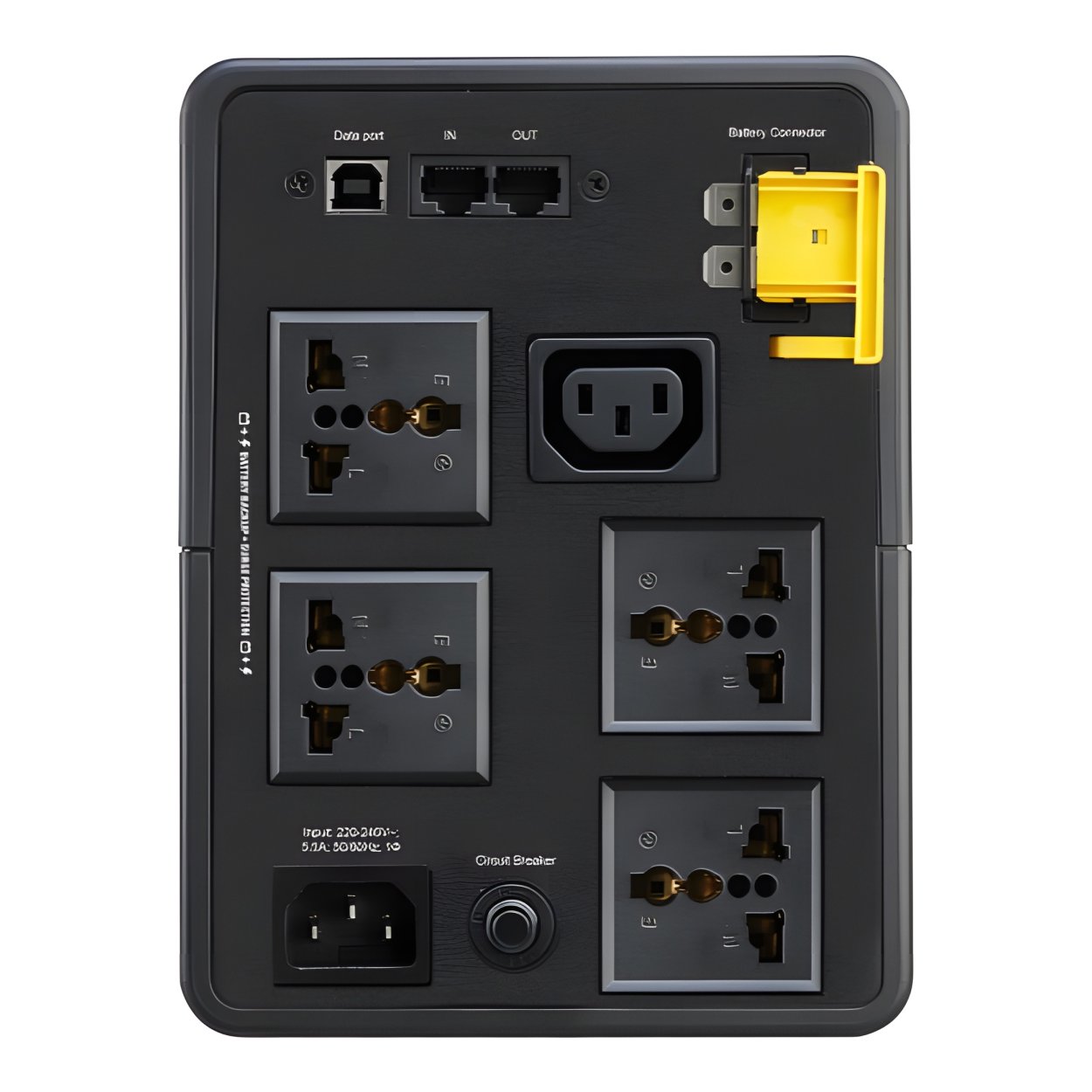

Output Connection Type: 4 universal, 1 IEC 60320 C13
USB Charging Port: None
Maximum Configurable Power: 650 W / 1,200 VA
Transfer Time: 6 ms typical, 10 ms maximum
UPS Type: Line interactive
Wave Type: Stepped approximation to a sinewave
Full Load Runtime: 00:01:00 @ 650 W
Half Load Runtime: 00:05:00 @ 300 W
Output Frequency: 50/60 Hz ±1 Hz sync to mains

Complementary
Battery Type: Lead-acid internal included
Control Panel: LED Status display with on line / on battery
UPS Connectivity: None
Surge Energy Rate: 273 J
Cable Length: 1.2 m
Number of Cables: 1

Physical
Colour: Black
Height: 190 mm
Width: 140 mm
Depth: 390 mm
Net Weight: 7.6 kg
Mounting Preference: No preference
Mounting Mode: Tower, not rack-mountable
Two Post Mountable: 0
USB Compatible: Yes

Power Modules
Number of Filled Slots: 0
Number of Free Slots: 0
Redundant: No
Range of Product: Back-UPS
Product Type: Uninterruptible power supply (UPS)

Environment
Product Certifications: CE
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient Air Temperature for Operation: 0–40 °C
Ambient Air Temperature for Storage: -15–40 °C
Storage Altitude: 0–3,000 m
IP Degree of Protection: IP20
Relative Humidity: 0–95 % non-condensing
Storage Relative Humidity: 0–95 % non-condensing
Acoustic Level: 40 dBA
Operating Altitude: 0–3,000 m

Batteries & Runtime
Battery Type: Lead-acid battery
Battery Voltage: 12 V
Battery Graph Comments: Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output
Extended Runtime: 0
Number of Battery Filled Slots: 0
Number of Battery Free Slots: 0
Battery Recharge Time: 8 h
Battery Life: 3–5 years
