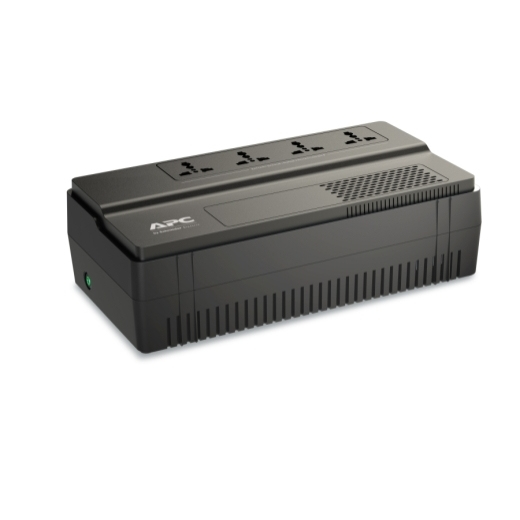

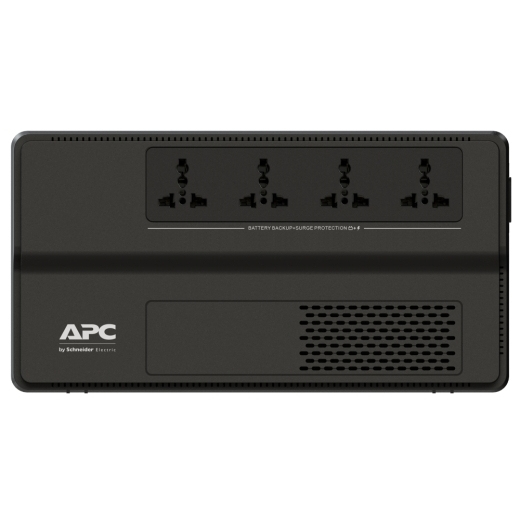

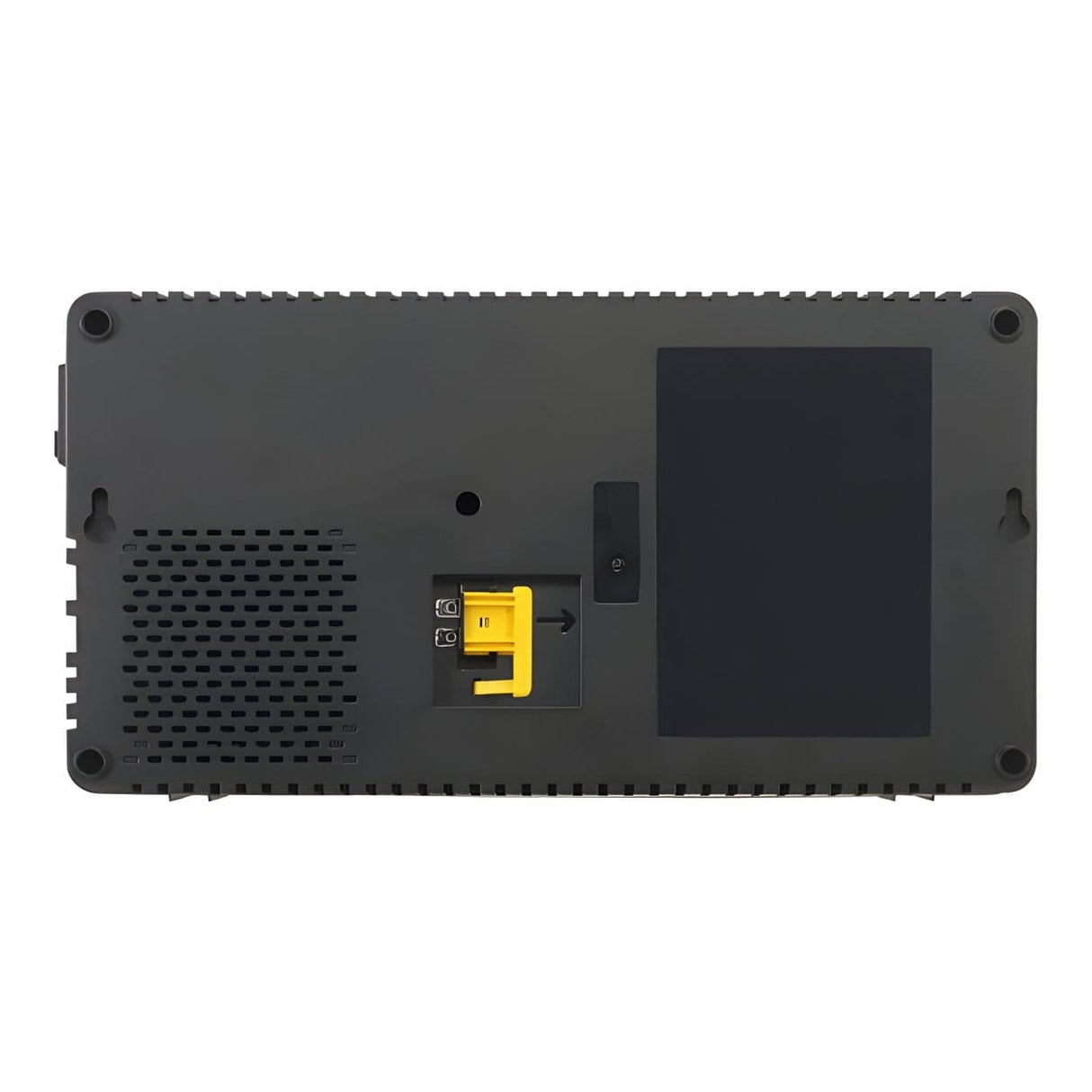

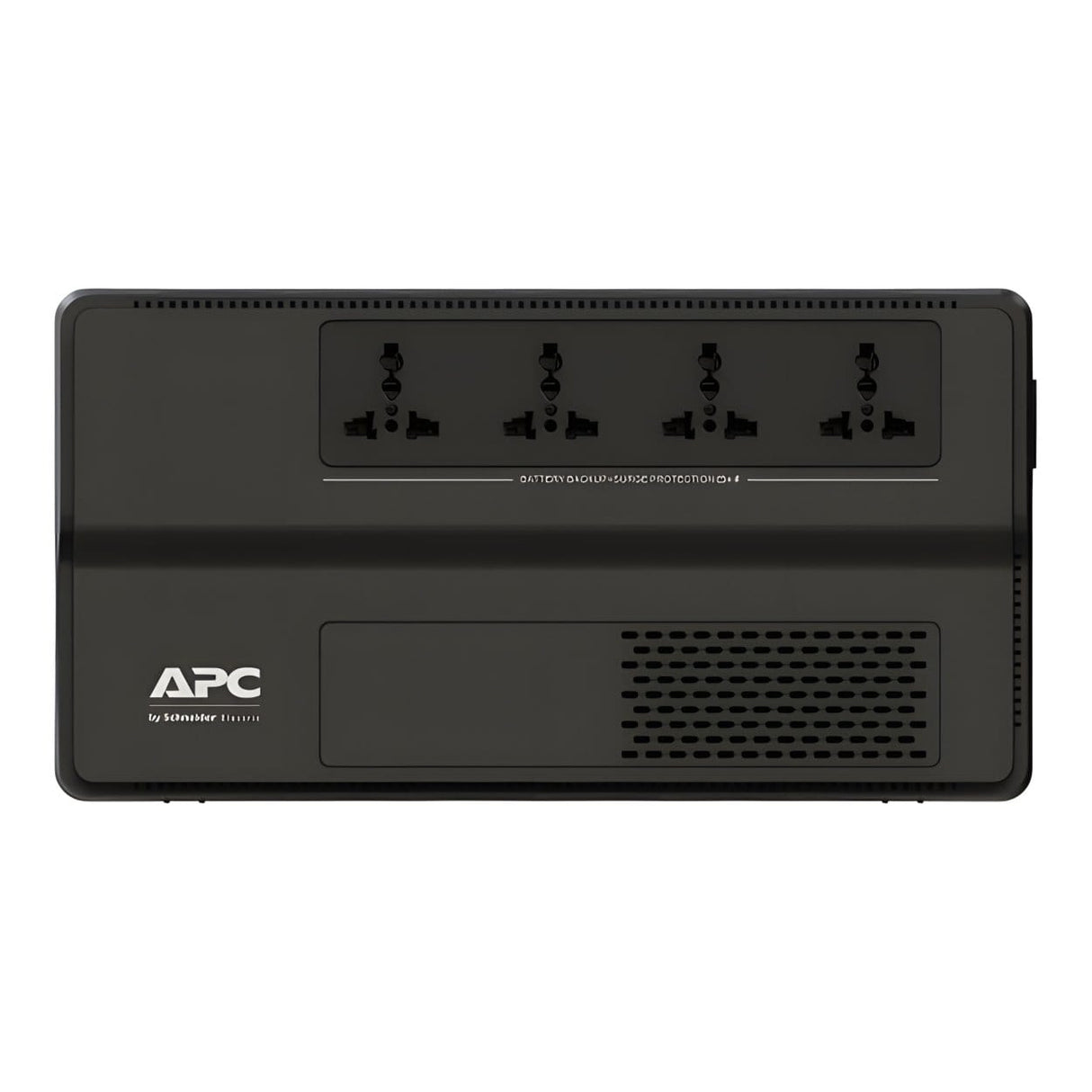

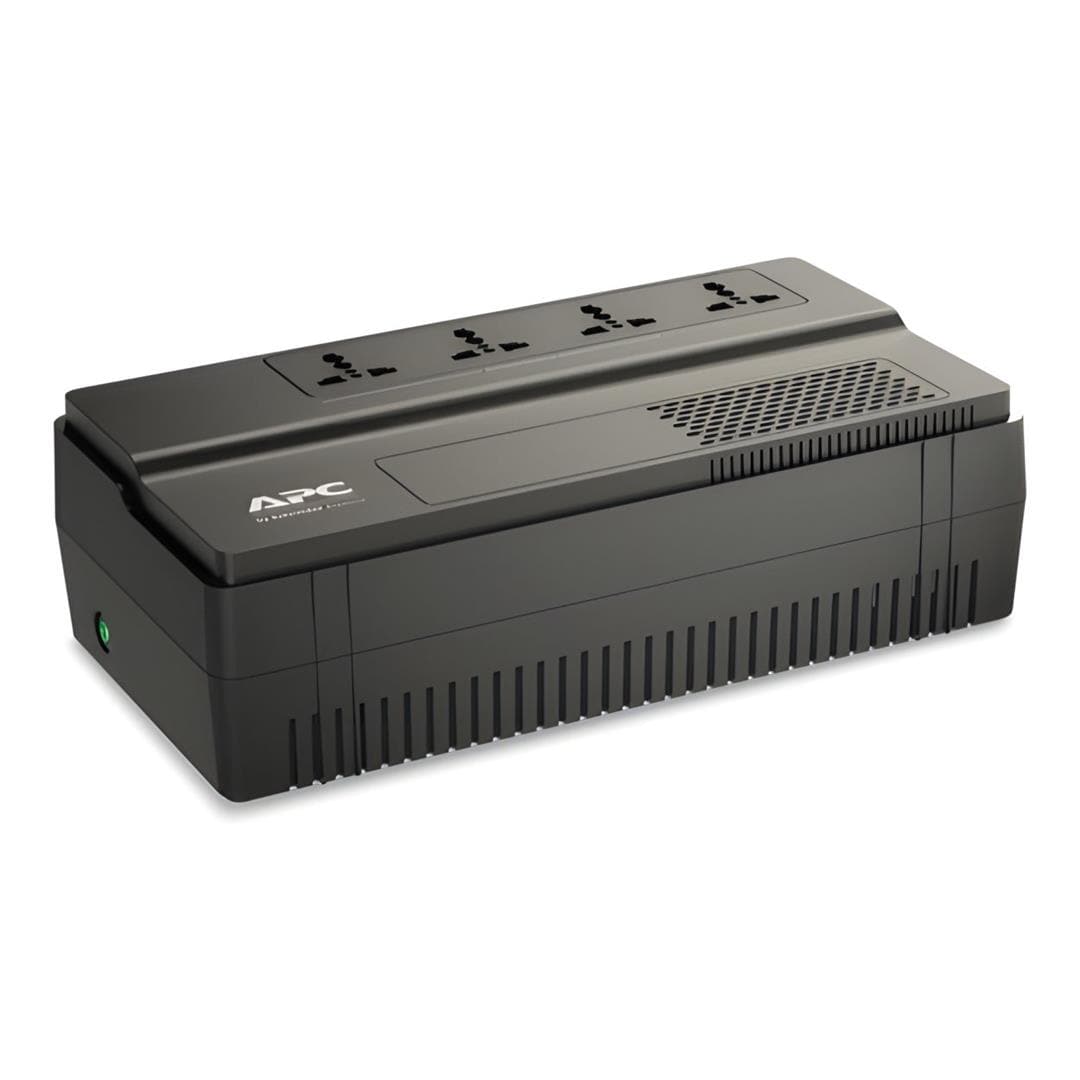

APC BV1000I-MSX 1kVA 600W Line-Interactive UPS

APC BV1000I-MSX 1kVA 600W Line-Interactive UPS

This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 1000VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 156 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

Features:

• Compact size acommodates installation in a variety of environments
• AVR corrects voltage variations to provide reliable power
• LED display provides easy-to-read status of unit and utility power conditions
• Cold start function allows you to reboot the UPS even when utility power is unavailable

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.

Sleek design

Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Cold-start capable

Provides temporary battery power when the utility power is out.

Advanced Safety Features

Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Battery backup and surge protection

Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Audible alarms

Provides notification of changing utility power and UPS power conditions.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Technical Specifications:

Main

Product Or Component Type
Uninterruptible Power Supply (UPS)

Range Of Product
Easy UPS

UPS Type
Line Interactive

Main Input Voltage
230 V AC, 1 Phase

Input Connection Type
BS1363A British

Input Voltage Limits
170–280 V

Network Frequency
50/60 Hz ± 5 Hz Auto-Sensing

Output Voltage
230 V AC, 1 Phase

Rated Power

• 600 W
• 1000 VA

Maximum Configurable Power

• 600 W
• 1000 VA

Output Connection Type

• 4 × Universal Receptacles

Transfer Time
6 ms Typical, 10 ms Maximum

Wave Type
Stepped Approximation To A Sinewave

Output Frequency
50/60 Hz ± 1 Hz Unsynchronised

Battery And Runtime

Battery Type
Lead-Acid Battery (Internal, Included)

Battery Life
3–5 Years

Extended Runtime
0

Number Of Battery Filled Slots
0

Number Of Battery Free Slots
0

Control And Protection

Control Panel
LED Status Display With On-Line And On-Battery Indicators

Alarm Features

• Alarm When On Battery
• Distinctive Low Battery Alarm
• Overload Continuous Tone Alarm

Surge Energy Rating
156 J

Physical Specifications

Colour
Black

Height
92.5 mm

Width
160.5 mm

Depth
305 mm

Product Weight
5.7 kg

Cable Length
1.50 m

Number Of Cables
1

Mounting Mode
Wall Mount, Compact

Mounting Preference
No Preference

Rack Mountable
No

Two-Post Mountable
No

USB Compatible
No

Power Module Information

Number Of Power Module Filled Slots
0

Number Of Power Module Free Slots
0

Redundant
No

Environmental

Operating Temperature
0°C to 40°C

Storage Temperature
-20°C to 50°C

Operating Altitude
0 to 6667 ft

Storage Altitude
0 to 15,240 m

Operating Humidity
0% to 90%

Storage Humidity
0% to 90%

IP Rating
IP20

Acoustic Level
40 dBA

Compliance And Certifications

Product Certifications
CE

Standards

• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Packaging Information

Package Type
PCE

Units Per Package
1

Package Dimensions (H × W × L)
23.7 × 37.3 × 14.3 cm

Package Weight
6 kg

SCC14
10731304344053

Warranty

Warranty Period
24 Months

What's In The Box:

• User Manual
