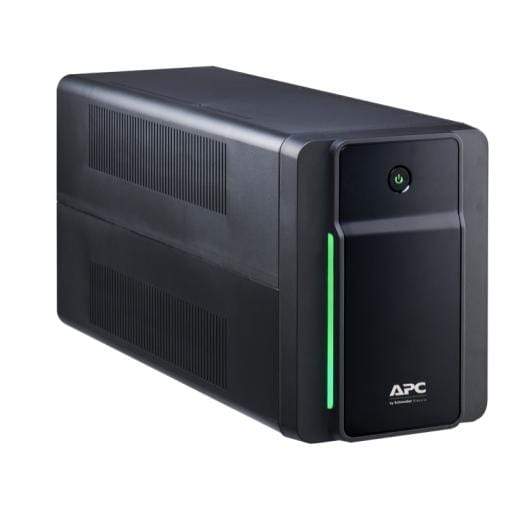

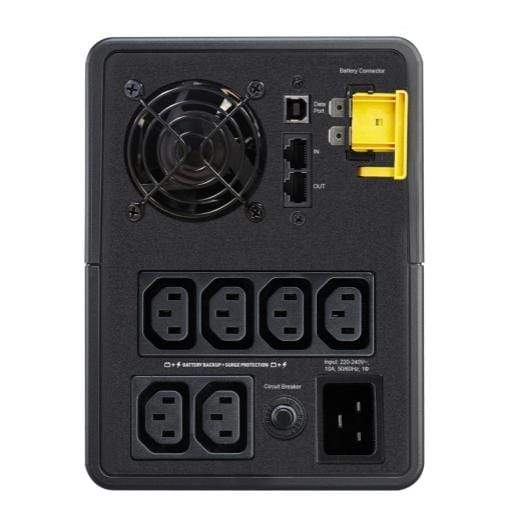

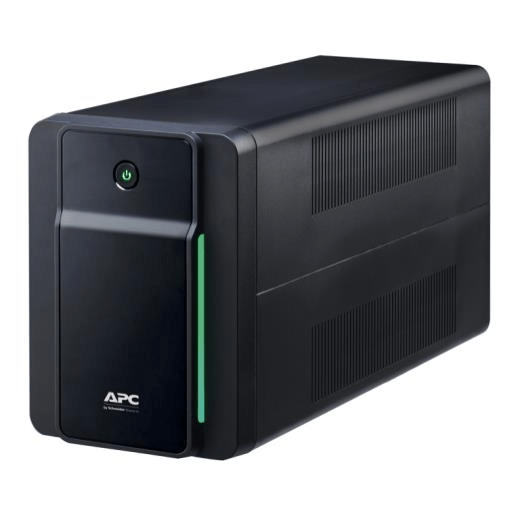

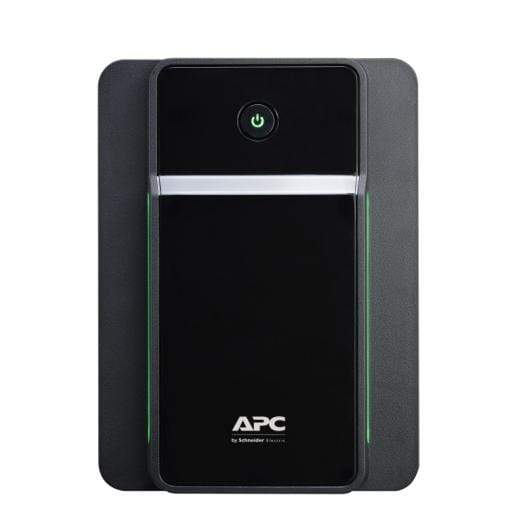

APC Back-UPS 2200VA 1200W 230V AVR IEC Sockets BX2200MI

APC Back-UPS 2200VA 1200W 230V AVR IEC Sockets BX2200MI

The APC Back-UPS 1200VA is a Uninterruptible Power Supply (UPS) designed to provide battery backup and surge protection for connected devices.

Features

• Wide Input Voltage Range
• Built In AVR + Surge
• Value Added ID outlook
• Comprehensive VA range
• Auto-Start Function
• Dataline Protection

Technical Specification

Main

Main Input Voltage: 230 V
Rated power in W: 1200 W
Rated power in VA: 2200 VA
Input Connection Type: IEC 60320 C13
output connection type: 6x IEC 60320 C13
Cable length: 1.22 m
Number of cables: 1

Batteries & Runtime

General

Max runtime: 240 min

Redundant: No

Physical

Input

Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits: 140...300 V
Input Power Factor at Full Load: 0.54

Output

Maximum configurable power in W: 1200 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
UPS type: Line interactive
Wave type: Stepped approximation to a sinewave
Full load runtime: 00:01:00 1200 W
Half load runtime: 00:06:30 600 W
Maximum configurable power in VA: 2200 VA
Transfer time: 6 ms typical : 10 ms maximum

Communications & Management

Control panel: LED Status display with on line : on battery

Surge Protection and Filtering

Surge energy rate: 273 J
