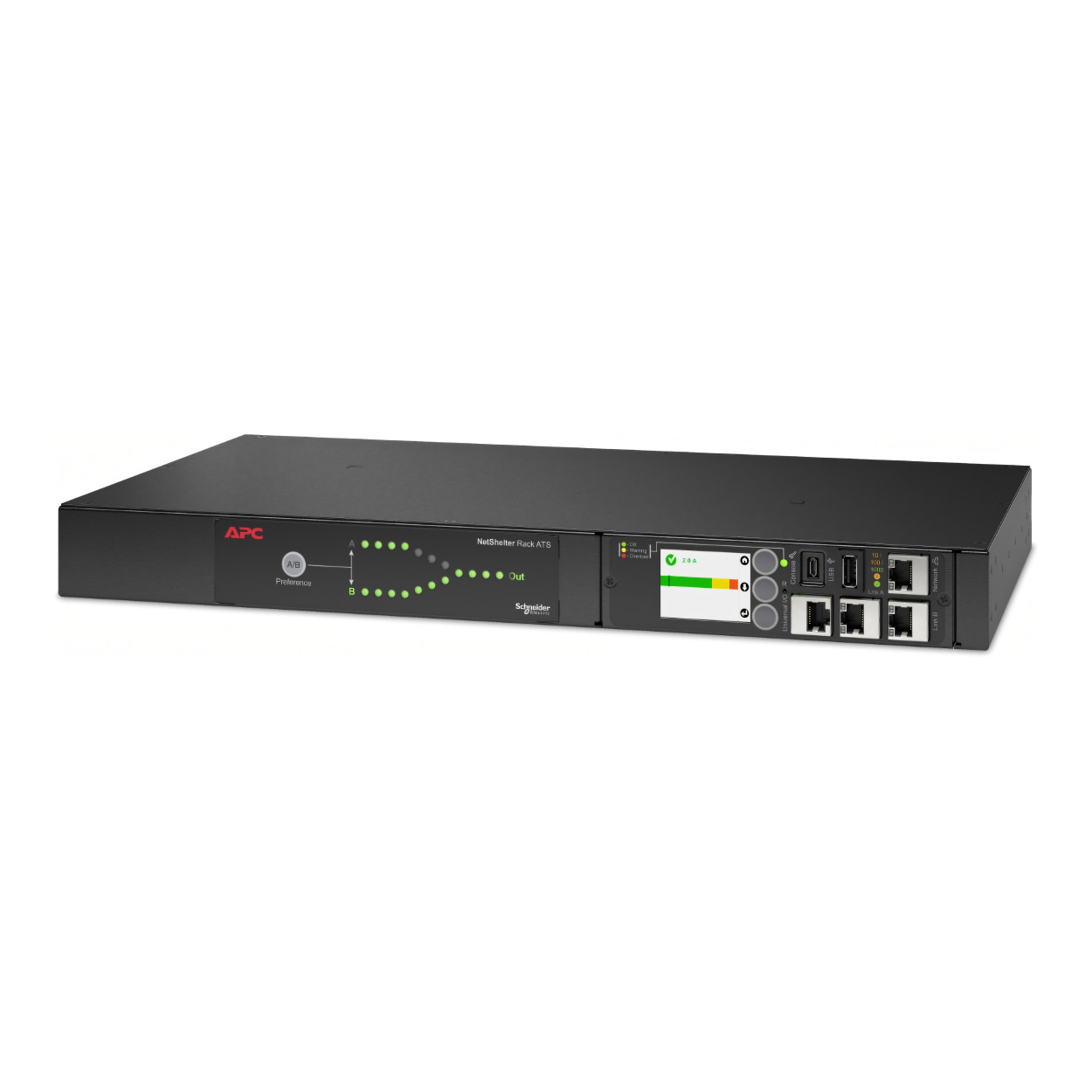

APC AP4422A 1U 16A 230V Netshelter Rack Automatic Transfer Switch
The APC NetShelter AP4422A is a 1U rack automatic transfer switch that supplies single-corded IT equipment from two power sources. It automatically transfers the connected load when the preferred source becomes unavailable, helping maintain power availability. Network management provides remote monitoring and configuration.
Key Features
- Dual power inputs provide source redundancy for single-corded equipment.
- Fast automatic switching helps minimise disruption during a source failure.
- Two IEC 309 inputs and one IEC 309 output support compatible 16A installations.
- Field-replaceable Network Management Card 3 supports ongoing maintenance.
- Network port sharing enables management of up to 32 rack ATS units through one IP address.
- Temperature and humidity monitoring is supported with compatible sensors.
- Compact 1U format preserves rack space.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Product Range | NetShelter Rack ATS |
| Manufacturer Part Number | AP4422A |
| Product Type | Automatic transfer switch |
| Colour | Black |
| Rack Height | 1U |
| Mounting | Horizontal rack mounting |
| Nominal Input / Output Voltage | 230V AC, single-phase |
| Input Voltage Range | 207–253V AC |
| Rated Current | 16A |
| Frequency | 50/60Hz |
| Manufacturer-Rated Load Capacity | 3840VA |
| Input Connections | 2 × IEC 309, 16A, 2P+E |
| Output Connection | 1 × IEC 309 |
| Network Management | APC Network Management Card 3 |
| Network Port Sharing | Up to 32 rack ATS units per IP address |
| Operating Temperature | −5°C to +45°C |
| Dimensions (H × W × D) | 44 × 432 × 236mm |
| Net Weight | 4.21kg |
| Included Mounting Accessories | Mounting hardware and rack mounting brackets |
| Standard Manufacturer Warranty | 2 years |
Add the APC AP4422A to your cart to provide automatic power-source redundancy for compatible rack equipment.
