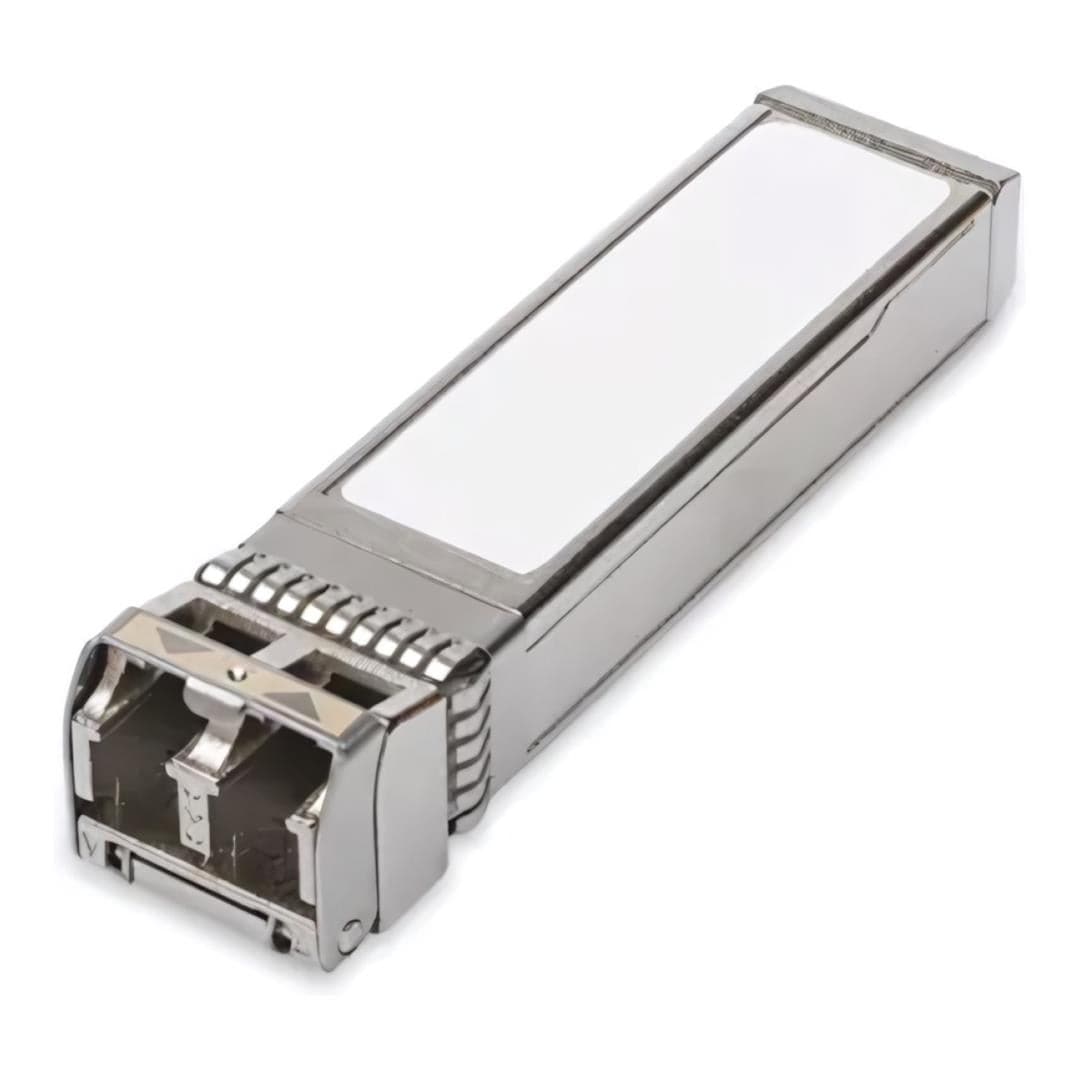

Apache Compatible 10G SFP+ LR SM 1310nm 10km LC Network Transceiver Module SFP-10G-LR-CIS

Apache Compatible 10G SFP+ LR SM 1310nm 10km LC Network Transceiver Module SFP-10G-LR-CIS

Apache SFP-10G-LR-I compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring an operating temperature range of -40°C to 85°C, this industrial fiber optic transceiver can work in harsh industrial environments.

Technical Specifications:

Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Connector: LC duplex
Cable Type: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2~0.5dBm
Cable Distance: 10km
Power Budget: 6.2dB
Receiver Sensitivity: -14.4dBm
Power Consumption: ≤1W
Receiver Overload: 0.5dBm
DDM/DOM: Supported
Industrial Temperature Range: -40 to 85°C (-40 to 185°F)
Core Size: 9/125µm
Modulation: NRZ
Protocols: IEEE 802.3ae, SFF-8431, SFF-8472, SFP+ MSA, SFF-8432, CPRI, eCPRI
Warranty: 5 Years
