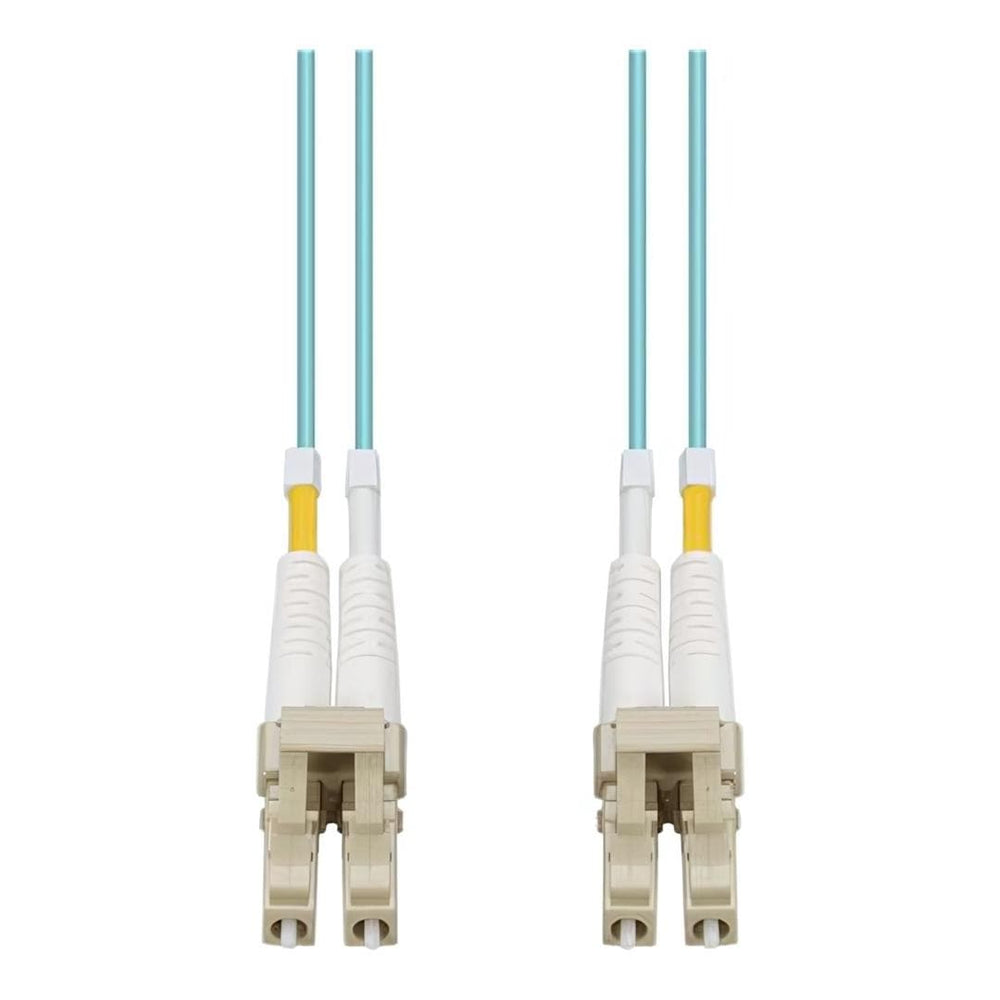

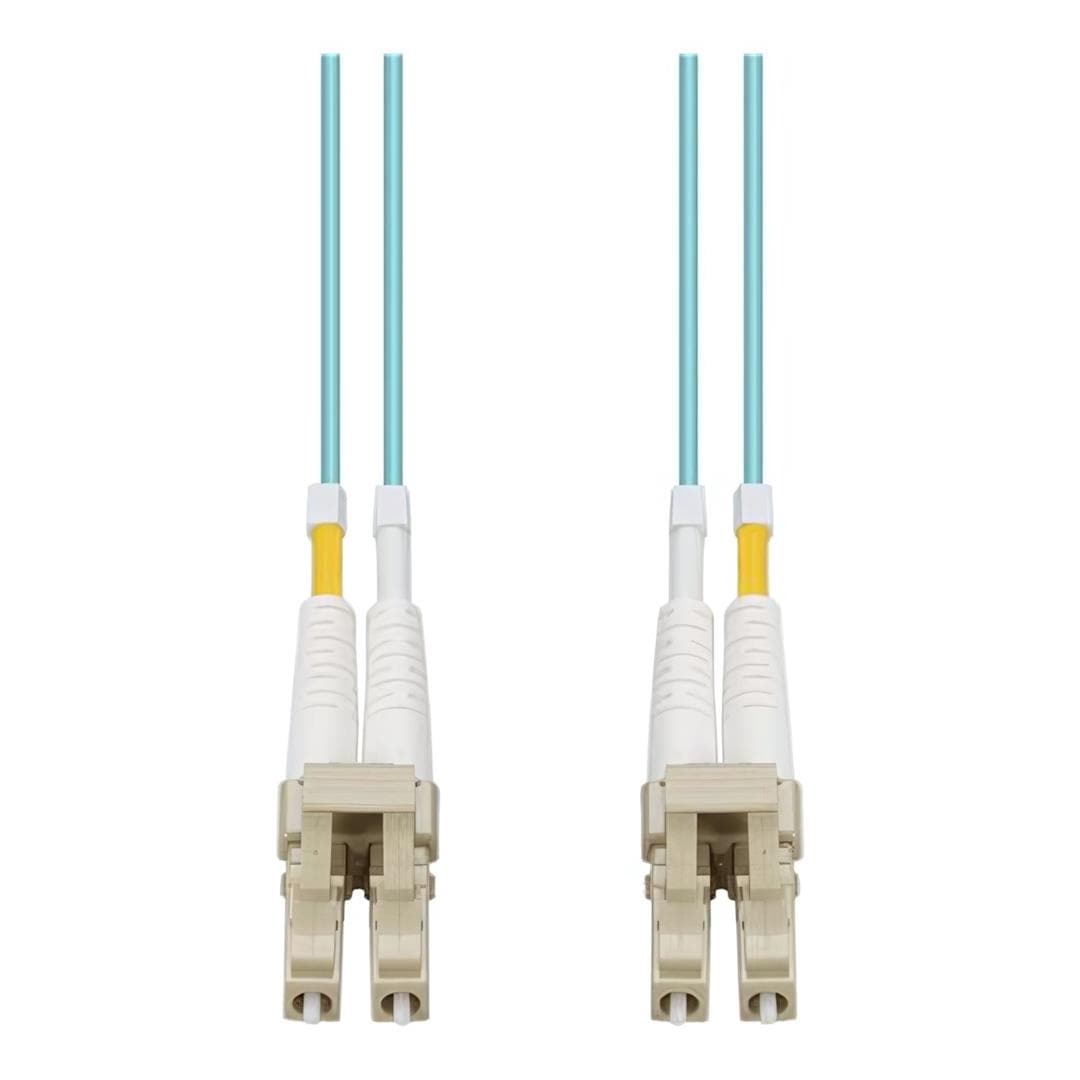

Apache 1m Multi mode LC-LC duplex OM4 Fibre Patch Lead 1MMMLCLC0M4

Apache 1m  Multi mode LC-LC duplex OM4 Fibre Patch Lead 1MMMLCLC0M4

The uniboot design allows one cable to carry both fibres, reducing cable congestion when routing. It is designed for high-density fibre patching in data centres which need space saving and reduce cable management troubles.

Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibres or needing any tools.

Technical Specifications:

Connector Type: LC UPC to LC UPC
Fiber Grade: Bend Insensitive Fiber
Fiber Mode: OM4 50/125μm
Wavelength: 850/1300nm
40G Ethernet Distance: 150m at 850nm
100G Ethernet Distance: 100m at 850nm
Insertion Loss: ≤0.2dB
Return Loss: ≥30dB
Min. Bend Radius (Fiber Core): 7.5mm
Min. Bend Radius (Fiber Cable): 20/10D (Dynamic/Static)
Attenuation at 850nm: 3.0dB/km
Attenuation at 1300nm: 1.0dB/km
Fiber Count: Duplex
Cable Outside Diameter (OD): 2.0mm
Cable Jacket: Riser (OFNR)
Polarity: A (Tx) to B (Rx)
Operating Temperature: -10 to 70°C (14 to 158℉)
Storage Temperature: -20 to 70°C (-4 to 158℉)
