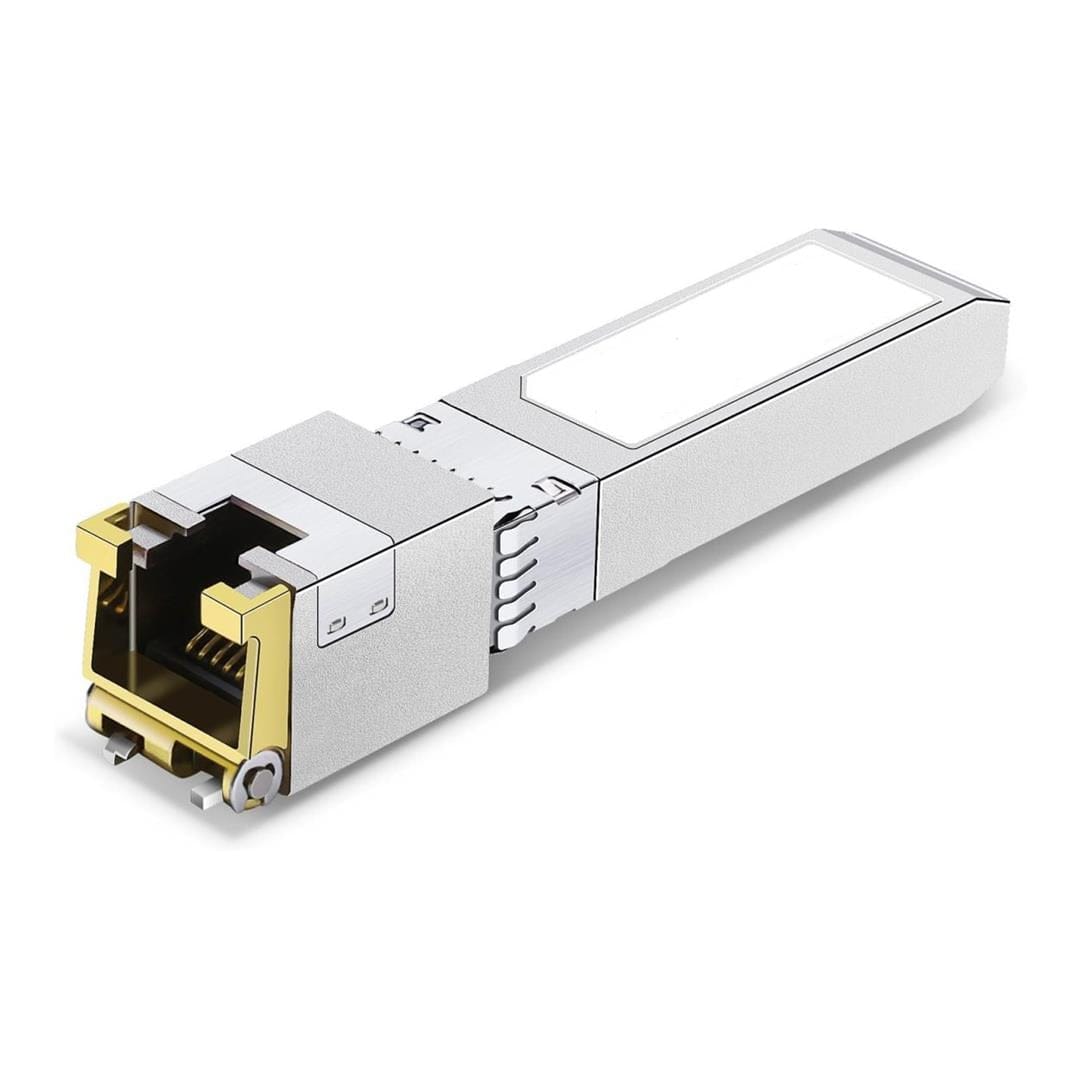

Apache 10G SFP+ T Copper RJ-45 30m Network Transceiver SFP10GUTPCIS

Apache 10G SFP+ T Copper RJ-45 30m Network Transceiver SFP10GUTPCIS

The SFP-10G-UTP-CIS module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10 Gb/s communication over this type of media.

Features:

• Supports Links up to 30m using Cat 6a/7 Cable
• SFF-8431 and SFF-8432 MSA Compliant
• IEEE 802.3az Compliant
• Low Power Consumption (2.5W MAX @ 30m)
• Fast Retrain EMI Cancellation Algorithm
• Low EMI Emissions
• I2C 2 Wire Serial Interface for Serial Id and Phy Registers
• Auto-negotiates with other 10GBase-T PHYs
• Supports 100/1000Base-T
• MDI/MDIX Crossover
• Multiple Loopback Modes for Testing and Troubleshooting
• Built-in Cable Monitoring and Link Diagnostic Features
• Cable length measurements
• Opens/shorts
• Robust Die Cast Housing
• Bail Latch Style ejector mechanism
• Unshielded and Shielded cable support
