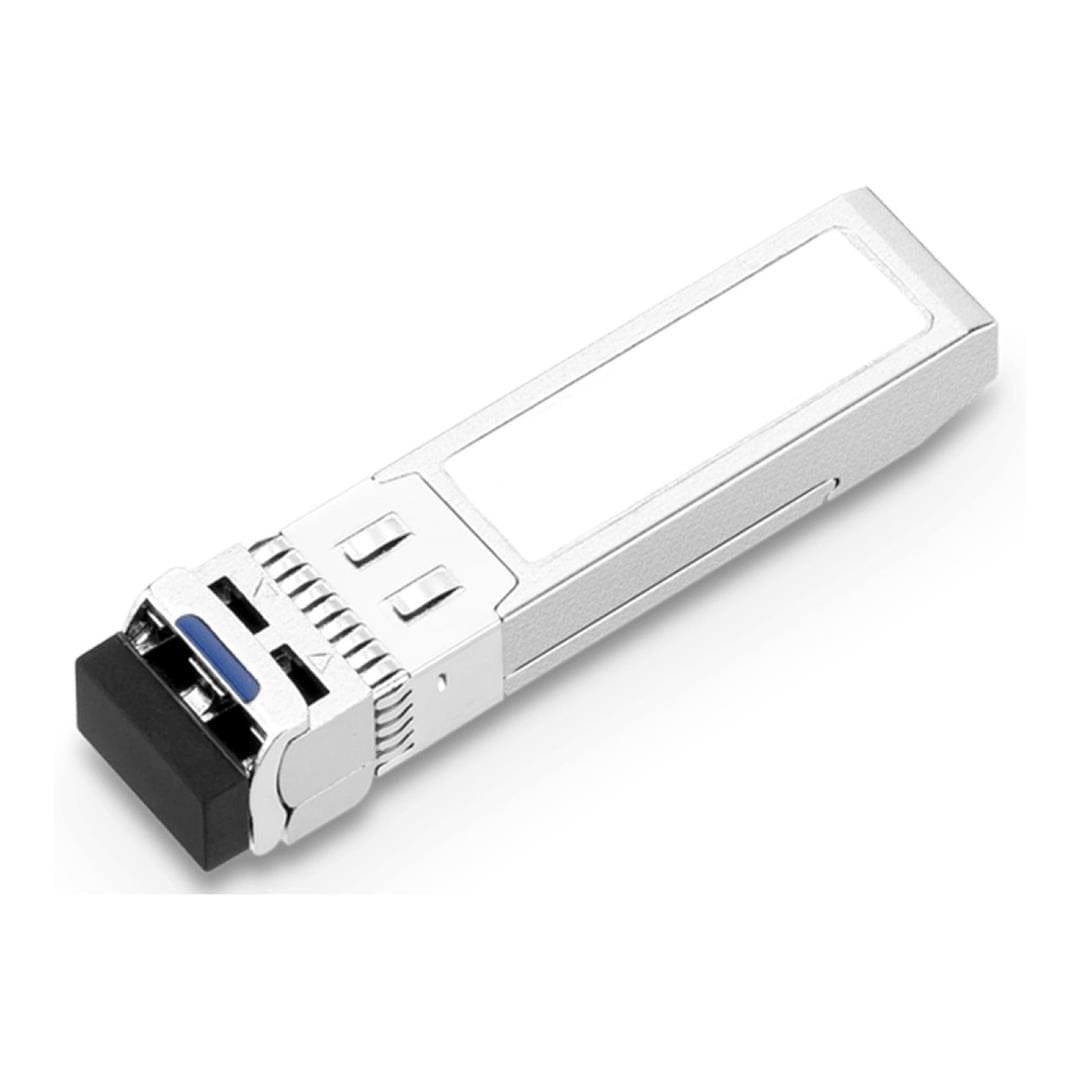

Apache 10G SFP+ LR SM 1310nm Network Transceiver SFP10GLRHUA

Apache 10G SFP+ LR SM 1310nm Network Transceiver SFP10GLRHUA

APACHE SFP-10G-LR transceivers support the 2-wire serial communication protocol as defined in the SFP+ MSA. The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard interfaces, manufacturer, and other information.

Additionally, APACHE SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

The SFP MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h).The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Features:

• Up to 11.1Gbps Data Links
• Up to 10km transmission on SMF
• DFB Laser and PIN receiver
• Metal enclosure, for lower EMI
• 2-wire interface with integrated Digital Diagnostic monitoring
• Hot-pluggable SFP+ footprint
• Specifications compliant with SFF 8472
• Compliant with SFP+ MSA with LC connector
• Single 3.3V power supply
• Case operating temperature range:0°C to 70°C
• Power dissipation < 1.5 W

Applications:

• 10GBASE-LR/LW & 10G Ethernet
• This product is compatible and generic versions of SFP-10G-LR
