Aopen DE6340-R2 AMD Embedded Ryzen R2000 SoC Digital Signage Player

Aopen DE6340-R2 AMD Embedded Ryzen R2000 SoC Digital Signage Player

Power your menu boards, video walls, and digital signage with the DE6340-R2. This compact PC drives static content on four 4K screens at 60Hz and is a reliable, secure solution built to last, even in harsh environments.

Features

• R2000 CPU performance
• 4x HDMI 2.0 outputs
• Capable of driving four independent HDMI 2.0 displays with up to 4K @60Hz resolution in each display and supports up to 2x 4K@60Hz or 4x FHD @60Hz content video playback
• HEVC/H.264 and VP9 high-definition video playback
• Radeon graphics with Eyefinity technology
• 10 Bit HDR (High Dynamic Range)

UHD (4k) content playback

This media player is built to drive 4K UHD content. With a native resolution of 3840 × 2160 pixels, it ensures your visuals are incredibly sharp and detailed. It's engineered to deliver smooth, stutter-free 4K playback, bringing your content to life.

Multi-output videowall solution

Simplify your setup by powering up to four screens with just one player. It provides a powerful and reliable foundation for video walls and other multi-display solutions, giving you the flexibility to create stunning symmetrical or asymmetrical layouts.

AMD platform

Powered by the AMD Embedded Ryzen™ R2000 platform, the DE6340-R2 drives up to four displays at once. This makes it a perfect solution for video walls and multi-screen menu boards.

• Specifications and Images may vary depending upon region / model.

Technical Specification

Product: Aopen DE6340-R2 AMD Embedded Ryzen R2000 SoC

Type: Digital Signage Player

CPU: AMD Embedded Ryzen R2000 SoC, Quad Core GFX9

Memory: 8 GB (2 x 4 GB)

• Dual Channel, DDR4, 3200 (Max 32G)

Graphics: AMD Radeon graphics

Expansion

• M.2 2242 x2
• M.2 2230 x1 (for wifi)

Audio: Realtek HD Audio ALC269Q

LAN

• Realtek Gigabit Ethernet
• RTL8111H x 1
• 10 / 100 / 1000 Mbps

Storage: 128 GB SSD

• 1x 2.5'' SATA HDD Bay
• 1x M.2 SSD

CPU Thermal Module: AOPEN Thermal Module

WatchDog Timer: 1 ~ 255 sec/min

Adapter: 19V / 90W AC Adapter

Input Voltage AC: 100 ~ 240 V

MTBF: 50,000 hrs

TPM: 2.0

Dimensions (W x H x D): 166 x 48 x 157 mm

Volume: 1.25L

Weight: 2.00 kg

Warranty: 1-year Carry-in

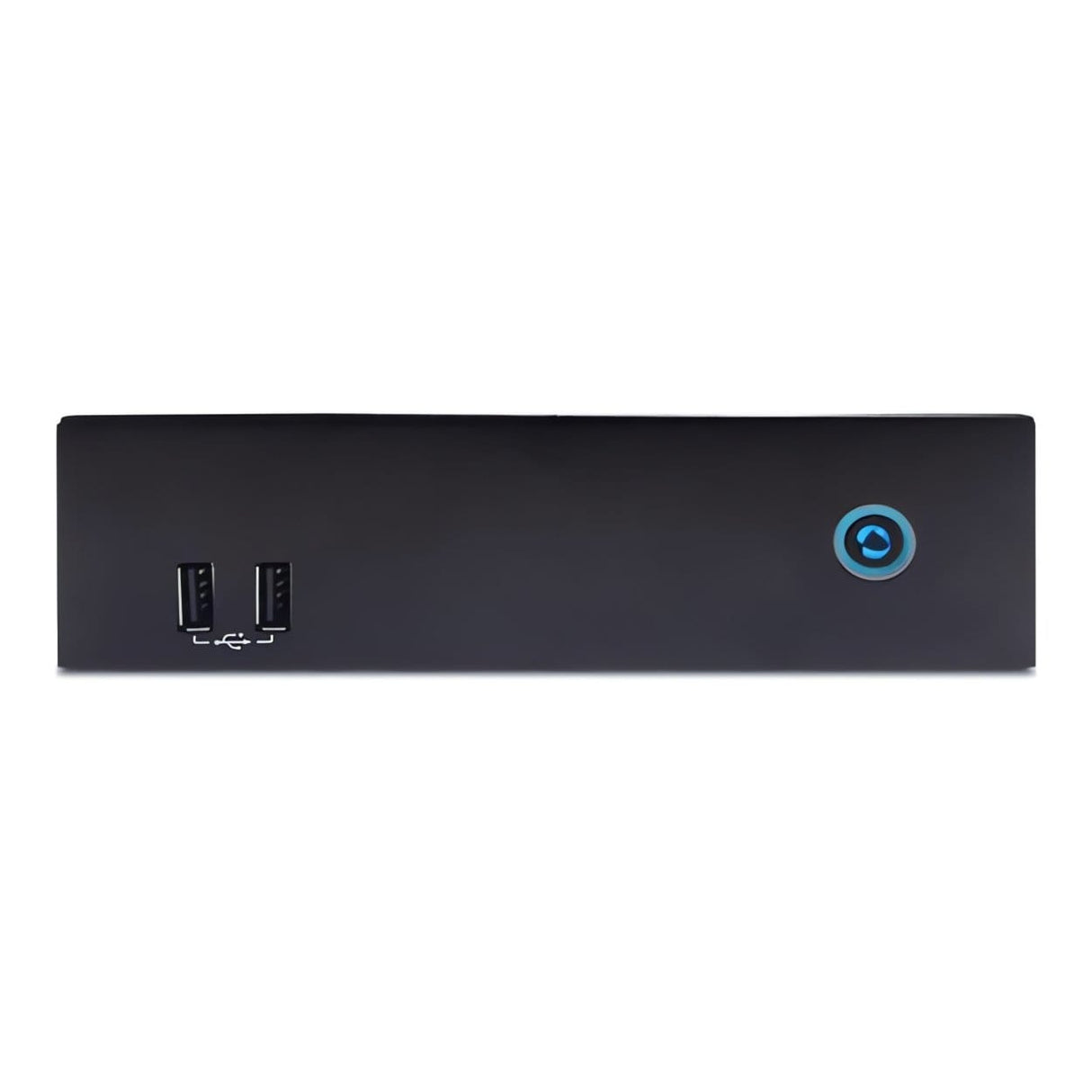

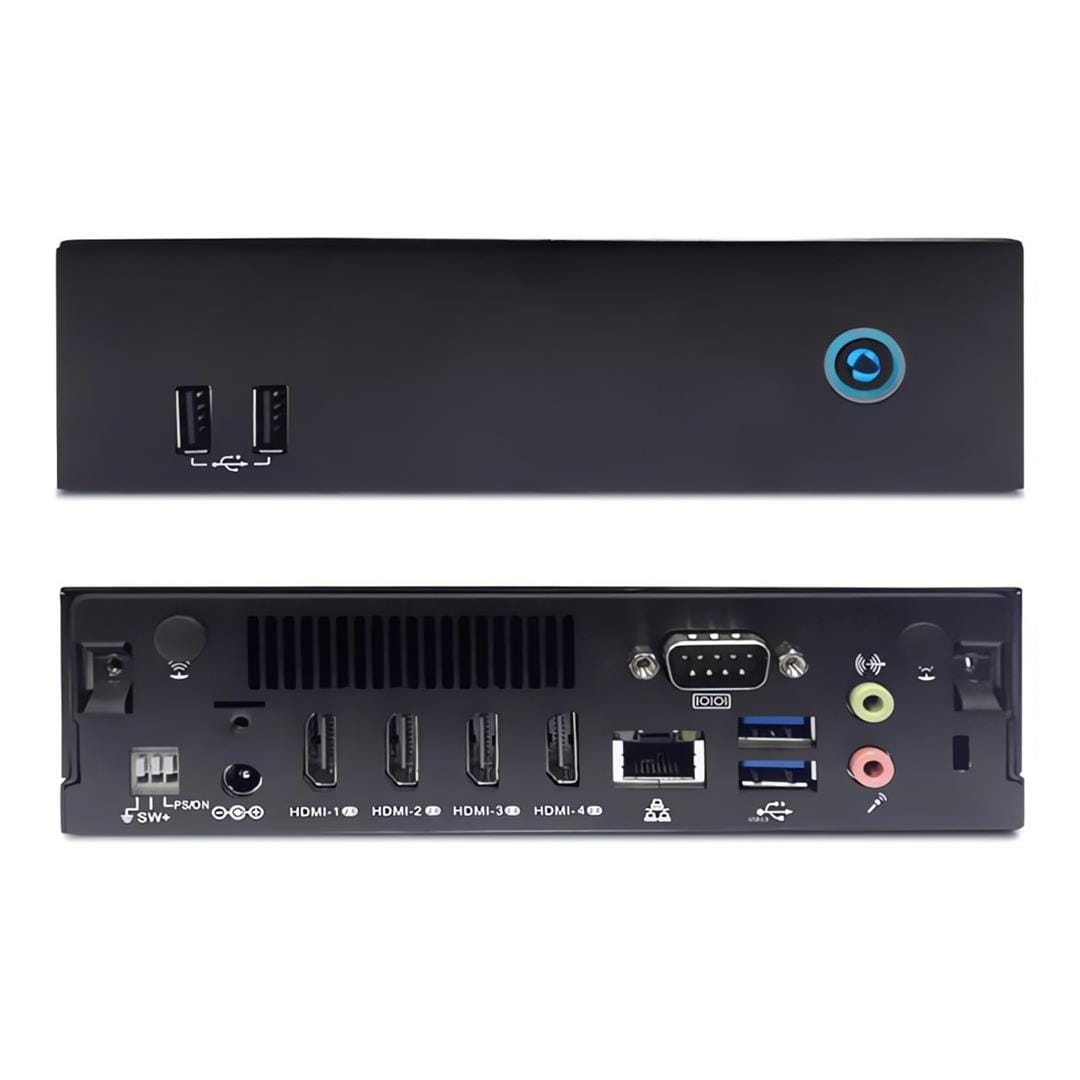

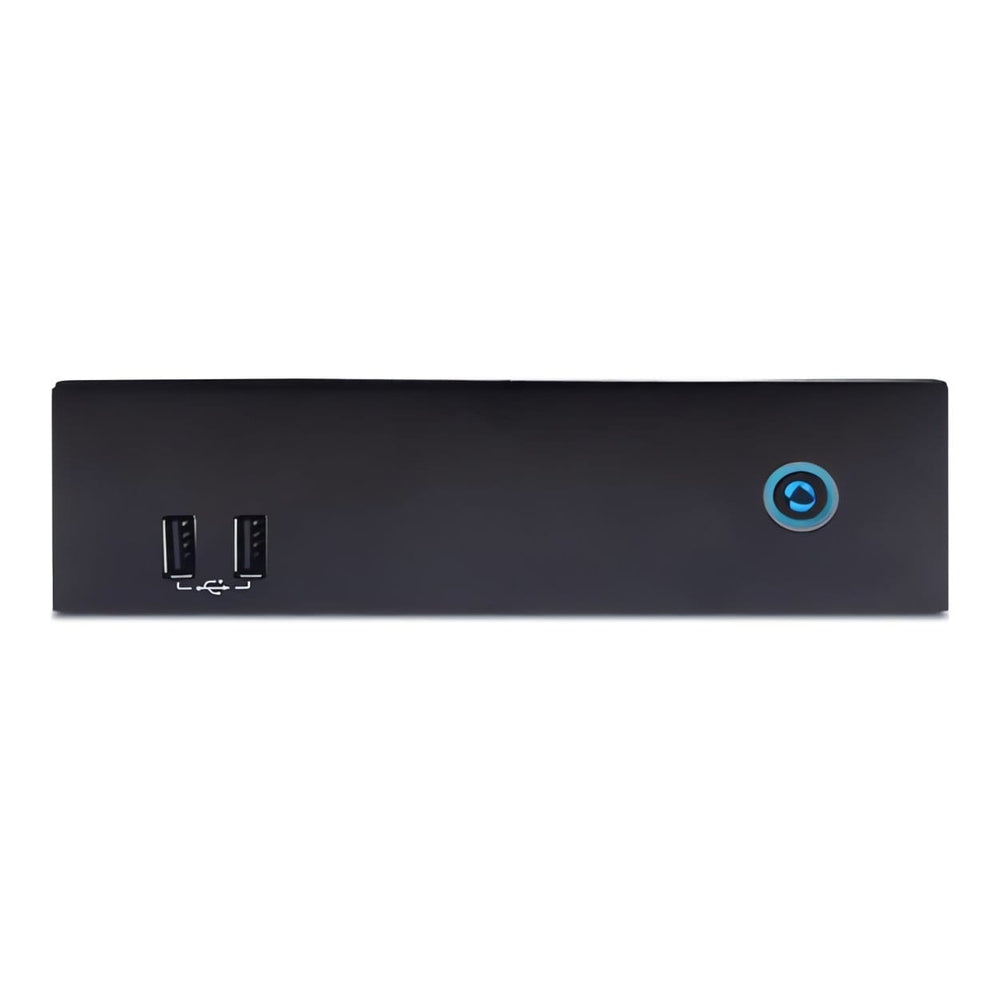

Front Panel I/O

• 2x USB 2.0

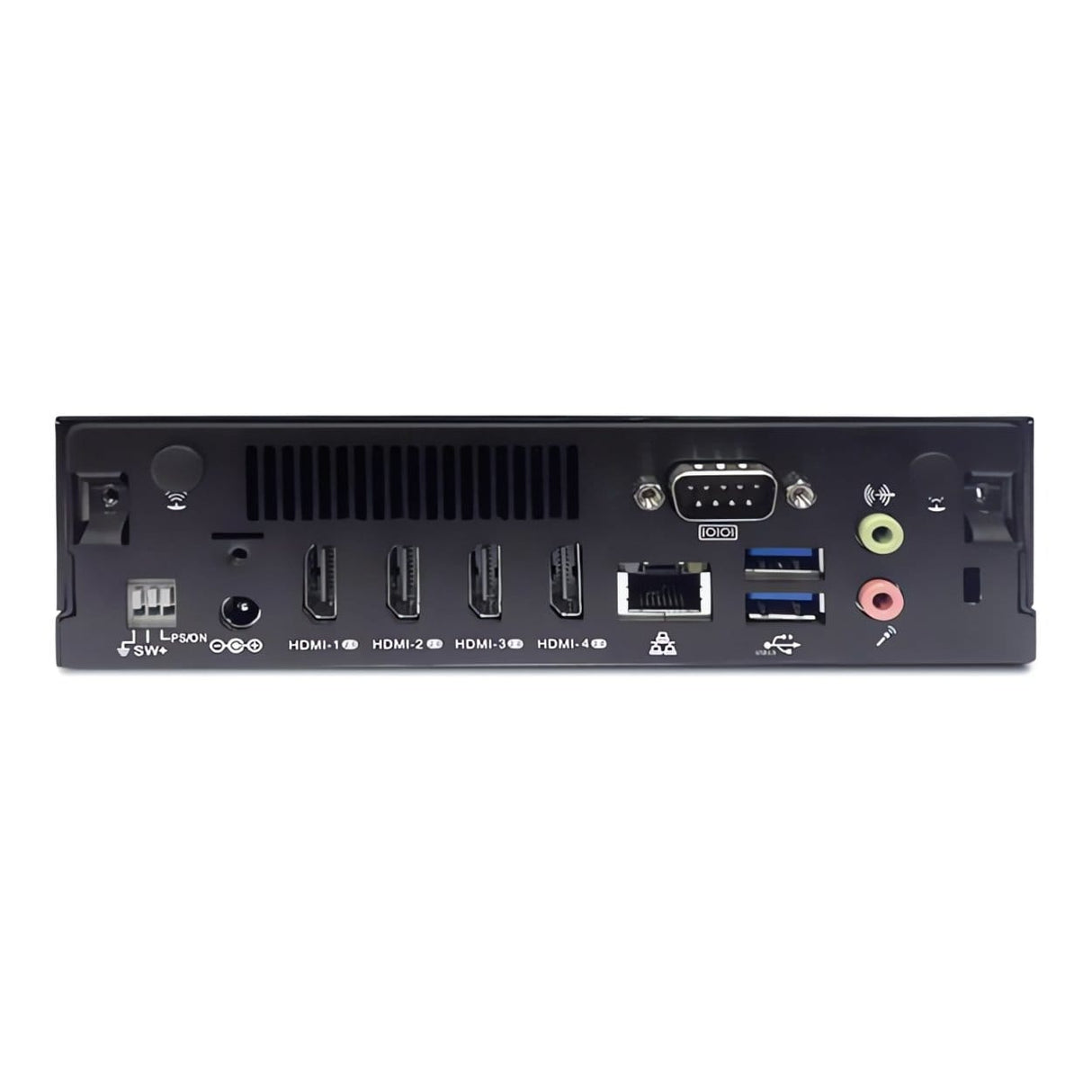

Rear Panel I/O

• 1x DC-Jack
• 4x HDMI 2.0
• 2x USB 3.0
• 1x RJ45 LAN
• 1x COM Port
• Audio Set: 1x Line-Out , 1x Mix-in
• 2x Antenna Holes
• Extended power Switch
