Anycubic Photon Mono M7 Pro 14K MSLA Resin 3D Printer PM7RBK0C-O

Anycubic Photon Mono M7 Pro 14K MSLA Resin 3D Printer PM7RBK0C-O

The Anycubic Photon Mono M7 Pro PM7RBK0C-O is a high-performance MSLA resin 3D printer designed for exceptional precision and high-speed printing. Featuring a 10.1-inch 14K monochrome LCD, LighTurbo 3.0 optical system, automatic resin refilling and dynamic resin temperature control, it delivers detailed and consistent printing results. With speeds up to 170mm/h, a generous 6.5L build volume, intelligent monitoring and Wi-Fi connectivity, it is ideal for professional prototypes, miniatures and intricate 3D models.

Key Features:

• High-precision MSLA resin 3D printing technology
• 10.1-inch 14K monochrome LCD screen
• 13320 x 5120 pixel LCD resolution
• 16.8 x 24.8 micron XY resolution
• 223 x 126 x 230mm build volume (6.5L)
• Printing speeds up to 170mm/h with high-speed resin
• Advanced LighTurbo 3.0 COB light source
• Fresnel lens for improved light uniformity
• Dynamic resin temperature control
• Automatic resin refilling and recycling
• Levelling-free printing system
• Intelligent failed-print detection
• Resin level and residue monitoring
• Dual linear rail Z-axis mechanism
• Laser-engraved build platform
• 4.3-inch touchscreen control
• USB, Wi-Fi and LAN connectivity
• Anycubic Photon Workshop compatibility

Features

Ultra-High 14K Printing Resolution

The 10.1-inch monochrome LCD features a 13320 x 5120 resolution and 16.8 x 24.8 micron XY precision. This enables exceptional reproduction of intricate textures, delicate structures and fine surface details, making the printer suitable for detailed figurines, miniatures and precision prototypes.

Advanced LighTurbo 3.0 Optical System

The upgraded LighTurbo 3.0 system combines a COB light source, Fresnel lens and light uniformity algorithm. Delivering at least 90% light uniformity, it provides consistent UV exposure across the printing area to support accurate resin curing and refined surface quality.

Ultra-Fast Resin Printing

The Photon Mono M7 Pro reaches printing speeds up to 130mm/h with standard resin and 170mm/h with compatible high-speed resin at a 0.1mm layer height. Its advanced printing technology helps shorten production times while maintaining excellent model detail.

Large 6.5L Build Volume

A spacious 223 x 126 x 230mm build area provides approximately 6.5 litres of printing capacity. This allows users to produce larger models or multiple smaller components in a single printing session.

Dynamic Resin Temperature Control

The intelligent temperature-controlled resin vat helps maintain consistent resin conditions for reliable printing. Its adjustable heating system supports temperatures between 20 and 40 degrees Celsius, helping improve performance in cooler environments.

Automatic Resin Refilling

The integrated auto-fill system automatically replenishes resin during printing and supports resin recycling. This reduces manual intervention during longer printing sessions and helps maintain sufficient resin levels for continuous operation.

Intelligent Printing Monitoring

Advanced detection functions monitor resin levels, residual material, release film lifespan and printing abnormalities. The printer can identify supported failure conditions and interrupt printing to help minimise wasted resin and potential equipment damage.

Levelling-Free Build Platform

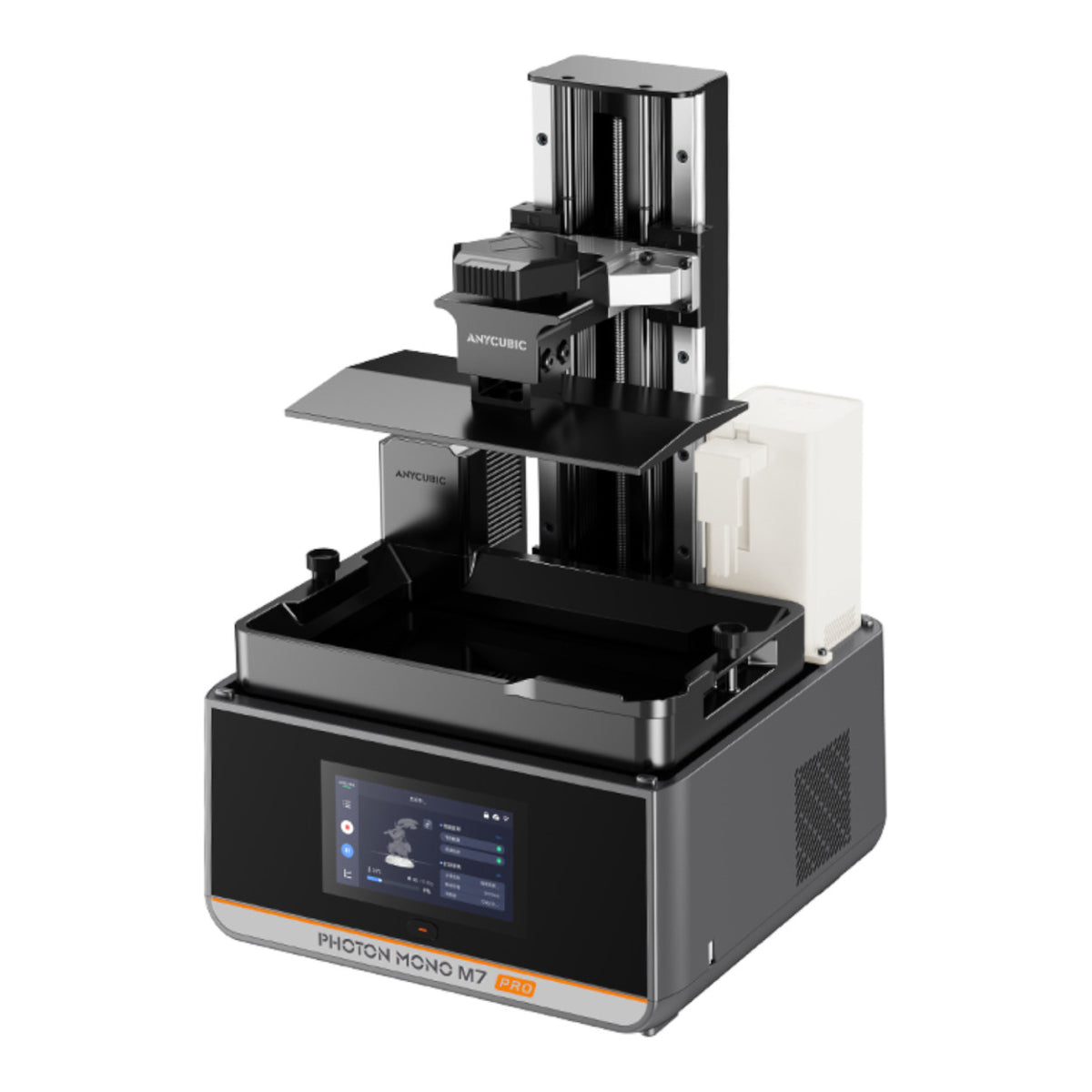

The factory-calibrated levelling-free system simplifies printer setup by eliminating routine manual platform levelling. A laser-engraved build plate improves model adhesion, while dual linear Z-axis rails provide stable vertical movement and precise layer positioning.

Wi-Fi Connectivity and Touchscreen Control

A 4.3-inch colour touchscreen provides intuitive access to printing functions and machine settings. USB, Wi-Fi and LAN connectivity offer flexible file transfer options, while compatible Anycubic software supports model preparation and printing management.

Versatile Resin Compatibility

The printer supports various compatible UV-curable resins, including standard, high-speed, ABS-like, water-washable and plant-based formulations. This makes it suitable for creative projects, intricate models and functional prototyping applications.

• This is an MSLA resin printer, not a filament-based FDM printer.
• Maximum printing speeds depend on resin type, layer height and printing conditions.
• Printed models require cleaning and UV curing after printing.
• An air purifier and ventilation accessories are optional.
• Power-loss resume functionality is not supported.
• Use suitable protective equipment and ventilation when handling uncured resin.

Technical Specifications:

The Anycubic Photon Mono M7 Pro PM7RBK0C-O combines exceptional 14K resolution, ultra-fast resin printing, automatic resin management and intelligent monitoring in a powerful desktop 3D printer. With its advanced optical system, spacious build volume and convenient wireless connectivity, it offers precision and efficiency for demanding resin printing applications.
