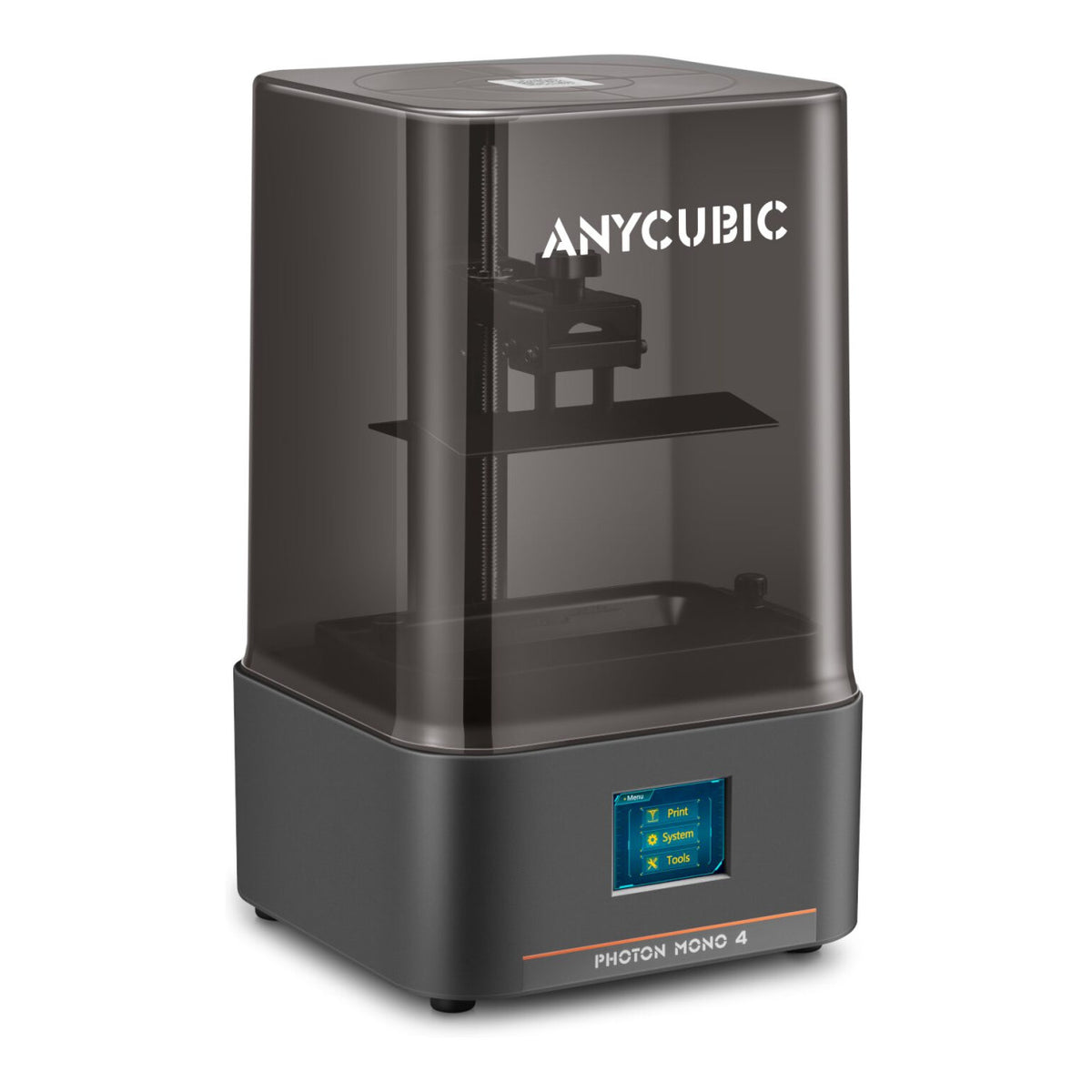

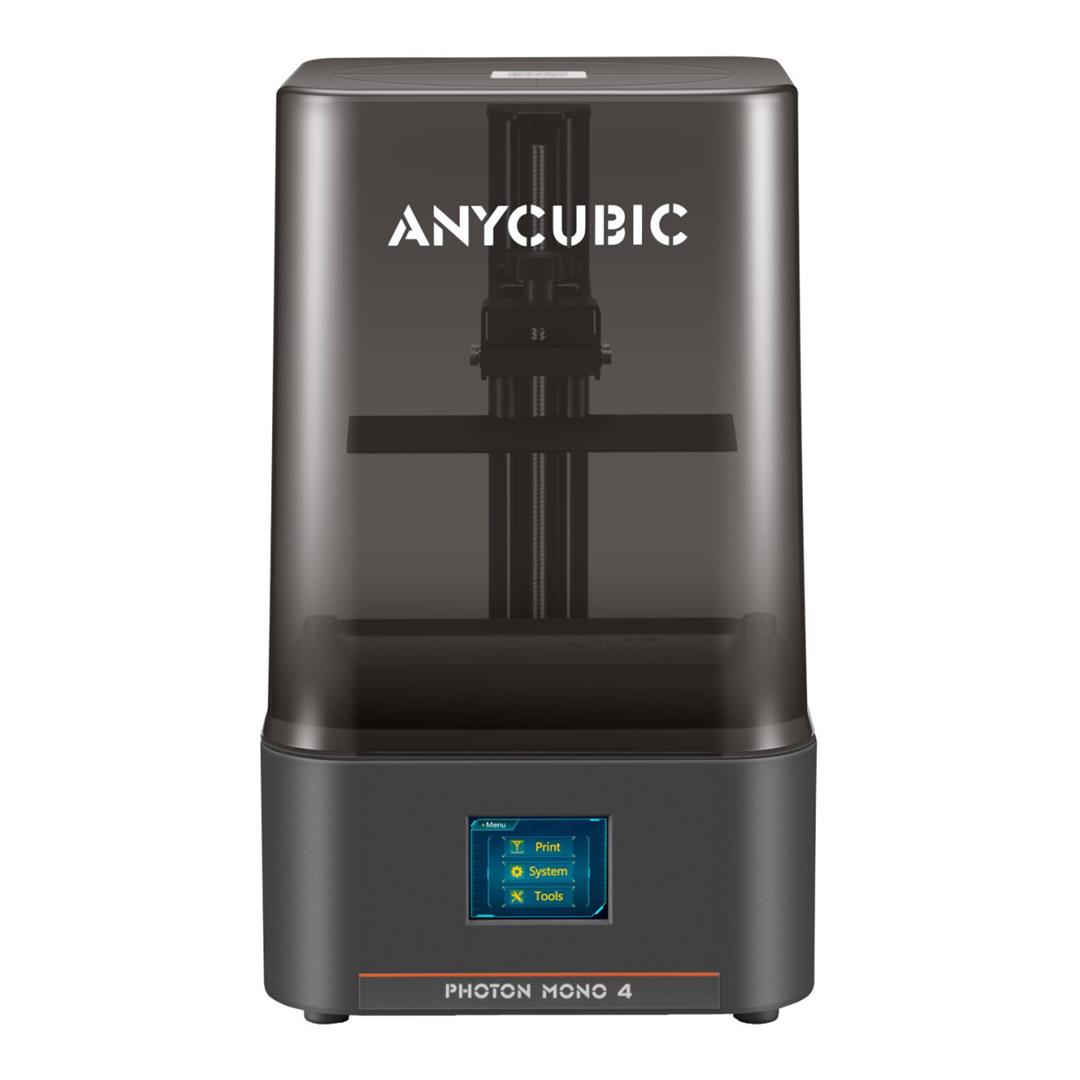

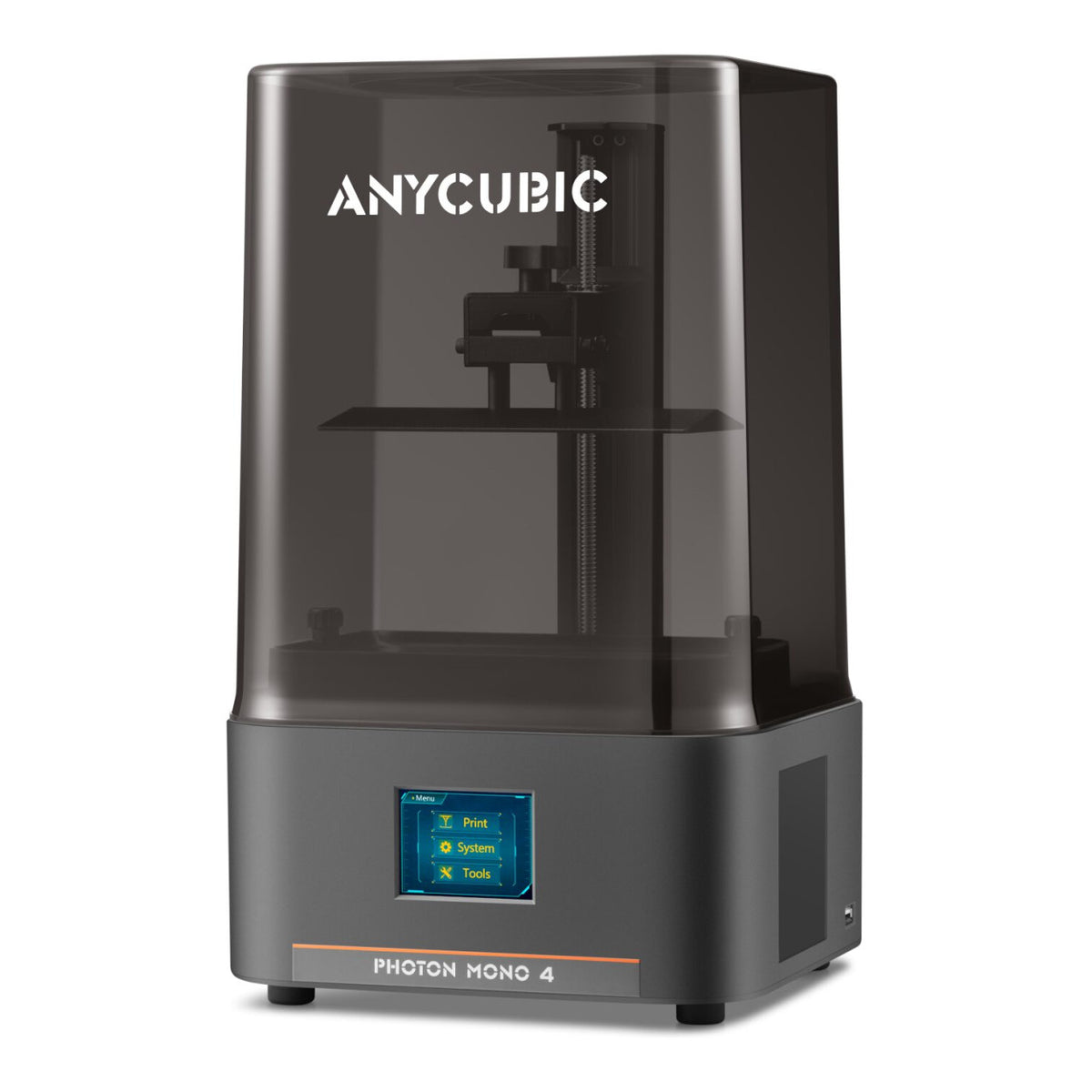

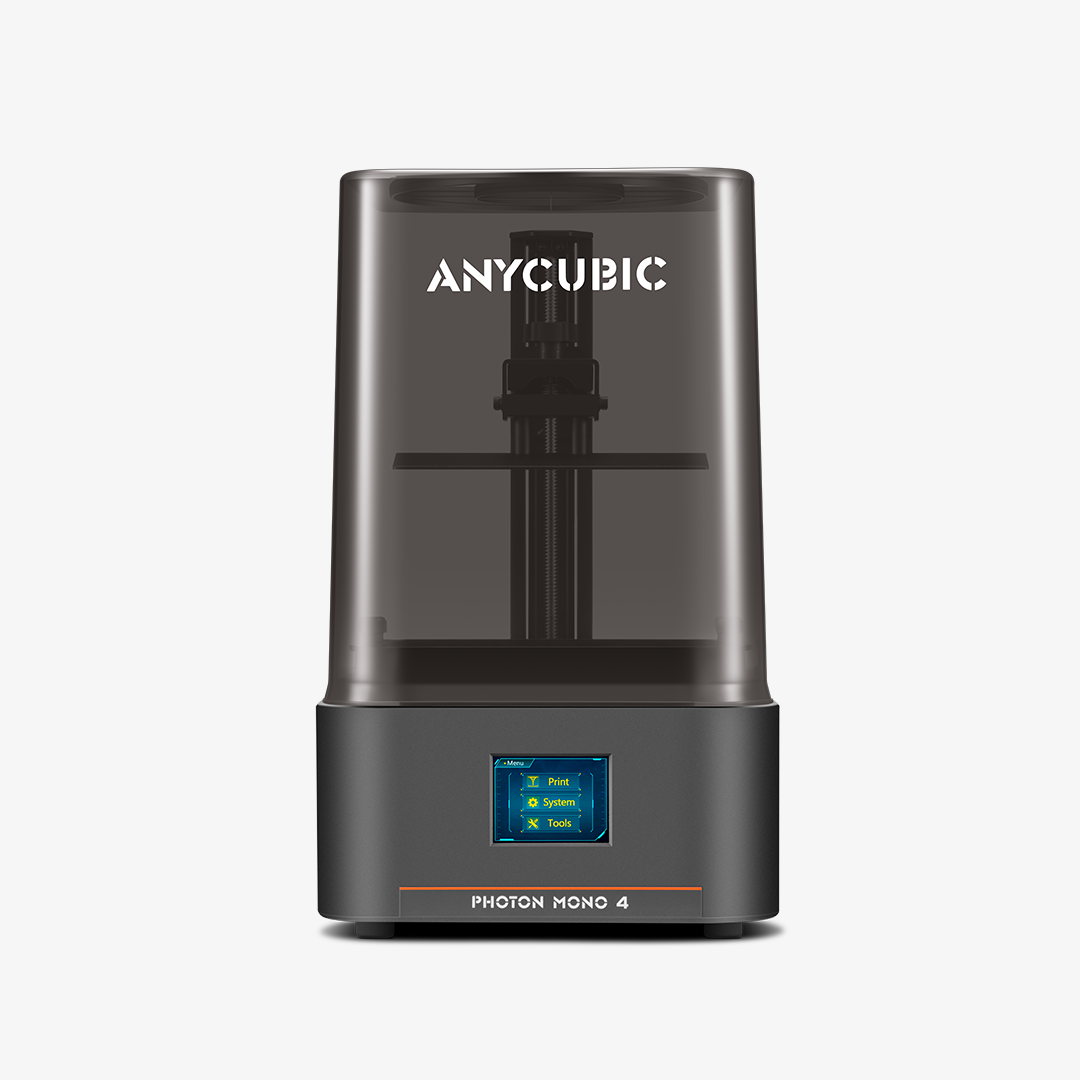

Anycubic Photon Mono 4 10K MSLA Resin 3D Printer PM40BK0A-O

Anycubic Photon Mono 4 10K MSLA Resin 3D Printer PM40BK0A-O

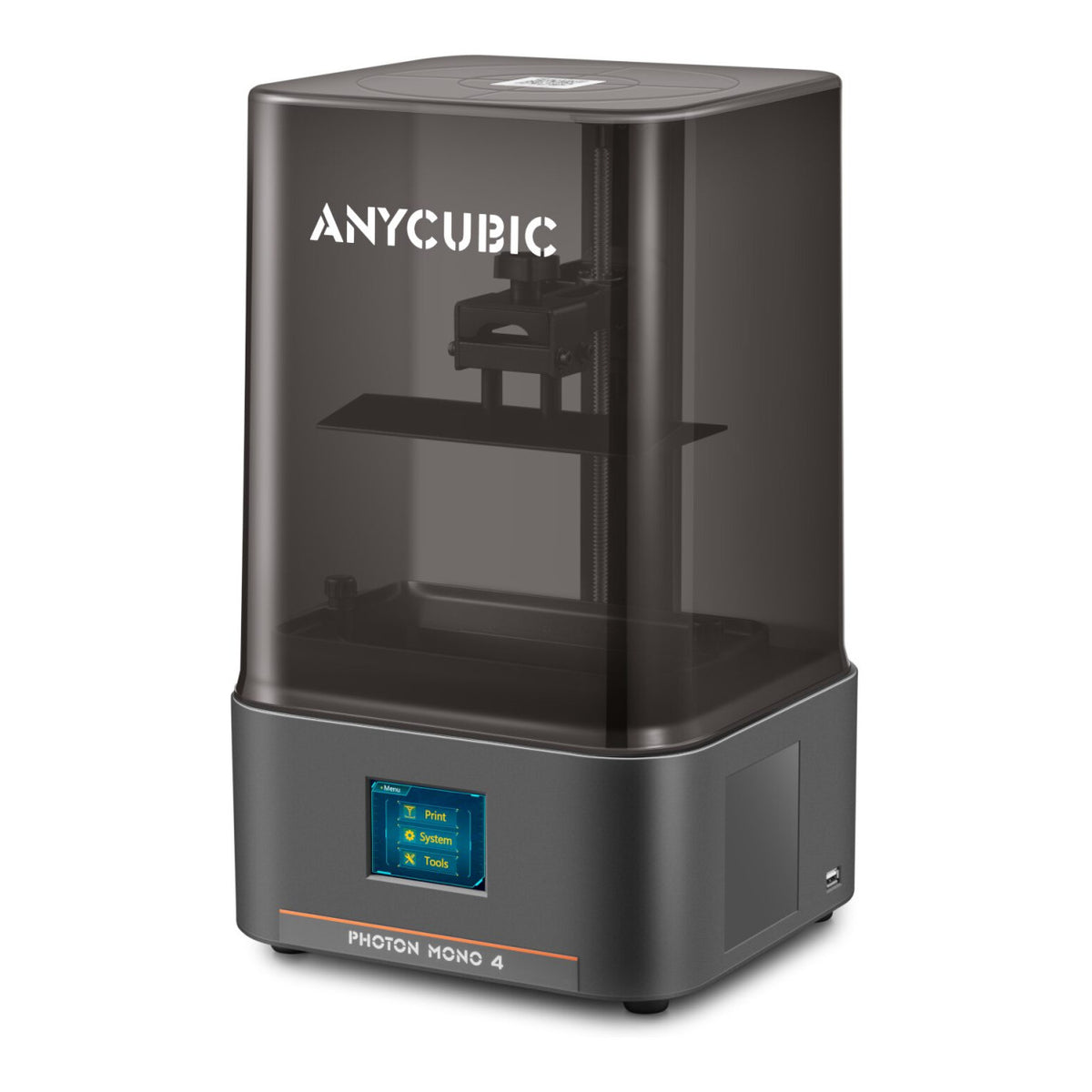

The Anycubic Photon Mono 4 PM40BK0A-O is a high-precision MSLA resin 3D printer designed for detailed models, miniatures, prototypes and creative projects. Featuring a 7-inch 10K monochrome LCD screen, 9024 x 5120 resolution, 17-micron XY precision and an upgraded LighTurbo matrix light source, it delivers exceptional detail and consistent print quality. With a 2.2L build volume, printing speeds up to 70mm/h using compatible high-speed resin and an easy-to-use interface, it provides impressive resin printing performance in a compact design.

Key Features:

• High-precision MSLA resin 3D printing technology
• 7-inch 10K monochrome LCD screen
• 9024 x 5120 pixel LCD resolution
• 17 x 17 micron XY pixel precision
• 153.4 x 87 x 165mm build volume
• Approximately 2.2L printing capacity
• Printing speeds up to 70mm/h with high-speed resin
• Upgraded LighTurbo matrix light source
• Laser-engraved build platform for improved adhesion
• Stable single linear rail Z-axis mechanism
• Convenient 4-point manual levelling
• Power-loss resume functionality
• 2.8-inch resistive touchscreen interface
• USB file transfer
• Anycubic Photon Workshop slicing software
• Compatible with various UV-curable printing resins

Features

Ultra-High 10K Printing Resolution

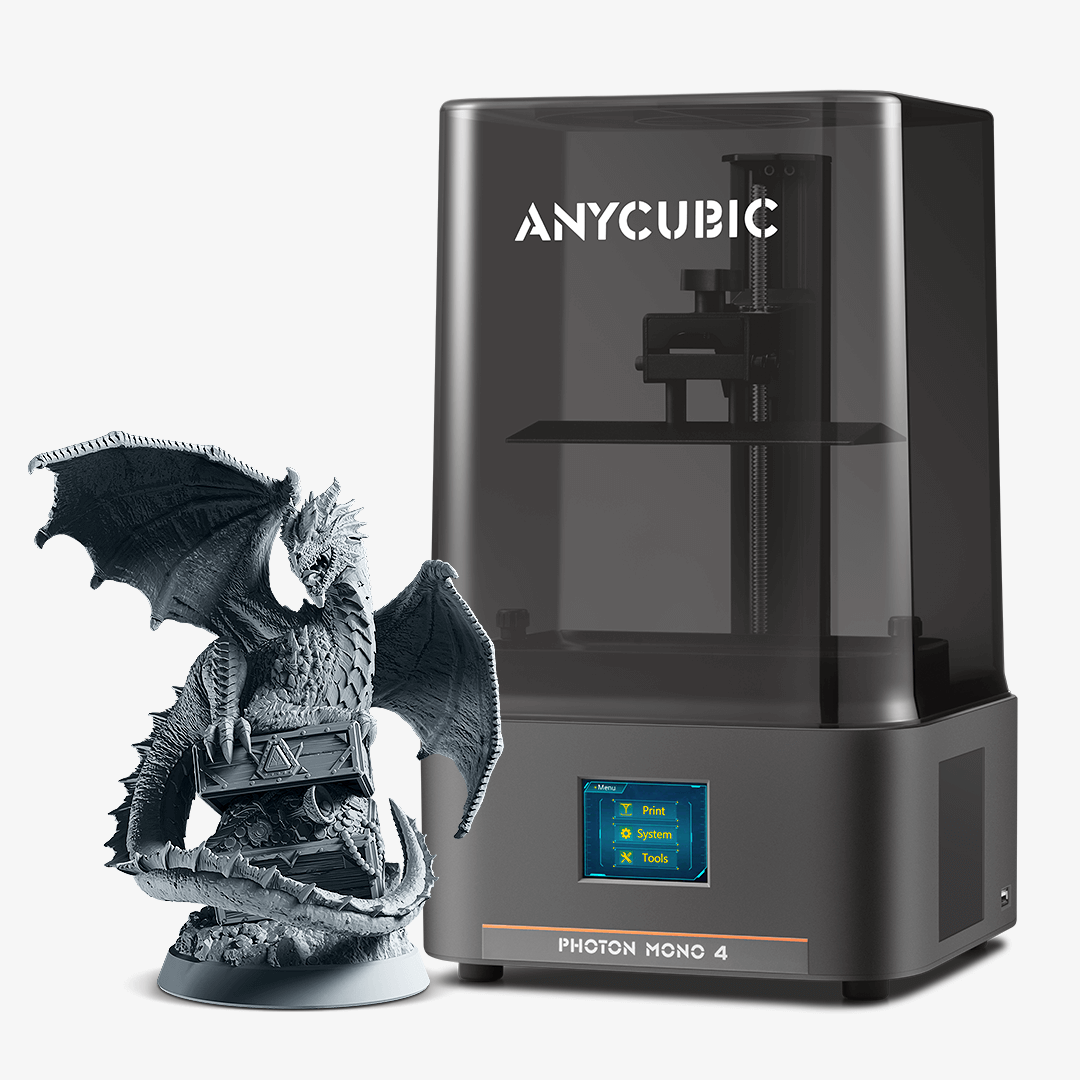

The 7-inch monochrome LCD delivers an impressive 9024 x 5120 pixel resolution with 17 x 17 micron XY precision. This enables the printer to reproduce intricate textures, fine surface details and complex model features with exceptional clarity, making it ideal for miniatures, figurines and detailed prototypes.

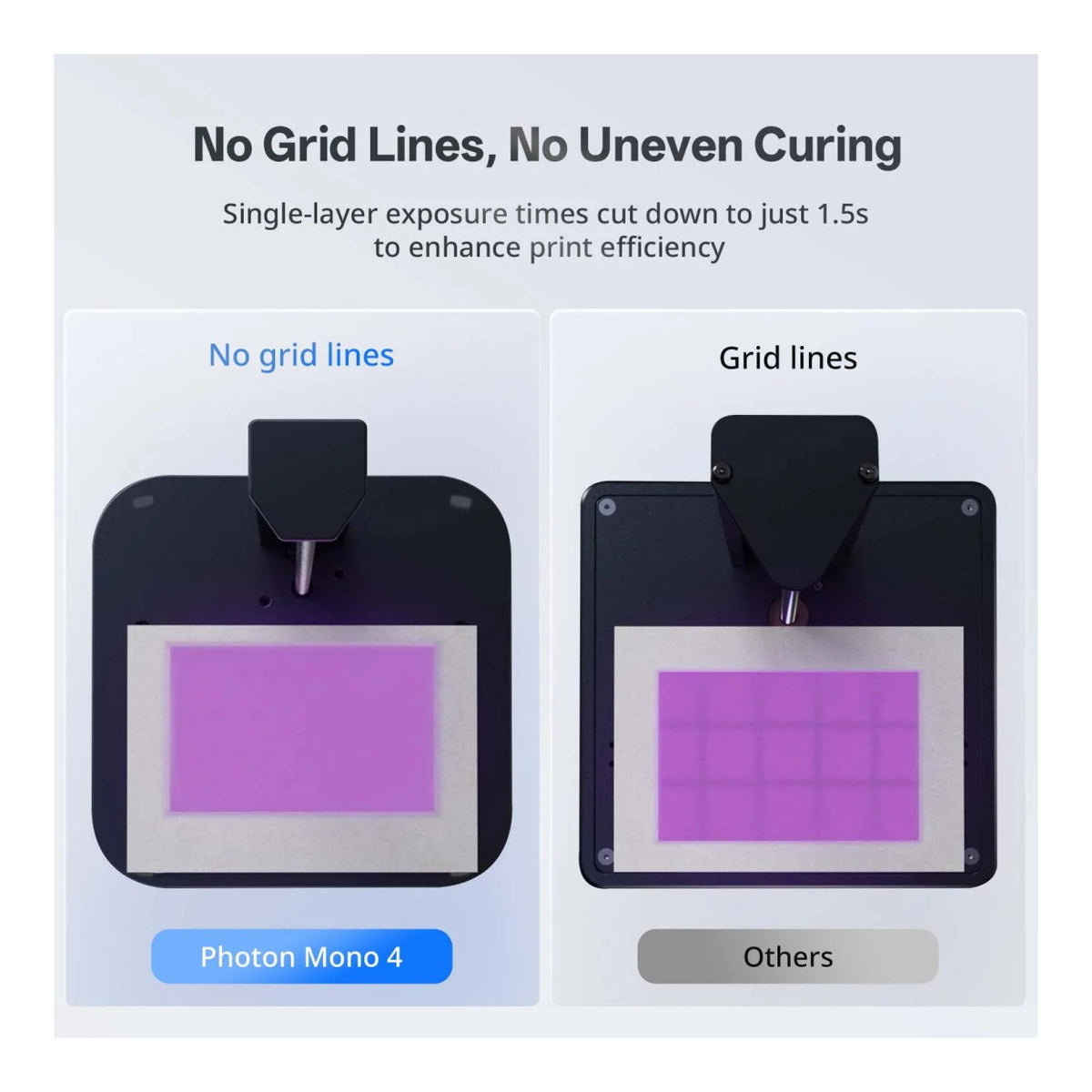

Upgraded LighTurbo Light Source

The upgraded parallel matrix light source delivers consistent UV illumination across the printing area. With approximately 3000 microwatts/cm² light intensity, it supports accurate resin curing, improved surface quality and reliable printing results.

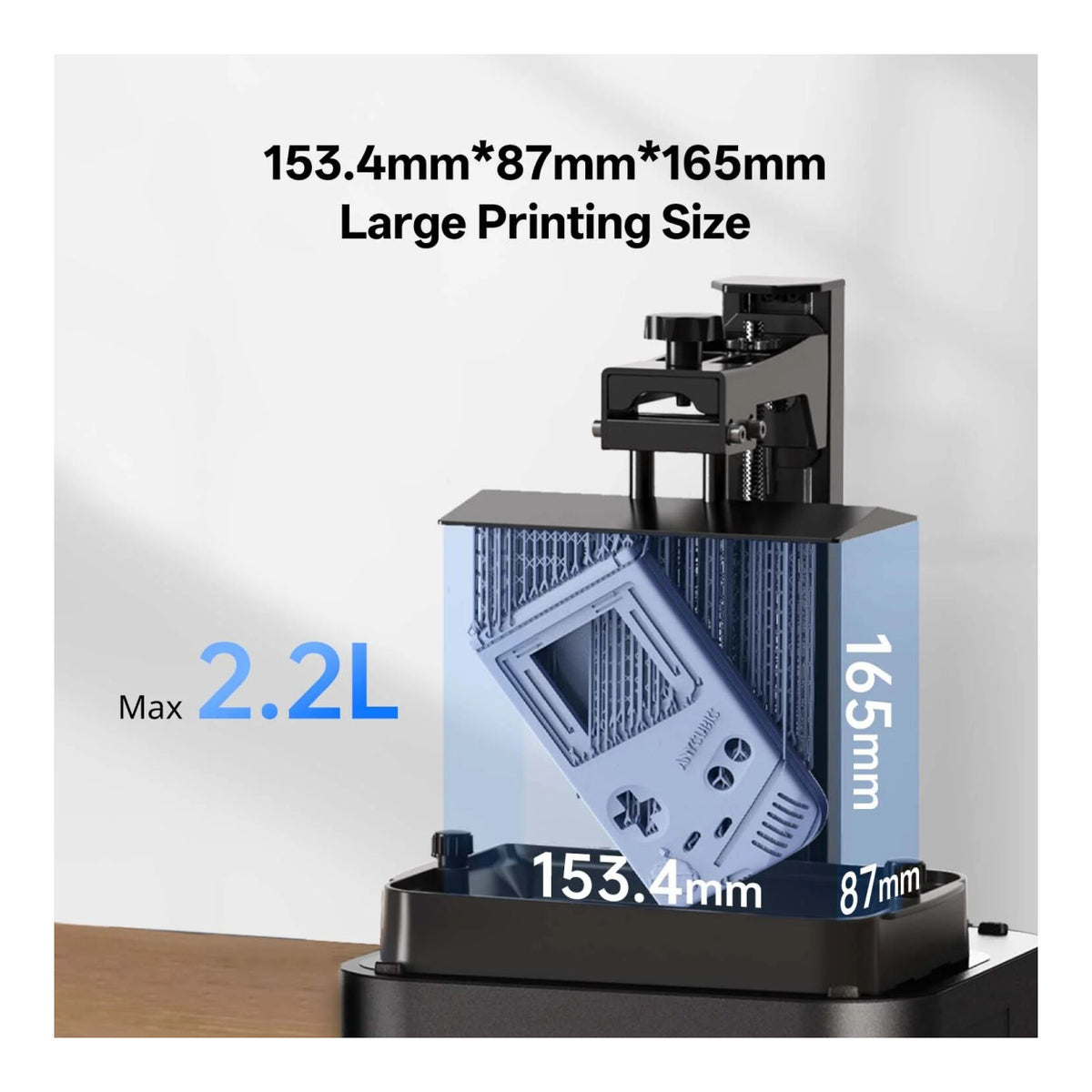

Generous 2.2L Build Volume

A build area measuring 153.4 x 87 x 165mm provides approximately 2.2 litres of printing capacity. This allows users to produce detailed individual models or multiple smaller components in a single printing session.

Efficient High-Speed Resin Printing

The Photon Mono 4 supports printing speeds up to 50mm/h with standard resin and up to 70mm/h when using compatible high-speed resin under suitable printing conditions. This helps reduce production time without compromising the printer's high-resolution capabilities.

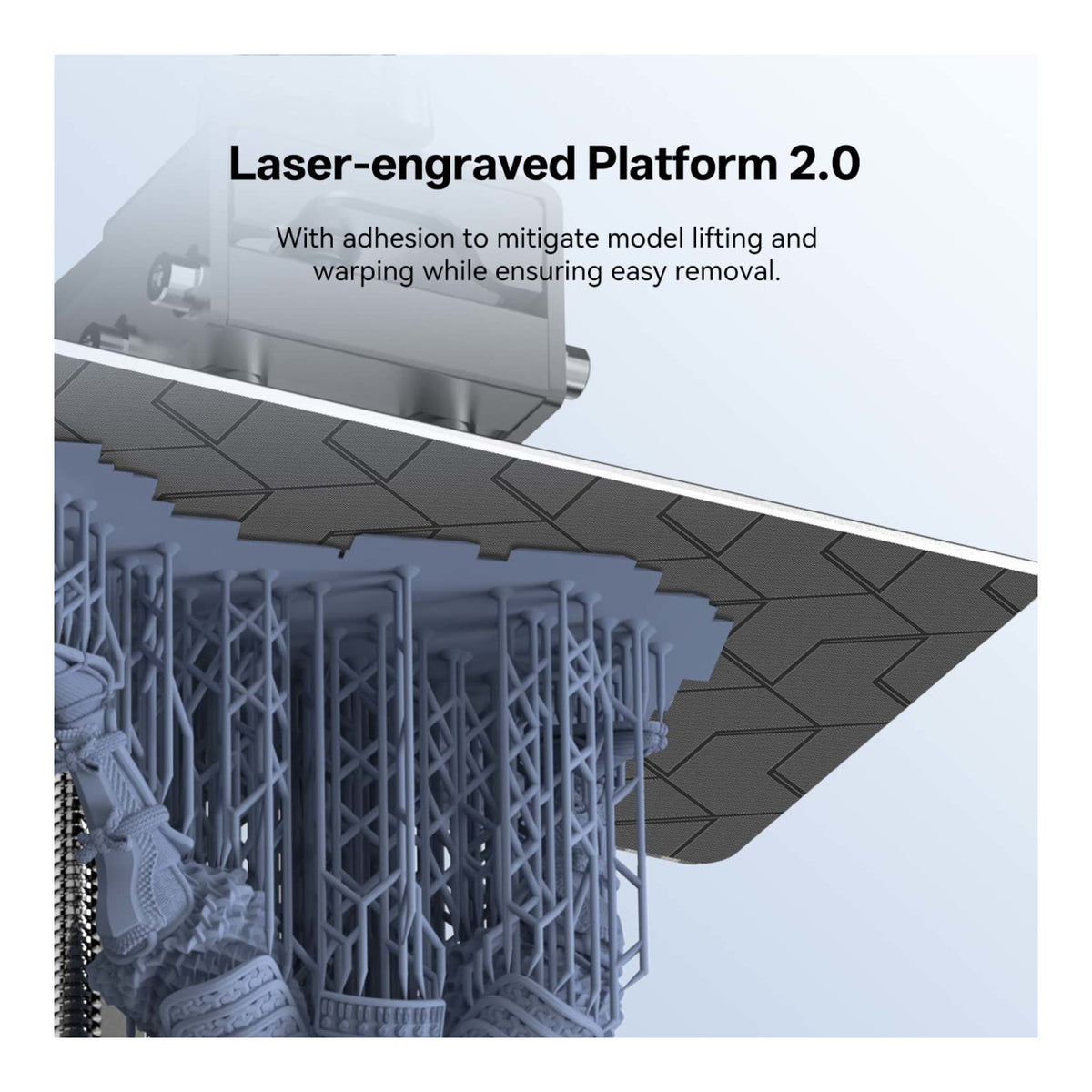

Improved Build Plate Adhesion

The laser-engraved build platform provides a textured surface designed to improve the adhesion of initial resin layers. This helps maintain model stability during printing and reduces the likelihood of failed prints caused by poor build plate adhesion.

Stable Z-Axis Movement

A single linear rail Z-axis mechanism provides controlled vertical movement with a specified accuracy of 30 microns. This stable construction helps maintain consistent layer positioning throughout the printing process.

Simple 4-Point Manual Levelling

The 4-point manual levelling system enables users to adjust the build platform for accurate alignment before printing. Its straightforward design makes initial setup and routine maintenance manageable for new and experienced users.

Convenient Touchscreen and USB Operation

A 2.8-inch resistive touchscreen provides access to printer settings and printing functions. Models can be prepared using Anycubic Photon Workshop slicing software and transferred to the printer using a USB storage device.

Power-Loss Resume Function

Built-in power-loss resume support allows the printer to recover interrupted printing tasks following a power disruption, helping minimise unnecessary material waste.

Versatile Resin Compatibility

The Photon Mono 4 supports a variety of compatible UV-curable resin materials, including standard, high-speed, ABS-like, water-washable and plant-based resins. This flexibility makes it suitable for artistic models, decorative components and functional prototypes.

• This is an MSLA resin 3D printer, not a filament-based FDM printer.
• Printing resin and washing/curing equipment may need to be purchased separately.
• Maximum printing speed depends on resin type, layer height and printing conditions.
• The activated carbon air purifier is an optional accessory sold separately.
• Wi-Fi connectivity, automatic resin filling and automatic bed levelling are not supported.
• Resin prints require appropriate cleaning and UV curing after printing. Handle uncured resin with suitable protective equipment and ventilation.

Technical Specifications:

The Anycubic Photon Mono 4 PM40BK0A-O combines ultra-sharp 10K resolution, precise resin printing, a reliable LighTurbo light source and an easy-to-use design. With its compact construction and versatile resin compatibility, it is an excellent choice for producing intricate miniatures, detailed models and high-quality 3D printed creations.
