Anycubic Kobra S1 Max Combo FDM 3D Printer KSMCBK0B-O

Anycubic Kobra S1 Max Combo FDM 3D Printer KSMCBK0B-O

The Anycubic Kobra S1 Max Combo KSMCBK0B-O is a high-speed, fully enclosed CoreXY FDM 3D printer designed for large-format multicolour printing and professional prototyping. Featuring a 350 x 350 x 350mm build volume, printing speeds up to 600mm/s and an included ACE 2 Pro filament system, it supports 4-colour printing with expansion up to 16 colours. Its 350°C hardened steel hotend, 65°C actively heated chamber, intelligent calibration and AI-assisted monitoring deliver versatile performance for creative and engineering applications.

Key Features:

• Fully enclosed CoreXY FDM 3D printer
• Includes one ACE 2 Pro multicolour system
• 4-colour printing, expandable to 16 colours
• 350 x 350 x 350mm build volume
• Approximately 42.9L printing capacity
• Maximum printing speed of 600mm/s
• Recommended printing speed of 300mm/s
• Maximum acceleration of 20,000mm/s²
• 65°C actively heated printing chamber
• 350°C high-temperature hotend
• 0.4mm hardened steel nozzle
• 120°C heated PEI spring steel build plate
• Supports engineering-grade filaments
• ACE 2 Pro active filament drying up to 65°C
• LeviQ 3.0 automatic bed levelling
• Pressure advance and flow calibration
• AI spaghetti and filament detection
• 720p HD print monitoring camera
• Dual external circulation cooling fans
• Power-loss recovery and print resume
• 4.3-inch capacitive touchscreen
• Anycubic App remote print management

Features

Large 350mm Multicolour Printing

The Kobra S1 Max Combo offers a generous 350 x 350 x 350mm build volume for large prototypes, decorative models, cosplay accessories and functional components. Its included ACE 2 Pro supports automatic 4-colour printing, with expansion to 16 colours using additional compatible filament systems.

High-Speed CoreXY Performance

The rigid CoreXY motion system supports maximum printing speeds of 600mm/s and acceleration up to 20,000mm/s². Its recommended 300mm/s printing speed provides a practical balance between productivity and consistent model quality.

65°C Actively Heated Chamber

The fully enclosed printing chamber features active heating up to 65°C to maintain a controlled printing environment. This helps reduce warping and layer separation when printing temperature-sensitive materials such as ABS, ASA, PC and PA.

350°C Hardened Steel Hotend

The high-temperature hotend reaches up to 350°C and features a hardened steel nozzle with a standard 0.4mm diameter. Its durable extrusion system supports abrasive carbon-fibre reinforced filaments and other engineering-grade materials.

ACE 2 Pro Multicolour Filament System

The included ACE 2 Pro manages four filament channels with independent brushless feeding motors and intelligent filament switching. This allows automated multicolour printing without manually changing spools between colours.

Active Filament Drying

The ACE 2 Pro supports active filament drying at temperatures up to 65°C, including during printing. Its enclosed storage design and temperature and humidity monitoring help maintain suitable filament conditions for improved print quality and consistency.

Engineering-Grade Material Support

The combination of a heated chamber, 350°C hotend and 120°C build plate supports commonly used and engineering-grade materials including PLA, PETG, ABS, ASA, PC, PA and selected carbon-fibre reinforced filaments. Material compatibility with the ACE 2 Pro must be checked separately.

LeviQ 3.0 Automatic Levelling

Anycubic LeviQ 3.0 automatic bed levelling simplifies printer calibration and supports reliable first-layer adhesion. Pressure advance, dynamic flow calibration and vibration compensation help maintain consistent extrusion and smooth model surfaces.

AI-Assisted Print Monitoring

The integrated 720p HD camera supports remote viewing and AI spaghetti detection. Filament run-out detection, filament entanglement monitoring and automatic print recovery help identify potential printing problems and minimise wasted material.

Advanced Cooling and Motion Stability

Dual external circulation cooling fans and a reinforced motion system help regulate the printing environment and maintain stability. These features support consistent performance during large printing jobs and demanding material applications.

Convenient Touchscreen Operation

The 4.3-inch capacitive touchscreen provides convenient access to printer settings, calibration and printing functions. The intuitive interface helps simplify everyday operation and maintenance.

Remote Printing and Management

The Kobra S1 Max Combo supports compatible remote printing and monitoring through the Anycubic App and slicing software. Users can prepare models, manage printing jobs and monitor progress through supported network connections.

• This SKU includes the Kobra S1 Max and one ACE 2 Pro unit.
• Four-colour printing is supported as supplied.
• 16-colour printing requires additional ACE 2 Pro units and accessories.
• First-generation ACE Pro is not compatible with Kobra S1 Max.
• TPU 95A requires suitable direct feeding and is not supported through the standard ACE 2 Pro multicolour feed.
• Maximum print speeds depend on material and model settings.
• Full-size filament spools are not included as standard.

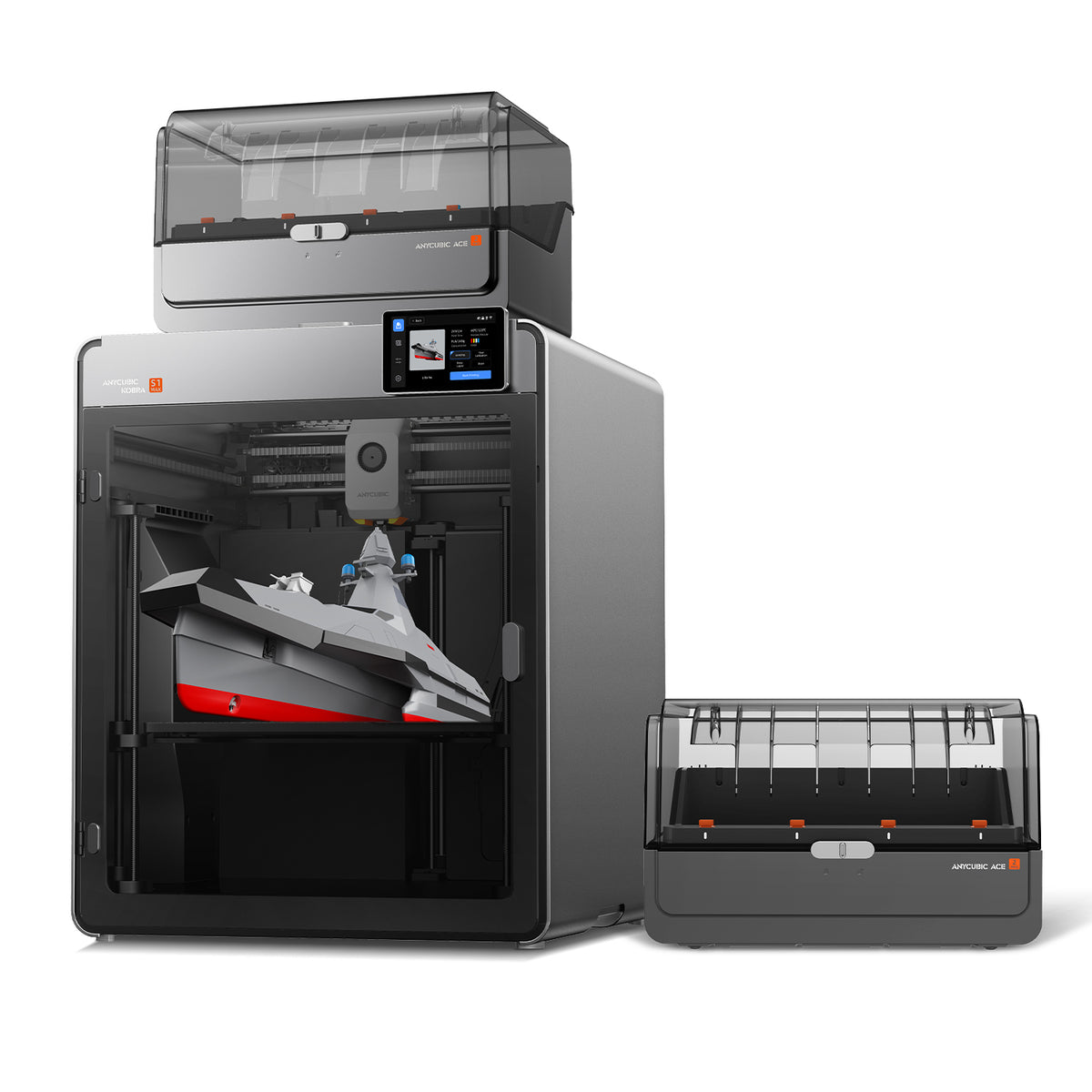

• Promotional images may show additional ACE 2 Pro units sold separately.

Technical Specifications:

The Anycubic Kobra S1 Max Combo KSMCBK0B-O combines large-format CoreXY printing, 4-colour ACE 2 Pro technology, a 65°C actively heated chamber and 350°C hotend with intelligent calibration and AI monitoring. Expandable to 16 colours, it is an advanced solution for creative projects, large prototypes and engineering-grade 3D printing.
