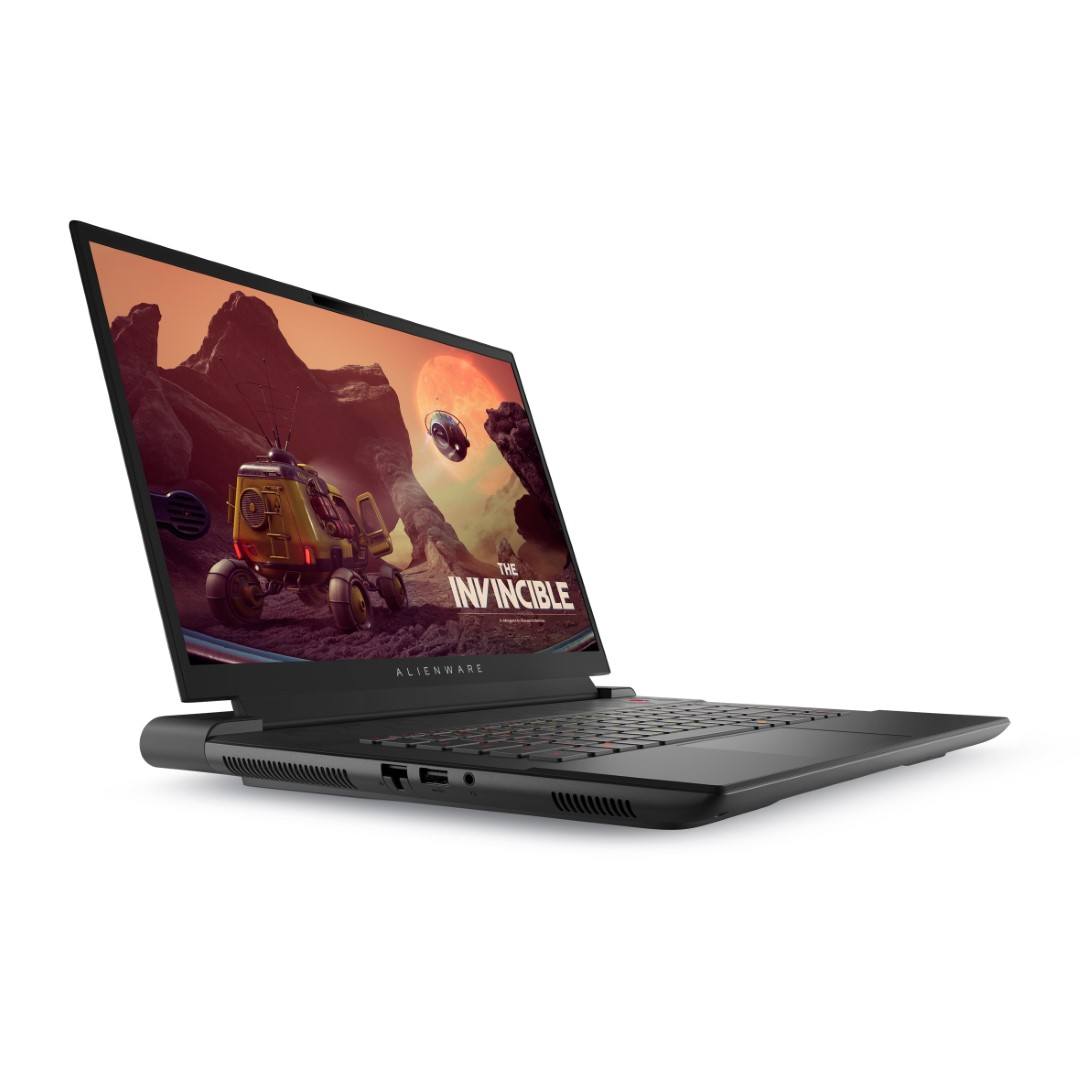

Alienware m16 R1 AMD 16-inch QHD+ Laptop - AMD Ryzen 7-7745HX 512GB SSD 16GB RAM GeForce RTX 4060 Win 11 Home

Alienware m16 R1 AMD 16-inch QHD+ Laptop - AMD Ryzen 7-7745HX 512GB SSD 16GB RAM GeForce RTX 4060 Win 11 Home

Features

Operating system

Available with Windows 11.

Boss-level power

Bask in every victory with the blazing speed of this 16" high-performance gaming laptop, featuring AMD Ryzen 7045 Series Processors for mobile and either AMD Radeon RX 7600M XT or NVIDIA GeForce RTX 40 Series graphics. Play your most demanding games with 240W Total Power Performance with more headroom to support overclocking without throttling.

Uncompromised performance

Marathon gaming requires absolute power. Our advanced cooling technology, Alienware Cryo-tech, is designed to maintain system stability - even during the most demanding sessions.

Element 31

Our exclusive thermal interface material, now located on the CPU and GPU, dissipates heat for extended, optimal gaming experiences.

Vapor chamber

A large vapor chamber covers both the CPU and GPU to help pull heat away to keep the components cool.

Quad fans

Four fans with ultra-thin fan blades increase internal airflow by nearly 30% to help enable higher performance.

Seven heat pipes

Internal temperature stays regulated with up to seven heat pipes and five vents working in tandem to continuously circulate cool air.

Life-like visuals

Never overlook a rival and increase your vertical field of view thanks to the 16:10 aspect ratio. Experience smooth gameplay with a wide range of 16-inch display panel options, ranging from QHD+ 165Hz through FHD+ 480Hz, all with response times rated at 3ms. All display options reap the rewards of the latest AMD Radeon or NVIDIA GeForce RTX graphics while also offering Dolby Vision and Dynamic Display Switching.

Supercharge your play

Breathtaking, awe-inspiring visuals are made possible with NVIDIA GeForce RTX 40 Series graphics.

Boost Performance with AI
NVIDIA DLSS 3 powered by the new RTX 40 Series GPUs uses AI to create additional high-quality frames.

Accelerates the power of RTX

GeForce RTX 40 Series Laptop GPUs are engineered to run games better than ever by doubling power efficiency, AI performance, ray tracing capabilities and using Game Ready drivers.

More Immersive Experiences

Experience vivid, immersive in-game lighting thanks to dedicated RT cores in GeForce RTX graphics.

Optimized Power and Performance
NVIDIA Max-Q is a suite of technologies that includes Resizable Bar, which enables the CPU to access the entire GPU frame buffer at once, improving in-game performance.

Ultra-Responsive Platform
Made to help you win, NVIDIA Reflex technology is meant to quickly and intelligently reduce lag between your mouse, GPU and display.

Amplified with AMD

Push your power even further with the AMD Advantage framework, combining AMD Ryzen processors, AMD Radeon graphics, and AMD Smart Technologies. Smart Technologies include SmartShift Max, Smart Access Graphics and Smart Access Memory.

AMD SmartShift Max

Dynamic power shifting between a Radeon GPU and APU boosts performance for gaming, rendering and content creation, and preserves battery life.

AMD Smart Access Graphics

Improve frame rates, reduce latency and save battery by enabling discrete Radeon graphics or Ryzen graphics to handle rendering and presentation while maintaining AMD FreeSync.

AMD Smart Access Memory

Get an extra edge when your Ryzen processors are able to harness the full potential of the Radeon graphics card memory.

AMD Radeon Super Resolution Technology

Get the best graphics and efficient performance with intelligent distribution of rendering, upscaling, and presentation demands between APU and a Radeon GPU.

Legend perfected

Down to the last detail, Legend 3 design is more premium, tactile and futuristic than ever. At the rear, the iconic stadium shape now has soft edges, making our system easier to hold. A high-quality finish, resulting from bead-blast aluminum and a dark two-tone block, adds to the elevated look. Likewise, the overall design has shifted to focus on the total experience, with updated perimeter feet and a new palm rest improving not only aesthetics, but also performance.

Technical Specification

Ports & Slots

1. (2x) Type-C Port (Includes USB 3.2 Gen 2, Display Port 1.4, and Power Delivery (5V/3A) capabilities)
2. Type-A USB 3.2 Gen 1 Port
3. HDMI 2.1 Output Port
4. Mini Display Port 1.4
5. SD Card Slot
6. Power/DC-in Port
7. RJ-45 Realtek RTL8111H-CG 1Gbps Ethernet Port (Optional RJ-45 Realtek RTL8125BG(S) 2.5Gbps Ethernet Port also available on some configurations, see Tech Specs above for details)
8. Type-A USB 3.2 Gen 1 Port with Powershare
9. Global Headset Jack

Dimensions & weight

1. Height: 25.40 mm
2. Width: 368.90 mm
3. Depth: 289.90 mm
4. Maximum Weight: 3.30 kg
