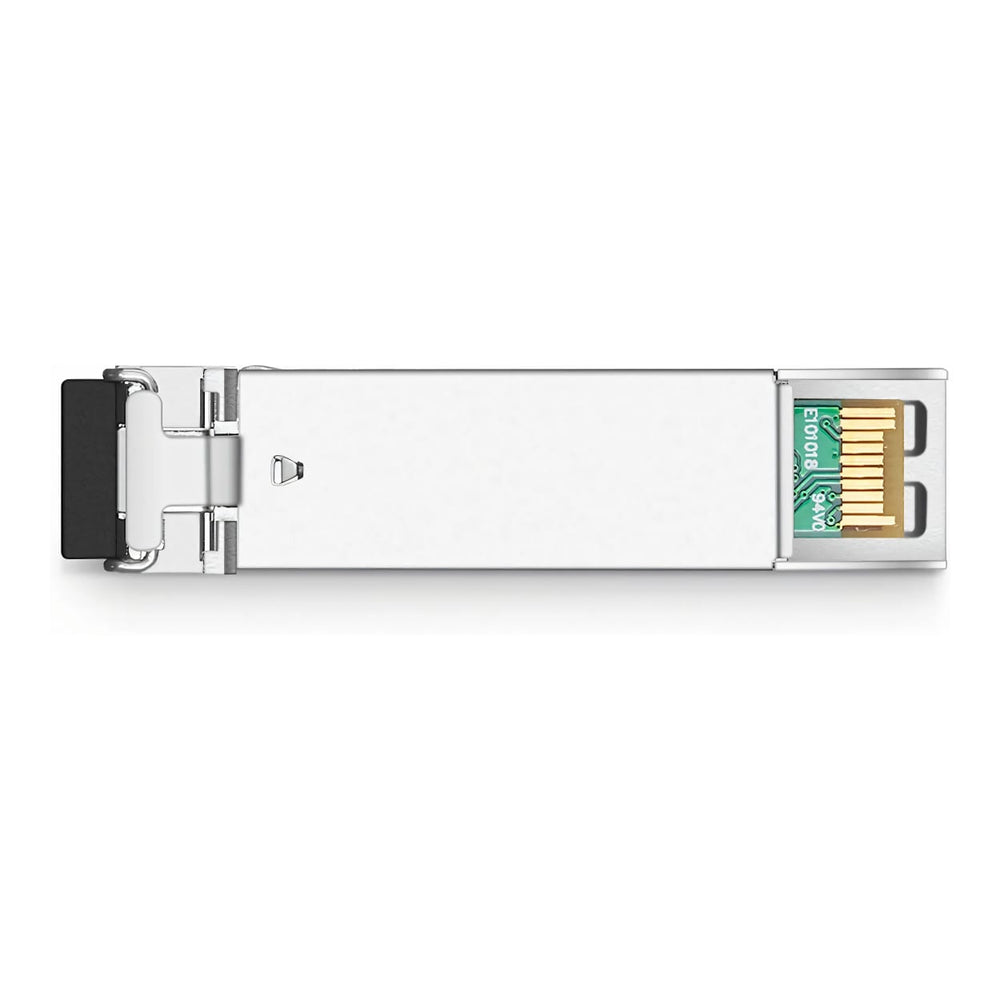

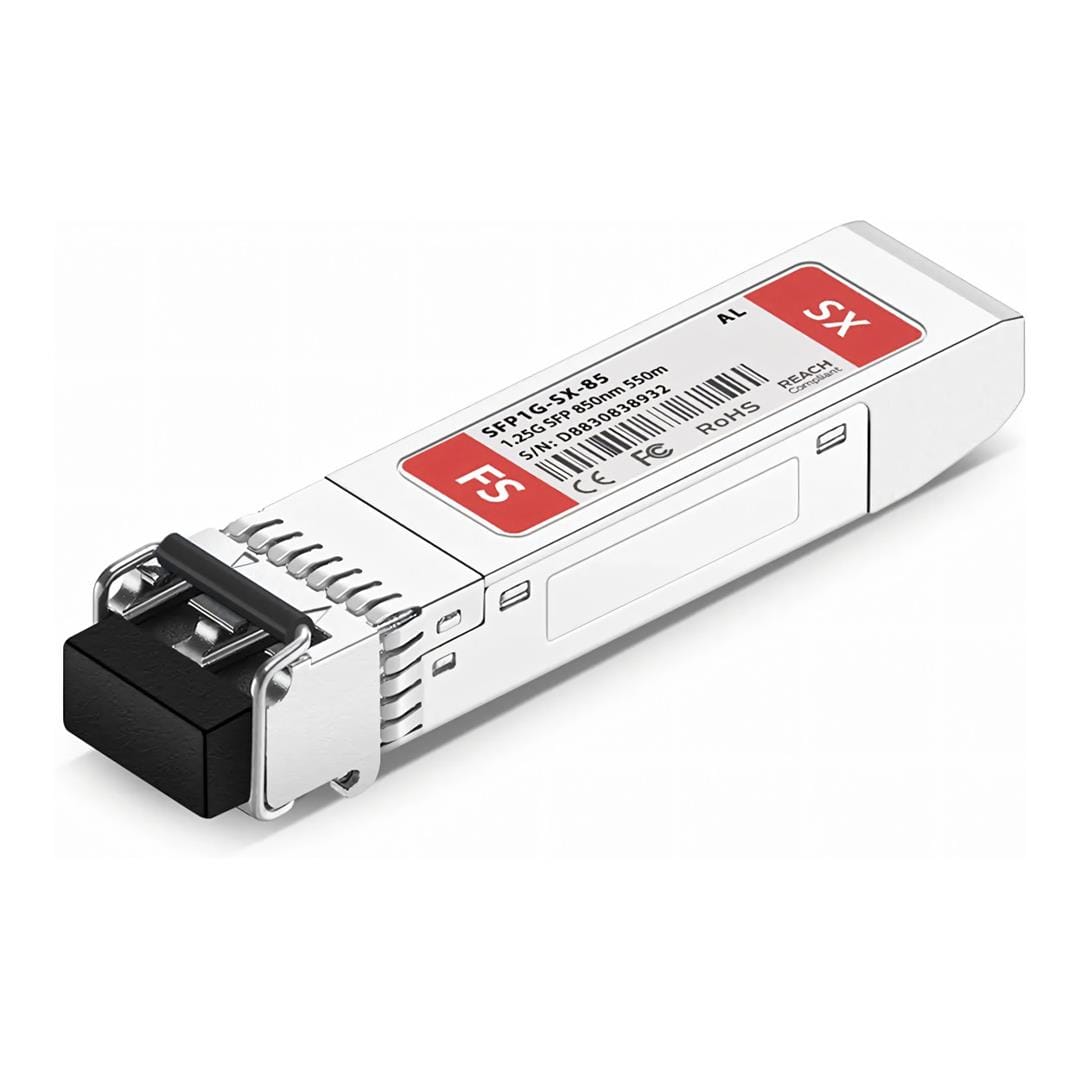

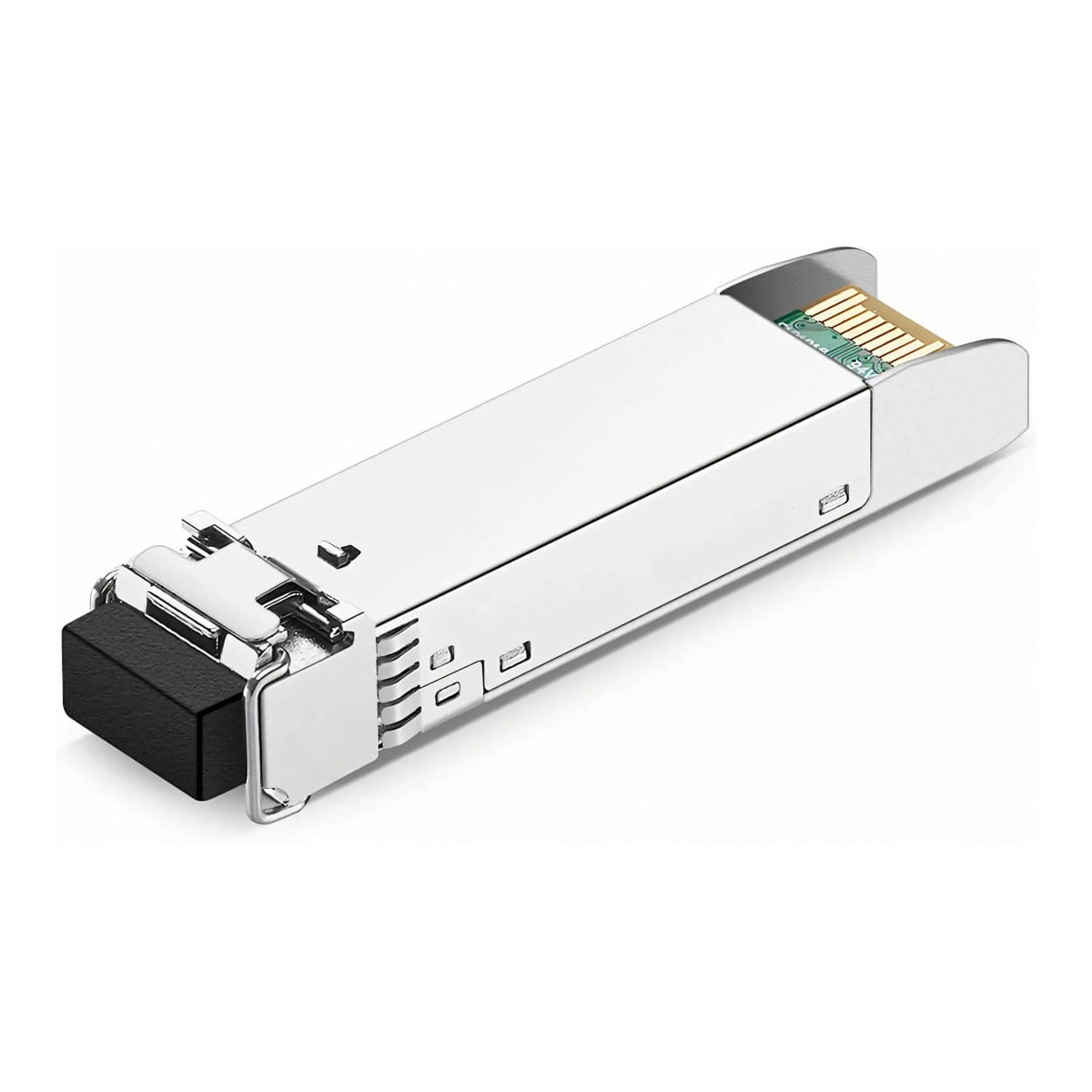

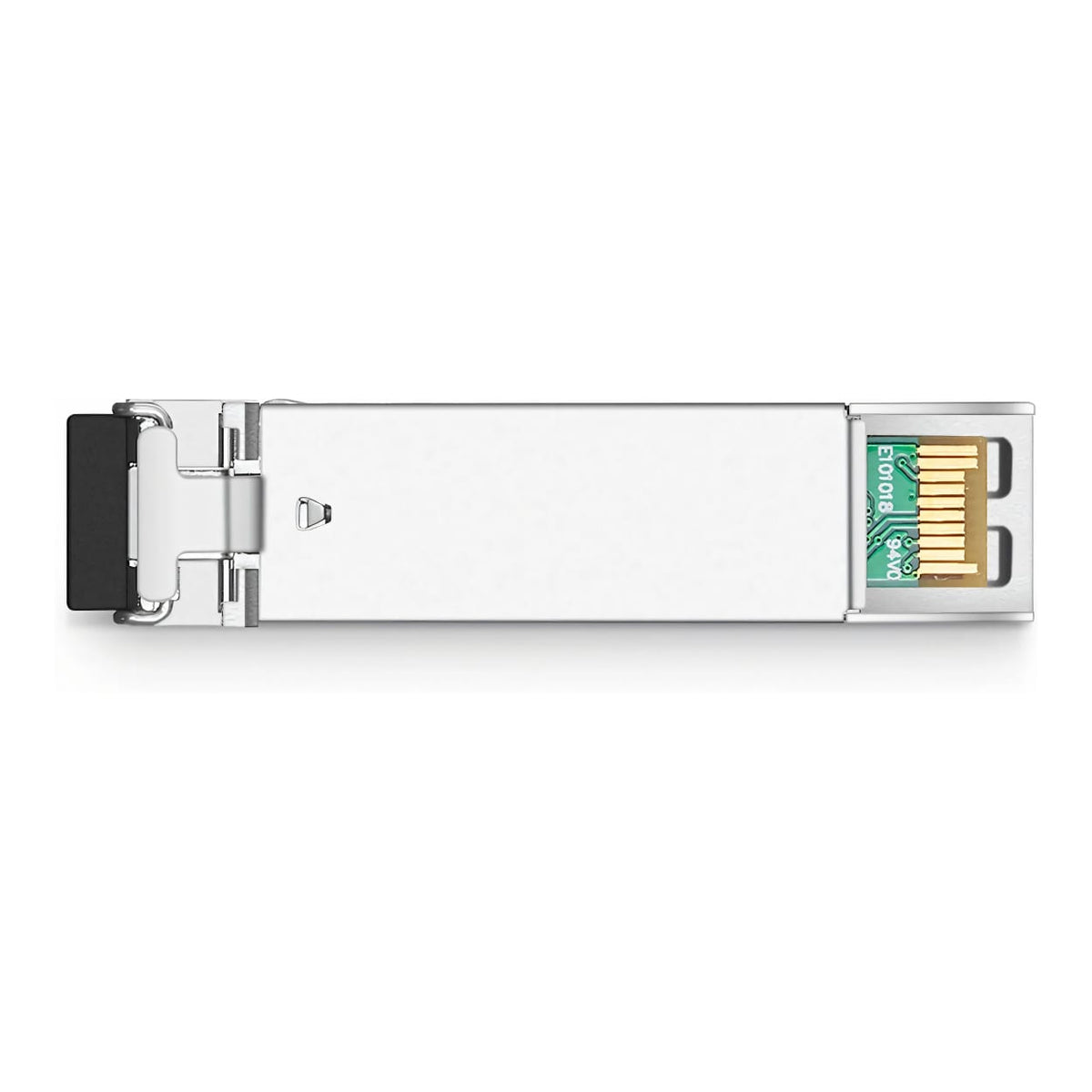

Alcatel-Lucent 1000BASE-SX SFP 850nm 550m Duplex LC/UPC MMF Transceiver Module SFP-GIG-SX
The Alcatel-Lucent SFP-GIG-SX is a 1000BASE-SX Gigabit Ethernet optical transceiver designed for short-range network connections over multimode fibre. Operating at a nominal 850nm wavelength and using an LC fibre interface, this hot-pluggable SFP module provides reliable Gigabit connectivity for compatible Alcatel-Lucent networking equipment. It supports link distances of up to 300 metres over 62.5/125µm multimode fibre and up to 550 metres over 50/125µm multimode fibre.
Key Features
- 1000BASE-SX Gigabit Ethernet optical transceiver.
- Compact SFP (Small Form-factor Pluggable) design.
- Designed for multimode fibre (MMF) connections.
- 850nm nominal optical wavelength.
- LC fibre connector.
- Up to 300m transmission distance over 62.5/125µm MMF.
- Up to 550m transmission distance over 50/125µm MMF.
- Supports signalling rates up to 1.25Gbps.
- Hot-pluggable for convenient installation and replacement.
- Digital diagnostics support.
Gigabit Ethernet Fibre Connectivity
The SFP-GIG-SX provides a 1000BASE-SX optical interface for extending Gigabit Ethernet connections over multimode fibre. It is suited to short-range fibre uplinks between compatible switches and other network infrastructure.
850nm Multimode Optical Interface

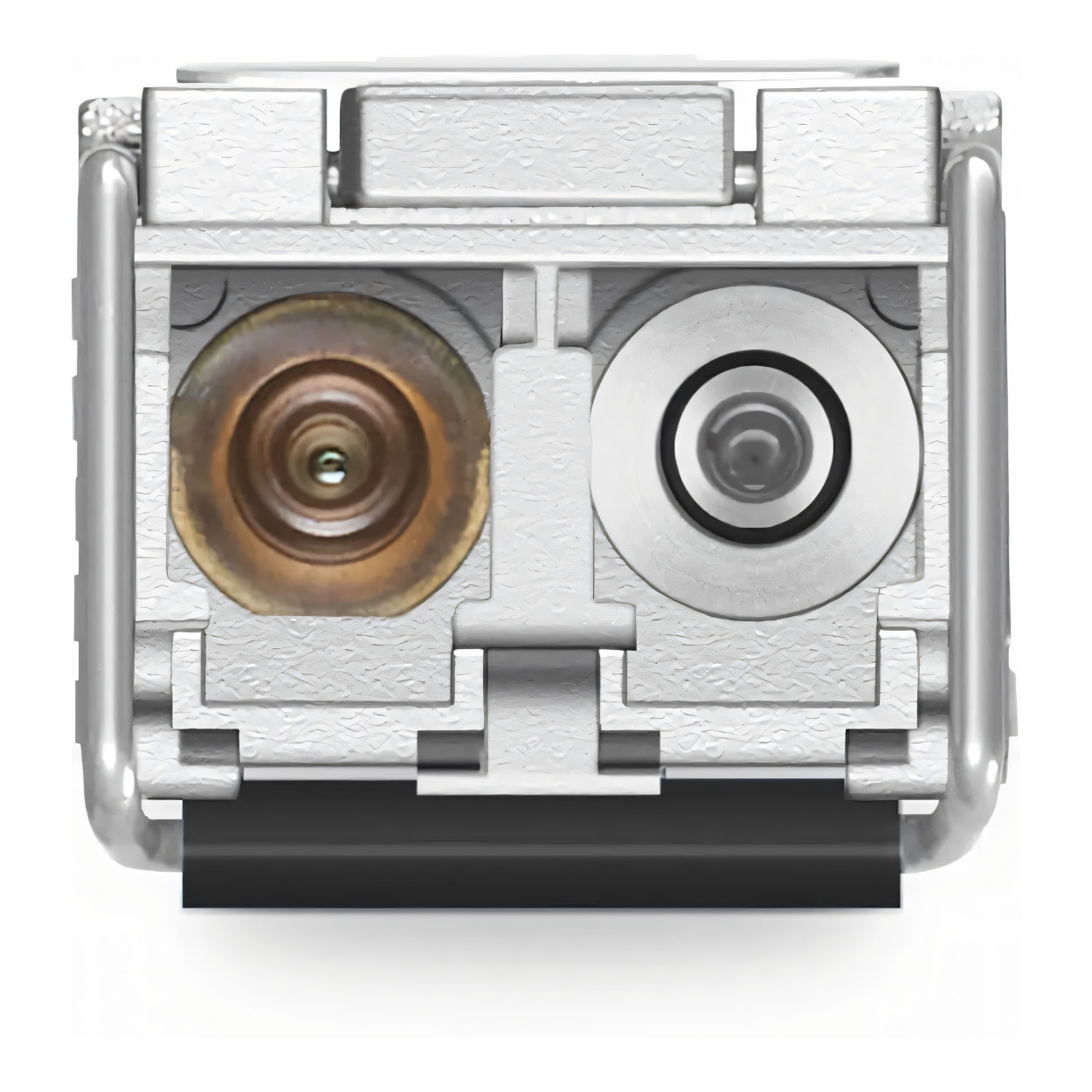

Operating at a nominal wavelength of 850nm, the transceiver is designed specifically for multimode fibre. Its LC optical interface provides a compact connection suitable for high-density enterprise networking environments.
Up to 550m Transmission Distance
Transmission distance depends on the multimode fibre being used. The module is specified for distances up to 300 metres with 62.5/125µm multimode fibre and up to 550 metres with 50/125µm multimode fibre.
Hot-Pluggable SFP Design

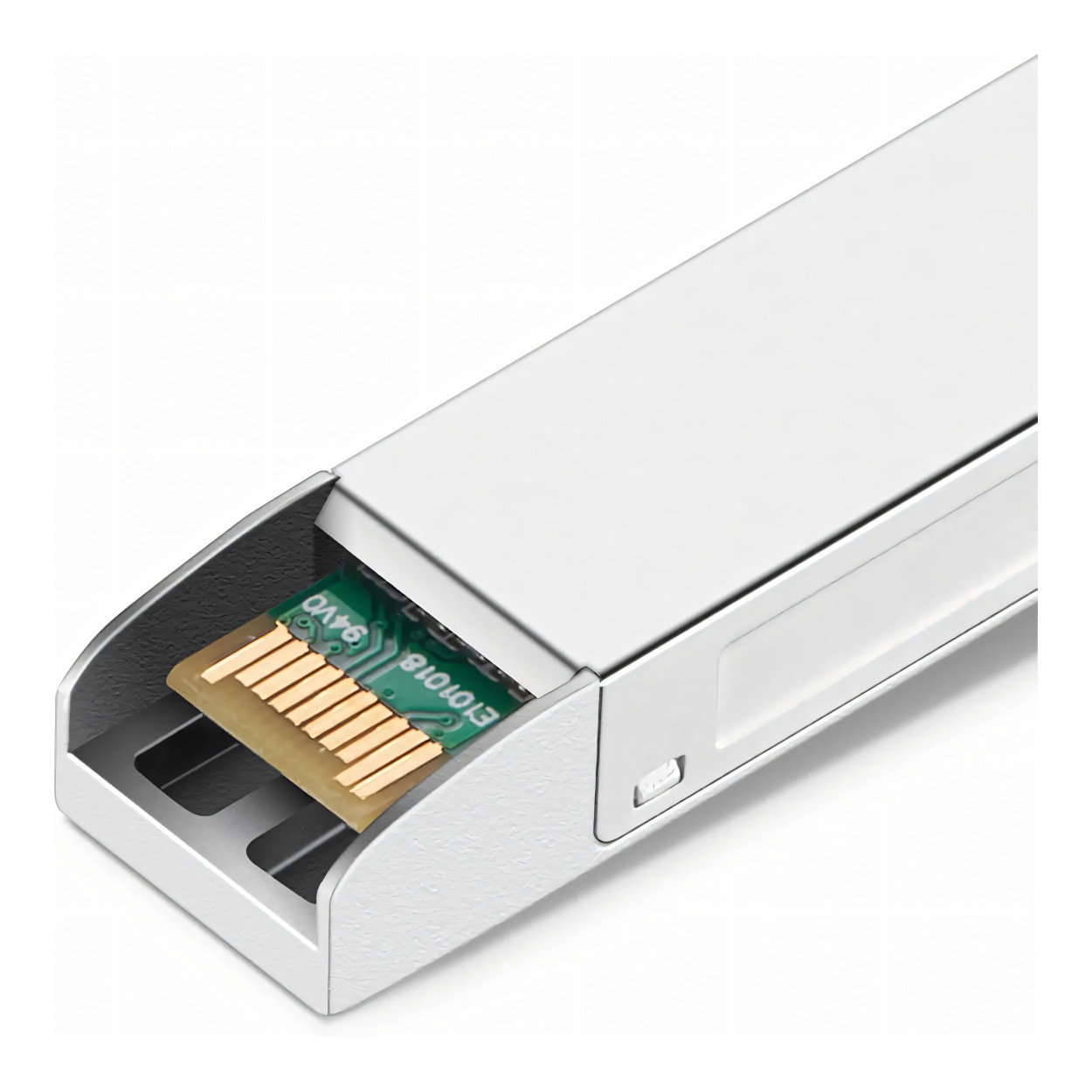

The compact SFP form factor is hot-pluggable, allowing the transceiver to be installed or replaced in a compatible SFP interface without requiring the host networking device to be powered down.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Alcatel-Lucent |
| Model | SFP-GIG-SX |
| Product Type | Gigabit Ethernet Optical Transceiver |
| Form Factor | SFP (Small Form-factor Pluggable) |
| Ethernet Standard | 1000BASE-SX |
| Ethernet Speed | 1Gbps |
| Supported Signalling Rate | Up to 1.25Gbps |
| Fibre Type | Multimode Fibre (MMF) |
| Optical Wavelength | 850nm Nominal |
| Connector Type | LC |
| Maximum Distance – 62.5/125µm MMF | Up to 300m |
| Maximum Distance – 50/125µm MMF | Up to 550m |
| Digital Diagnostics | Yes |
| Hot-Pluggable | Yes |
| Power Supply | 3.3V |
| Power Consumption | <1W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 13.4 × 56.5 × 8.5 mm |
| Compliance | SFP MSA, RoHS |
| Applications | Gigabit Ethernet Fibre Uplinks, Enterprise Networks, Campus Networks, Switch-to-Switch Connections and Short-Range Multimode Fibre Links |
What’s in the Box:
- Alcatel-Lucent SFP-GIG-SX 1000BASE-SX SFP Transceiver
The Alcatel-Lucent SFP-GIG-SX provides a compact and reliable solution for short-range Gigabit Ethernet connections over multimode fibre. With its 850nm optical interface, hot-pluggable SFP design and transmission distances of up to 550 metres depending on fibre type, it is well suited to enterprise and campus fibre networking applications.
