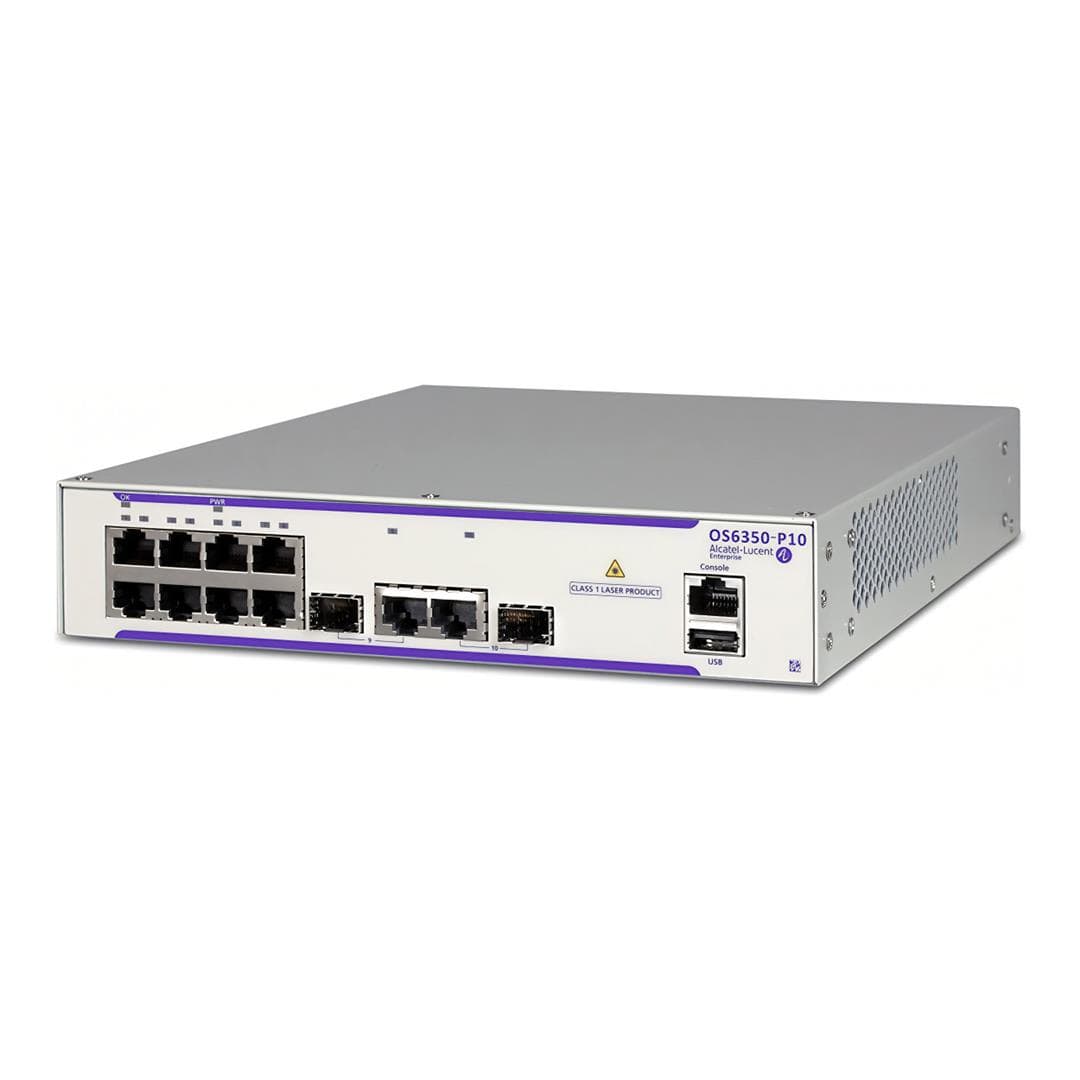

Alcatel-Lucent 10-port GbE 2x SFP Ports L2 Network Switch OS6360-P10-IN

Alcatel-Lucent 10-port GbE 2x SFP Ports L2 Network Switch OS6360-P10-IN

The Alcatel-Lucent Enterprise OmniSwitch OS6360-P10-IN is a compact stackable Gigabit Ethernet PoE+ switch designed for branch offices, campus workgroups, SMB networks and enterprise edge deployments. It combines eight Gigabit PoE+ access ports with two Gigabit copper uplinks and two 1G SFP fibre interfaces, providing flexible connectivity for workstations, wireless access points, IP phones, surveillance cameras and IoT devices. Advanced Layer 2+ functionality, virtual chassis support and comprehensive network management make it a capable access-layer switching solution.

Key Features

• 8 × 10/100/1000BASE-T Gigabit Ethernet PoE+ user ports.
• 2 × 10/100/1000BASE-T Gigabit Ethernet uplink ports.
• 2 × 1G SFP fibre uplink ports.
• 120W total PoE power budget.
• IEEE 802.3af and 802.3at PoE support.
• 40Gbps switching capacity.
• Layer 2+ switching with static IPv4 and IPv6 routing.
• Virtual chassis stacking support for up to four switches.
• Fanless operation for quiet working environments.
• Web, CLI, SNMP and OmniVista management support.

Gigabit PoE+ Access

Eight Gigabit Ethernet access ports provide PoE+ connectivity for compatible powered devices such as IP phones, wireless access points, surveillance cameras and IoT equipment. A total PoE budget of 120W provides flexible power distribution across connected devices.

Flexible Copper and Fibre Uplinks

In addition to its eight PoE+ user ports, the OS6360-P10 provides two non-PoE Gigabit RJ45 uplink ports and two 1G SFP interfaces. This combination provides flexible copper and fibre connectivity for integrating the switch into existing network infrastructure.

Stackable Enterprise Networking

Virtual chassis functionality enables multiple compatible OmniSwitch 6360 units to operate together as a unified switching system. Up to four switches can participate in a virtual chassis, simplifying administration while providing greater scalability and resiliency.

Advanced Network Management

Alcatel-Lucent Operating System (AOS) provides management through a command-line interface, WebView 2.0 graphical interface and SNMP. The switch can also integrate with Alcatel-Lucent OmniVista 2500 and cloud-based OmniVista Cirrus network management platforms.

Technical Specifications

What’s in the Box:

• Alcatel-Lucent Enterprise OmniSwitch OS6360-P10-IN PoE+ Switch
• Standard accessories supplied with the applicable regional package

The Alcatel-Lucent Enterprise OmniSwitch OS6360-P10-IN combines compact fanless operation with Gigabit PoE+, fibre uplinks and enterprise-class network management. With eight PoE+ access ports, additional copper and SFP uplinks, a 120W PoE budget and virtual chassis capabilities, it provides a flexible access-layer solution for business, campus and branch networking environments.
