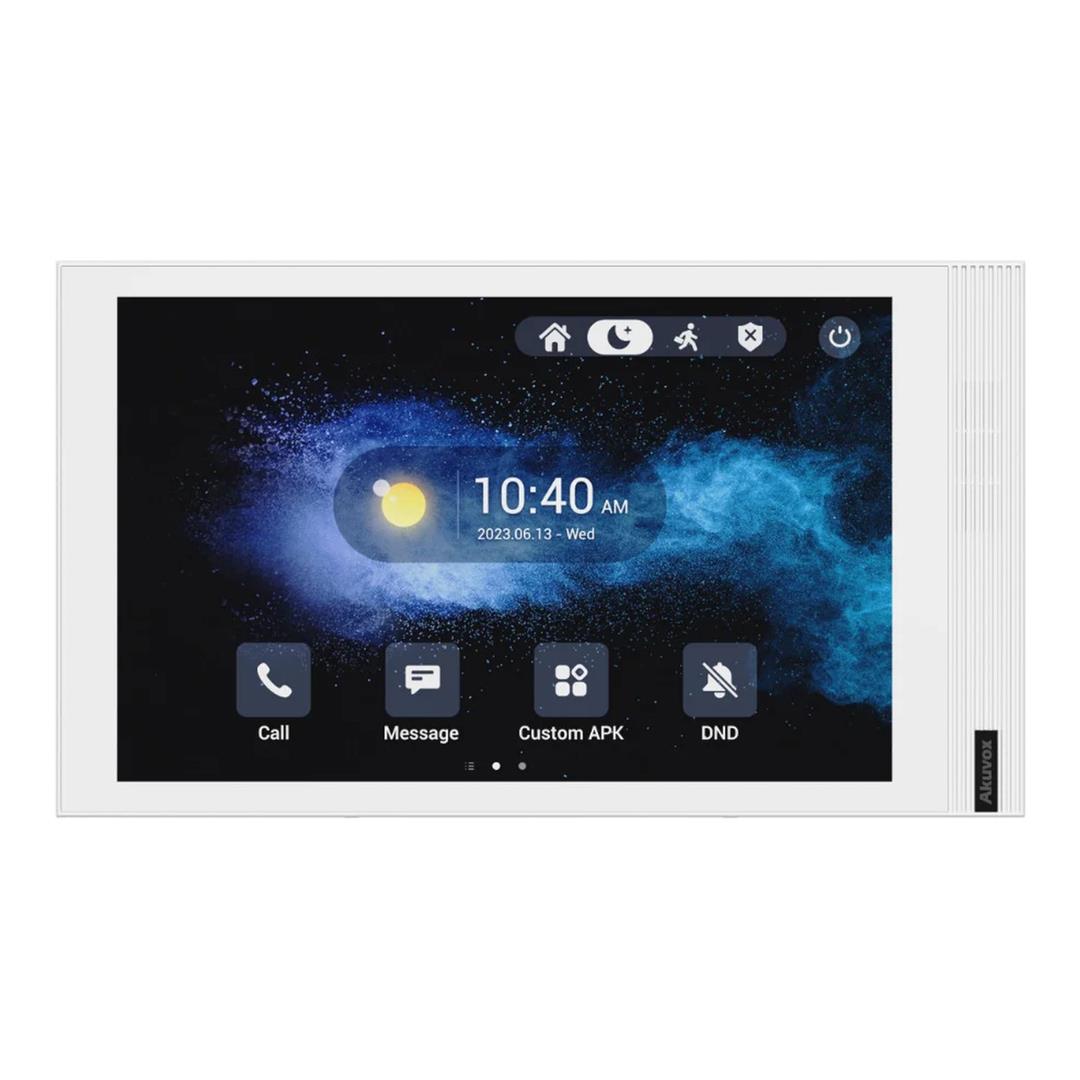

Akuvox S562W 7-inch Smart Indoor Intercom Monitor

Akuvox S562W 7-inch Smart Indoor Intercom Monitor

The Akuvox S562W is a compact 7-inch smart indoor intercom monitor designed for apartments, villas and modern residential access-control systems. Running a Linux-based operating system, it combines SIP audio/video communication, a capacitive touchscreen, built-in Wi-Fi, dual Ethernet ports, PoE and flexible building-control interfaces for visitor communication, door monitoring and remote unlocking.

Key Features:

• 7-inch capacitive touchscreen
• 1024 x 600 display resolution
• Linux operating system
• SIP v1 and SIP v2 support
• Two-way audio communication
• H.264 video streaming support
• Built-in 2.4GHz Wi-Fi
• 2 x 10/100Mbps Ethernet ports
• IEEE 802.3af Power over Ethernet
• 12V DC alternative power input
• RS485 connectivity
• 1 relay output
• 1 bell input
• 8 I/O connections
• Wall-mount and desktop installation support

Features

7-inch Capacitive Touchscreen

The S562W features a 7-inch TFT LCD with a 1024 x 600 resolution and projected capacitive touch control, providing a clear and intuitive interface for answering calls, viewing visitors and accessing supported intercom functions.

SIP Audio and Video Intercom

SIP v1 and SIP v2 compatibility allows the S562W to integrate with compatible Akuvox door phones and SIP-capable PBX systems. H.264 video streaming and two-way audio enable residents to see and communicate with visitors before granting access.

Integrated Wi-Fi Connectivity

The S562W adds IEEE 802.11b/g/n 2.4GHz Wi-Fi to the standard S562 platform, providing additional flexibility where a wired network connection is not convenient.

Dual Ethernet and PoE

Two adaptive 10/100Mbps RJ45 Ethernet ports support flexible network installation, while IEEE 802.3af PoE allows compatible network infrastructure to provide both data and power over a single Ethernet cable.

Flexible Building-Control Interfaces

RS485, one relay output, one bell input and eight I/O connections allow the monitor to integrate with compatible access-control, alarm and home-automation equipment.

Wall or Desktop Installation

The S562W supports wall-mounted and desktop installation, allowing it to be deployed in apartments, villas, reception areas and other modern interior environments.

• S562W is the Wi-Fi version of the standard S562.
• The S562W runs Linux rather than Android.
• Bluetooth is not specified for this standard S562W model.
• Desktop installation requires the appropriate Akuvox desktop stand accessory.sold seperatley*
• A separate 12V DC supply is not required when the monitor is powered through PoE.
• Please note: Colour may vary

Technical Specifications:

The Akuvox S562W combines a responsive 7-inch touchscreen, SIP audio/video intercom functionality, built-in Wi-Fi, PoE and flexible building-control interfaces in a slim indoor monitor designed for modern residential and smart-building installations.
