Akuvox R20K SIP Video Doorphone Intercom
R 4,29900
Unit price
/
Available Now
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

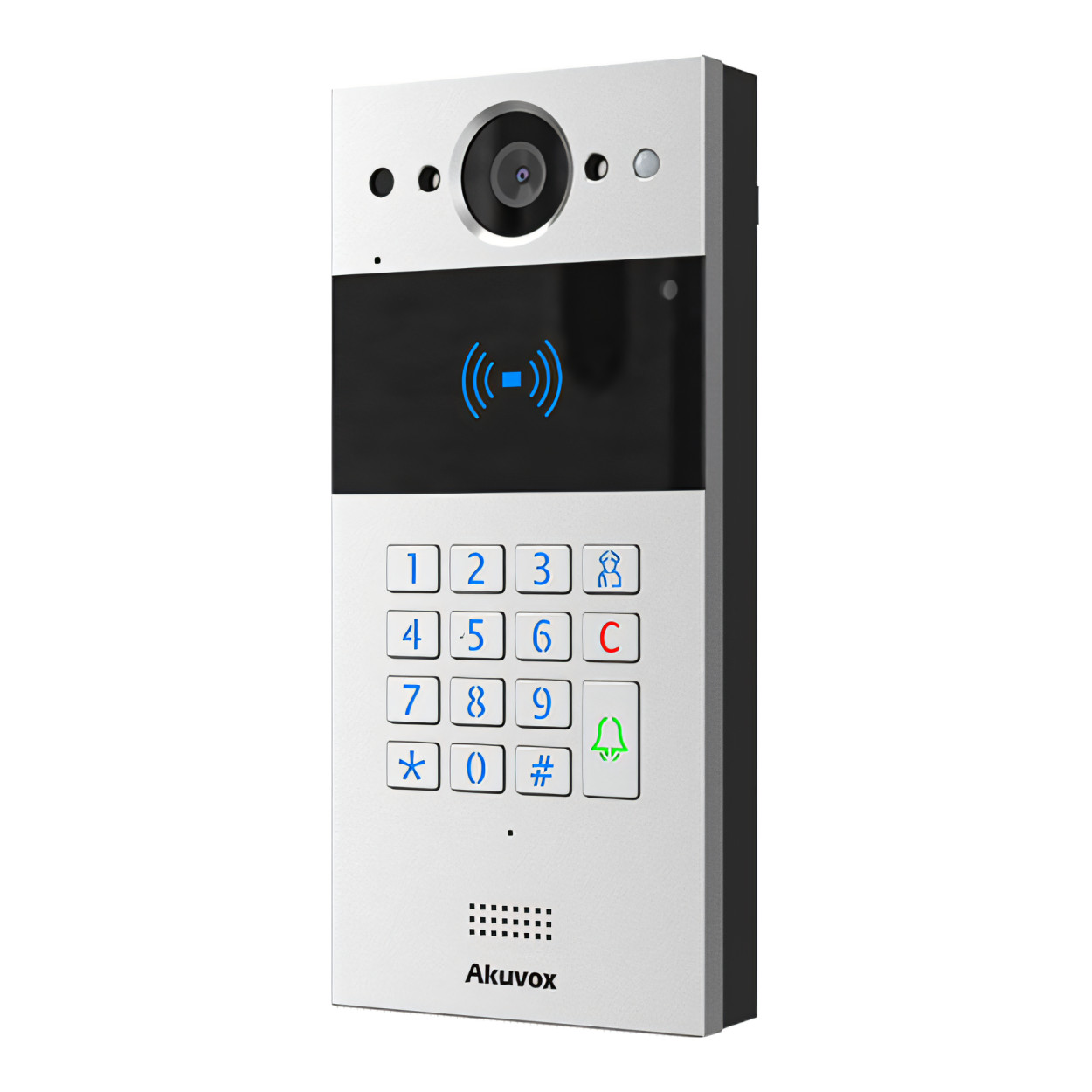

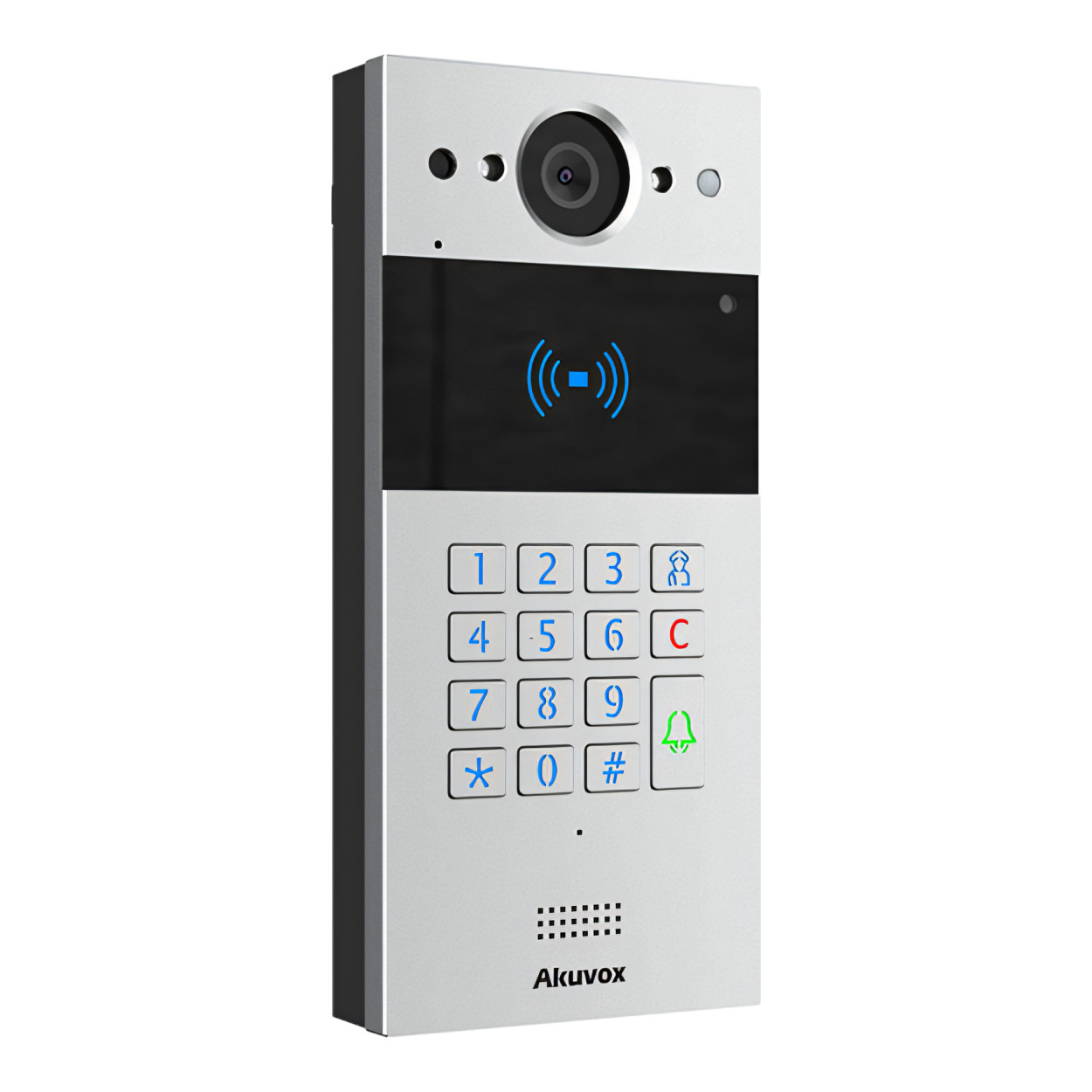

Akuvox R20K SIP Video Doorphone Intercom
The Akuvox R20K is a compact SIP video door phone for managing access at building entrances and gates. Its 2MP camera and two-way audio let users see and speak to visitors, while the physical keypad and RFID reader provide convenient entry options. PoE connectivity simplifies installation by carrying power and data through one Ethernet cable.
Key Features
- 2MP camera delivers up to 1080p video at 30fps for visitor identification.
- Two-way audio with echo cancellation supports clear conversations.
- Physical keypad, RFID reader and Android NFC support flexible access methods.
- Two independently controlled relay outputs support door release.
- SIP and ONVIF support integration with compatible communications and surveillance systems.
- IP65-rated aluminium alloy front panel suits outdoor entrances.
- Web management and access log export simplify administration.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Akuvox |
| Model | R20K |
| Product Type | SIP video door phone |
| Operating System | Linux |
| Front Panel | Aluminium alloy with physical numeric keypad |
| Camera | 2MP, 1/2.8-inch CMOS |
| Maximum Video Resolution | 1920 × 1080 at 30fps |
| Viewing Angle | 110° horizontal; 58° vertical |
| Video Compression | H.264 |
| Illumination | Infrared LEDs and automatic lighting |
| Audio | Built-in microphone and speaker; two-way audio with echo cancellation |
| Access Methods | PIN, RFID card and NFC (Android only) |
| RFID Frequencies | 13.56MHz and 125kHz |
| Supported Cards | EM, MIFARE and DESFire EV1/EV2/EV3 |
| Capacity | 4,000 users; 20,000 cards; 4,000 PINs; 1,000 contacts |
| Relay Outputs | 2, individually controlled |
| Inputs | 2 |
| Access Control Interfaces | Wiegand: 1 selectable input/output channel; RS485 |
| Network Interface | RJ-45, 10/100Mbps Ethernet |
| Integration | SIP and ONVIF |
| Power Supply | IEEE 802.3af PoE |
| Tamper Alarm | Supported |
| Protection Rating | IP65 |
| Mounting Options | Surface or flush mounting with the appropriate mounting hardware |
| Dimensions (H × W × D) | 185 × 85 × 24mm |
| Operating Temperature | −30°C to +60°C |
Add the Akuvox R20K to your cart for video visitor communication and convenient door access control.
