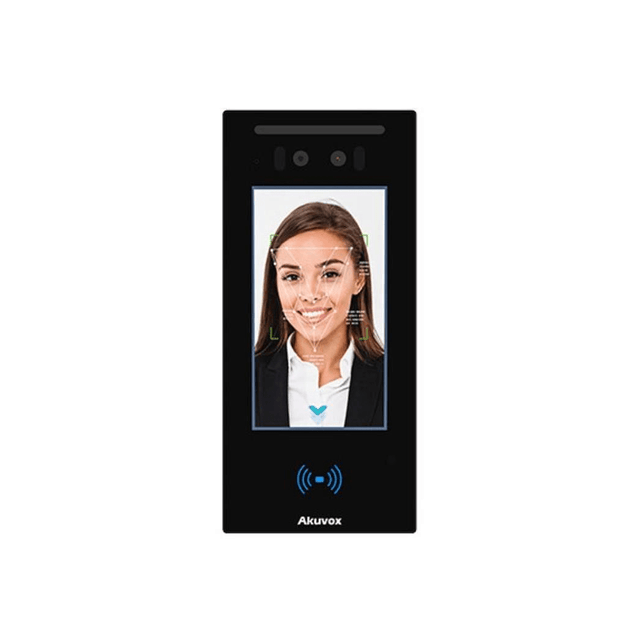

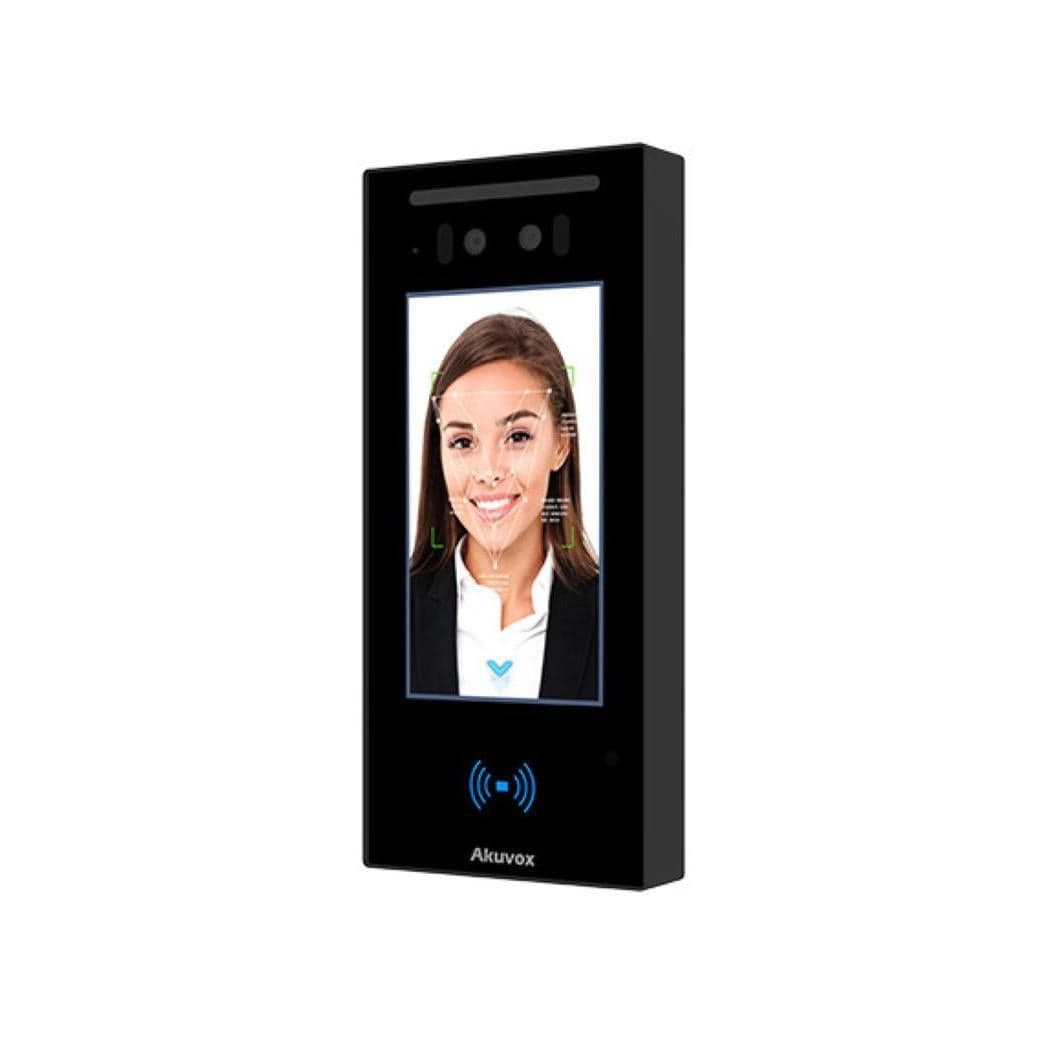

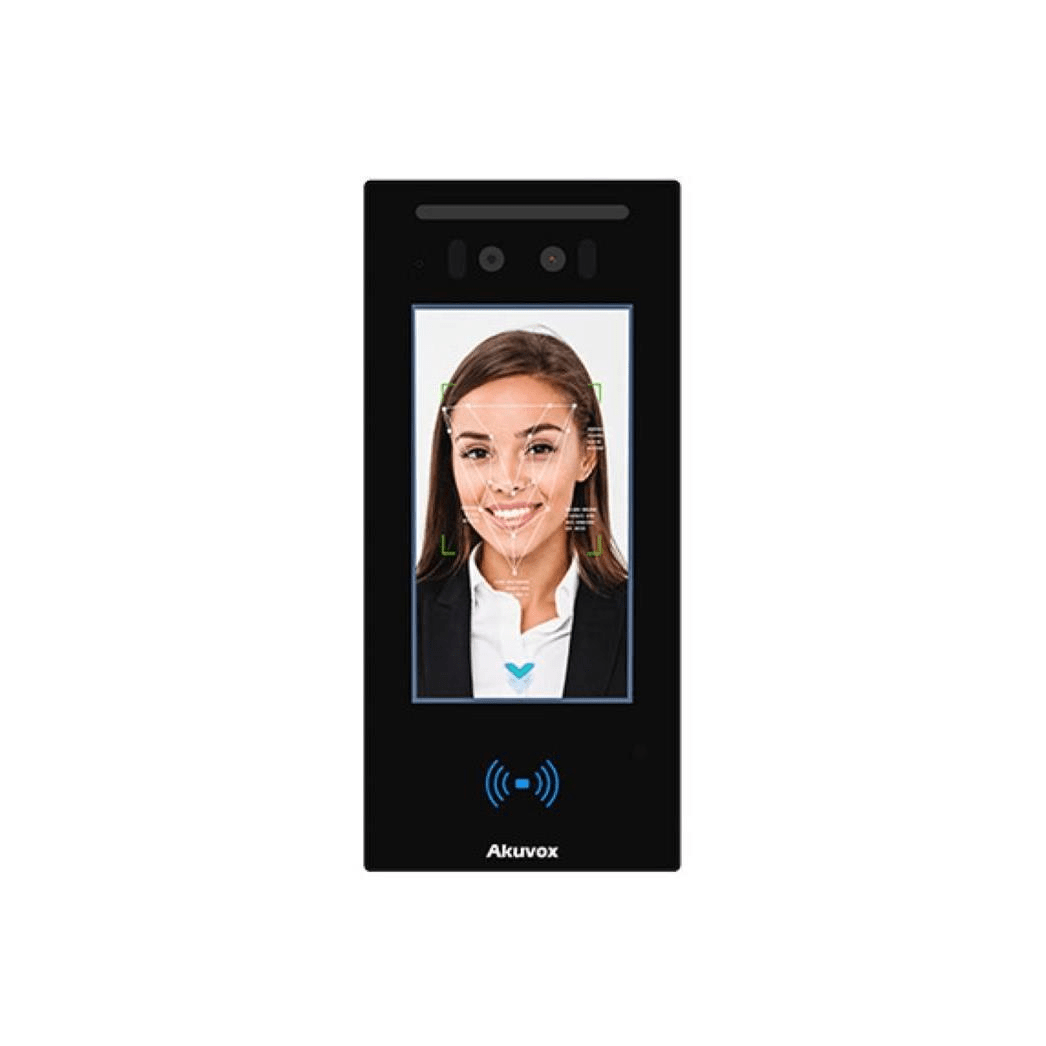

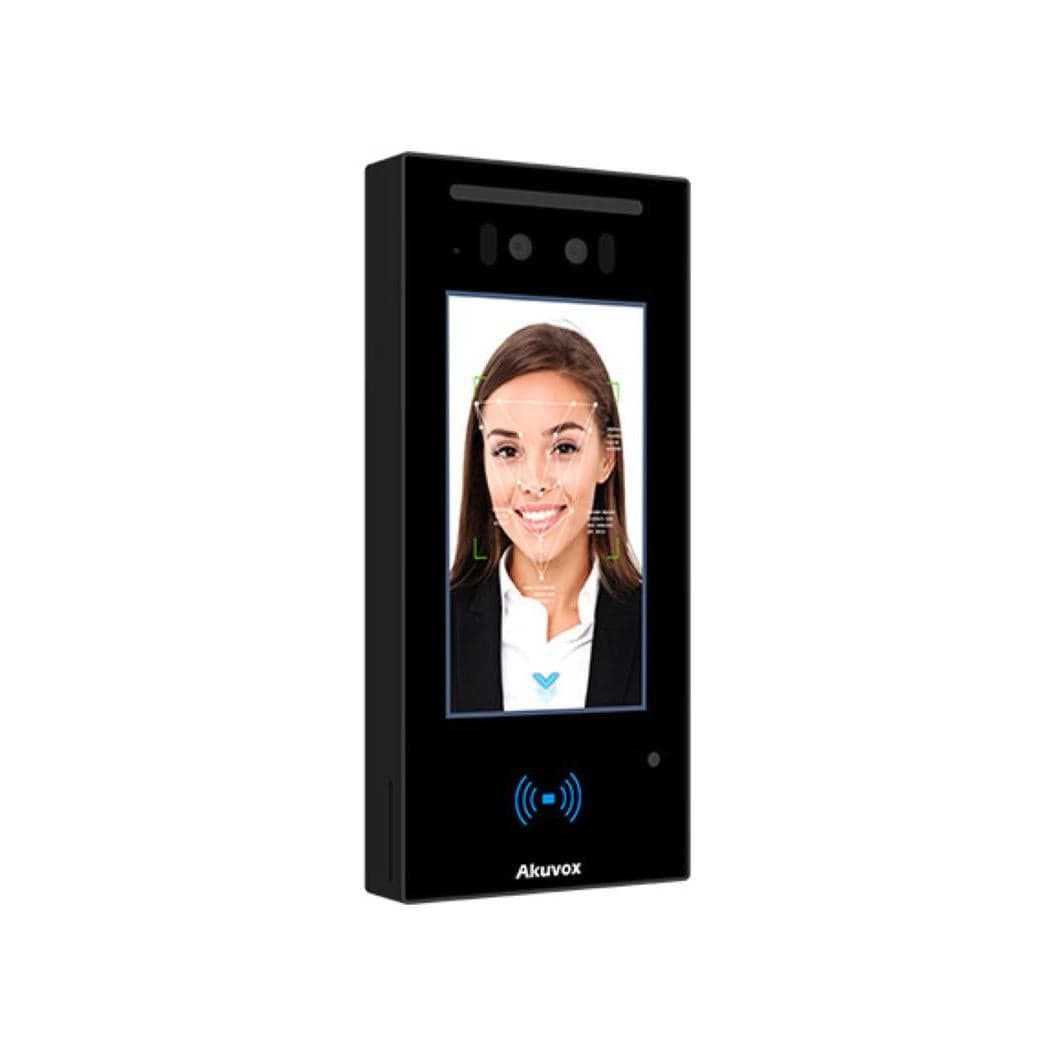

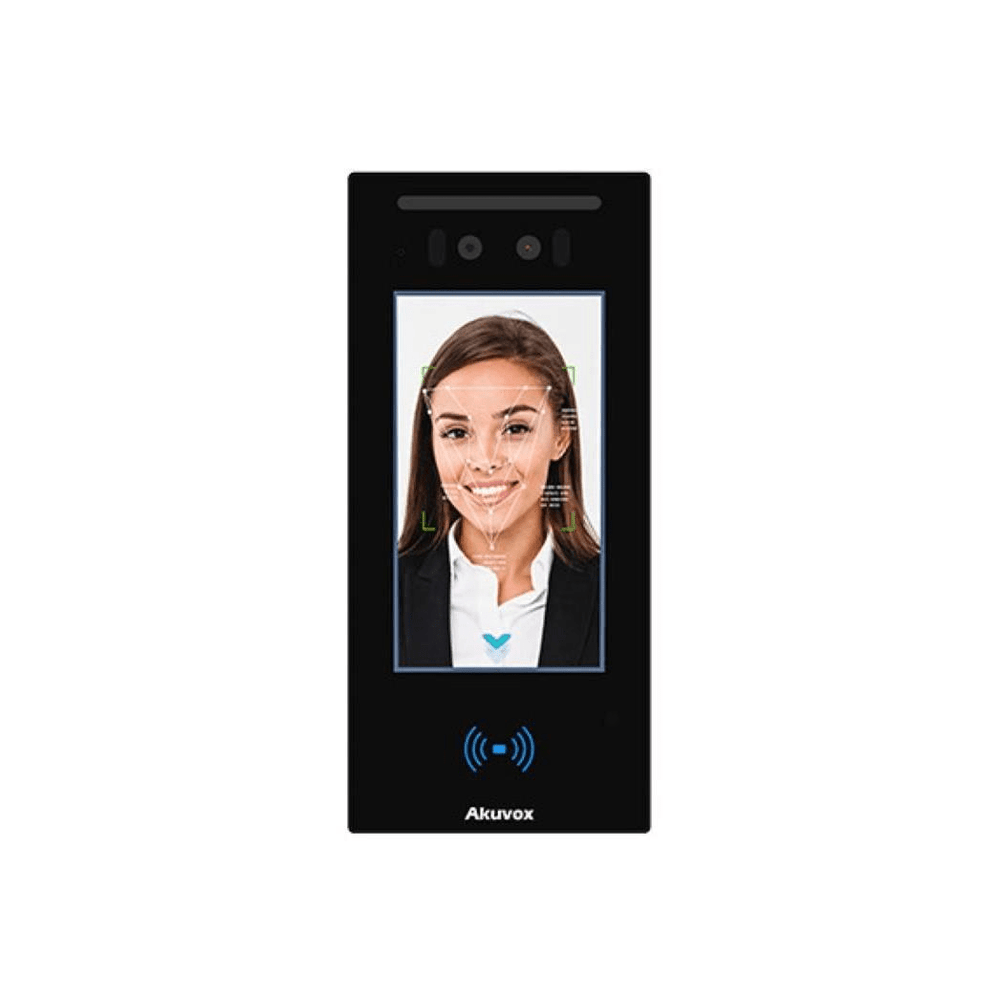

Akuvox E16C 5-inch Touchscreen SIP Intercom

Akuvox E16C 5-inch Touchscreen SIP Intercom

Face recognition, mobile access, temperature measurement, and mask detection in one device.

E16 is a budget-friendly face recognition door phone, which offers excellent intercom communication and flexible access control methods like AI-powered face recognition and mobile app. It is typically used in commercial and residential applications.

At a Glance

• Visible light facial recognition
• Better hygiene with touchless biometric authentication, fever and mask detection
• Anti-spoofing algorithm against photo and video attack
• 20,000 face capacity & 20,000 card capacity
• Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.7%
• Allows both audio and video communication to an IP phone, mobile client, or softphone
• Multiple verification methods including: face, PIN, cards and QR codes
• Stand-alone operation
• Configuration via web browser

Anti-epidemic Function

• Mask Detection
• Body Temperature Detection [Only E16C(MD01) & E16C(MD02) support]

Specifications:

Housing Material: Plastic

Display: 5 Inch IPS LCD, 1280x720

Camera: 2M pixels, WDR

Wiegand Port: Support

RS485 Port: Support

RF Card Reader: 13.56MHz, NFC

Relay In / Out: 1 / 1

Ethernet Port: RJ45, 10/100Mbps adaptive

Bluetooth: Support

802.3af Power-over-Ethernet

12V DC Connector (if not using PoE)

Tamper: Support

Installation: Wall-mounted

IP Level: IP65

Working Humidity: 10~90%, no condensing

Working Temperature: -20℃~+55℃

Identification

Identification Mode: Face, PIN, NFC, RFID Card, BLE & QR code

Identification Speed: ＜200ms

Capacity

Face Capacity: 20,000

Card Capacity: 20,000

Event Log: 50,000

Forehead Temperature Measurement

Only E16C(MD02) support

Distance: 0.3M ~ 1M

Accuracy: 0.1℃

Deviation: ±0.3℃

Range: 34℃ ~ 45℃

Wrist Temperature Measurement

Only E16C(MD01) support

Distance: 1cm ~ 5cm

Accuracy: 0.1℃

Deviation: ±0.3℃

Range: 34℃ ~ 45℃
