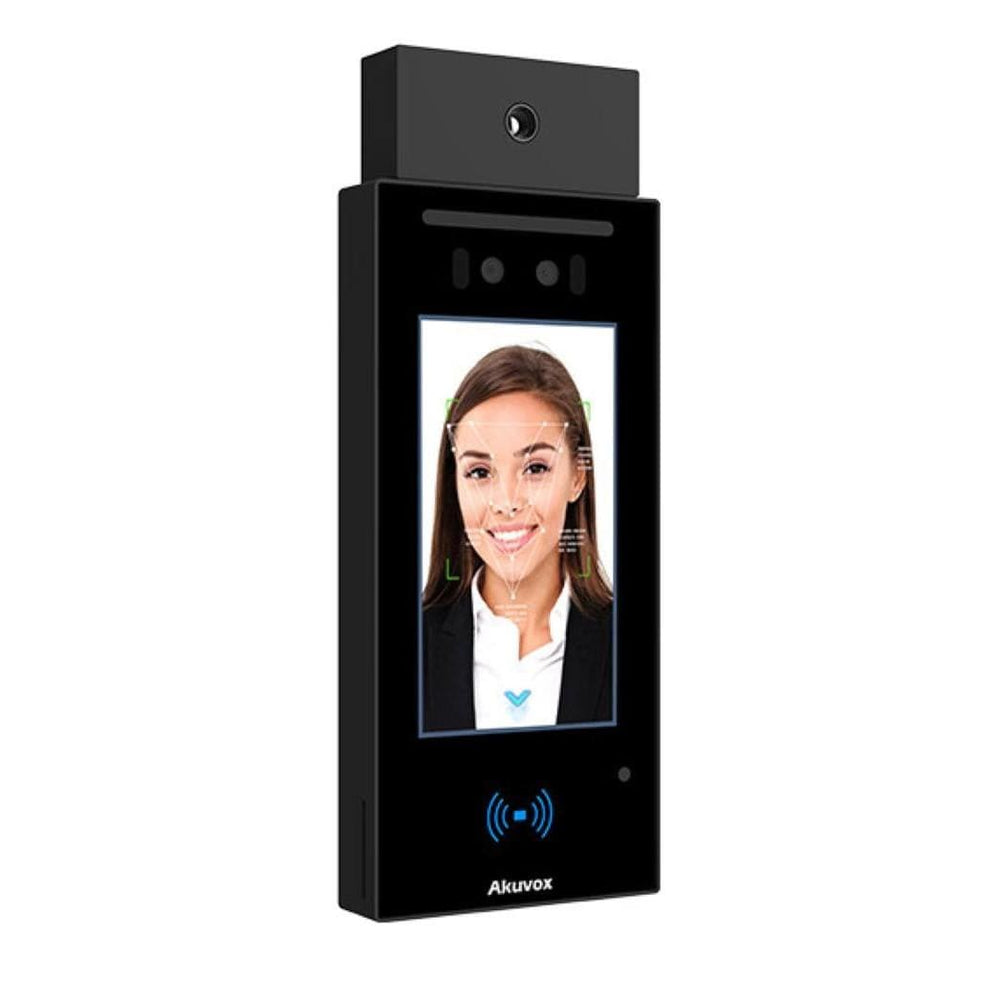

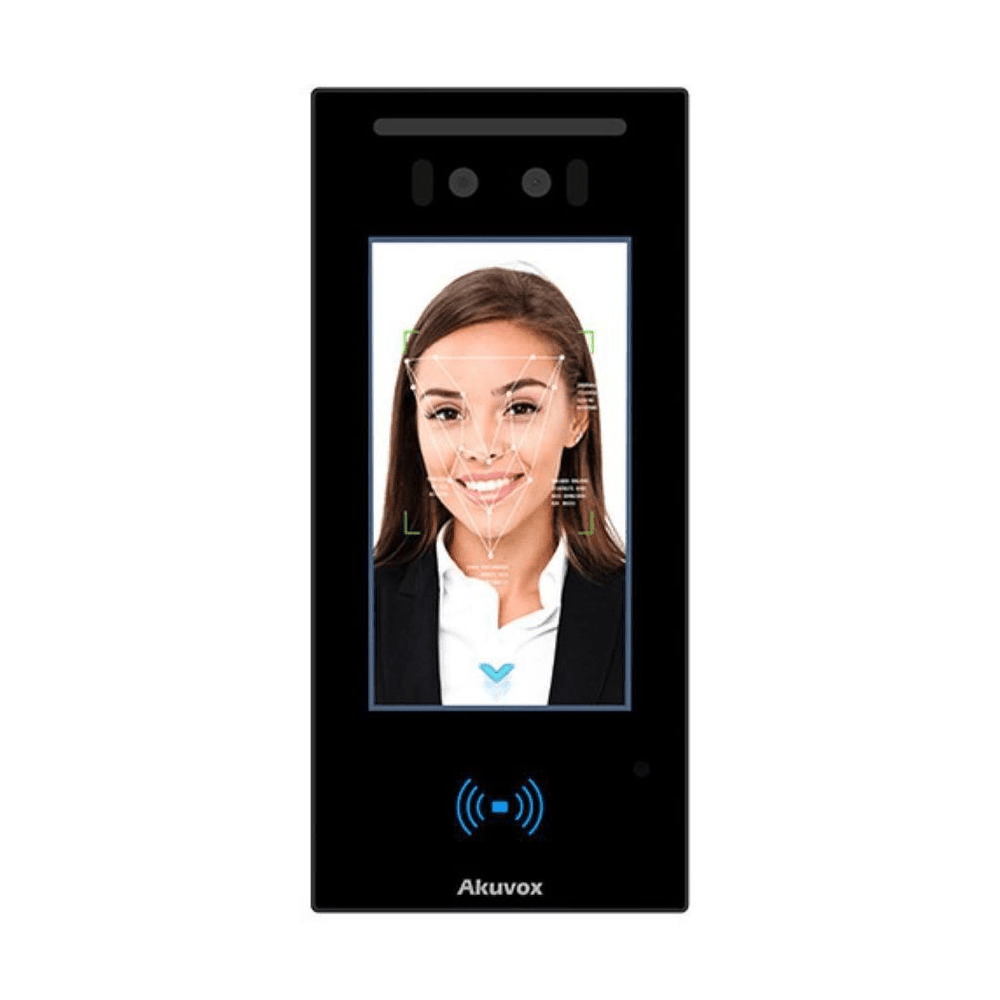

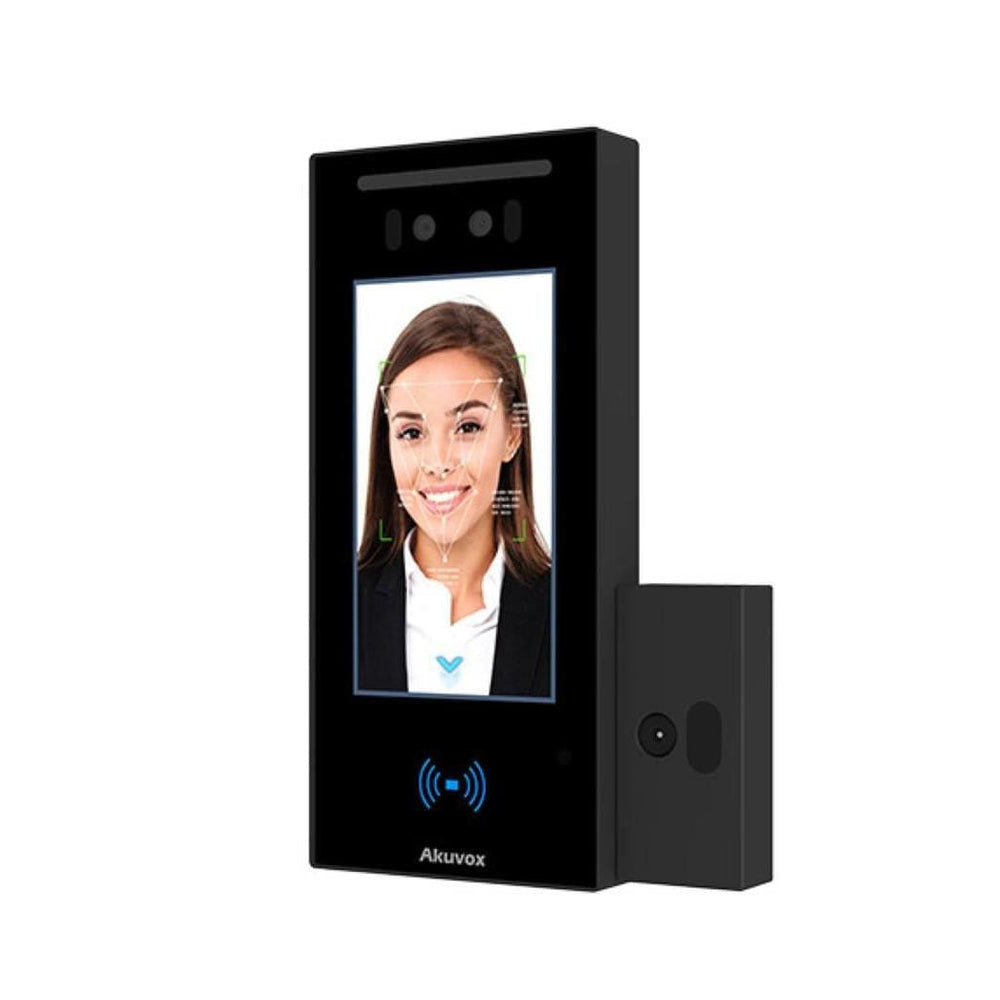

Akuvox A05C 5-inch Smart Access Control Terminal

Akuvox A05C 5-inch Smart Access Control Terminal

Smart Access Control for Modern Buildings

A05 is a commercial-grade access control terminal, which offers fast, safe and convenient access control via AI-powered face recognition, mobile app, NFC, or QR codes. It is typically used in commercial and residential applications.

Upgrade Your Workplace With Smart Access Control on a Budget

Face recognition, mobile access, temperature measurement, and mask detection in one device.

Fit for Diverse Applications

The system can be tailored to diverse scenarios by integrating with various 3rd-party systems, such as time attendance and visitor management systems.

Future-proof

Face Recognition Access A05 offers fast, safe and reliable access control via face recognition, which adapts to your facial changes over time.

At a Glance

• Visible light facial recognition
• Better hygiene with touchless biometric authentication, fever and mask detection
• Anti-spoofing algorithm against photo and video attack
• 20,000 face capacity & 20,000 card capacity
• Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.7%
• Multiple verification methods including: face, cards and QR codes
• Stand-alone operation
• Configuration via web browser

Specifications:

Housing Material: Plastic

Display: 5 Inch IPS LCD, 1280x720

Camera: 2M pixels, WDR

Wiegand Port: Support

RS485 Port: Support

RF Card Reader: 13.56MHz, NFC

Relay In / Out: 1 / 1

Ethernet Port: RJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC Connector (if not using PoE)

Tamper: Support

Installation: Wall-mounted

IP Level: IP65

Working Humidity: 10~90%, no condensing

Working Temperature: -20℃~+60℃

Identification

Identification Mode: Face, RFID Card, QR code

Identification Speed: ＜200ms

Capacity

Face Capacity: 20,000

Card Capacity: 20,000

Event Log: 50,000

Forehead Temperature Measurement

Only A05S(MD02) support

Distance: 0.3M ~ 1M

Accuracy: 0.1℃

Deviation: ±0.3℃

Range: 34℃ ~ 45℃

Wrist Temperature Measurement

Only A05S(MD01) support

Distance: 1cm ~ 5cm

Accuracy: 0.1℃

Deviation: ±0.3℃

Range: 34℃ ~ 45℃
