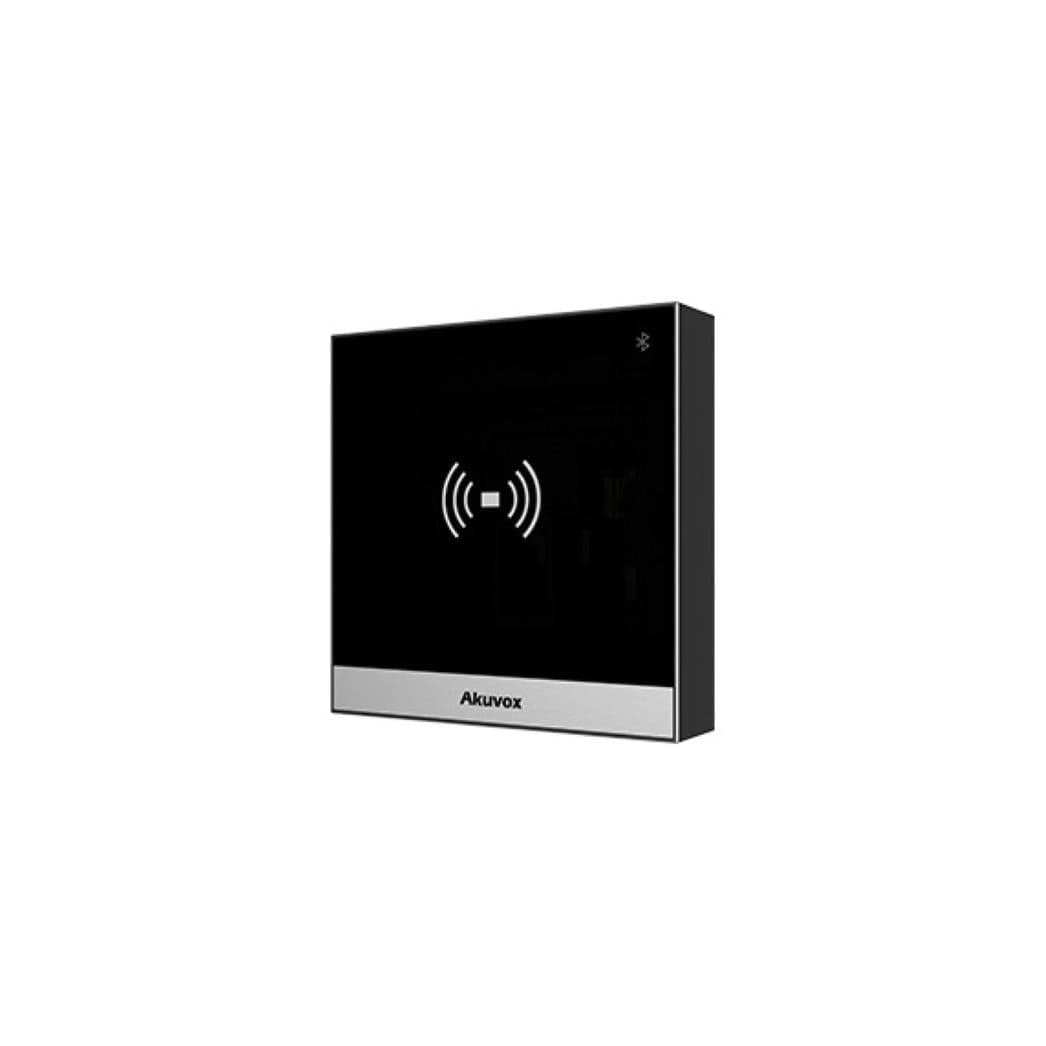

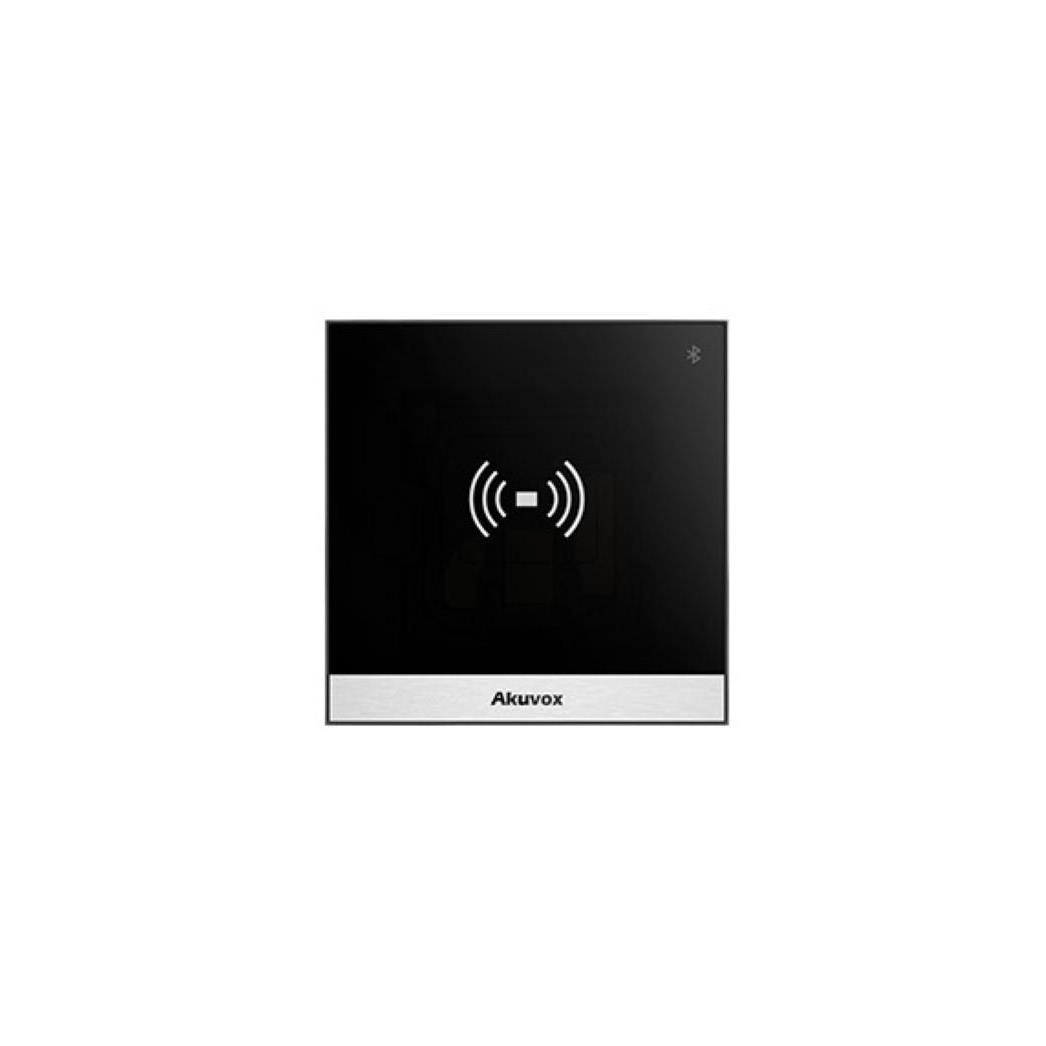

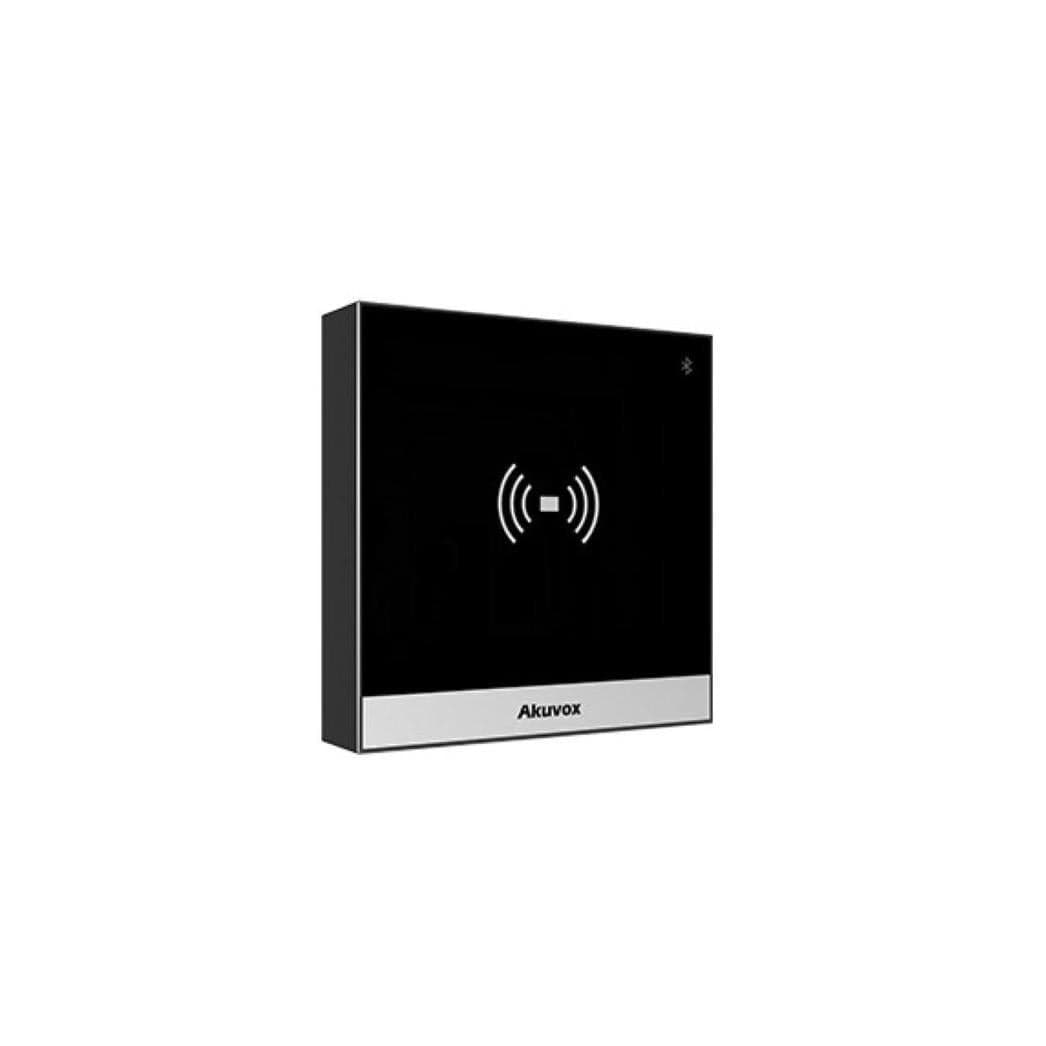

Akuvox A03 RFID Access Control Terminal

Akuvox A03 RFID Access Control Terminal

A03S is an IP-based access control terminal combining a reader and a door controller. It offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.

Two Devices in One

A03 is a door controller and a reader in one, which means it can work standalone or be networked with other systems.

Wave-to-unlock Access

A03 offers flexible credential options, including BLE, NFC, and RFID. Users can wave a hand to unlock doors when A03 is linked to the Akuvox My MobileKey app via the BLE.

Installer-friendly Deployment

Supporting PoE, A03 only requires a network cable for installation. With a compact size, it is perfect for buildings with limited installation space.

Ease of Integration

With the API available, it is possible to integrate A03 with various 3rd-party systems, such as elevator controllers, existing access control units of buildings, and time-attendance systems.

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• System logs

Door Entry Feature

• Access schedule export/import
• Access level management
• Support switch to reader mode
• Door access logs query and export
• Flexible shift scheduling and attendance
• management

Specifications:

Front panel: Toughened Glass

Frame: Aluminum Alloy

RFID card reader: 13.56MHz & 125kHz

Bluetooth: BLE5.0

Relay out: 1

Inputs: 2

Wiegand: Support

Speaker: 8Ω / 0.5W

Tamper proof alarm: Support

Ethernet port: RJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC connector (if not using PoE)

Power output: 12V 600mA

IP Level: IP65

Installation: Flush-mounted or Wall-mounted

Dimension: 86 x 86 x 33 (mm)

Working Humidity: 10~90%，no condensing

Working Temperature: -20°C ~ +55°C

Storage Temperature: -30°C ~ +70°C

Capacity

User Capacity: 20,000

Card Capacity: 20,000

Event Log: 100,000
