Ajax SpaceControl Wi-Fi Jeweller Black 38167.04.BL1

Ajax SpaceControl Wi-Fi Jeweller Black

A key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble.

Principle of operation

The device controls the security modes and sends an alarm signal to the Central Monitoring Station by pressing the key fob panic button.

Features

Authentication prevents forgery of the device and false alarm signals.

Connecting and setting up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Specifications:

Maximum effective radiated power (ERP): up to 20 mW

Radio signal modulation: GFSK

Radio communication range: up to 1,300 m up to 1,300 m

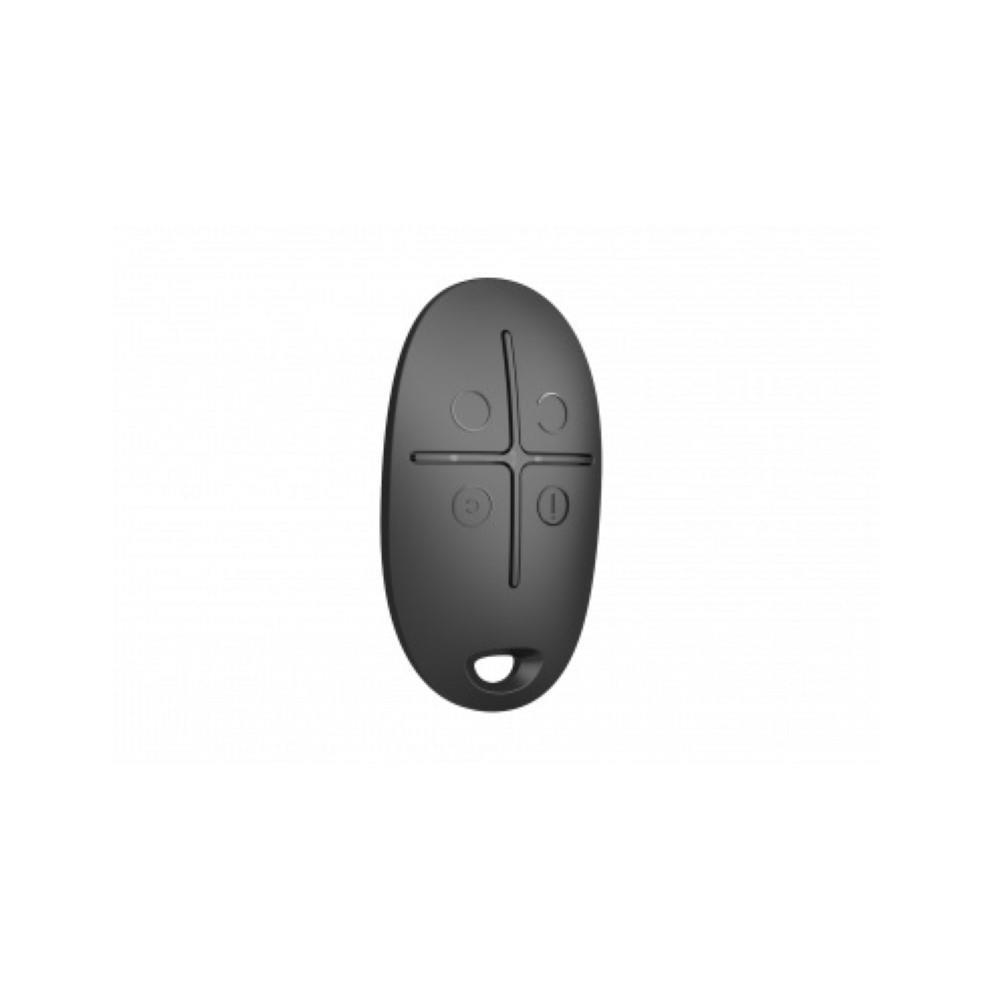

Key features

Number of buttons: 4

• System arming button.
• System disarming button.
• Night mode button.
• Panic button.

Group management: A user can select a security group that the key fob manages.

Assigning to a user: When a key fob is assigned to a user, its events are sent to Ajax apps under the user’s name. The key fob has the same security mode management rights as the user.

Accidental press protection: long or double press

Power supply

Battery: 1 × CR2032

Type: type C

Full battery capacity: 225 mAh

Dimensions: 65 × 37 × 10 mm

Weight: 13 g

Protection class: IP50
