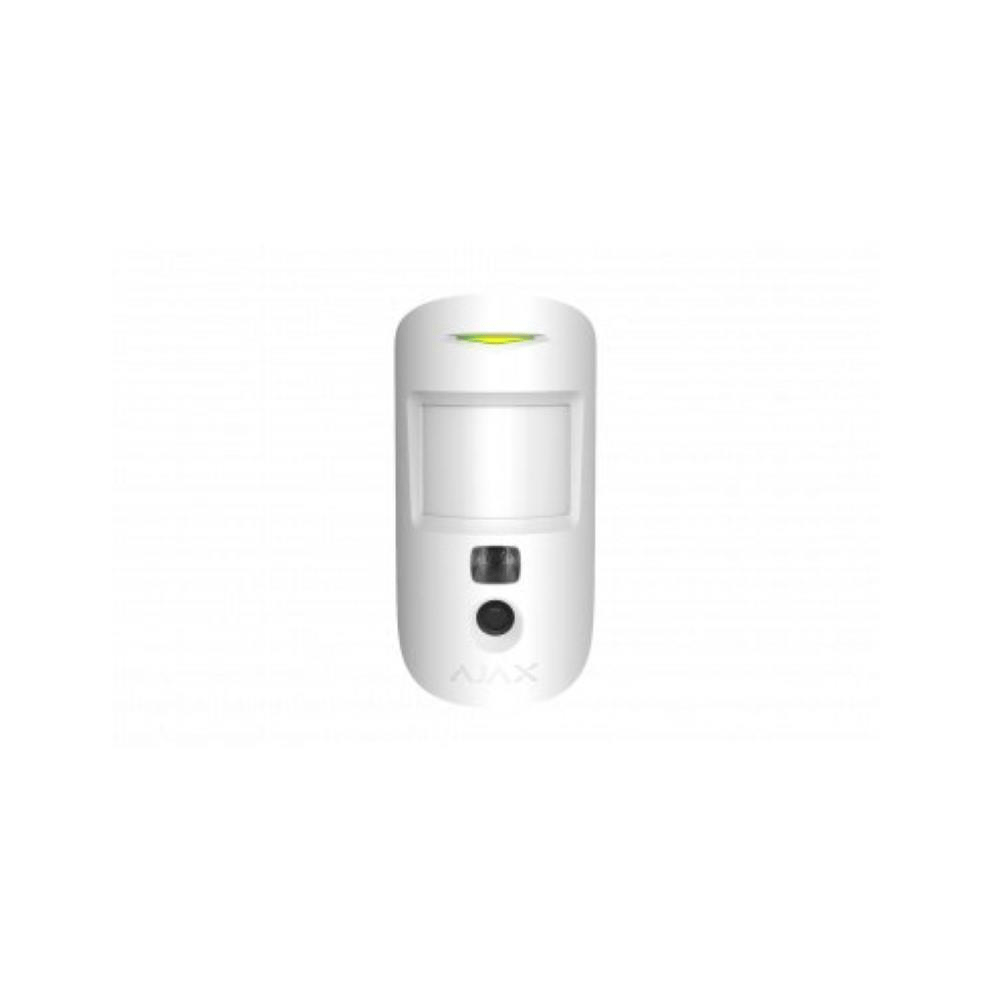

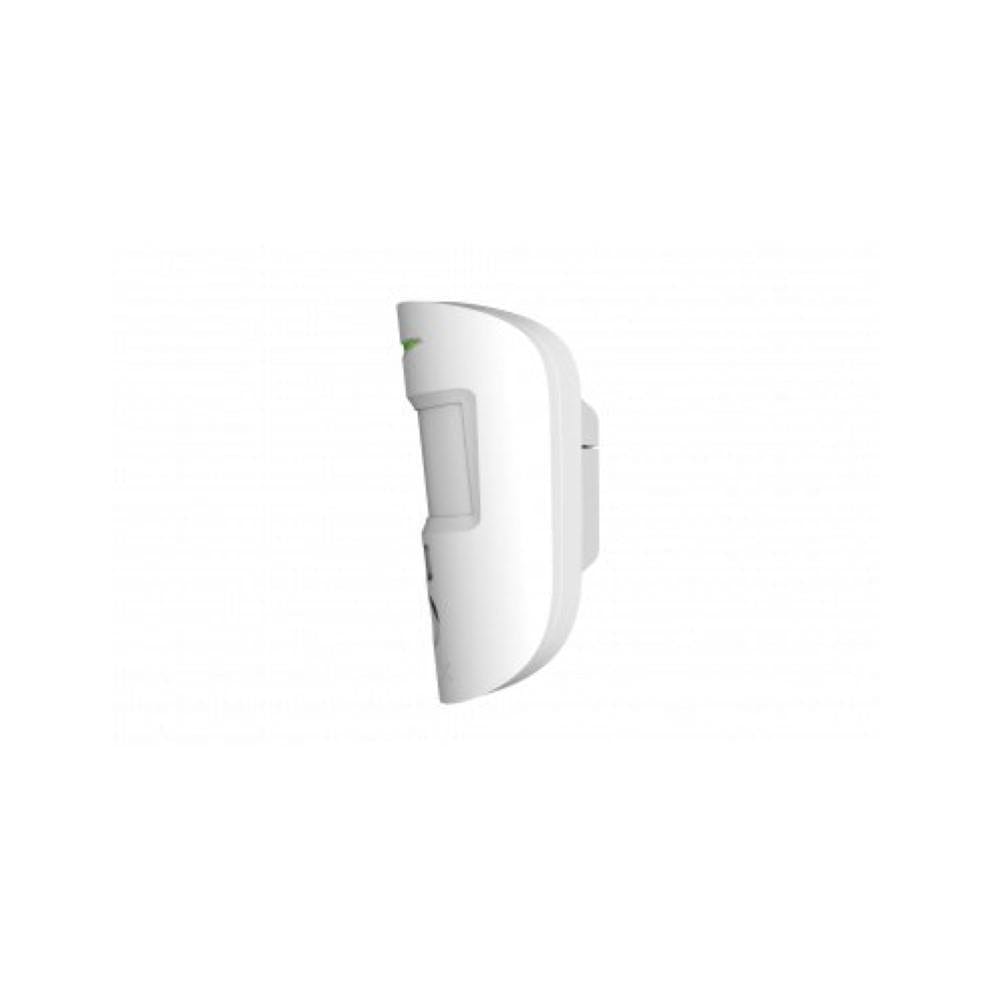

Ajax MotionCam PhOD Wi-Fi Jeweller White 36489.120.WH1

Ajax MotionCam PhOD Wi-Fi Jeweller White

Wireless IR motion detector supporting photo by alarm, photo on demand, photo by schedule, and photo by scenario features.

Lightning-fast alarms. Verified.

MotionCam (PhOD) Jeweller has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly verify the threat and respond accordingly. Photo verification relieves users of unnecessary anxiety and prevents security companies from false patrol calls. Users can take an on-demand photo with a single tap to monitor their house's state at any time. The detector can also automatically take photos by an alarm of another device in the system and by a specific schedule.

Peace of mind on demand

The detector needs just a few seconds to show the actual situation on the scene and dispel the user's doubts in case of an alarm. It takes a click in the Ajax app to take an on-demand photo. Also, it can automatically take photos by schedule and when another detector in the system is triggered.

No intruder goes unnoticed

PIR sensor

All Ajax motion detectors use PIR sensors by Excelitas Technologies

Stable operation with pre-installed batteries

MotionCam (PhOD) Jeweller comes equipped with pre-installed batteries, boasting a remarkable 5-year lifespan. Ajax apps proactively notify both the monitoring company and users of a low battery level a couple of months in advance. The batteries are replaceable, allowing the installer to simply swap them out after five years. Thanks to the batteries, MotionCam (PhOD) Jeweller functions independently of the facility’s power grid.

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Effortless installation and setup

MotionCam (PhOD) is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Special lens

The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult's head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Thermal interferences filter

We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyzes the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result the detector accurately responds to human motion without false alarms.

Temperature compensation

Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level

The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any motion in the detection zone.

Professional installation

With the correct installation at the height of 2.4 m and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimizing false alarms caused by animals weighing up to 20 kg and below 50 cm in height.

Jeweller communication technology

Proprietary wireless communication technology to transmit alarms and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote configuration via the Ajax apps.

Specifications:

Compatibility

Control panels

• Hub 2 (2G) Jeweller
• Hub 2 (4G) Jeweller
• Hub 2 Plus Jeweller
• Hub Hybrid (2G)
• Hub Hybrid (4G)

Range extenders

• ReX 2 Jeweller

Maximum effective radiated power (ERP): up to 20 mW

Radio signal modulation: GFSK

Radio signal range: up to 1,700 m

Frequency hopping: Radio communication uses frequency hopping to prevent interception and jamming.

Detection

Sensitive element: 1 PIR sensor

Motion detection distance: up to 12 m, When installed at a height of 2.4 m.

Motion detection angles: horizontal — 88.5°, vertical — 80°

Motion detection speed: from 0.3 to 2.0 m/s

Sensitivity: 3 levels

Photo verification

Photo by Alarm: A built-in camera is activated if the detector is armed, and motion is detected.

Photo on Demand: User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.

Photo by Scenario: A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.

Photo by Schedule: The detector automatically takes photos at a specified time. This feature is available for hubs (except Hub Jeweller) with firmware version OS Malevich 2.19 or higher.

Photo resolution:

• 640 × 480 px
• 320 × 240 px (by default)
• 160 × 120 px

IR backlight: For night photography and low light conditions.

Pictures in a series: from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px, from 1 to 3 images with resolution of 640 × 480 px

Photo delivery time:

• up to 7 s — 160 × 120 px resolution
• up to 9 s — 320 × 240 px resolution
• up to 20 s — 640 × 480 px resolution

Anti-sabotage protection

Tampering alarm: Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.

Power supply: 2 × CR123A battery, 3 V

Battery life: up to 4 years

Dimensions: 135 × 70 × 60 mm

Weight: 167 g

Operating temperature range: from −10°C to +40°C

Operating humidity: up to 75%

Protection class: IP50
