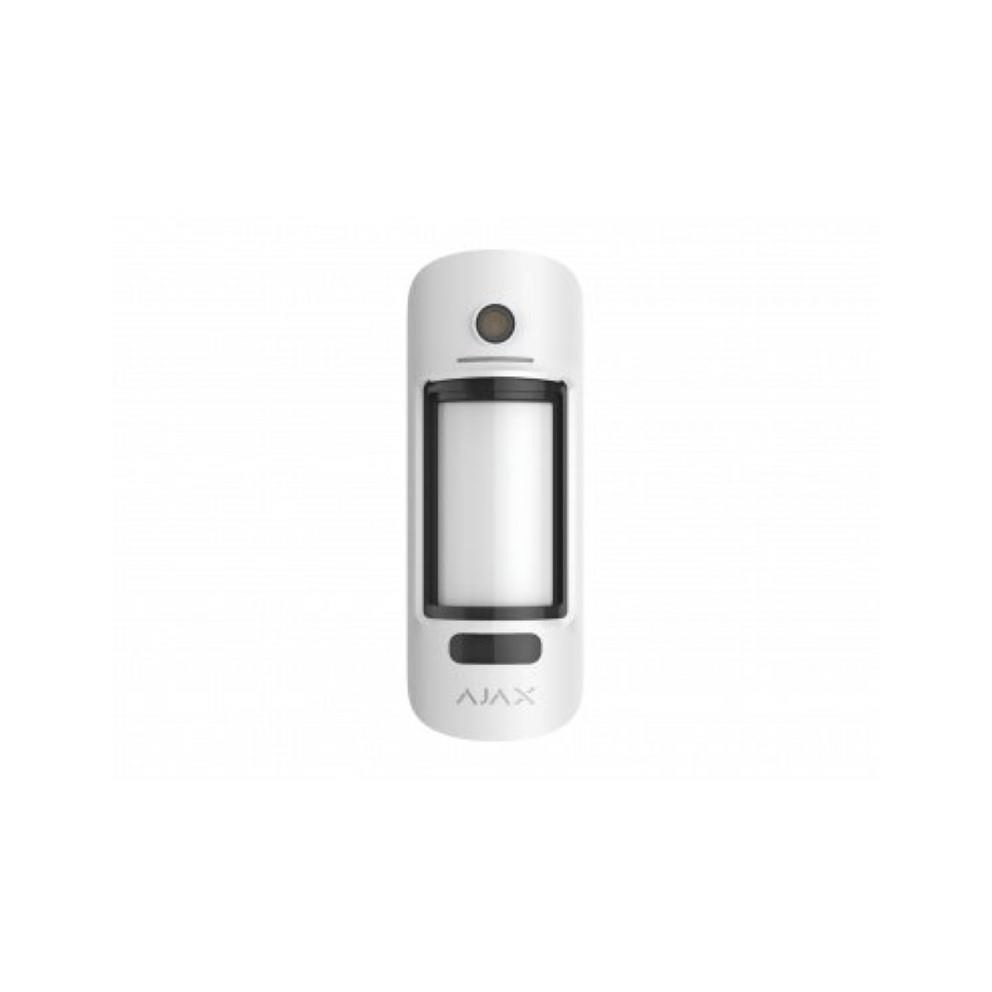

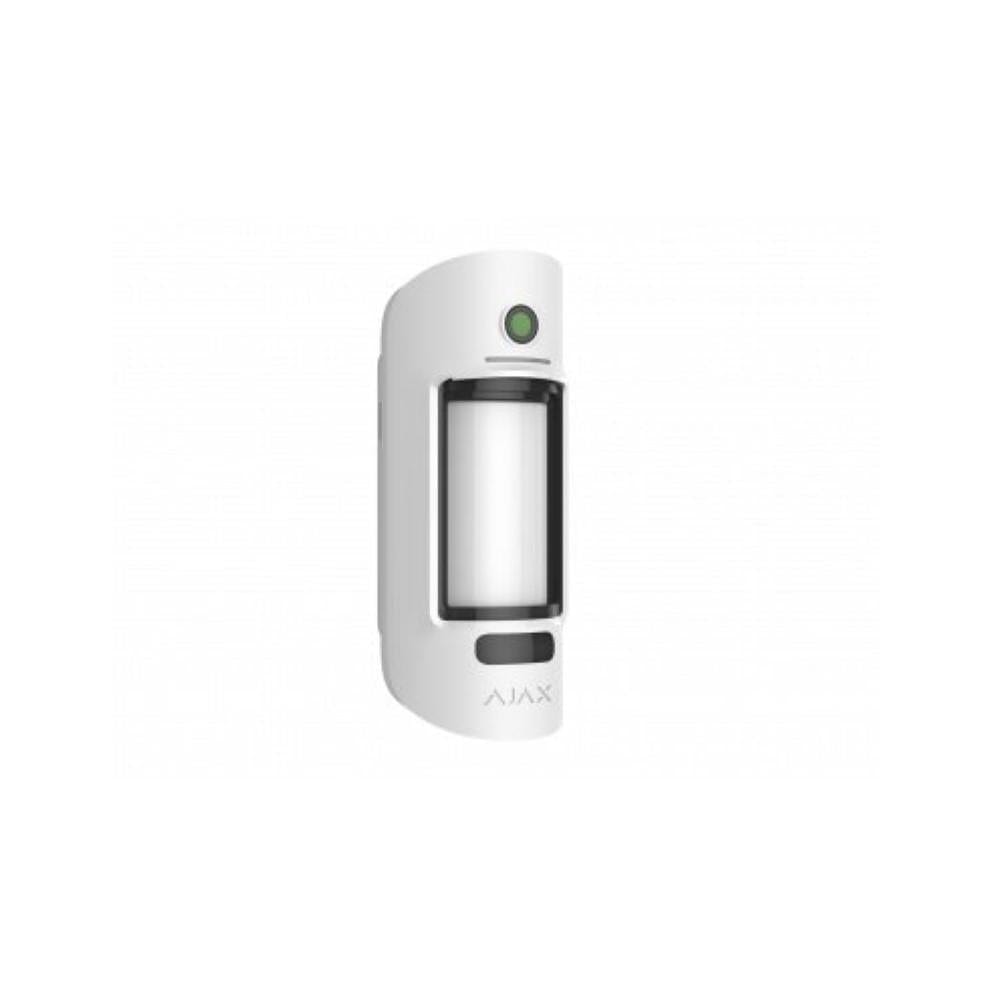

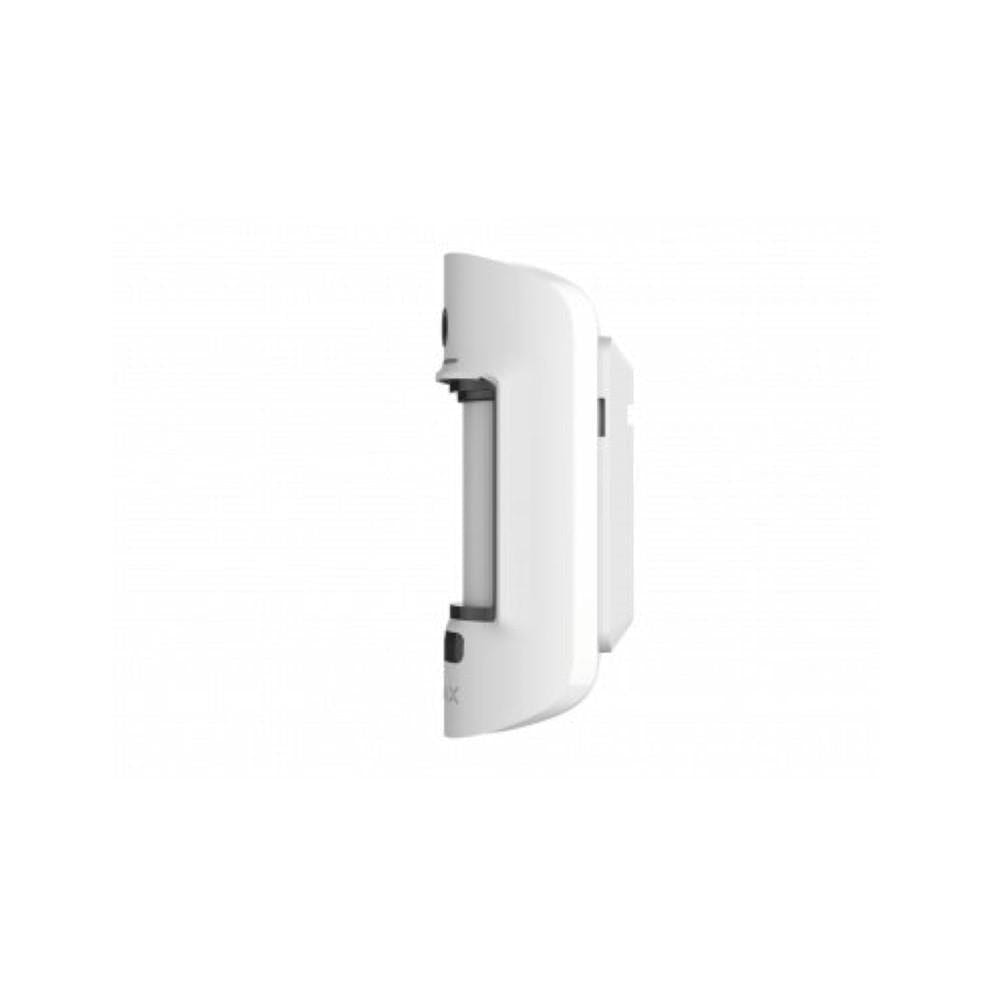

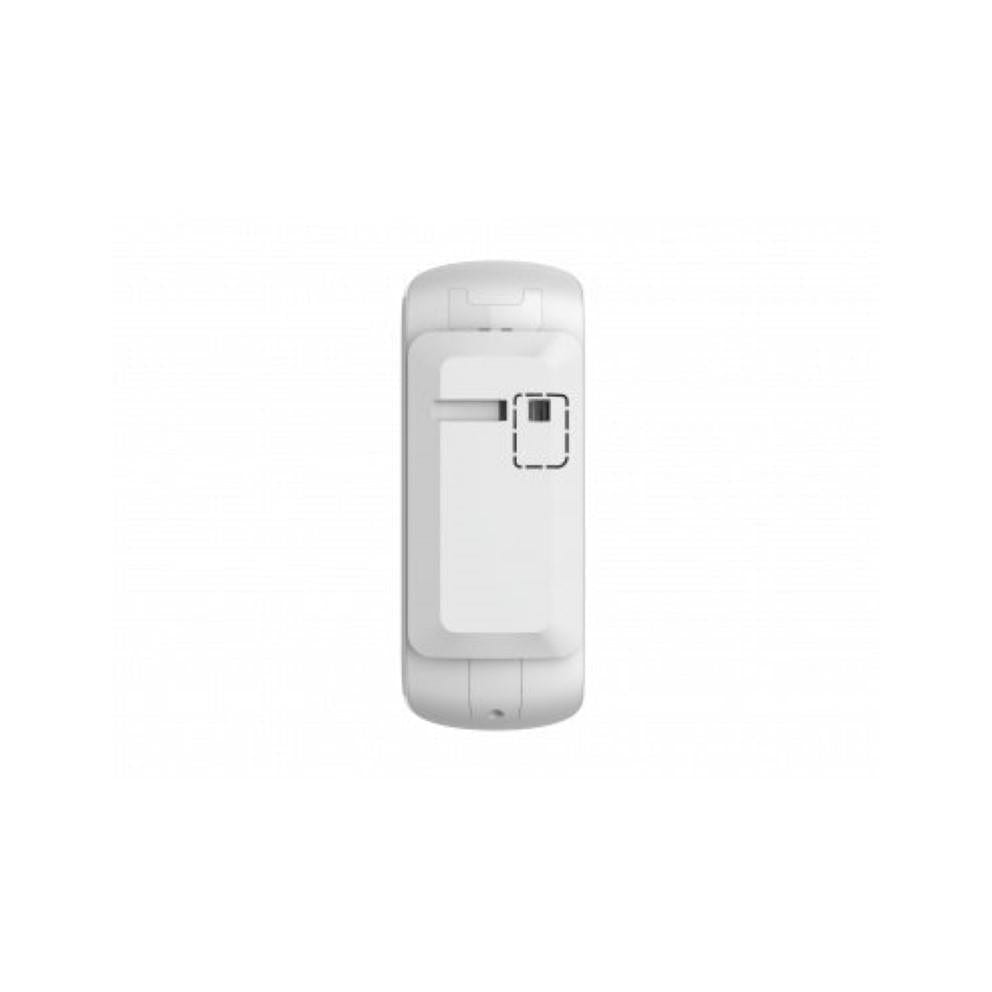

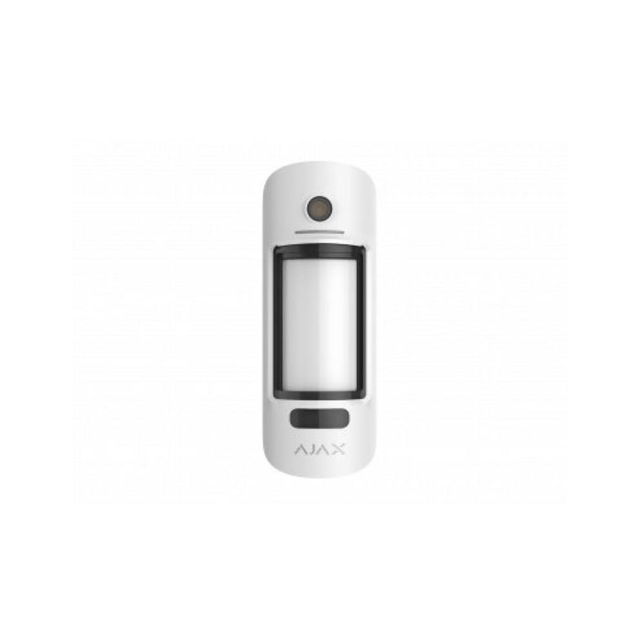

Ajax MotionCam Outdoor Wi-Fi Jeweller White 38192.84.WH1

Ajax MotionCam Outdoor Wi-Fi Jeweller White

Wireless outdoor motion detector with a photo camera to verify alarms

Lightning-fast alarms. Verified.

MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.

MotionCam Outdoor PhOD

MotionCam Outdoor is also available with Photo on Demand feature. Such detectors take photos when they detect an intrusion, as well as at the user’s request in the Ajax app

Don't miss a thing

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.

Correlation analysis

Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is activated.

Multilevel anti-sabotage protection

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors that react to hindering, covering and painting the lens.

It will take the hub less than a minute to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.

Effective security in any weather

MotionCam Outdoor resists the heat up to +60°Ð¡ and withstand the cold down to −25°Ð¡. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.

Uncompromising communication reliability

MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweler and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweler transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds².

The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts.

Less manual labor. More settings in the app.

The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.

Professional installation

Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.

Specifications:

Classification: Electro-optical radio channel security detector

Type of detector: Wireless

Installation method: Outdoors / indoors

Recommended installation height: 0.8 – 1.3 m

Sensing element: 2 × PIR sensor

Motion detection distance: Adjustable, from 3 to 15 m

Pet immunity: Animals up to 80 cm tall

Sensitivity: Adjustable, 3 levels

Motion detector’s viewing angle: Horizontal — 90°, Vertical — 80°

Camera’s angle: Horizontal — 105°, Vertical — 50°

TV distortion (EBU standard): Barrel, –17%

Photo in case of alarm: Shooting series up to 5 photos

Photo resolution:

• 320 × 176 pixels (by default)
• 640 × 352 pixels

Infrared light for shooting in the dark: Available

Power supply: 4 × CR123A batteries

Supply voltage: 6 V

Alarm delivery time: 0.15 s

Wings radio technology: Transmission of a series of photos, Photo delivery time with a default settings: up to 9 seconds

Temperature sensor: Available
