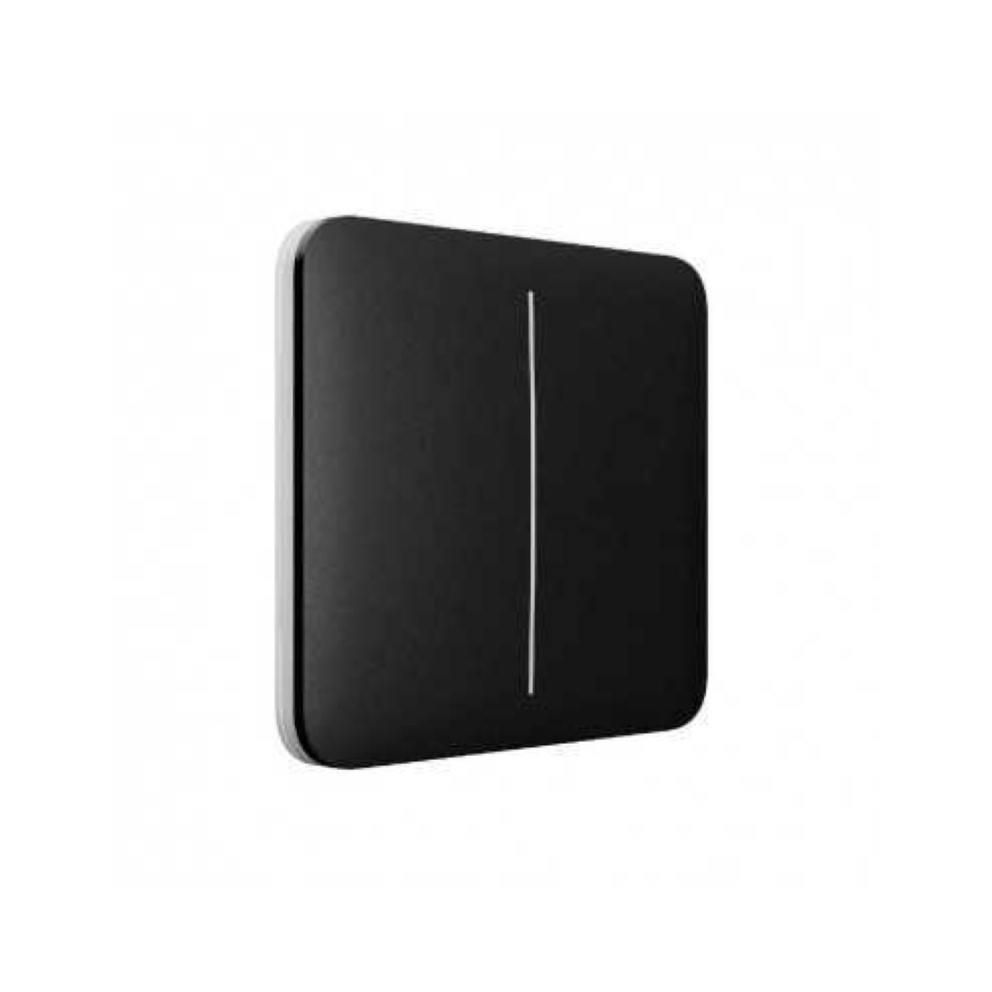

Ajax LightSwitch 2-gang Smart Wi-Fi Jeweller 45111.142.NC

Ajax LightSwitch 2-gang Smart Wi-Fi Jeweller

Wireless smart touch 2-gang light switch

Comfort and security in a touch

This switch is double, and it combines the reliability of professional security systems and a thoughtful user experience. The entire panel is sensitive to touch and even the hand approaching (at a distance of 15 mm). LightSwitch is good to use in the dark thanks to its soft backlight. The 2-gang light switch can do more than just turn on lighting fixtures. It can also simulate the owner's presence and control curtains or blinds remotely with automation scenarios.

Designed for any interior

2-gang touch switch is enchanting with its laconic design and high-end quality hardware. The device will become an appropriate part of a cozy home environment or a high-tech space equally. Highlight the switch on the wall or make it invisible. The appearance is universal and suitable for installation everywhere at home, in the office, production facility, or in any other area.

Enjoy the lighting control

Turn off the light with minimal effort. The entire panel is touch-sensitive and reacts even to reaching the hand, elbow, knee, or another body part less than 15 mm close. This function is indispensable if you want to avoid touching the device or if it's in a public place. At the same time, the touch panel reacts only when it is needed.

The smart 2-gang switch responds even to a touch of a gloved hand. Feel in control of your device with a quiet, lag-free click. The optional backlight allows controlling the lighting even at night without disturbing a comfortable sleep.

Smart features with real value

LightSwitch improves the concept of lighting. It isn't just a standard switch, although it has the straightforward setup and ease of use you'd expect from an Ajax product.

Automation for comfort and security

Set the light to turn off automatically when arming the system or in case of an emergency. Or turn on the light according to a schedule.

A different world of hardware

LightSwitch is a smart lighting control system that provides advanced electrical protection and reliability at the level of professional security systems. It is not necessary to set a neutral wire to connect a 2-gang switch. It is controlled via Ajax developed software and has no problems with crashes or freezes. Also, the device has a tamper to detect the detachment of the touch 2-gang light switch panel.

Unique wireless technologies

For LightSwitch to utilize its smart capabilities, it must communicate with the Ajax hub. Reliance is not placed on popular technologies such as Wi-Fi, Z-Wave, ZigBee, or Bluetooth. Instead, a proprietary Jeweller radio communication technology is used, which fulfils the high industry standards and provides security, range, and energy efficiency. The Jeweller functionality remains unaffected by household disruptions and does not abruptly malfunction or cease an operation.

LightSwitch has up to 1,100 meters of radio communication range in an open space, making it, on average, longer than competing solutions from different manufacturers. Automatic power adjustment makes it energy efficient by not using the maximum power of radio transmitters in system devices on a regular basis. It is also more stable, using less noisy radio frequencies.

Intuitive installation and connection

LightSwitch can be added to the system via QR. It is configured in the app with a few clicks. No neutral is required to power LightSwitch. The depth of LightCore is 25 mm. The smart switch can be installed instead of the old switch without replacing the mounting box and changing the wiring. Color touch panels are quickly replaced without powering down the 2-gang switch.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote configuration via Ajax apps.

Automation scenarios

• security mode change reactions
• scheduled actions
• alarm reactions
• temperature scenarios
• humidity scenarios²
• COâ‚‚ concentration scenarios²
• by pressing another LightSwitch/Button

Specifications:

Maximum effective radiated power (ERP): up to 20 mW

Radio signal modulation: GFSK

Radio communication range: up to 1,100 m

Radio frequency hopping: Radio communication uses frequency hopping to prevent interception and jamming.

Operation without a neutral wire: LightSwitch only needs a live wire to operate.

Power of switched device: from 5 to 300 W per segment

Contactless touch-sensitive panel: LightSwitch is activated when a hand gets as close as 15 mm from the panel.

Night backlight: Optional, can be turned off in the Ajax app device settings.
