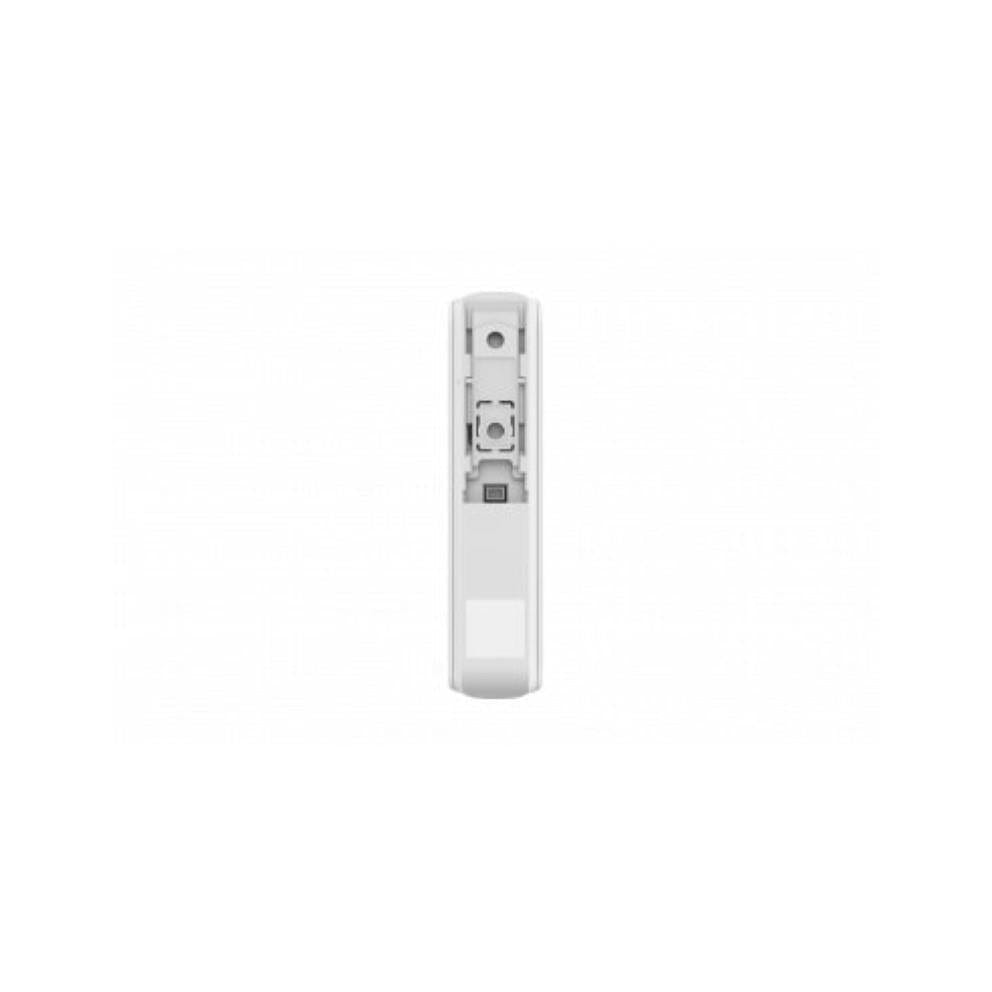

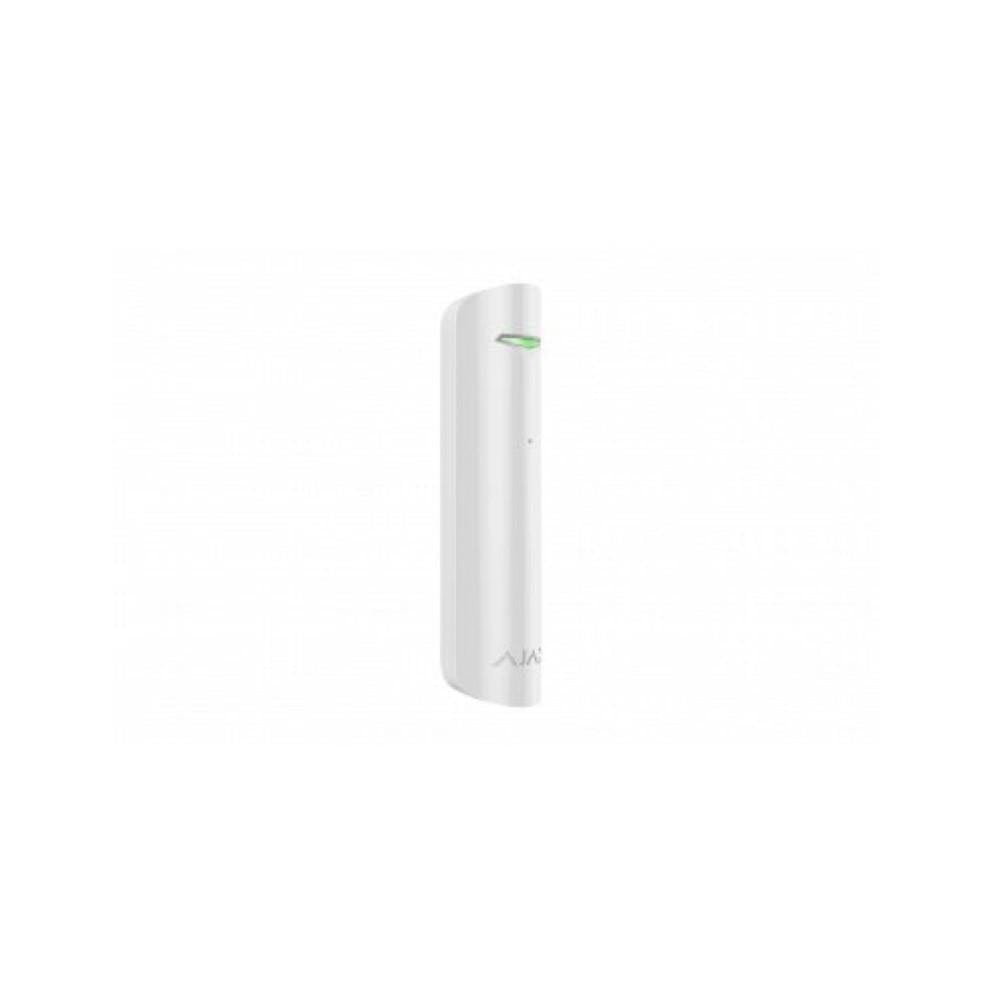

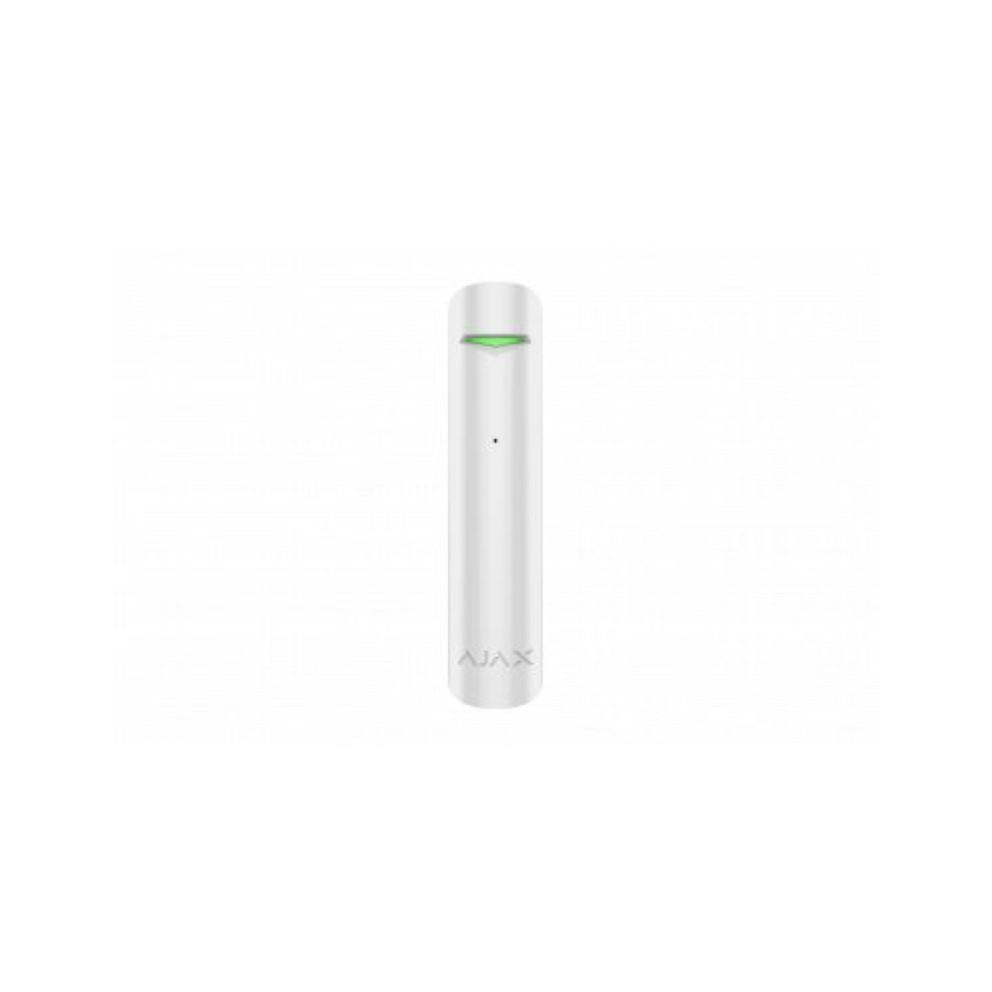

Ajax GlassProtect Wi-Fi Jeweller White 5288.05.WH1

Ajax GlassProtect Wi-Fi Jeweller White

Intruders can break silence, not security

Forget about the typical problem of glass break detectors false alarms caused by barking dogs, traffic, water splashing, and extraneous noise. GlassProtect Jeweller has a unique DualTone digital algorithm designed to minimize false alarms. The detectorʼs microphone responds only to vibrations characteristic of the glass breaking sound. You can adjust one of three sensitivity levels and run the test to check if everything works properly.

Enhanced glass break detection

GlassProtect Jeweller uses a sensitive electret microphone and the DualTone digital algorithm to detect the sound of glass breaking. To register a glass break and report an alarm, the device must detect a dull (low-frequency) sound of an impact and a ringing (high-frequency) sound of glass breaking in 1.5 seconds. This two-stage glass break detection algorithm decreases the risk of false alarms. Three sensitivity levels can be configured in the Ajax app, making the detector suitable for any object.

GlassProtect Jeweller doesn’t respond to the breaking of glass covered with shockproof, sunscreen, decorative, or any other film. To detect such glass breaking, we recommend using DoorProtect Plus Fibra, DoorProtect S Plus Jeweller, or DoorProtect G3 Fibra detectors with shock and tilt sensors.

Easy integration with third-party detectors

GlassProtect Jeweller has terminals for connecting a third-party wired NC detector. This allows the installer to enhance system reliability with any NC detector, whether newly installed or already in place, such as motion, opening, or vibration detectors. For example, GlassProtect Jeweller enables you to integrate an existing third-party opening detector into the system.

Wire-free flexibility and reliable performance

Baseline devices operate without any wires, offering maximum flexibility during installation. The pre-installed CR123A battery from proven manufacturers ensures a hassle-free setup, requiring no additional steps to start operating the devices. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the battery characteristics. The battery can be easily replaced after approximately five years of autonomous operation. Its status is always accessible in the Ajax app. Users and security companies receive low battery level notifications months in advance, allowing for timely replacement without rushing.

Unique wireless technology

An Ajax system uses two-way secure radio communication based on the Jeweller proprietary protocol. It provides block encryption and device authentication at each communication session with the hub to prevent sabotage, spoofing, or data theft.

Scaled and comprehensive

ReX 2 Jeweller boosts the radio range of all Ajax devices via Jeweller and ensures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basement, or metal hangar.

Effortless installation and setup

GlassProtect Jeweller is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Discover future-proof hardware

• Electret microphone
• Pre-installed battery
• Tamper against detaching the detector from the surface
• Jeweller antenna
• Terminals to connect a third-party NC detector
• SmartBracket mounting panel
• Opening detector
• Vibration detector
• Motion detector

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Specifications:

Maximum effective radiated power (ERP): up to 20 mW

Radio signal modulation: GFSK

Radio communication range: up to 1,100 m

Sensitive element: electret microphone

Glass break detection distance: from 0.3 to 9 m

Glass break detection angle: horizontal: 180°

Sensitivity: 3 levels

Tamper alarm: Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Battery: 1 × CR123A

Calculated battery life: up to 7 years

Dimensions: 90 × 20 × 20 mm

Weight: 30 g

Protection class: IP50

Colour: White
