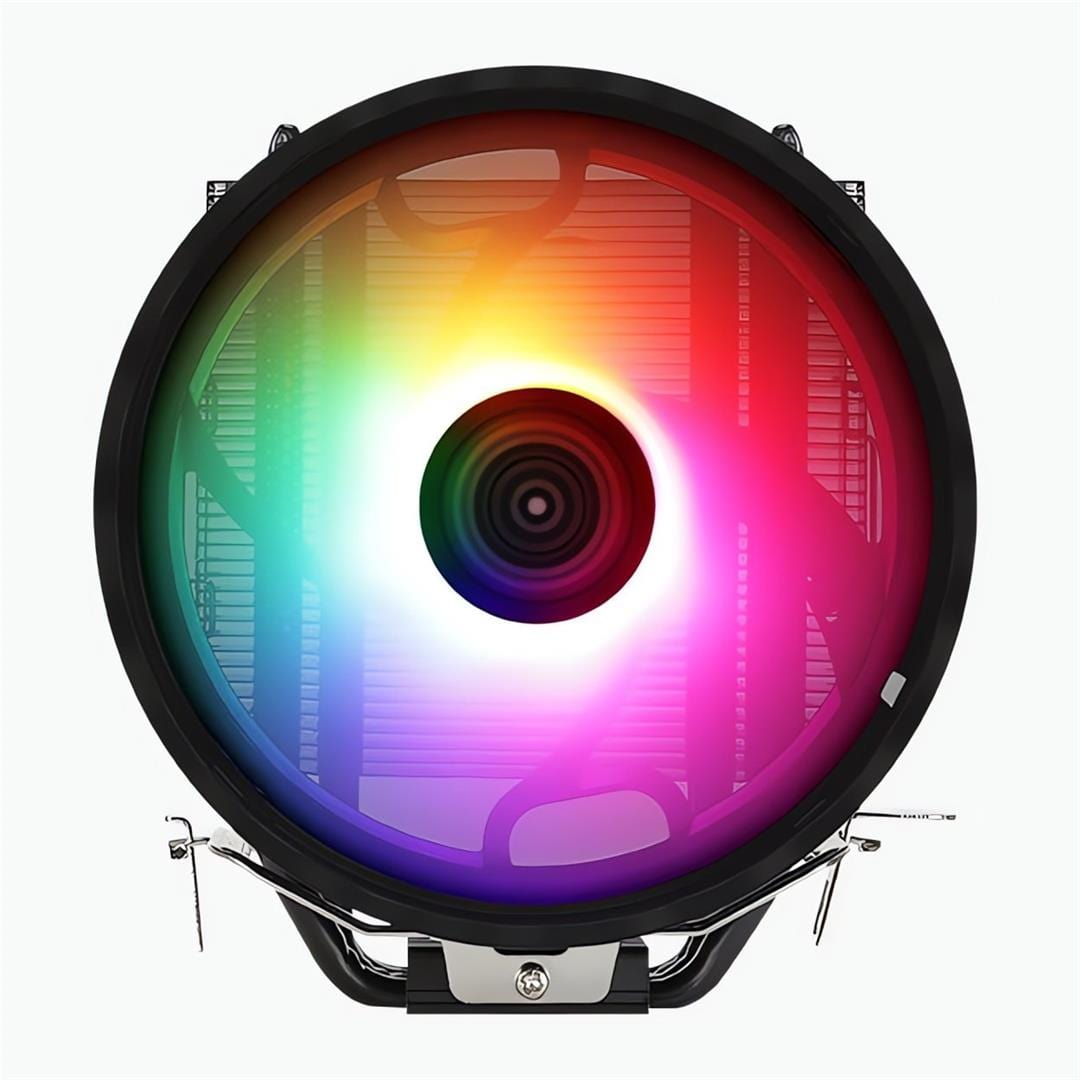

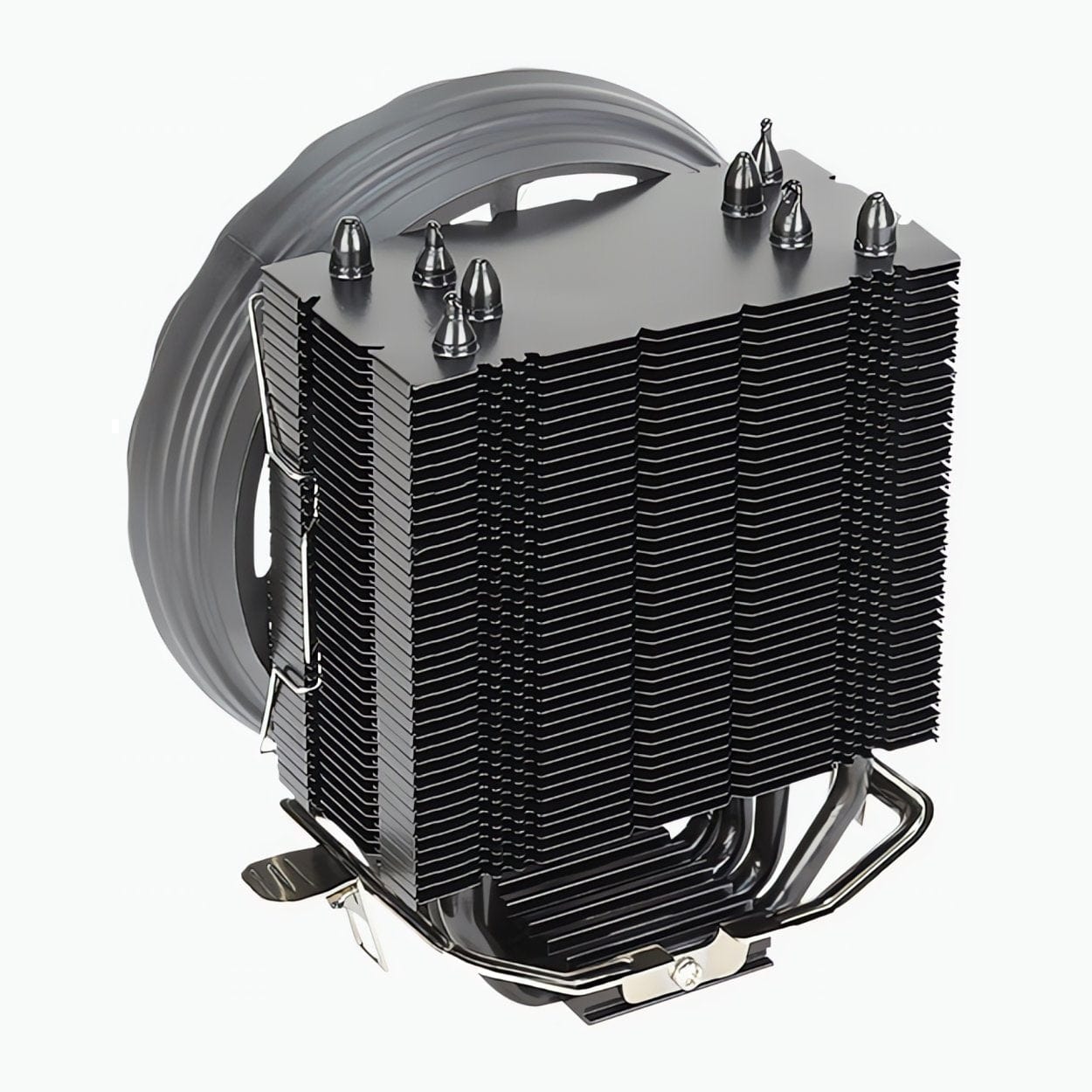

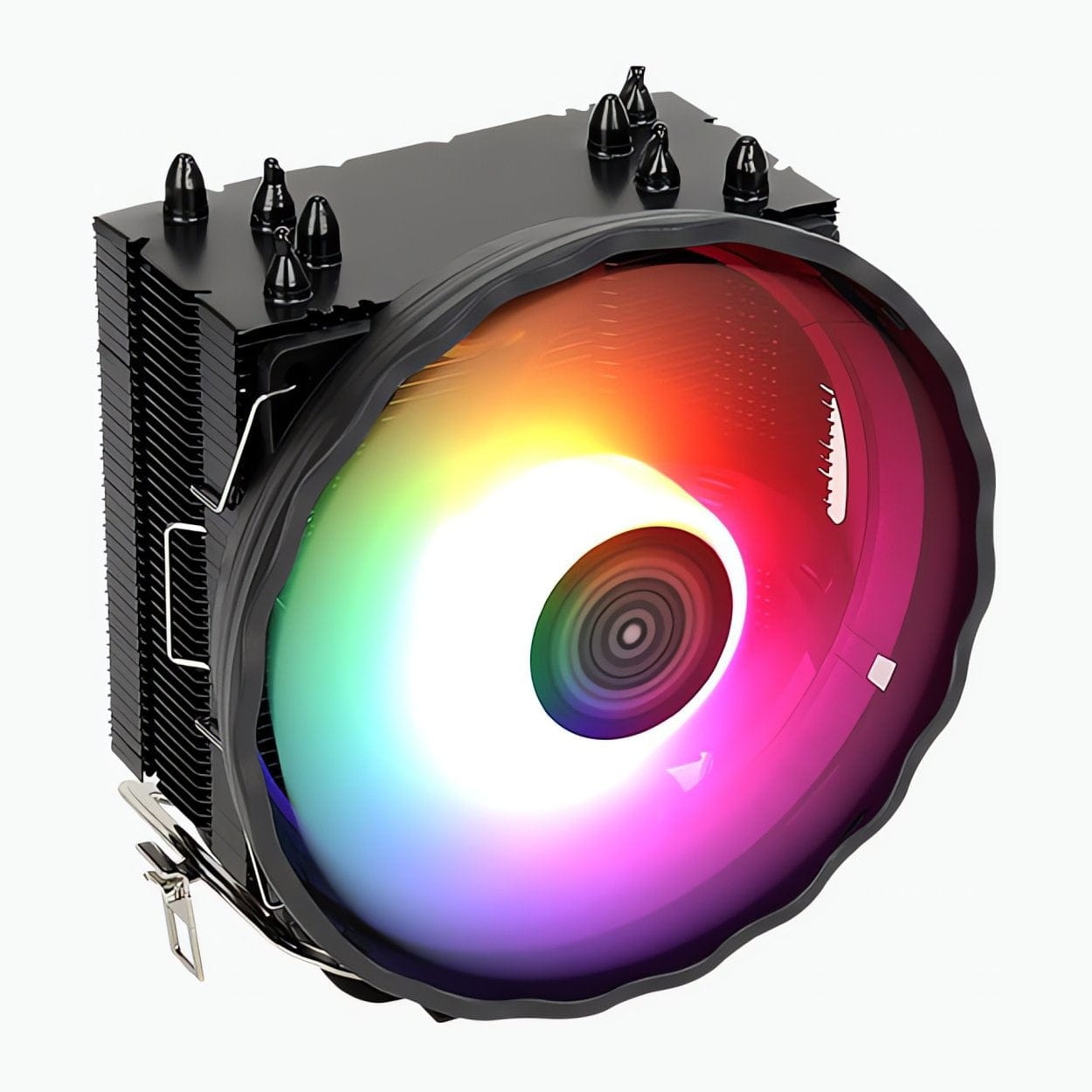

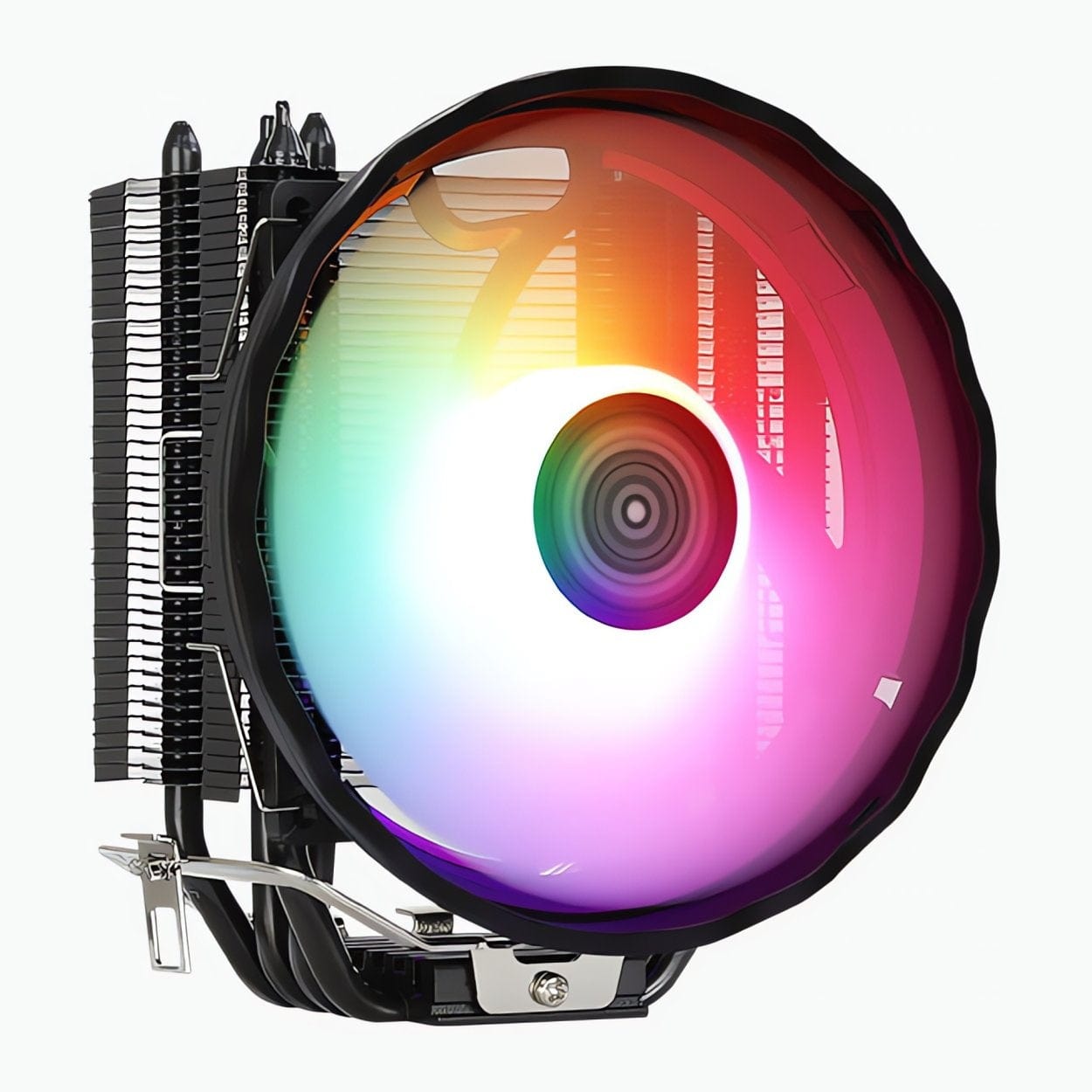

Aerocool Rave 4 ARGB CPU Air Cooler ACTC-RV30417.02

Aerocool Rave 4 ARGB CPU Air Cooler ACTC-RV30417.02

PWM air cooling solution with a 12cm ARGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increases heat dissipation area and improves efficiency of dissipation.

Features

• PWM air cooling solution with 12cm ARGB fan with translucent fan blades
• Compatible with Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion) or hubs (H66F)
• Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
• Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities
• Upgraded high efficiency fins for maximum thermal performance
• Compatible with most current motherboard designs

Technical Specification

Model: Rave 4 ARGB PWM 4P

Base Material: Aluminum block with HCTT Heat Core Touch Technology

Fin Material: Aluminum

Heat pipe: Dia. 6mm x 4

Dimension: 125 x 80 x 135mm

TDP(Thermal Design Power): 130W

Fan Speed: 900 - 1800 rpm

Connector: PWM 4-Pin

Dimension: 120 x 120 x 25mm

Bearing Type: Hydraulic Bearing

Started Voltage: 5V

Rated Voltage: 12V

Rated Current: 0.5 A

Power Consumption: 6 Watts

Air Pressure: 0.6 - 1.6 mm-H2O

Air Flow: 24.1 - 58.0 CFM

Noise: 18 - 27 dBA

MTBF (Mean Time Before Failure): 60000 hrs.

Socket

• LGA 1700 / 1200 / 115X / 775
• AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging.
