AeroCool Phantom M-3 120mm PWM ARGB Infinity Mirror Case Fan - Black ACF3-MR11217.11
The AeroCool Phantom M-3 120mm PWM ARGB Case Fan (ACF3-MR11217.11) combines efficient PC cooling with a distinctive three-sided Infinity Mirror lighting design. Its 9-blade fan delivers up to 50.2 CFM of airflow and 1.44 mmHâ‚‚O of static pressure, while PWM control provides an operating speed range of 500 ±200 to 1800 RPM ±10%. Addressable RGB lighting supports 16.8 million colours and synchronization with compatible ASUS Aura Sync, MSI Mystic Light Sync and Gigabyte RGB Fusion motherboards.
Key Features
- 120mm PWM Cooling: Variable-speed PWM operation automatically adjusts fan speed according to system cooling requirements.
- Three-Sided Infinity Mirror: ARGB Infinity Mirror elements on the left, right and centre of the fan create a distinctive multi-angle lighting effect.
- Addressable RGB: Supports 16.8 million colours for extensive lighting customization.
- Motherboard RGB Sync: Compatible with ASUS Aura Sync, MSI Mystic Light Sync and Gigabyte RGB Fusion.
- 9-Blade Design: Nine fan blades are designed to increase static pressure and improve heat dissipation.
- Up to 50.2 CFM Airflow: Provides effective airflow for PC chassis cooling.
- 1.44 mmHâ‚‚O Static Pressure: Delivers focused airflow for effective system ventilation.
- Hydraulic Bearing: Provides smooth operation with an MTBF rating of 30,000 hours.
- Anti-Vibration Design: Eight shock-absorbing pads help reduce vibration and resonance noise.
- Black Finish: Designed to complement gaming and enthusiast PC builds.

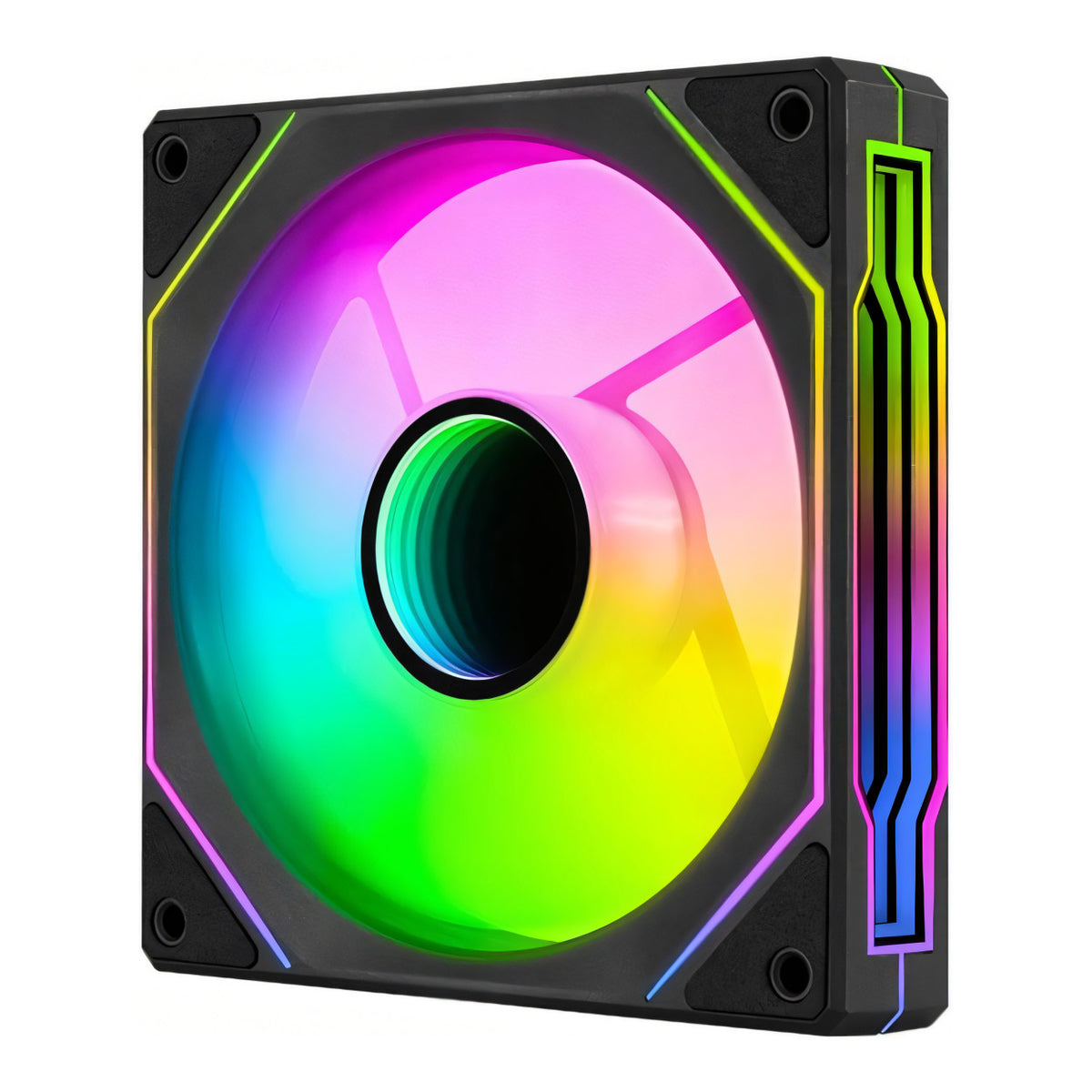

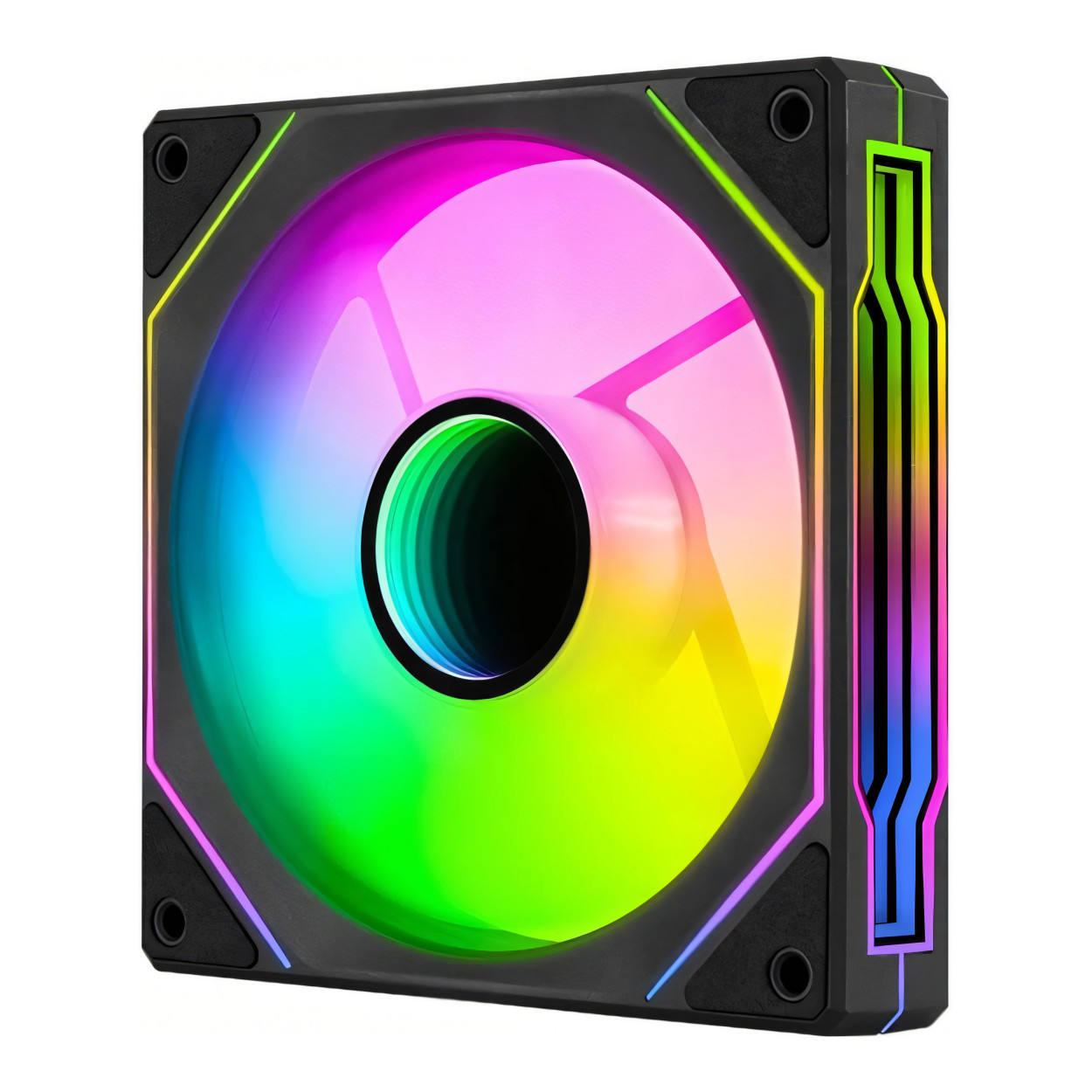

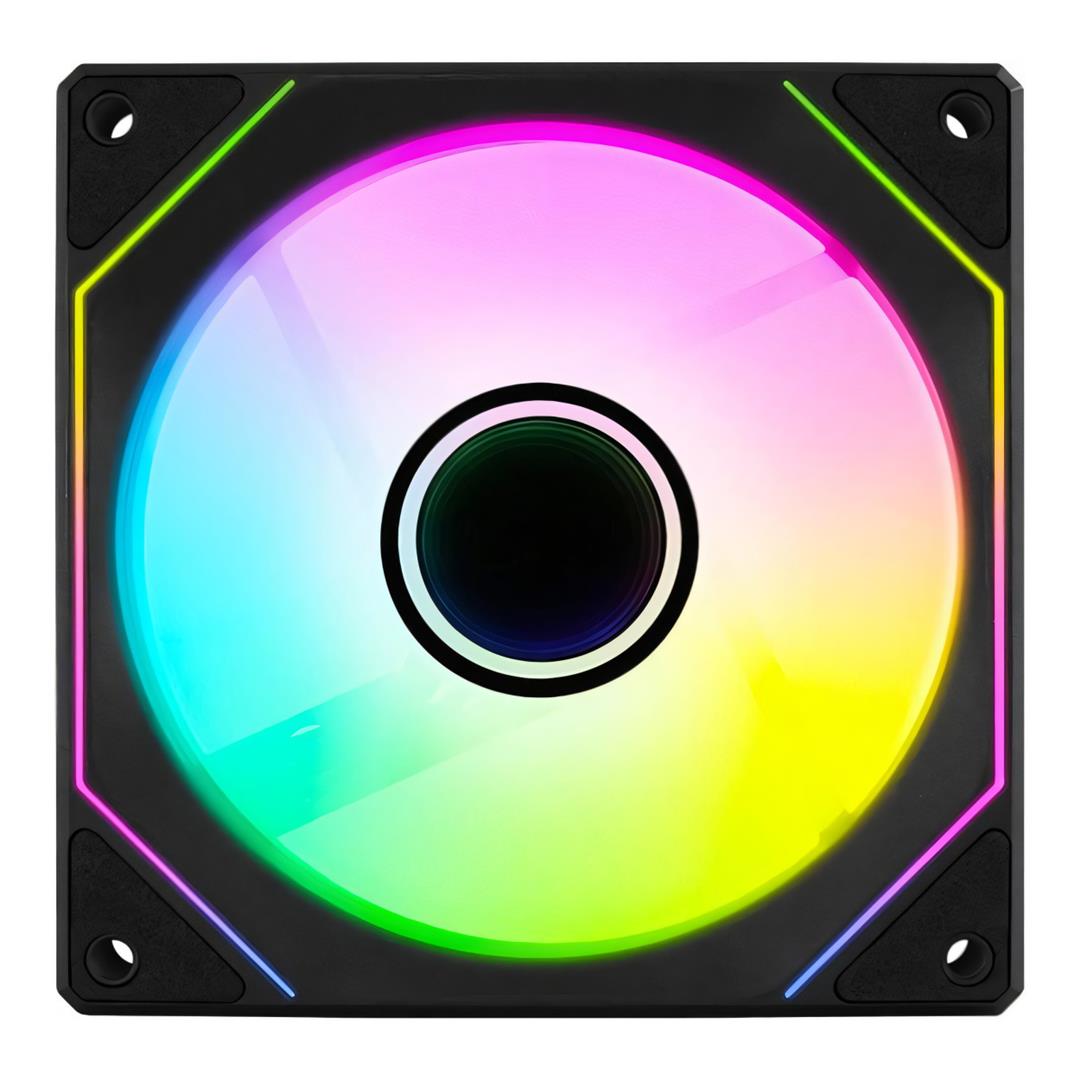

ARGB Infinity Mirror Lighting
The Phantom M-3 features a three-sided Infinity Mirror ARGB design with illuminated mirror effects on the left side, right side and centre of the fan. When connected to a compatible 5V addressable RGB header, the lighting can be synchronized with supported motherboard lighting software and customized using up to 16.8 million colours.
Cooling Performance
| Specification | Details |
|---|---|
| Fan Size | 120mm |
| Fan Speed | 500 ±200 to 1800 RPM ±10% |
| Maximum Airflow | 50.2 CFM |
| Maximum Static Pressure | 1.44 mmHâ‚‚O |
| Maximum Noise Level | 30.8 dB(A) |
| Fan Blade Count | 9 |
| Bearing Type | Hydraulic Bearing |
| MTBF | 30,000 Hours |
| Anti-Vibration Pads | 8 |
Lighting & Connectivity
| Specification | Details |
|---|---|
| Lighting Type | Addressable RGB (ARGB) |
| Lighting Design | Three-Sided Infinity Mirror |
| Available Colours | 16.8 Million Colours |
| Fan Connector | 4-Pin PWM |
| ARGB Connector | 5V 3-Pin ARGB |
| RGB Software Compatibility | ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion |
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AeroCool |
| Product Name | Phantom M-3 120mm PWM ARGB Infinity Mirror Case Fan |
| Model | Phantom M-3 12 PWM ARGB BK |
| Manufacturer Part Number | ACF3-MR11217.11 |
| Product Type | PC Case Fan |
| Colour | Black |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Speed | 500 ±200 to 1800 RPM ±10% |
| Maximum Airflow | 50.2 CFM |
| Maximum Air Pressure | 1.44 mmHâ‚‚O |
| Maximum Noise Level | 30.8 dB(A) |
| Bearing Type | Hydraulic Bearing |
| Fan Connector | 4-Pin PWM |
| ARGB Connector | 5V 3-Pin ARGB |
| Starting Voltage | 3.5 V |
| Rated Voltage | 12 V |
| Rated Current | 0.3 A |
| Power Consumption | 3.96 W |
| Fan Blades | 9 |
| Lighting | Addressable RGB |
| Lighting Colours | 16.8 Million |
| Infinity Mirror Design | Three-Sided - Left, Right and Centre |
| Anti-Vibration Pads | 8 |
| MTBF | 30,000 Hours |
| PWM Support | Yes |
What's Included:
- 1 × AeroCool Phantom M-3 120mm PWM ARGB Case Fan - Black (ACF3-MR11217.11)
Please Note: The ARGB lighting requires a compatible 5V addressable RGB connection. It should not be connected to a standard 12V non-addressable RGB header. Lighting synchronization features depend on motherboard and software compatibility.
The AeroCool Phantom M-3 120mm PWM ARGB Infinity Mirror Case Fan combines adjustable PWM cooling, up to 50.2 CFM airflow, hydraulic-bearing operation and distinctive three-sided ARGB Infinity Mirror lighting for gaming and showcase PC builds.
