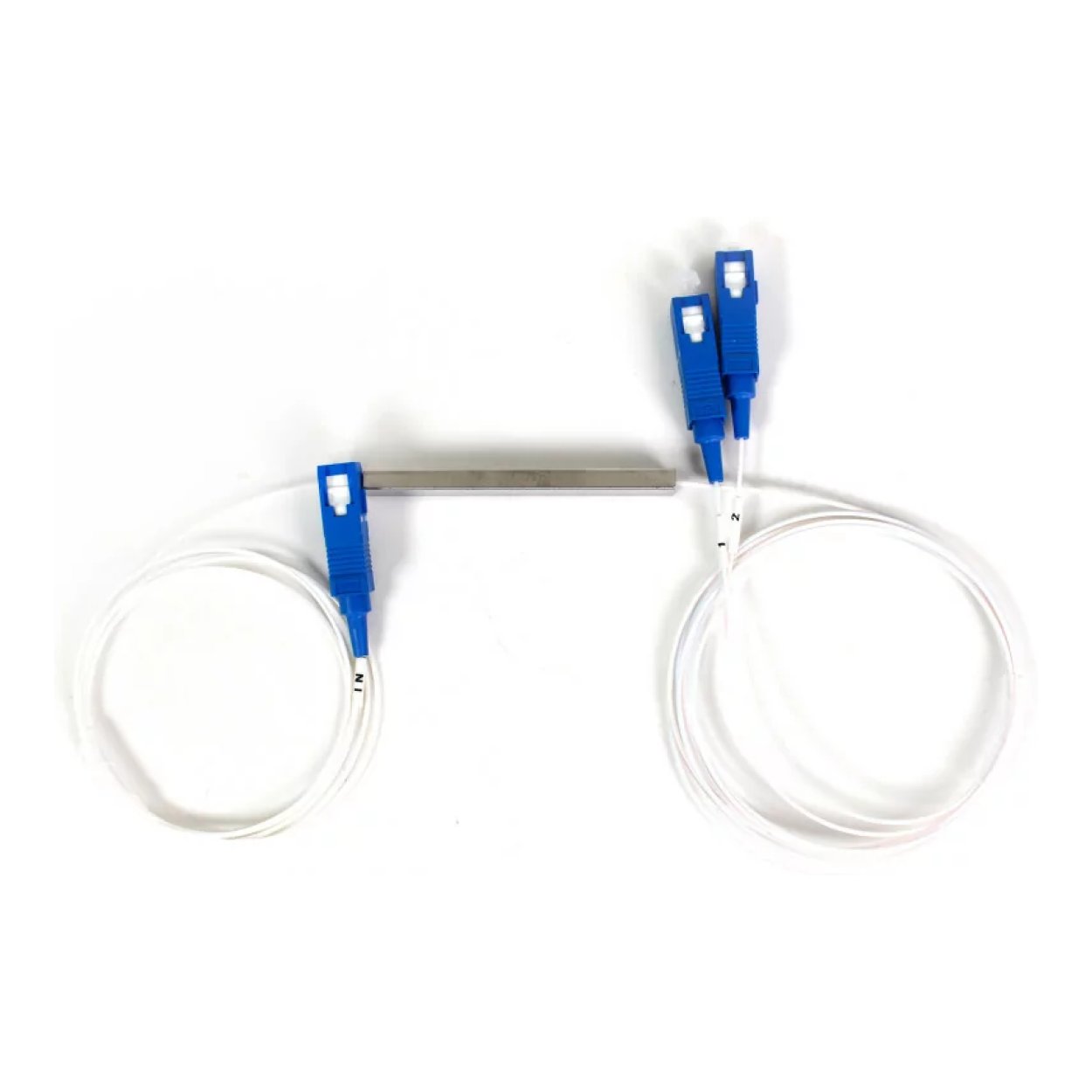

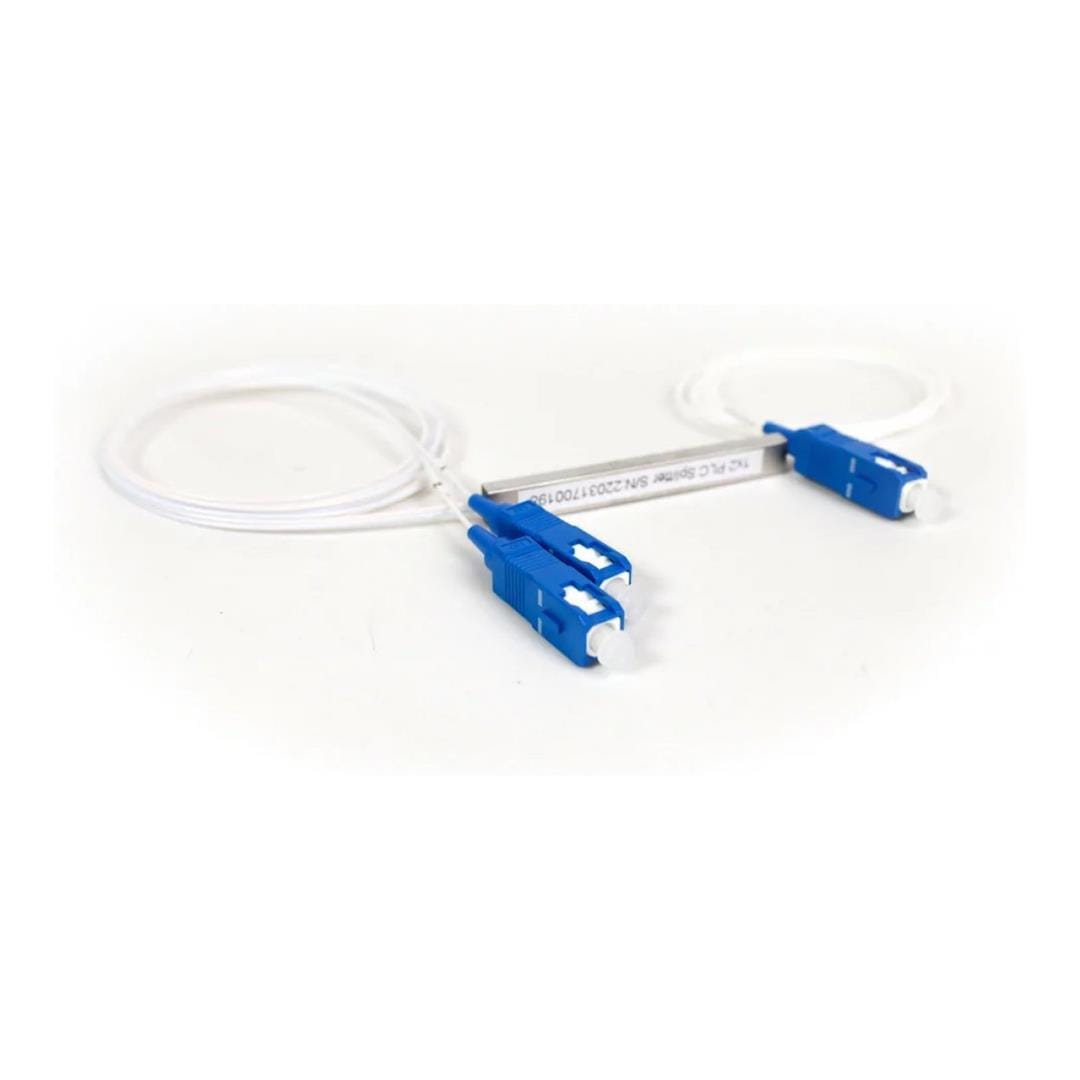

Acconet Fibre Splitter 1/2 FIB-SPLIT-2
The Acconet FIB-SPLIT-2 is a passive 1×2 PLC fibre optic splitter designed for Fibre-to-the-Home (FTTH), GPON and EPON deployments. Using Planar Lightwave Circuit (PLC) technology, it evenly distributes a single optical signal to two output fibres while maintaining low insertion loss and excellent signal uniformity. It is ideal for service providers, enterprise fibre networks and passive optical network (PON) installations.
Key Features
- 1 × 2 passive PLC optical splitter.
- Single-mode fibre operation.
- SC/APC fibre connectors.
- Designed for GPON and EPON networks.
- Low insertion loss.
- Uniform optical signal distribution.
- Compact installation-friendly design.
- No external power required.
Reliable Optical Signal Distribution
The PLC splitter divides a single incoming optical signal into two equal outputs while maintaining excellent wavelength performance and stable signal transmission across the supported optical spectrum.
Designed for Passive Optical Networks
Suitable for GPON, EPON and FTTH deployments, the splitter enables efficient optical signal distribution for residential, commercial and enterprise fibre installations.
Compact Passive Design
Because the splitter is entirely passive, it requires no electrical power, making it highly reliable with minimal maintenance requirements throughout its service life.
Professional Fibre Installation
The factory-terminated SC/APC connectors simplify deployment while minimising reflection, making the splitter suitable for high-performance optical access networks.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Acconet |
| Manufacturer Part Number | FIB-SPLIT-2 |
| Alternative Part Number | AC-FIB-SPLIT-2 |
| Product Type | PLC Fibre Optic Splitter |
| Splitter Configuration | 1 × 2 |
| Splitter Technology | Planar Lightwave Circuit (PLC) |
| Fibre Type | Single-Mode (ITU-T G.657A1 / G.652D Compatible) |
| Connector Type | SC/APC |
| Operating Wavelength | 1260–1650 nm |
| Insertion Loss | ≤ 4.2 dB (Typical for 1×2 PLC Splitter) |
| Return Loss | ≥ 55 dB (SC/APC) |
| Uniformity | ≤ 0.8 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to 85°C |
| Power Requirement | None (Passive Device) |
| Applications | GPON, EPON, FTTH, FTTB, Passive Optical Networks (PON), Fibre Distribution Networks and Telecommunications Infrastructure |
| Colour | Green / White (Connector Dependent) |
| What's in the Box | 1 × Acconet FIB-SPLIT-2 1×2 PLC Fibre Optic Splitter |
The Acconet FIB-SPLIT-2 provides reliable passive optical signal splitting with low insertion loss and excellent signal uniformity, making it an ideal component for GPON, EPON and FTTH fibre network deployments.
