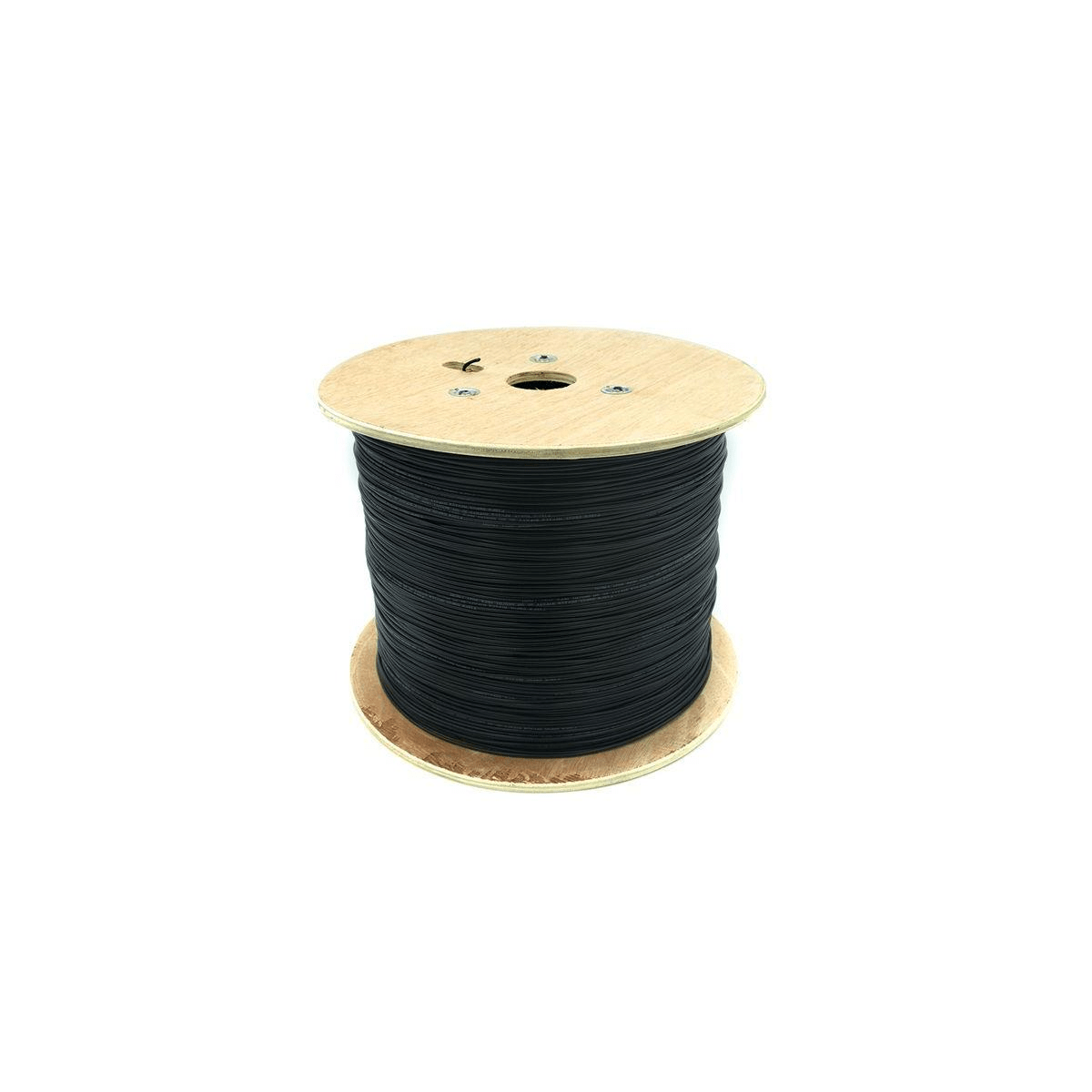

Acconet Drop Cable 2km 2 Core G657A2 FIB-CAB-DROP-2

Acconet Drop Cable 2km 2 Core G657A2 FIB-CAB-DROP-2

2km drum of black 2 core G657A2 last-mile fibre optic cable suitable for floating or blowing in an 8/5mm duct or direct installation for all your last mile needs. The cable`s construction consists of 2 G657A1 single-mode fibres (blue and orange) in a clear central tube filled with a water blocking compound. The cable contains Aramid yarn strands for tension strength and is finally packaged in a 2.6mm outer diameter (OD) black HDPE sleave.

Features:
Low Outer Diameter (2.6mm) for ease of installation
Black outer sheath offers UV protection
Floatable or blowable in an 8/5mm duct
Compatible with G652D, G657A1 or G657A2 networks
Water blocking compound in central tube offers protection against water damage of fibres
Aramid yarns offer a high degree of tensile strength
Test report supplied on drum

Specifications:
2 Fibre Cores (Blue and Orange)
G657A1 Single Mode Fibre
Clear 1.6 +- 0.1mm Central PBT tube
Water blocking compound surrounding fibres
Black HDPE Jacket with Outer Diameter of 2.6 +- 0.2mm
300N Tensile Strength derived from Aramid yarn
7.5kg/km
Static bending??10 times the cable outer diameter
Dynamic bending??20 times the cable outer diameter
1310nm ? 0.4 dB/km Attenuation
1550nm ? 0.3 dB/km Attenuation

What's in the box
1 X 2 000m (2km) Drum Black 2 Core Fibre Optic Cable
