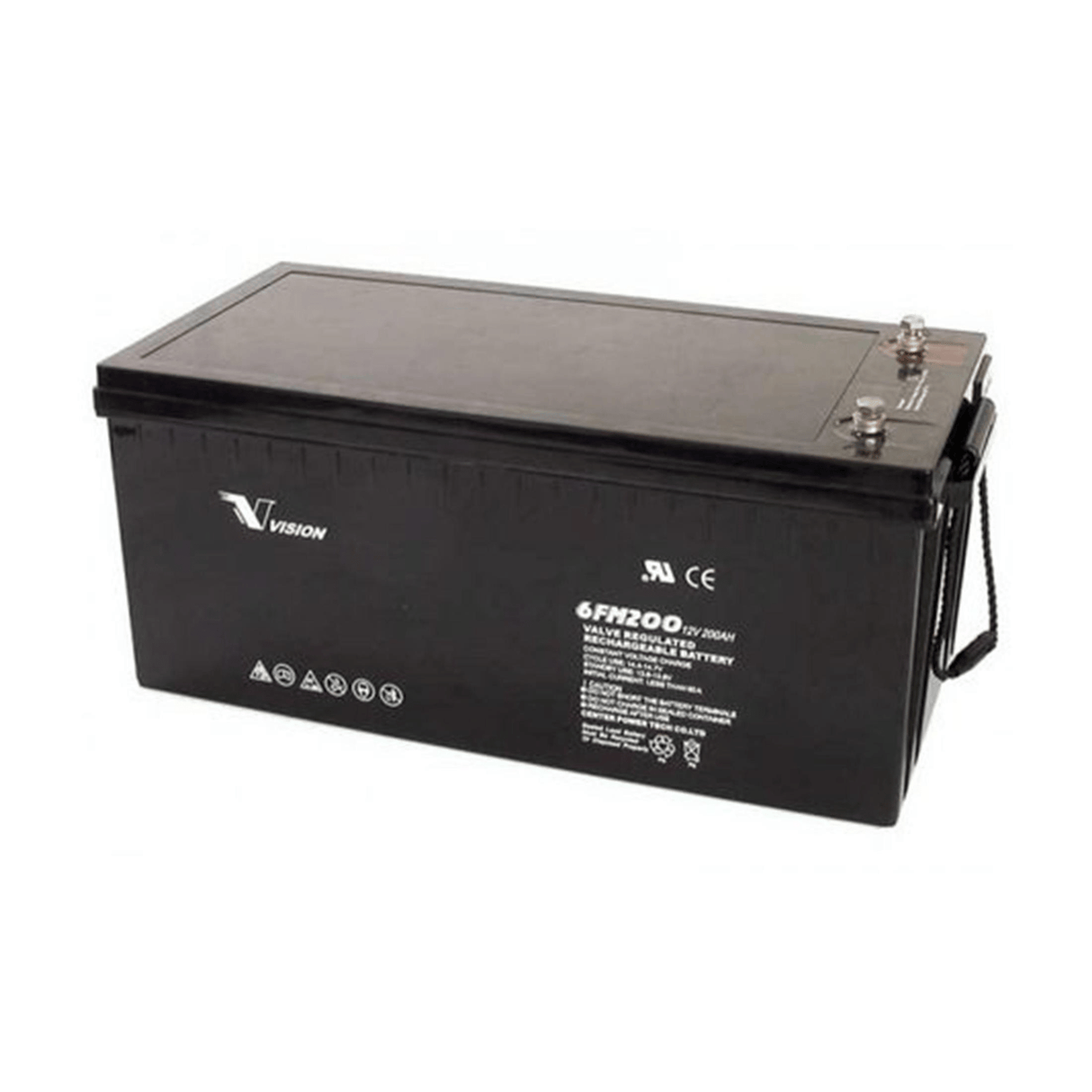

Vision Deep Cycle AGM Battery 6FM200Z-X

Vision Deep Cycle AGM Battery 6FM200Z-X

The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way
valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.

Specifications

• Positive plate: Lead dioxide
• Negative plate: Lead
• Container: ABS
• Cover: ABS
• Safety valve: Rubber
• Terminal: Copper
• Separator: Fiberglass
• Electrolyte: Sulfuric acid
• Performance Characteristics
• Nominal Voltage: 12V
• Capacity: 200 Ah
• Number of cell: 6
• Design Life: 12 years
• Nominal Capacity 77oF(25oC)
• 10 hour rate (20.0A, 10.8V)
• 200Ah
• 5 hour rate (35.8A, 10.5V)
• 179.0Ah
• 3 hour rate (52.9A, 10.5V)
• 158.7Ah
• 1 hour rate (126A, 9.6V)
• 126Ah

Internal Resistance
Fully Charged battery 77oF(25oC)
