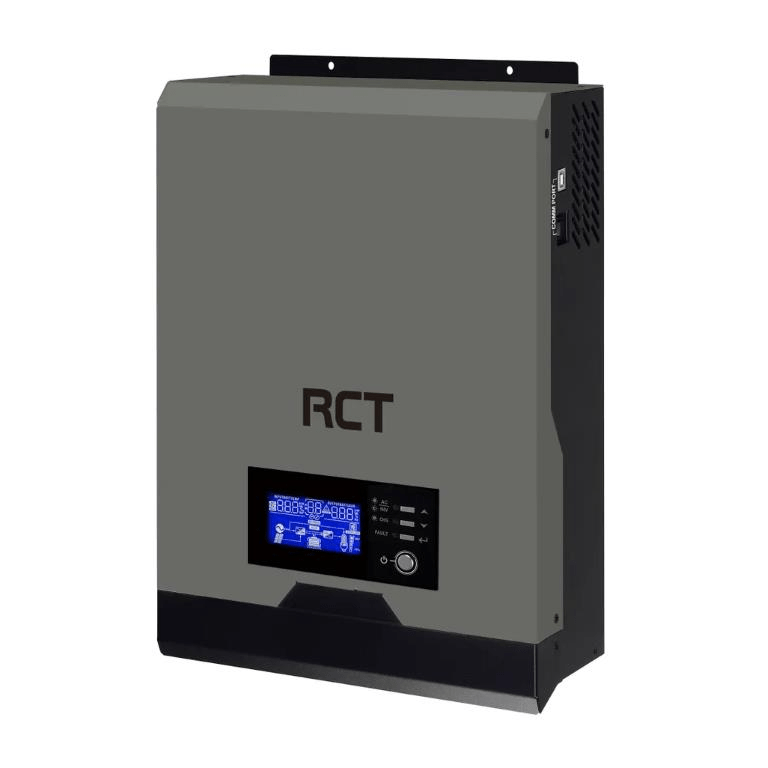

RCT Axpert VM 1kVA 1kW 12VDC Inverter

RCT Axpert VM 1kVA 1kW 12VDC Inverter

This is a multi-functional cost-effective solar inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features

• Pure sine wave inverter
• Output Power factor 1
• Selectable high power charging current
• Wide DC input voltage
• Selectable input voltage range for home appliances and personal computers
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short Circuit protection
• Smart battery charger design for optimised battery performance
• Cold start function

Specifications
Rated Power: 1000va/1000w
Waveform: Pure sine
Voltage: 230V AC
Frequency Range: 50Hz/60Hz (Auto Sensing)
AC Voltage Regulation (Batt. Mode): 230V AC ± 5%
Surge Power (5 Seconds): 2000VA
Efficiency (Peak): 93%
Transfer Time: 10 ms (PC); 20 ms (home Applicance)
Battery voltage: 12 V DC
Floating Charge Voltage: 13.5V DC
Over Charge Protection: 16V DC
Maximum PV Array Power: 500W
MPPT Range@ Operating Voltage: 17V DC - 80V DC
Maximum PV Array Open Voltage: 102V DC
Maximum Solar Charge Current: 40A
Maximum AC Charge Current: 20A
Maximum Charge Current: 60A
Parallel Capabilities: No
Build in BMS Communication: No
