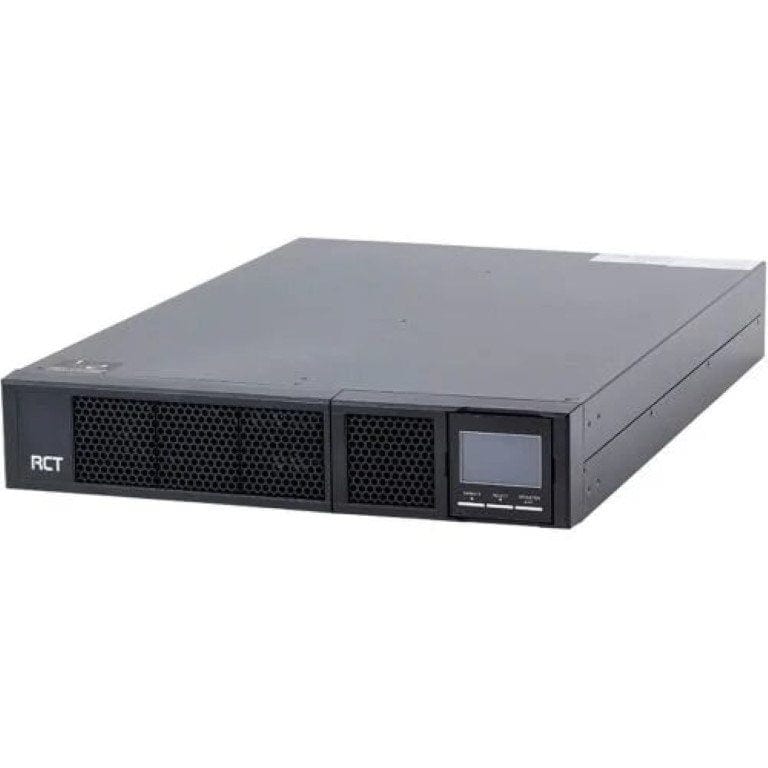

RCT 3000VA/2400W Online Rackmount UPS 3000-WPRU

RCT 3000VA/2400W Online Rackmount UPS 3000-WPRU

The RCT 3000-WPRU is a high-performance 3000VA/2400W online double-conversion UPS designed to provide continuous, clean power protection for servers, network equipment, storage systems, and other mission-critical devices. Its true online architecture continuously converts incoming AC power to DC and back to AC, ensuring connected equipment remains protected from power interruptions, voltage fluctuations, surges, and electrical noise.

Featuring a 2U rackmount form factor, pure sine wave output, and integrated battery backup, the UPS is well suited to data centres, server rooms, network cabinets, and business-critical IT environments. Advanced monitoring capabilities, optional SNMP management, and fast battery recharge further enhance reliability and ease of management.

Features:

• 3000VA / 2400W power capacity
• True online double-conversion UPS technology
• Pure sine wave output
• 2U rackmount design
• Zero transfer time during mains power failure
• Built-in surge and power protection
• LCD status display
• High input power factor (≥ 0.99)
• Smart RS-232 and USB communication ports
• Optional SNMP remote management
• Energy-saving ECO mode
• Fast battery recharge capability
• Suitable for servers, storage systems, switches, and network infrastructure

Specifications:

Model: 3000-WPRU

UPS Topology: Online Double Conversion

Capacity: 3000VA / 2400W

Form Factor: 2U Rackmount

Output Waveform: Pure Sine Wave

Input Voltage: 100–127VAC or 200–240VAC

Input Frequency Range: 40Hz – 70Hz

Output Voltage Regulation: ±1%

Transfer Time: 0ms (AC to Battery)

Efficiency (AC Mode): Up to 90%

Efficiency (Battery Mode): Up to 88%

Battery Type: 6 × 12V 9Ah Sealed Lead-Acid Batteries

Recharge Time: Approximately 4 Hours to 90% Capacity

Communication Ports: USB, RS-232

Remote Management: Optional SNMP Card

Display: LCD Status Display

Noise Level: <50dB at 1m

Dimensions: 630 × 438 × 88mm

Weight: 29.3kg

Operating Humidity: 20%–90% RH (Non-Condensing)
